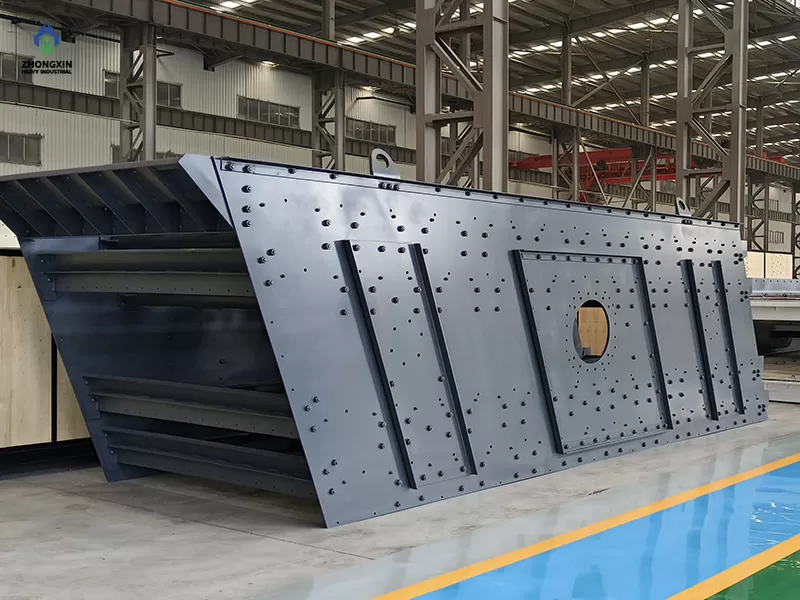

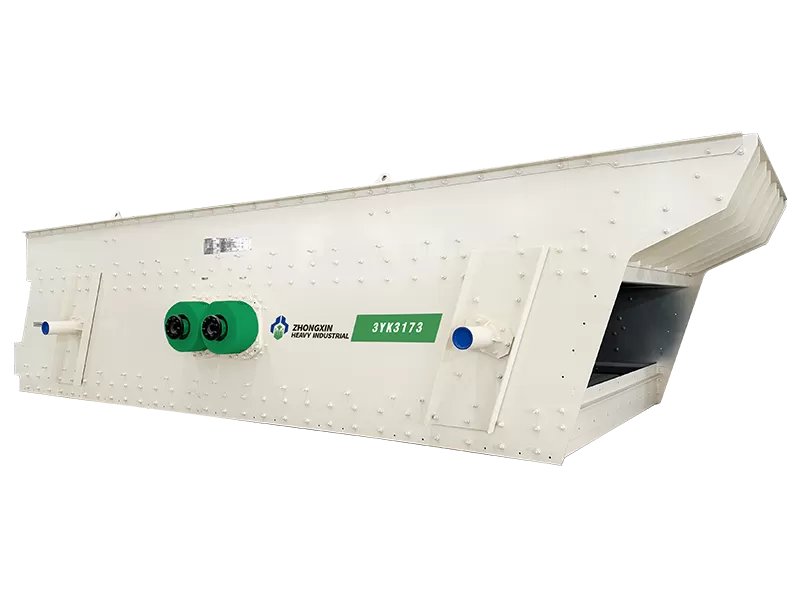

YK Circular Vibrating Screen

Type

Necessary Auxiliary Equipment

Capacity

30-800TPH

Processed Materials: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, etc.

Applications: Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

Social Media

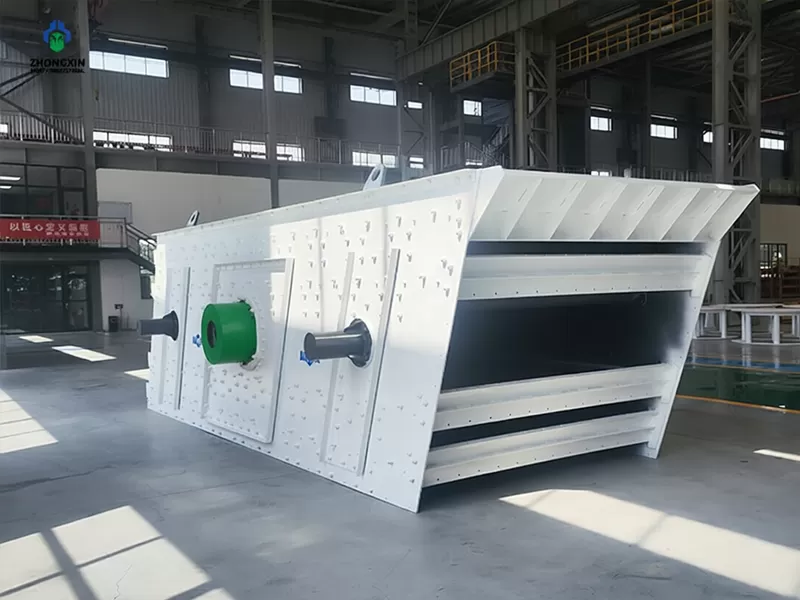

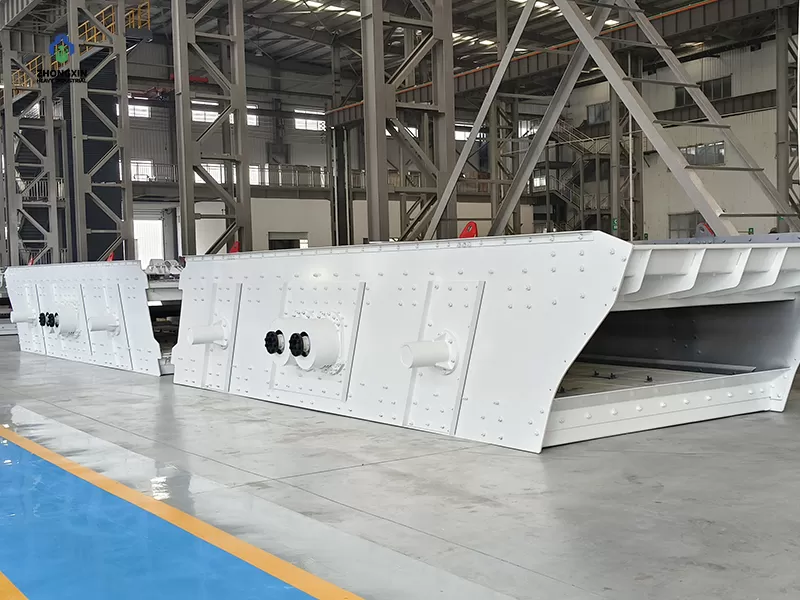

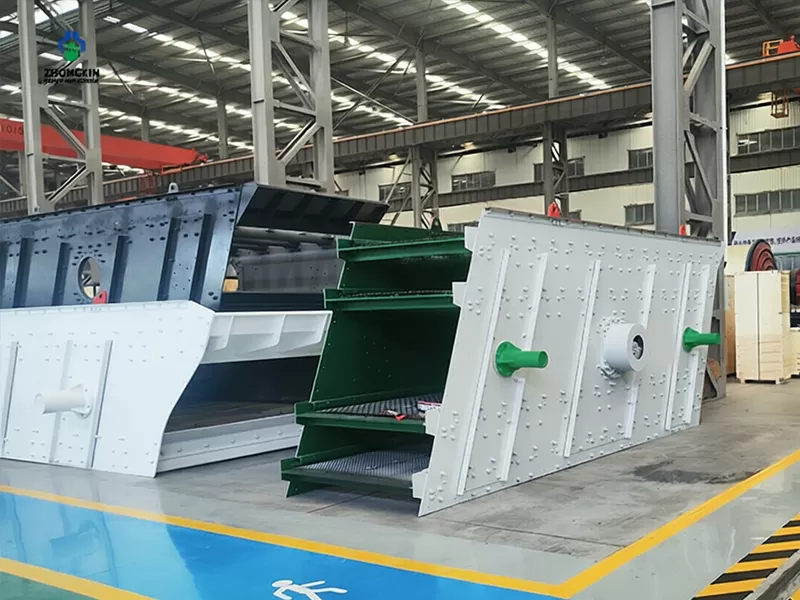

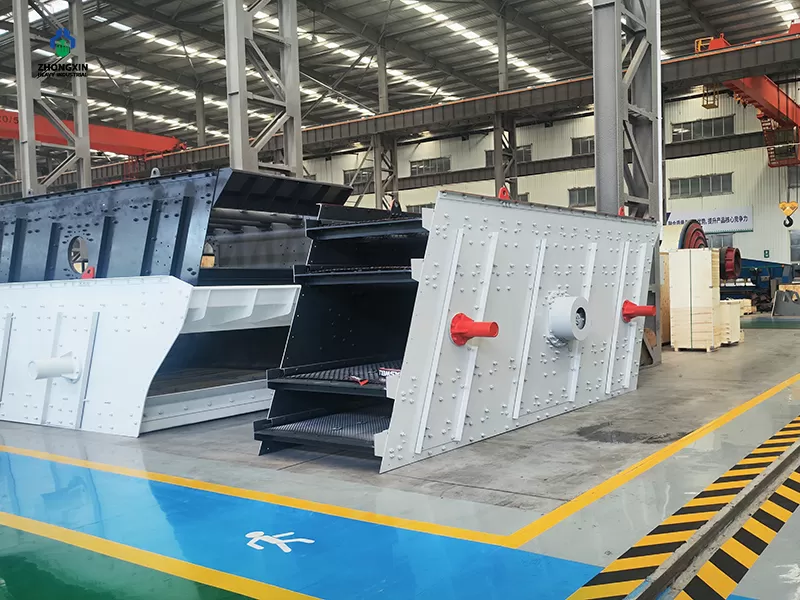

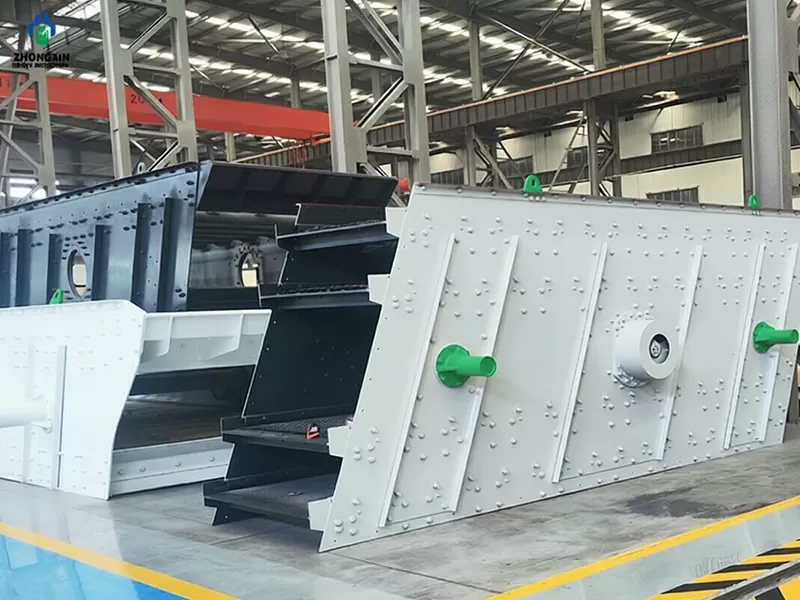

YK Series Circular Vibrating Screen – Product Overview

◎Based on international mainstream structures, our company has designed a vibrating screen better suited for modern screening processes. Each screen is equipped with an exciter connected to a universal shaft. The shaft system is positioned at the center of gravity, generating full-range circular vibrating motion. The installation inclination angle is also adjustable.

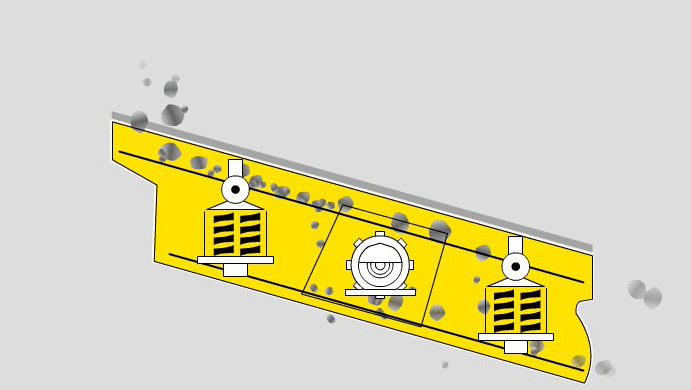

◎This circular motion design ensures optimal screening efficiency for coarse, medium, and fine crushing applications. By positioning the shaft at the center of gravity, the screen achieves balanced vibration across the entire surface, eliminating uneven movement and reducing frame stress.
◎The adjustable angle provides flexibility for different materials. A steeper angle moves heavy materials quickly, while a shallower angle allows more retention time for precise separation. This versatility suits mining, aggregate production, and recycling.
◎Compared to conventional designs, our screen offers improved efficiency, reduced maintenance, and longer service life, delivering reliable performance for any screening application.

Advantages of Jiaozuo Zhongxin Heavy Industry's YK Series Circular Vibrating Screen and reasons to choose us

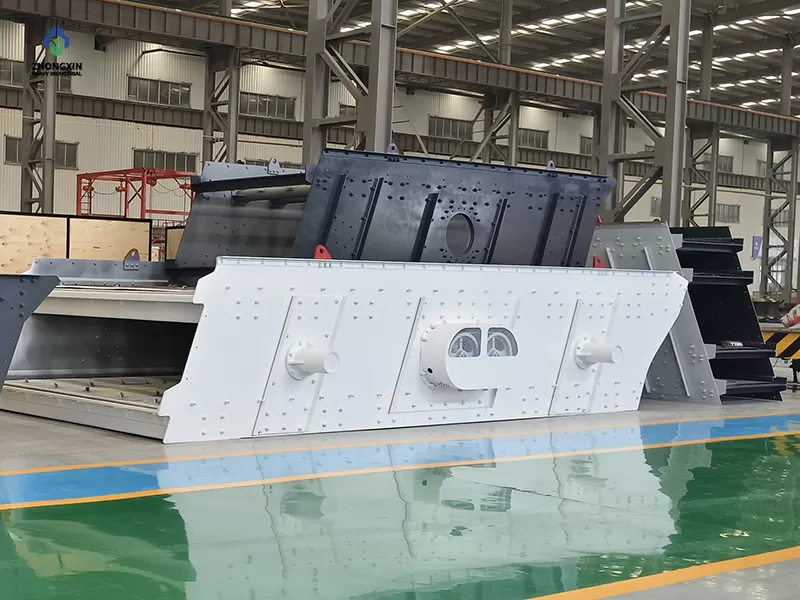

◎1. High-Performance Exciter with Modular Design
The exciter features a compact design that installs entirely inside the side plate bore, eliminating individual bearing replacement for quick and easy disassembly. Four bearings provide better load capacity and longer service life than traditional dual bearing designs. The modular exciter assembly uses CNC-machined components for high interchangeability and standardization. The ductile iron bearing housing offers superior strength, toughness, and wear resistance.

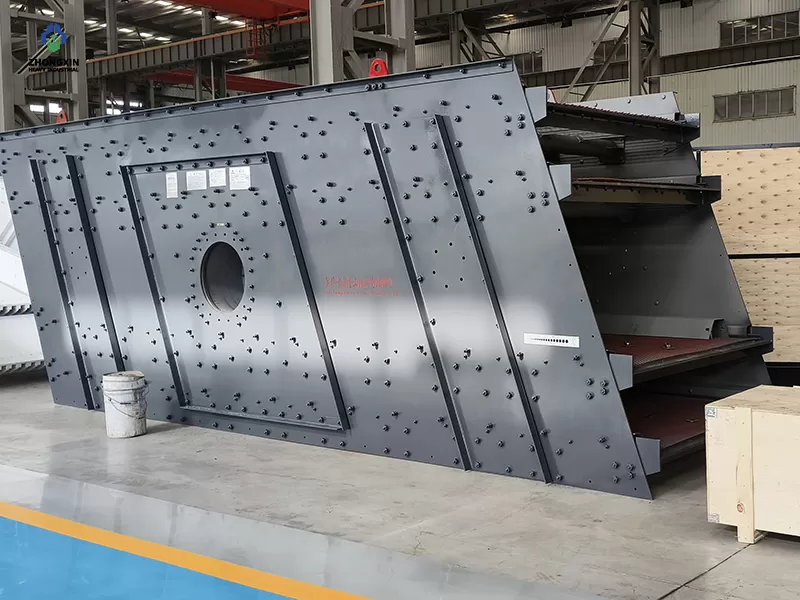

◎2. Robust Structural Design Without Weld Points
The side plates have no weld points, and frame-type cross beams are riveted together using high-strength torsion shear bolts. This eliminates cracking risks caused by welding stress. These bolts provide higher connection strength than ring groove rivets, are easier to replace, and prevent micro-cracks around bolt holes. Finite element analysis and fatigue calculations reduce stress risk and extend service life.

◎3. Adjustable Amplitude and Strong Vibration Intensity
Amplitude can be adjusted conveniently by adding or removing standard counterweight blocks. The exciter achieves international advanced vibration intensity, resulting in larger throughput, higher screening efficiency, and stronger processing capacity. Vibration damping springs minimize unstable motion during startup and shutdown.

◎4. Flexible Drive System with Reinforced Universal Shaft
The motor drives the exciter through V-belts and a transmission bearing seat, providing flexible drive that protects the motor from impact and extends V-belt life. The universal shaft features increased strength beyond national standards with a protective cover to prevent stone impact and wear. All wear parts use modular and standardized design to ensure optimal operating costs and uptime.

Model	Screen Size(mm)	Layers	Screen Mesh (mm)	Max Feed Size(mm)	Capacity (t/h)	Power (Kw)	Vibrating Frequency(r/min)	Double Amplitude （mm）
2YK1548	4800*1500	2	3-80	100	30-200	15	750-950	6-9
3YK1548	4800*1500	3	3-80	100	30-200	18.5	750-950	6-9
4YK1548	4800*1500	4	3-80	100	30-200	18.5	750-950	6-9
2YK1848	4800*1800	2	3-80	100	50-250	18.5	750-950	6-9
3YK1848	4800*1800	3	3-80	100	50-250	22	750-950	6-9
4YK1848	4800*1800	4	3-80	100	50-250	30	750-950	6-9
2YK1860	6000*1800	2	3-80	100	60-300	18.5	750-950	6-9
3YK1860	6000*1800	3	3-80	100	60-300	22	750-950	6-9
4YK1860	6000-1800	4	3-80	100	60-300	37	750-950	6-9
2YK2160	6000*2100	2	3-80	100	80-400	22	750-950	6-9
3YK2160	6000*2100	3	3-80	100	80-400	30	750-950	6-9
4YK2160	6000*2100	4	3-80	100	80-400	37	750-950	6-9
2YK2460	6000*2400	2	5-80	200	100-500	30	750-950	6-9
3YK2460	6000*2400	3	5-80	200	100-500	37	750-950	6-9
4YK2460	6000*2400	4	5-80	200	100-500	37	750-950	6-9
2YK2475	7500*2400	2	3-80	200	100-500	30	750-950	6-9
3YK2475	7500*2400	3	3-80	200	100-500	37	750-950	6-9
4YK2475	7500*2400	4	3-80	200	100-500	37	750-950	6-9
2YK2870	7000*2800	2	3-80	200	100-700	2x30	750-950	6-9
3YK2870	7000*2800	3	3-80	200	100-700	2x30	650-850	6-9
4YK2870	7000*2800	4	3-80	200	100-700	2x37	650-850	6-9
2YK3072	7200*3000	2	3-80	200	150-800	2x30	650-850	6-9
3YK3072	7200*3000	3	3-80	200	150-800	2x37	650-850	6-9
4YK3072	7200*3000	4	3-80	200	150-800	2x37	650-850	6-9
2YK3272	7200*3200	2	3-80	200	150-800	2x37	650-850	6-9
3YK3272	7200*3200	3	3-80	200	150-800	2x37	650-850	6-9

Model

Screen Size(mm)

Layers

Screen Mesh (mm)

Max Feed Size(mm)

Capacity (t/h)

Power (Kw)

Vibrating Frequency(r/min)

Double Amplitude
（mm）

2YK1548

4800*1500

3-80

100

30-200

750-950

6-9

3YK1548

4800*1500

3-80

100

30-200

18.5

750-950

6-9

4YK1548

4800*1500

3-80

100

30-200

18.5

750-950

6-9

2YK1848

4800*1800

3-80

100

50-250

18.5

750-950

6-9

3YK1848

4800*1800

3-80

100

50-250

750-950

6-9

4YK1848

4800*1800

3-80

100

50-250

750-950

6-9

2YK1860

6000*1800

3-80

100

60-300

18.5

750-950

6-9

3YK1860

6000*1800

3-80

100

60-300

750-950

6-9

4YK1860

6000-1800

3-80

100

60-300

750-950

6-9

2YK2160

6000*2100

3-80

100

80-400

750-950

6-9

3YK2160

6000*2100

3-80

100

80-400

750-950

6-9

4YK2160

6000*2100

3-80

100

80-400

750-950

6-9

2YK2460

6000*2400

5-80

200

100-500

750-950

6-9

3YK2460

6000*2400

5-80

200

100-500

750-950

6-9

4YK2460

6000*2400

5-80

200

100-500

750-950

6-9

2YK2475

7500*2400

3-80

200

100-500

750-950

6-9

3YK2475

7500*2400

3-80

200

100-500

750-950

6-9

4YK2475

7500*2400

3-80

200

100-500

750-950

6-9

2YK2870

7000*2800

3-80

200

100-700

2x30

750-950

6-9

3YK2870

7000*2800

3-80

200

100-700

2x30

650-850

6-9

4YK2870

7000*2800

3-80

200

100-700

2x37

650-850

6-9

2YK3072

7200*3000

3-80

200

150-800

2x30

650-850

6-9

3YK3072

7200*3000

3-80

200

150-800

2x37

650-850

6-9

4YK3072

7200*3000

3-80

200

150-800

2x37

650-850

6-9

2YK3272

7200*3200

3-80

200

150-800

2x37

650-850

6-9

3YK3272

7200*3200

3-80

200

150-800

2x37

650-850

6-9

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our machine. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

It works for almost everything—quarry stones, ores like iron ore, construction sand.

Three main things: machine settings (frequency, screen mesh size), material features (moisture, particle size), and how you feed the material. Just tell us your material, we’ll help you adjust.

Absolutely! We can adjust screen size, layers, mesh type, even the discharge position. It can also match your existing crushers or conveyors perfectly.

The whole machine can run 8–10 years with good care. Steel screens last 3–6 months, while polyurethane ones can go 1–2 years. Just clean it regularly and replace worn screens in time.

Yes, all our machines have CE certification, some with ISO 9001 too. We’ll provide full docs to make customs clearance a breeze.

Just share your hourly capacity, desired screening accuracy, and material info. Our engineers will recommend the best model for you right away.

Three big pluses: 98% high screening accuracy, low noise and energy use, and super durable frame and screen surface for heavy work.

12-month warranty for the whole machine. We’ll replace non-human damaged parts for free. For wear parts like screens, we offer factory-price replacements anytime.

COMPREHENSIVE SERVICE & GENUINE SPARE PARTS

Zhongxin Heavy Industry provides not only high-performance equipment but also full life-cycle support solutions.

Genuine Modular Spare Parts

All wear parts and components use modular and standardized design, ensuring perfect fit, easy replacement, and optimal operating costs.

Professional Technical Support

Our team provides installation guidance, troubleshooting assistance, and maintenance training to keep your vibrating screen running at peak performance.

Fast Replacement & Reduced Downtime

The exciter and structural components are designed for quick disassembly and assembly, allowing rapid parts replacement and significantly minimizing production interruptions.
