Trommel screen

Capacity
60-260 TPH
Motor power
5.5-37 KW

Reducer: 400-750

Gross weight: 5-15 t

Social Media
Whatsapp/Wechat:
+86-13676922906
  • WhatsAppWhatsApp
  • WeChatWeChat

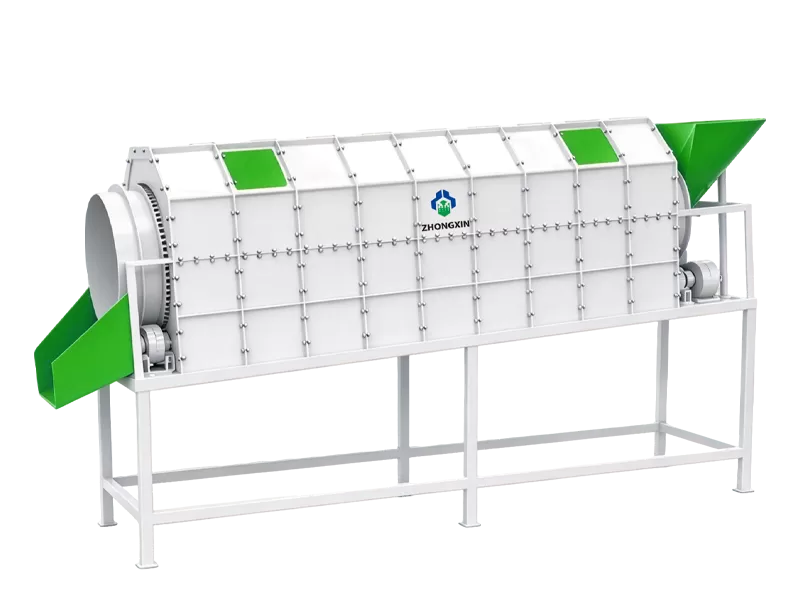

Heavy Duty Trommel Screen with Rotary Drum
15s Quick consultation | 1h Technical guidance | 32h Quotation + drawing | 365d Exclusive customer service
Get price list

Trommel Screen Product Description

◎ The Trommel Screen is a rotary screening machine for efficient separation of materials by size. It is widely used in mining, quarrying, aggregates, sand, gravel, coal, and mineral processing.

◎  The machine uses a rotating cylindrical drum with a screen surface. Materials move forward as the drum rotates. Fine particles pass through the screen openings, while oversized materials are discharged from the end.

◎  The Trommel Screen features a simple structure, stable operation, high screening efficiency, and easy maintenance. Different screen mesh sizes are available for various applications.

◎  It can be used as a mining trommel screen, rotary trommel screen, or trommel screening machine. For gold recovery, a gold trommel can be combined with a sluice box or other gravity separation equipment. A mobile trommel screen is also available for flexible operation at different sites.

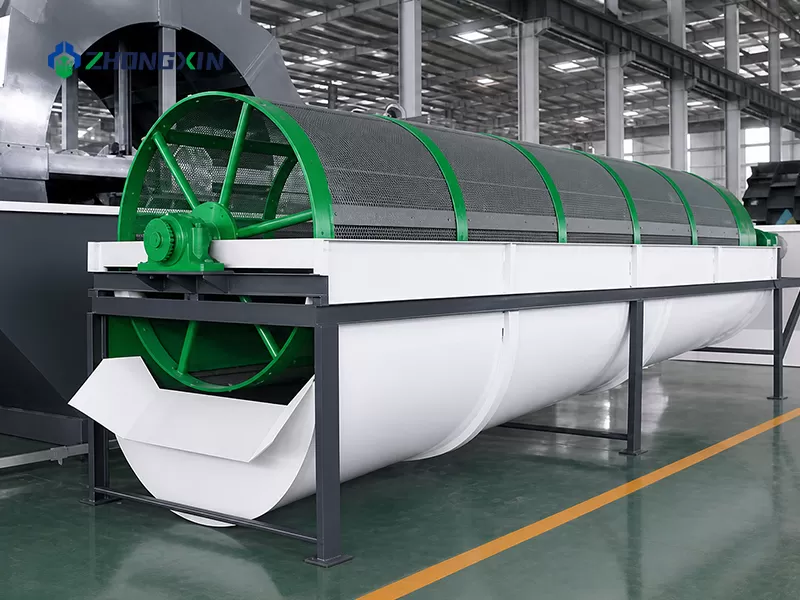

◎  We provide trommel screens for sale with customized capacity, feed size, and screening size to meet different project requirements.

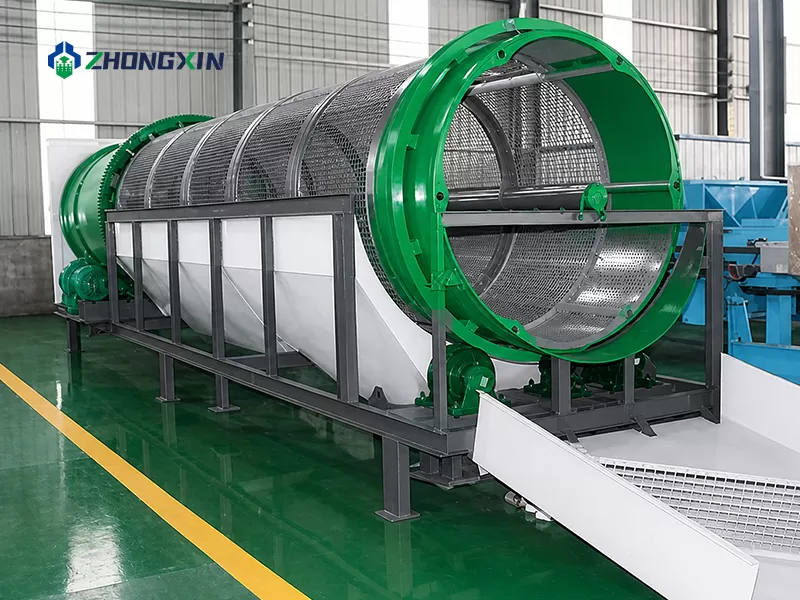

Mining Trommel Screen for Gold Ore Processing
Trommel screen

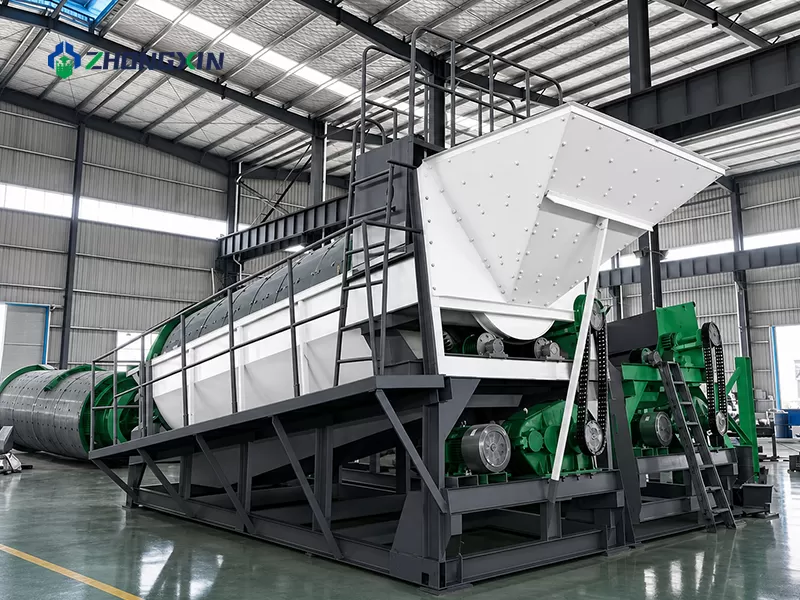

High Screening Efficiency

The rotary trommel screen provides continuous screening, high throughput, and reliable material separation. It is suitable for mining and aggregate processing.

Trommel screen

Heavy-Duty Trommel Drum

The heavy-duty drum is built for demanding working conditions. It can efficiently screen gold ore, sand, gravel, soil, coal, and other bulk materials.

Trommel screen

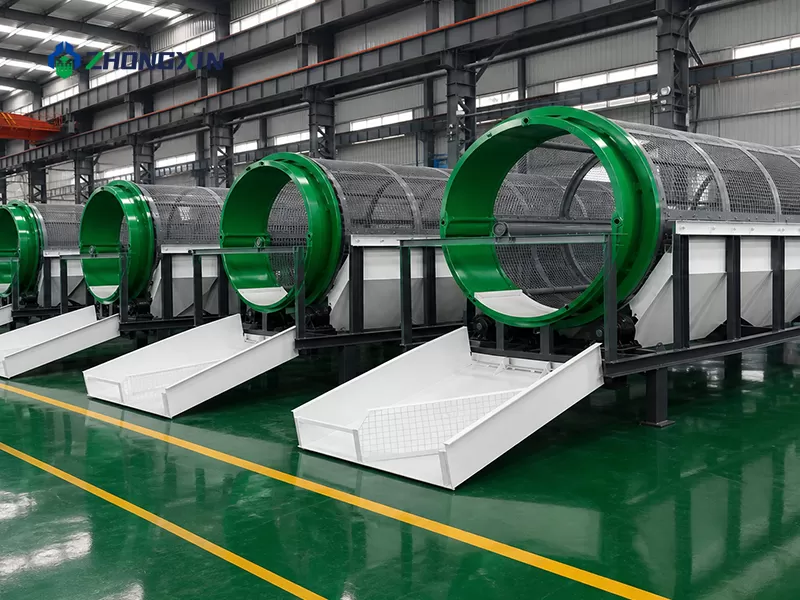

Flexible Screening Sizes

Different screen mesh sizes are available for different applications. The trommel screening machine can produce various material sizes with efficient and consistent screening.

Trommel screen

Easy Operation and Maintenance

The simple rotary trommel screen structure makes operation, cleaning, and maintenance convenient. Screen panels are easy to inspect, clean, and replace.

Trommel screen

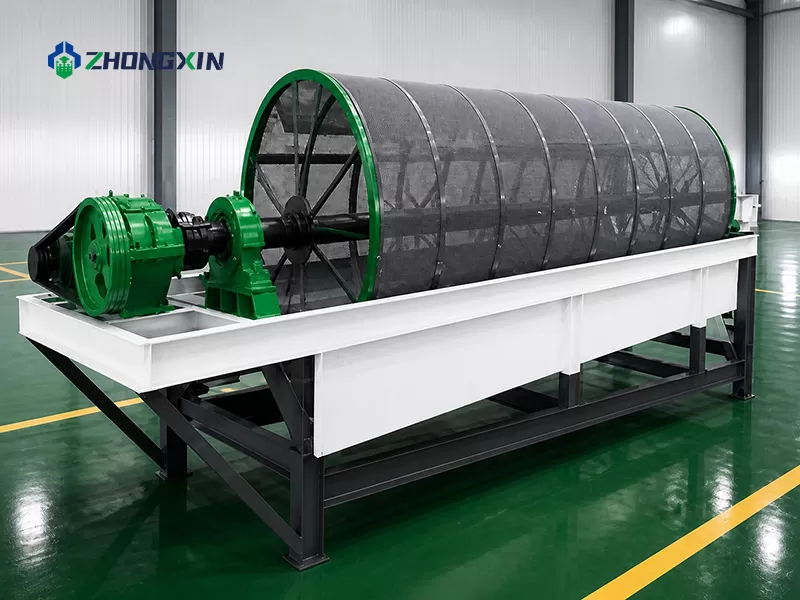

Mobile and Customizable Design

The mobile trommel screen allows flexible operation at different working sites. Capacity, feed size, screening size, and equipment configuration can be customized.

Why Choose Our Trommel Screen?

◎  Our Trommel Screen combines efficient screening, durable construction, flexible configuration, and easy maintenance. It is designed for stable performance in mining, gold recovery, aggregate, and material processing applications.

◎ High Screening Efficiency

The rotary trommel screen uses a continuously rotating drum to separate materials by particle size. The tumbling action improves material contact with the screen surface and helps reduce blockages. It provides stable screening performance and high processing capacity for continuous operations.

 Heavy-Duty and Durable Design

The mining trommel screen is built with a robust drum and heavy-duty supporting structure. Wear-resistant screen panels help handle abrasive materials such as gold ore, gravel, crushed stone, and sand. Durable components help reduce downtime and extend equipment service life.

◎ Flexible and Customized Screening Solution

The trommel screening machine can be configured with different drum sizes and screen mesh openings. The equipment can be customized according to feed size, material type, required capacity, and final product size. A mobile trommel screen is also available for projects that require flexible movement between working sites.

Trommel Screen Working Principle

◎ The material is fed into the Trommel Screen through the inlet of the rotating drum. The drum is supported by rollers and driven by a motor through a reliable transmission system. The feeding system provides a continuous flow of material for stable screening.

◎ As the drum rotates, materials are lifted and tumbled inside the screening drum. The rotating motion moves the material forward while allowing smaller particles to contact the screen surface. Fine materials smaller than the screen openings pass through the mesh.

◎ Different screen mesh sizes separate materials according to their particle size. Fine particles fall through the screen and are collected as undersized products. Larger particles remain inside the drum and move gradually toward the discharge end.

◎ Oversized materials are discharged from the end of the Trommel Screen. At the same time, new materials continuously enter the drum. This creates a continuous screening process and helps maintain stable processing capacity.

◎ For wet, sticky, or clay-containing materials, a washing system can be added to improve screening efficiency. Water sprays help remove soil and fine particles from the material and screen surface. This configuration is widely used for gold recovery and alluvial gold processing.

◎ The screen mesh can be selected according to the required product size and material characteristics. Different mesh openings allow the rotary trommel screen to produce different size fractions. This makes the trommel screening machine suitable for mining, gold recovery, sand, gravel, aggregate, coal, and other bulk materials.

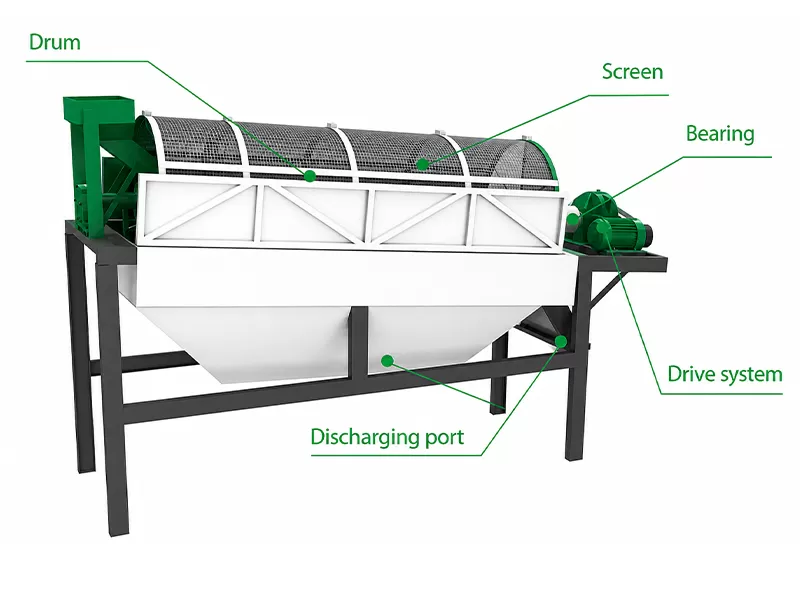

Trommel Screen Working Principle and Material Separation

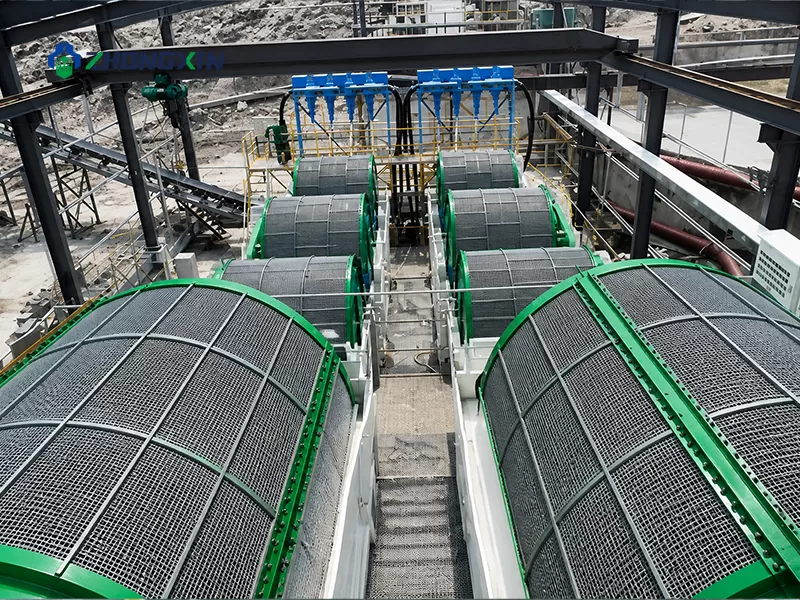

Product Photos

Specification

ModelSpecification (mm)Stone screening capacity (t/h)Sand screening capacity (t/h)Motor power (kw)ReducerGross weight (t)
TSGT-12401200×400060505.5-7.54005
TSGT-15401500×40001208011一154006
TSGT-18401800×400015012015-185007
TSGT-20402000×400020015018-2265010
TSGT-22402200×400023016018-2265013
TSGT-26402600×40002601803775015

RECOMMENDED CRUSHING, SCREENING AND MINERAL PROCESSING EQUIPMENT

Explore our full range of heavy-duty industrial machinery, covering crushing, screening, industrial grinding, and mineral processing solutions. As a direct manufacturer, we provide reliable equipment tailored to maximize your production efficiency.

EXPLORE MORE PRODUCTION LINE SITE PROJECTS

Browse our verified aggregate and mineral processing line projects tracking across the globe. Our heavy-duty crushing plants are optimized to deliver maximum throughput, reliable performance, and a fast return on investment for quarry operators.

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our machine. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

A Trommel Screen is a rotary screening machine for separating materials by size. It is widely used in mining, gold recovery, sand, gravel, and aggregate processing.

The rotary trommel screen uses a rotating cylindrical drum. Fine materials pass through the screen mesh. Oversized materials move to the drum end and are discharged.

A mining trommel screen can process gold ore, alluvial gold, sand, gravel, soil, coal, crushed stone, and other bulk materials. The screen mesh can be selected for different materials.

A gold trommel is designed for screening and washing gold-bearing materials. It can separate fine materials from larger rocks and can work with a sluice box or other gold recovery equipment.

The capacity depends on the model, drum size, feed material, moisture, and screen opening. We can recommend a suitable trommel screening machine based on your required capacity.

Yes. Different screen mesh sizes are available. The trommel screen can be configured to produce different particle sizes according to project requirements.

Yes. A mobile trommel screen can be equipped with a mobile chassis. It is easy to transport and suitable for flexible screening operations at different working sites.

Consider the material, feed size, required capacity, screening size, and working conditions. We can provide a suitable trommel screen for sale based on your project requirements.
