Wheel-Mounted Mobile Jaw Crusher Plant

Type
Mobile Crusher
Capacity
50-180TPH

Processed Materials: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.

Applications: Primary crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.

Social Media
Whatsapp/Wechat:
+86-13676922906
  • WhatsAppWhatsApp
  • WeChatWeChat
● 15s Quick consultation | ● 1h Technical guidance | ● 32h Quotation + drawing | ● 365d Exclusive customer service
Get price list

Wheel-Mounted Mobile Jaw Crusher Plant – Product Overview

◎ The Wheel-Mounted Mobile Jaw Crusher is an efficient primary crushing solution designed for hard and highly abrasive materials such as granite, basalt, and various ores. It combines powerful crushing force with excellent mobility, making it suitable for mining, quarrying, construction, and aggregate production.

◎ The crusher uses a proven compression crushing principle, with the moving jaw applying compression, splitting, and shearing forces to efficiently break large feed materials. Heavy-duty jaw plates provide strong wear resistance, while the intelligent feeding system ensures stable and continuous material flow.

◎ With a high crushing ratio, uniform product size, simple structure, and low operating costs, the mobile jaw crusher delivers reliable performance in demanding working conditions. Its robust construction, easy transportation, and rapid on-site installation reduce setup requirements and improve overall production efficiency.

◎ Combining strong crushing capacity, low maintenance requirements, and flexible mobility, the mobile jaw crusher is an ideal choice for large-scale quarrying, mining operations, and coarse material processing.

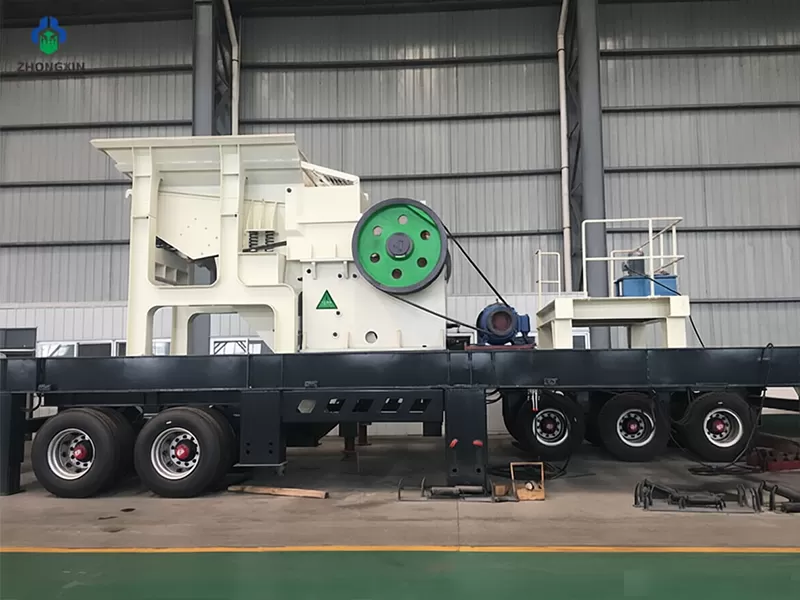

Portable jaw rock crusher complete unit ready for quality inspection

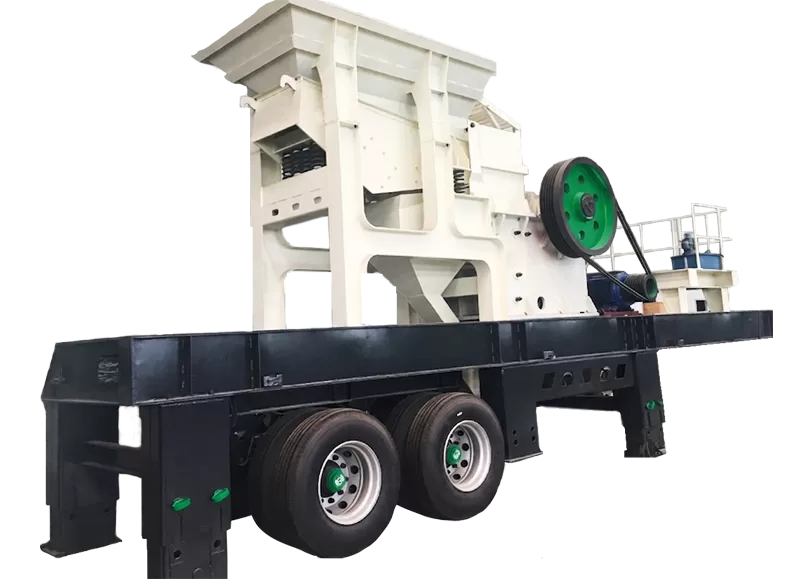

Wheel-Mounted Mobile Jaw Crusher Plant

High Mobility

The wheel-mounted design allows the mobile jaw crusher plant to move easily between job sites without permanent foundations. It provides flexible deployment and reduces setup time for different crushing locations.

Wheel-Mounted Mobile Jaw Crusher Plant

Integrated System

Feeding, jaw crushing, screening, and conveying systems are integrated into one compact unit. This streamlined configuration simplifies plant layout, reduces installation requirements, and improves overall processing efficiency.

Wheel-Mounted Mobile Jaw Crusher Plant

Strong Crushing Force

The powerful jaw crusher handles large feed materials such as granite, basalt, and various ores with reliable performance. Its robust crushing chamber provides high reduction efficiency for demanding primary crushing applications.

Wheel-Mounted Mobile Jaw Crusher Plant

Low Maintenance

A user-friendly structure provides convenient access for inspection, routine maintenance, and component replacement. The simple design helps reduce maintenance time and minimize unexpected downtime during operation.

Wheel-Mounted Mobile Jaw Crusher Plant

Cost-Effective

On-site crushing reduces the need to transport raw materials over long distances. This can significantly lower material handling and transportation costs while improving overall project efficiency.

Advantages of Jiaozuo Zhongxin Heavy Industry's Mobile Jaw Crusher and reasons to choose us

◎1.Superior Mobility & Flexibility
The Wheel-Mounted  mobile jaw crusher features a wheel-mounted design that allows seamless transfer between job sites without the need for concrete foundations. Whether you are working on a construction site, quarry, or recycling project, this equipment can be deployed within hours, significantly reducing downtime and project lead times.

◎2.Integrated Design for Efficient Operation
The Wheel-Mounted mobile jaw crusher integrates feeding, crushing, screening, and conveying functions into a single compact unit. This eliminates the need for additional support equipment and reduces both fuel consumption and labor requirements, delivering comprehensive operational efficiency.

◎3.High Reliability & Low Maintenance
Built with a heavy-duty chassis, durable wear-resistant components, and an intelligent control system, the mobile jaw crusher ensures a long service life with minimal maintenance needs. The user-friendly design enables quick inspection and parts replacement, maximizing uptime.

◎4.Cost-Effective On-Site Crushing
By bringing the crusher directly to the material source, the mobile jaw crusher eliminates costly material transport expenses, reducing logistics costs by up to 50%. Its quick installation and flexible configuration options deliver exceptional return on investment.

Get a direct quote from the mobile jaw crusher factory—leave your requirements on our message board to check the latest prices immediately!

What is the working principle of the Wheel-Mounted Mobile Jaw Crusher?

◎  The Wheel-Mounted mobile jaw crusher operates on the proven “crank-driven extrusion” principle. During operation, the electric motor drives the eccentric shaft through V-belts and pulleys, converting rotational motion into the reciprocating movement of the moving jaw. As the moving jaw approaches the fixed jaw, the crushing chamber becomes smaller, applying strong compression, shearing, and grinding forces to the material. When the crushing force exceeds the material’s compressive strength, the material breaks into smaller pieces.

◎  When the moving jaw moves away from the fixed jaw, the crushing chamber opens and the discharge opening becomes wider. The pull rod and spring system assists in resetting the moving jaw for the next crushing stroke. Material that has reached the required size falls out through the discharge opening by gravity. This repeated movement forms a continuous crushing and discharge cycle, while the discharge opening can be adjusted to control the final product size.

◎  The crushing cycle continues as new material continuously enters through the upper feed opening and crushed material is discharged from the bottom. Designed for primary crushing, the mobile jaw crusher features a large feed opening and strong crushing force, making it suitable for hard materials such as granite, basalt, ores, and construction aggregates. Its heavy-duty structure and wear-resistant components ensure stable performance and reliable operation in mining, quarrying, and construction applications.

◎  The mobile design provides greater flexibility for different job sites. The crusher can be transported easily between locations, requires less foundation work, and can be set up quickly. With strong crushing performance, stable operation, convenient transportation, and flexible site deployment, it provides an efficient solution for primary crushing projects that require both productivity and mobility.


Mobile jaw crusher working principle diagram showing moving jaw motion

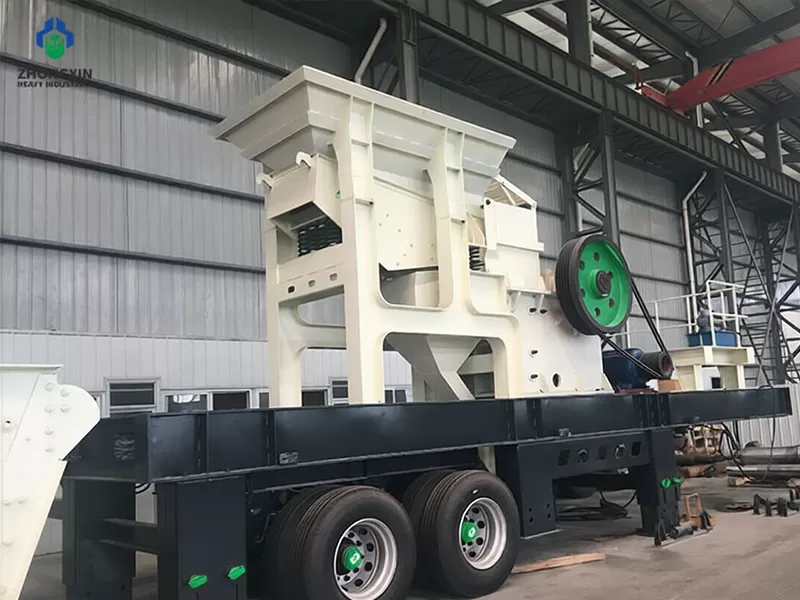

Product Photos

Specification

Mobile Jaw CrusherModelMax. Feeding
size (mm)
Capacity (t/h)Power (kw)Overall dimensions (L*W*H)(mm)Weight (t)
SYG724E57GZT072442550-1002*211870*2470*444225.3
PE500*75055
B500*8.65.5
SYG938E69ZSW389650080-1801111007X2921X517931.153
PE600*90055
B800*7.54

RECOMMENDED CRUSHING, SCREENING AND MINERAL PROCESSING EQUIPMENT

Explore our full range of heavy-duty industrial machinery, covering crushing, screening, industrial grinding, and mineral processing solutions. As a direct manufacturer, we provide reliable equipment tailored to maximize your production efficiency.

EXPLORE MORE PRODUCTION LINE SITE PROJECTS

Browse our verified aggregate and mineral processing line projects tracking across the globe. Our heavy-duty crushing plants are optimized to deliver maximum throughput, reliable performance, and a fast return on investment for quarry operators.

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our machine. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

The Wheel-Mounted mobile jaw crusher is designed for primary crushing of hard and highly abrasive materials, including granite, basalt, iron ore, limestone, and various ores. It can handle large feed sizes and deliver consistent output for mining, quarrying, and construction applications.

The Wheel-Mounted mobile jaw crusher can be operational within hours of arrival. Unlike fixed installations, it requires no concrete foundations or complex civil engineering work, significantly reducing project lead times.

Tire-mounted units offer a cost-effective balance between mobility and stability, ideal for projects requiring periodic relocation. Track-mounted units provide superior terrain adaptability for demanding off-road conditions and frequent site changes.

By processing material directly at the job site, the mobile jaw crusher eliminates expensive material transport and reduces fuel consumption. Its integrated design lowers labor requirements and simplifies operations, delivering exceptional cost efficiency.

We provide comprehensive after-sales support including installation guidance, operator training, routine maintenance services, and genuine spare parts supply. Our global service network ensures prompt assistance whenever needed.

Yes. The Wheel-Mounted mobile jaw crusher is built with heavy-duty components and can operate in a wide range of environmental conditions. Optional heating systems are available for the lubrication system to ensure reliable startup and operation in cold climates.

Choose a mobile jaw crusher if you need flexibility, frequent site changes, or rapid deployment. Choose a fixed jaw crusher if you have a permanent site with stable operations and prioritize lower cost per ton over long-term production.

The Wheel-Mounted mobile jaw crusher is equipped with multiple safety features including emergency stop buttons, belt guards, a hydraulic release system for uncrushable materials, and an intelligent control system that monitors operation and shuts down automatically in case of overload or abnormal conditions.

COMPREHENSIVE SERVICE & GENUINE SPARE PARTS

Zhongxin Heavy Industry provides not only high-performance equipment but also full life-cycle support solutions.

Wheel-Mounted Mobile Jaw Crusher Plant
Wheel-Mounted Mobile Jaw Crusher Plant
Comprehensive Spare Parts Supply

We provide original, high-quality wear and spare parts designed specifically for your wheel-mounted mobile jaw crusher. From high-manganese steel jaw plates (toggle plates, cheek plates) to bearings, V-belts, and hydraulic components, our extensive inventory ensures minimal downtime. Every part is manufactured to strict factory standards to guarantee a perfect fit, extended service life, and consistent crushing performance.

Service
Expert Technical Support & Installation

Our experienced engineering team is dedicated to supporting your operations from day one. We offer professional guidance on equipment commissioning, on-site installation, and operational training for your local crew. Whether you need troubleshooting advice, maintenance schedules, or performance optimization, our technical specialists are available via remote support or on-site visits to ensure your plant runs at peak efficiency.

Service
Customized Maintenance & Warranty Services

To maximize your return on investment, we provide flexible maintenance programs and comprehensive equipment warranties. We help you establish preventative maintenance routines to detect potential issues early and reduce unexpected repair costs. Backed by prompt customer service and global logistics coordination, we ensure that your maintenance needs are met swiftly and reliably throughout the equipment's lifecycle.
