Wheel-Mounted Mobile Sand Making Machine

Feed Size
≤40mm
Capacity
30-400 t/h

Description: Engineered for maximum versatility and high-yield output, the wheel-mounted mobile sand making machine represents the cutting edge of efficient, eco-friendly, and intelligent aggregate processing technology. By combining advanced mobility with automated control, this smart mobile VSI crushing plant delivers superior cubical sand quality across diverse construction sites, highway projects, and quarrying operations—providing powerful, reliable support for the global construction and building mater

Social Media
Whatsapp/Wechat:
+86-13676922906
  • WhatsAppWhatsApp
  • WeChatWeChat
Chat Online Product Inquiry

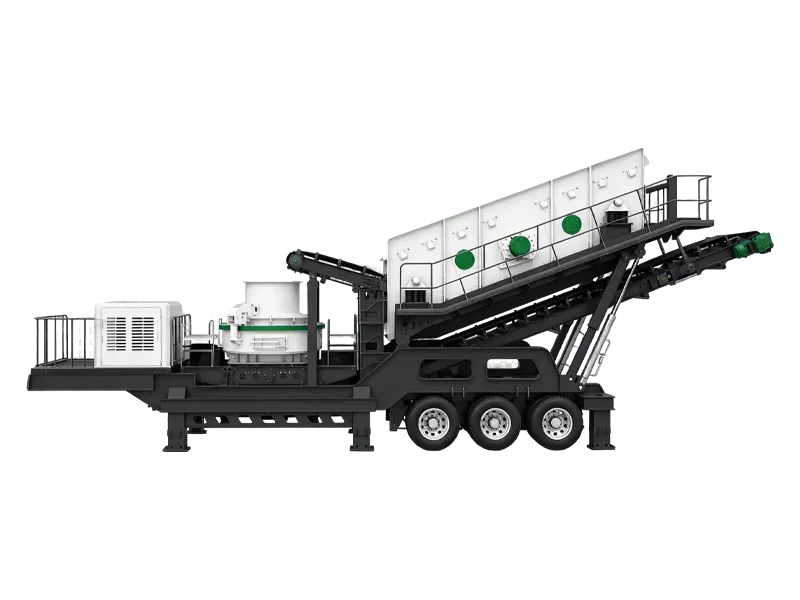

Studio cutout background image of the wheel-mounted mobile sand making machine displaying its integrated chassis, VSI crusher, and conveyor
● 15s Quick consultation | ● 1h Technical guidance | ● 32h Quotation + drawing | ● 365d Exclusive customer service
Get price list

Advanced Product Overview: High-Efficiency Wheel-Mounted Mobile Sand Making Machine Solutions

The Wheel-Mounted Mobile Sand Making Machine is an advanced, highly flexible aggregate production solution designed by Zhongxin Heavy Industry. Integrating high-performance VSI (Vertical Shaft Impact) sand making crushers, vibrating screens, and feeder systems onto a robust trailer-mounted chassis, this all-in-one mobile plant delivers exceptional mobility, superior cubic-shaped output, and reliable processing capabilities for hard rock crushing and artificial sand manufacturing.

Whether you are operating in remote quarries, highway construction sites, or managing construction waste recycling, this trailer-mounted mobile sand making plant eliminates complex concrete foundation work. It allows direct transportation to the job site, significantly reducing material handling costs and setup time. Engineered for high efficiency and minimal wear, our mobile VSI crushing station is the ideal choice for producing high-grade construction aggregates and manufactured sand that meet strict industry standards.

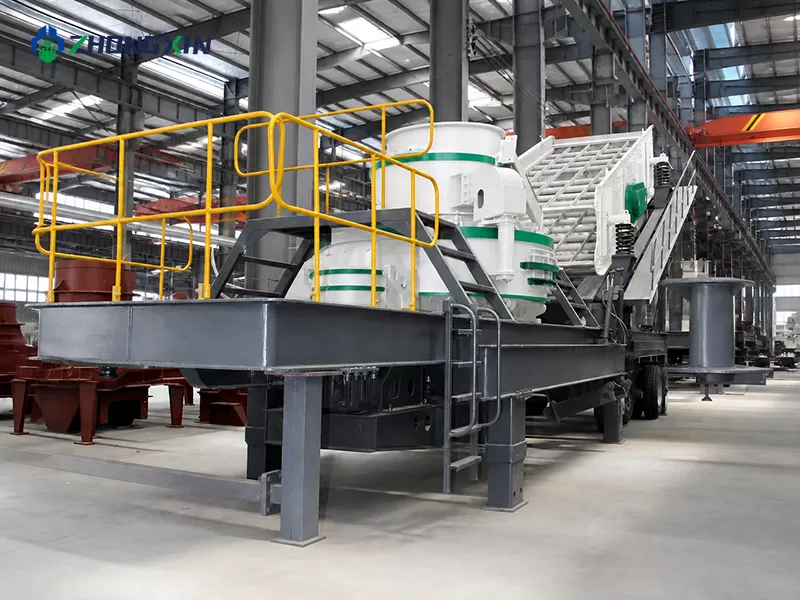

Zhongxin Heavy Industry factory floor showcasing multiple completed wheel-mounted mobile sand making machines ready for final quality inspection and dispatch
Wheel-Mounted Mobile Sand Making Machine

All-in-One Integrated Design

Equipped with a high-efficiency VSI sand maker, feeder, vibrating screen, and conveyor belts on a unified semi-trailer chassis, this mobile sand making plant ensures a streamlined workflow with a compact footprint and zero foundation installation requirements.

Wheel-Mounted Mobile Sand Making Machine

Superior Cubical Aggregate Shape

Powered by advanced impact-crushing principles (rock-on-rock and rock-on-iron), the integrated VSI crusher produces manufactured sand with an excellent cubical particle shape and low elongated particle percentage, meeting premium concrete standards.

Wheel-Mounted Mobile Sand Making Machine

Excellent Mobility & Rapid Site Transition

Featuring a heavy-duty trailer axle and standard towing pin, the wheel-mounted mobile crushing station can be transported rapidly between different work sites or quarry zones by a standard heavy truck, maximizing operational flexibility.

Wheel-Mounted Mobile Sand Making Machine

Intelligent Control & Easy Operation

Integrated with an advanced electrical control system, the plant allows precise monitoring of operational parameters, motor loads, and system diagnostics, ensuring safe, stable, and user-friendly on-site management.

Wheel-Mounted Mobile Sand Making Machine

Heavy-Duty Reliability & Wear Resistance

Manufactured with high-strength alloy steel, heavy-duty bearings, and wear-resistant components, this mobile aggregate crushing plant guarantees continuous, stable operation under harsh quarrying conditions while minimizing maintenance downtime.

Core Structural Features & Engineering Benefits of Our Trailer-Mounted Mobile VSI Crusher

Designed with modern environmental standards in mind, the system can be equipped with optional dust suppression water sprays and sealing enclosures, effectively reducing particulate emissions during sand production.

Precision machining of the high-speed VSI crusher rotor inside Zhongxin Heavy Industry's advanced production workshop
Technicians conducting electrical wiring and system integration tests on the control panel of a mobile sand making machine
Heavy-duty mobile trailer chassis undergoing structural reinforcement and anti-corrosion painting in the manufacturing facility

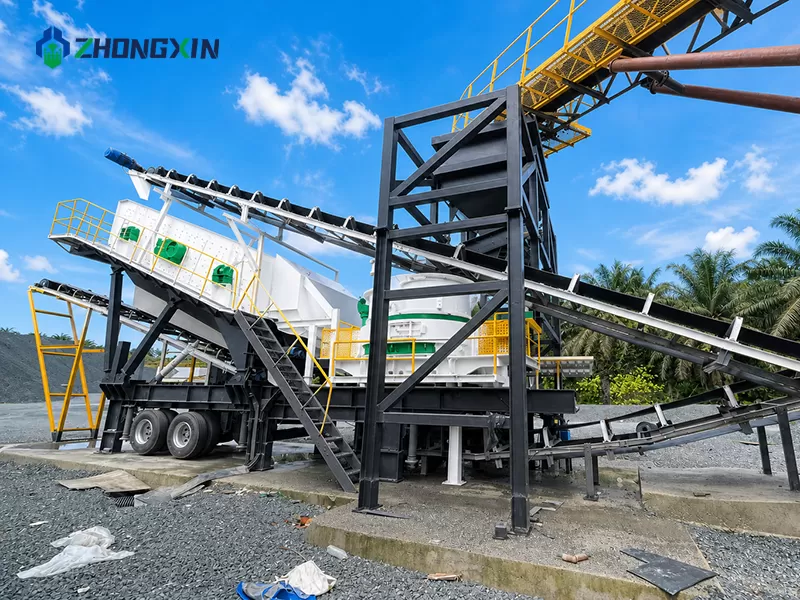

Wheel-mounted mobile sand making plant working efficiently alongside a cone crusher in a large-scale commercial quarry

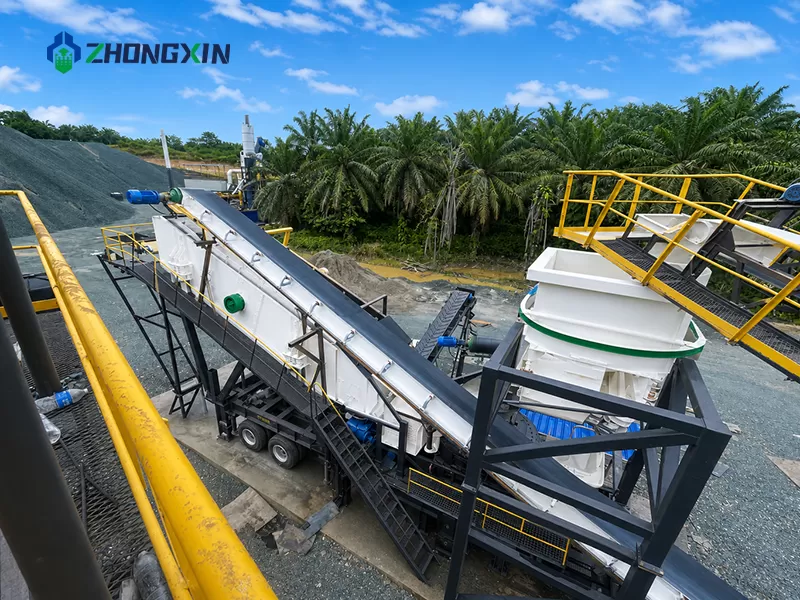

Close-up view of manufactured sand discharging from the conveyor belt of an operating mobile VSI crushing station

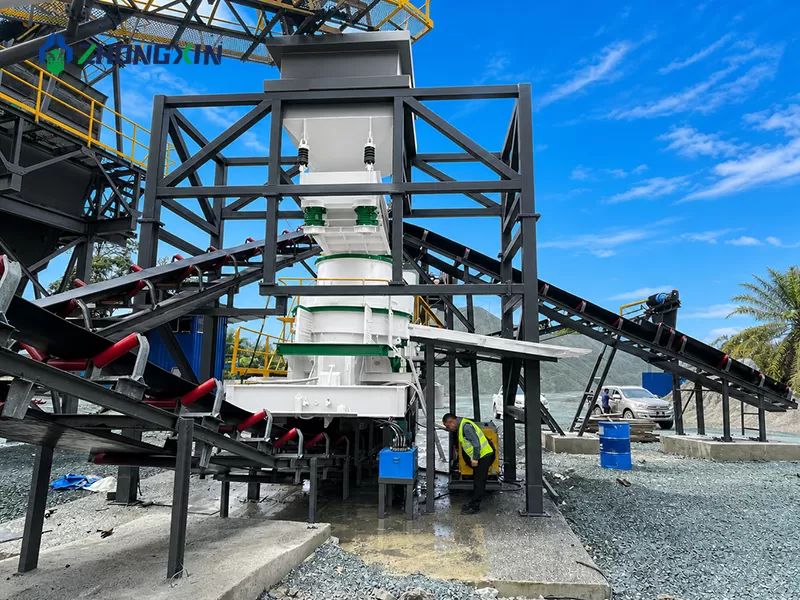

Complete mobile aggregate processing line crushing river pebbles into high-grade construction sand at a remote project site

Comprehensive Product Description: Why Choose Our Wheel-Mounted Mobile Sand Making Machine?

The Wheel-Mounted Mobile Sand Making Machine represents the pinnacle of flexible, high-efficiency aggregate processing technology engineered by Zhongxin Heavy Industry. Designed to meet the rigorous demands of modern highway construction, bridge building, municipal engineering, and commercial quarrying, this all-in-one mobile system seamlessly integrates a high-performance VSI (Vertical Shaft Impact) sand maker, a heavy-duty vibrating feeder, a multi-deck vibrating screen, and a centralized conveyor system onto a robust semi-trailer chassis.

Unlike traditional stationary production lines that require massive concrete foundations, lengthy installation periods, and complex civil works, our trailer-mounted mobile VSI crushing plant offers unmatched mobility. It can be hauled directly to the job site by a heavy truck and put into operation within hours. By reducing material transportation costs and eliminating site relocation limits, this intelligent mobile sand making station maximizes return on investment for contractors operating across remote or multi-zone project sites.

Recommended Applications & Suitable Materials

  • Primary Applications: Commercial concrete mixing plants, highway and railway construction, water conservancy projects, bridge building, and municipal infrastructure.

  • Suitable Materials: River pebble, granite, basalt, diabase, limestone, quartz sandstone, concrete waste, and recycled construction demolition aggregates.

Step-by-Step Working Principle & Optimized Crushing Circuit Workflow

The working principle of the Wheel-Mounted Mobile Sand Making Machine combines multi-stage feeding, screening, and high-speed impact shaping:

  1. Feeding & Pre-Screening: Raw materials are fed uniformly by the vibrating feeder into the integrated VSI crusher. A preliminary screen can separate unwanted fine materials before crushing.

  2. Impact Crushing & Shaping (VSI Principle): Materials enter the high-speed rotor of the VSI crusher, where they are accelerated and hurled against a material cushion (rock-on-rock) or metal impact plates (rock-on-iron) with tremendous kinetic energy. This high-speed impact causes natural breakage along the material's internal cleavage planes.

  3. Closed-Circuit Screening: The crushed materials are discharged onto the multi-deck vibrating screen. Qualified sand particles are conveyed to the final product stockpile, while oversized particles are automatically recirculated back to the VSI crusher for secondary processing, creating a highly efficient closed-circuit sand making production line.

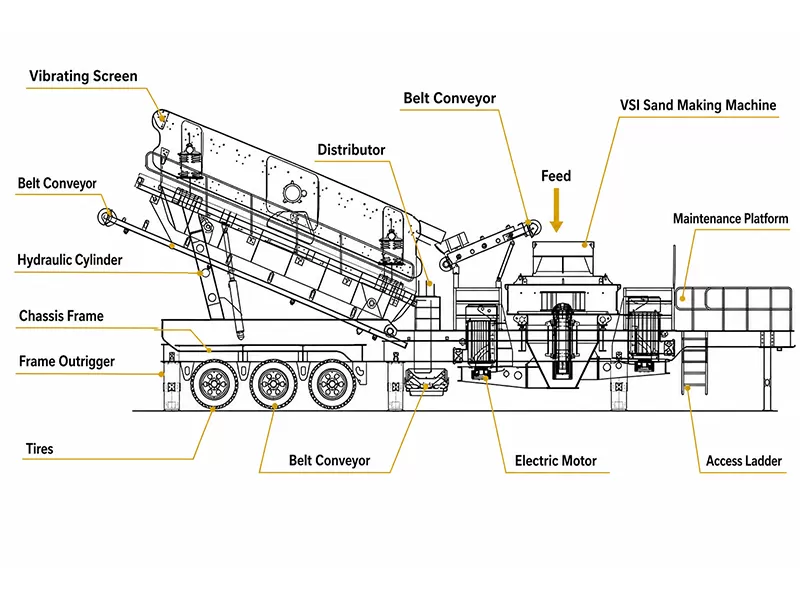

Detailed technical component diagram and structural breakdown of the wheel-mounted mobile VSI sand making machine showing feeder, crusher, and screen layou

Product Photos

Zhongxin Heavy Industry manufacturing workshop showing the heavy-duty chassis assembly of the wheel-mounted mobile sand making machine.

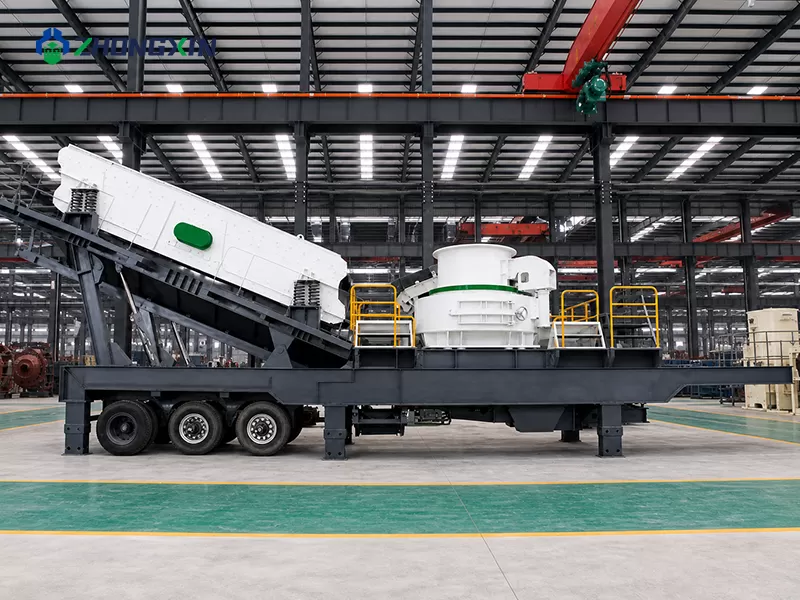

Inside the assembly workshop: workers inspecting the VSI crusher unit of a trailer-mounted mobile aggregate crushing plant.
Professional welding and fabrication of the vibrating screen and conveyor support frame in Zhongxin Heavy Industry's production facility
Quality control and pre-delivery testing of the electrical control cabinet for the mobile VSI sand making machin

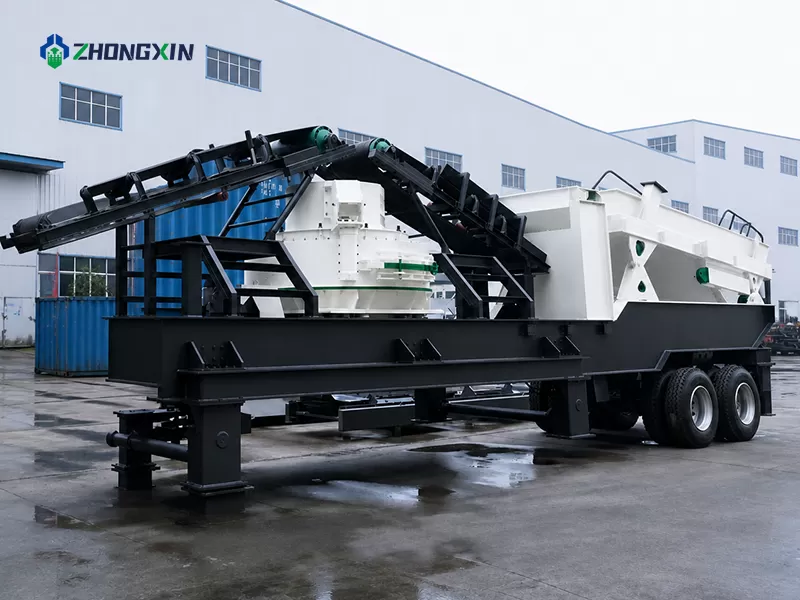

Zhongxin Heavy Industry wheel-mounted mobile sand making machine being safely loaded onto a heavy transport truck for international shipping
Overview of the heavy machinery production line showing semi-finished chassis and components for mobile crushing stations
Wheel-mounted mobile sand making machine operating in a quarry, producing high-grade manufactured sand with excellent cubical shape
On-site working view of a complete mobile crushing and screening production line featuring a trailer-mounted VSI crusher and vibrating screen
High-efficiency closed-circuit mobile aggregate processing plant running smoothly at a major highway construction and gravel supply site

Specification

ModelSY7615-1848SY8522-1860SY9532-2160SY1145-2460SY1150-2460
Sand Making MachineVSI7615VSI8522VSI9532VSI1145VSI1150
Feeding Size (mm)＜35-40＜40-50＜45-50＜45-50＜45-55
Capacity (t/h)70-280120-380180-450250-520344-642
Power (kw)2×752×1102×1602×2202×250
Vibrating Screen2/3/4YK18482/3/4YK18602/3/4YK21602/3/4YK24602/3/4YK2460
Belt ConveyorB800B800B800B1000B1000
Overall Size (mm)13000x2580x643013500x2580x655014300x2960x655014500x2960x678014500x2960x6780


RECOMMENDED CRUSHING, SCREENING AND MINERAL PROCESSING EQUIPMENT

Explore our full range of heavy-duty industrial machinery, covering crushing, screening, industrial grinding, and mineral processing solutions. As a direct manufacturer, we provide reliable equipment tailored to maximize your production efficiency.

Wheel-Mounted Mobile Impact Crusher Plant
Wheel-Mounted Mobile Impact Crusher Plant
Crawler Mobile Sand Making Plant
Crawler Mobile Sand Making Plant
Crawler Screening and Crushing Station
Crawler Screening and Crushing Station

EXPLORE MORE PRODUCTION LINE SITE PROJECTS

Browse our verified aggregate and mineral processing line projects tracking across the globe. Our heavy-duty crushing plants are optimized to deliver maximum throughput, reliable performance, and a fast return on investment for quarry operators.

250tph Granite Crushing Plant Applied in Ethiopia
250tph Granite Crushing Plant Applied in Ethiopia
300tph Iron ore crushing plant
300tph Iron ore crushing plant
200 TPH Limestone and Weathered Stone Mobile Impact Crushing Plant in Saudi Arabia
200 TPH Limestone and Weathered Stone Mobile Impact Crushing Plant in Saudi Arabia

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our machine. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

A wheel-mounted mobile sand making machine is an all-in-one aggregate processing plant that integrates a vibrating feeder, VSI (Vertical Shaft Impact) sand maker, vibrating screen, and conveyor belts onto a heavy-duty trailer chassis. It is widely used in highway and railway construction, commercial concrete mixing plants, bridge building, and municipal infrastructure projects for manufacturing high-grade artificial sand and shaping hard rocks like river pebbles, granite, and basalt.

The machine utilizes advanced impact-crushing technology based on "rock-on-rock" and "rock-on-iron" principles. When raw materials enter the high-speed rotating rotor of the VSI crusher, they are accelerated and hurled against a self-formed material cushion or metal impact plates. This violent kinetic impact causes natural breakage along the rock's internal cleavage planes, resulting in a uniform cubical particle shape with minimal flaky or elongated particles.

Yes, absolutely. One of the greatest advantages of our wheel-mounted mobile crushing station is its zero-foundation requirement. Because all processing units are mounted on a robust semi-trailer chassis supported by heavy-duty outriggers, it can be parked directly on hardened ground at the job site and put into operation immediately, saving significant civil engineering costs and installation time.

The plant is equipped with a heavy-duty multi-axle trailer, leaf spring suspension systems, and a standard heavy-duty traction pin. It can be hauled safely and rapidly across highways or between remote quarry zones by a standard semi-truck, allowing contractors to easily transition locations and minimize relocation downtime.

The processing capacity typically ranges from 70 to 250 tons per hour, depending on the specific model, material hardness, and output granularity requirements. The maximum feeding size generally ranges from 40 mm to 60 mm, ensuring optimal crushing efficiency for pre-screened or secondary-crushed materials.

Yes. The system features an optimized closed-circuit workflow. After crushing in the VSI unit, the materials are discharged onto a multi-deck vibrating screen. Qualified sand particles are separated to the final stockpile, while oversized particles are automatically recirculated back through a return conveyor belt to the VSI crusher for further processing until fully graded.

Yes, Zhongxin Heavy Industry offers flexible power solutions. While standard units run on industrial electric motors, we can customize the mobile plants with on-board diesel generator sets or dual-power options to ensure seamless operation in remote quarry sites where grid power is unavailable.

We provide comprehensive global technical support, including detailed installation manuals, video guidance, and optional on-site engineer commissioning. Furthermore, we maintain a sufficient stock of high-wear replacement parts—such as VSI rotor tips, impact plates, and screen meshes—ensuring rapid dispatch and minimal operational downtime for our international clients.

COMPREHENSIVE SERVICE & GENUINE SPARE PARTS

Zhongxin Heavy Industry provides not only high-performance equipment but also full life-cycle support solutions.

Wheel-Mounted Mobile Sand Making Machine
Wheel-Mounted Mobile Sand Making Machine
Global Installation & Professional Commissioning Support

To ensure your wheel-mounted mobile sand making machine or full crushing and screening plant achieves peak performance from day one, Zhongxin Heavy Industry provides comprehensive global engineering support. Our experienced technical team offers detailed installation manuals, remote video guidance, and optional on-site engineer commissioning and operator training worldwide, ensuring safe startup, correct operational procedures, and maximum productivity on your job site.

Service
Genuine Wear & Replacement Parts Supply

We understand that minimizing operational downtime is critical for quarry owners and aggregate contractors. We maintain a comprehensive inventory of genuine, high-wear replacement parts specifically engineered for our VSI crushers, vibrating screens, and mobile plants—including rotor tips, impact plates, crusher jaws, toggle plates, and precision screen meshes. With rapid international logistics dispatch, we ensure your maintenance needs are met swiftly and reliably.

Service
Custom Engineering Solutions & Lifecycle Maintenance

Every mining and construction project has unique geological and operational requirements. Beyond standard equipment delivery, our expert engineering team provides tailored plant configuration, process flow optimization, and lifecycle maintenance consulting. From initial site planning and equipment selection to regular performance audits and technical upgrades, we partner with you to secure long-term operational success and maximum return on investment.
