Crawler Cone Crusher Station

Plant Power (kW)
211.3+90
Capacity
100-500 TPH

Processed Materials: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.

Applications: Primary crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.

Social Media
Whatsapp/Wechat:
+86-13676922906
  • WhatsAppWhatsApp
  • WeChatWeChat
Chat Online Product Inquiry
Crawler cone crushing plant manufacturing process in China mining equipment factory
● 15s Quick consultation | ● 1h Technical guidance | ● 32h Quotation + drawing | ● 365d Exclusive customer service
Get price list

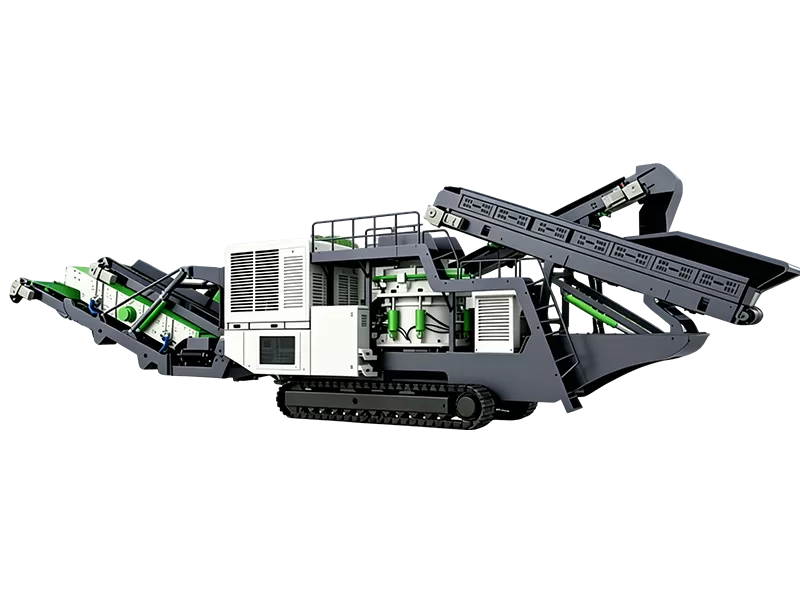

Crawler Cone Crusher Station – Product Overview

The Crawler Cone Crusher Station is a mobile tracked crushing solution designed for high-capacity secondary and tertiary crushing of hard and abrasive rocks. It combines powerful cone crushing performance with excellent mobility, allowing the plant to move directly to different working areas and operate efficiently in demanding quarry and mining environments.

◎Smart Hydraulic Protection: The automatic hydraulic clearing and adjustment system quickly releases uncrushable materials such as tramp iron, protecting the crusher and ensuring stable operation.

◎Optimized Particle Shaping: The continuous lamination crushing principle produces a high proportion of cubical and well-shaped aggregates with consistent particle size, making it suitable for high-quality aggregate production.

◎Excellent Mobility: The crawler-mounted design eliminates permanent foundations and simplifies equipment relocation, reducing setup time and improving overall operating efficiency.

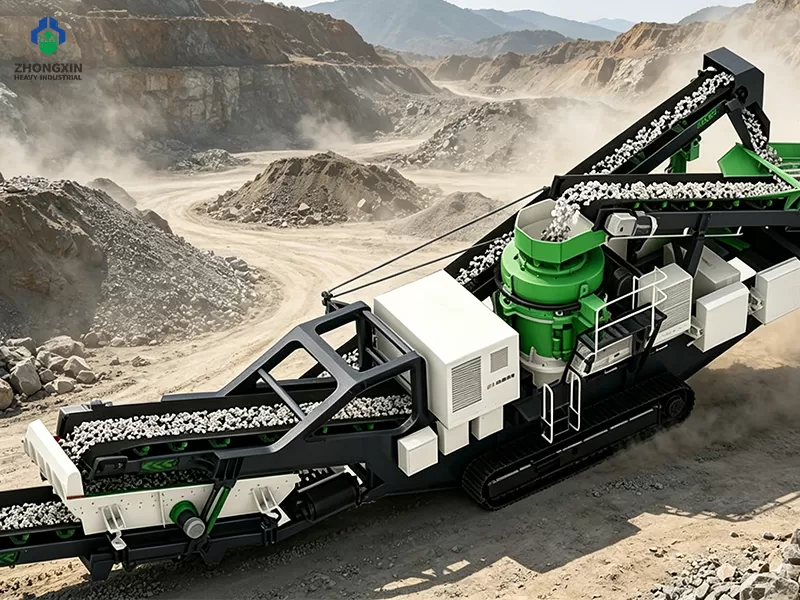

Crawler Cone Crusher Station working at quarry site for secondary stone crushing

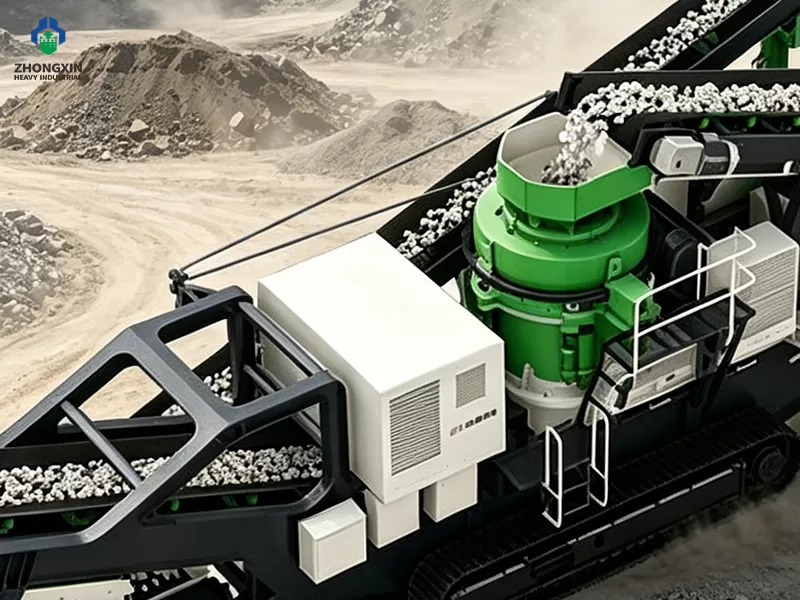

Crawler Cone Crusher Station

High Efficiency Cone Crusher

The cone crusher uses optimized laminated crushing to produce uniform particle shape and consistent product quality. It provides efficient secondary and fine crushing for aggregates and various hard materials.

Crawler Cone Crusher Station

Crawler Crushing Station Mobility

Heavy-duty crawler tracks allow the crushing station to move directly across the jobsite without additional transport equipment. It handles uneven and complex terrain while enabling fast and flexible relocation.

Crawler Cone Crusher Station

Mobile Cone Crushing Equipment Integration

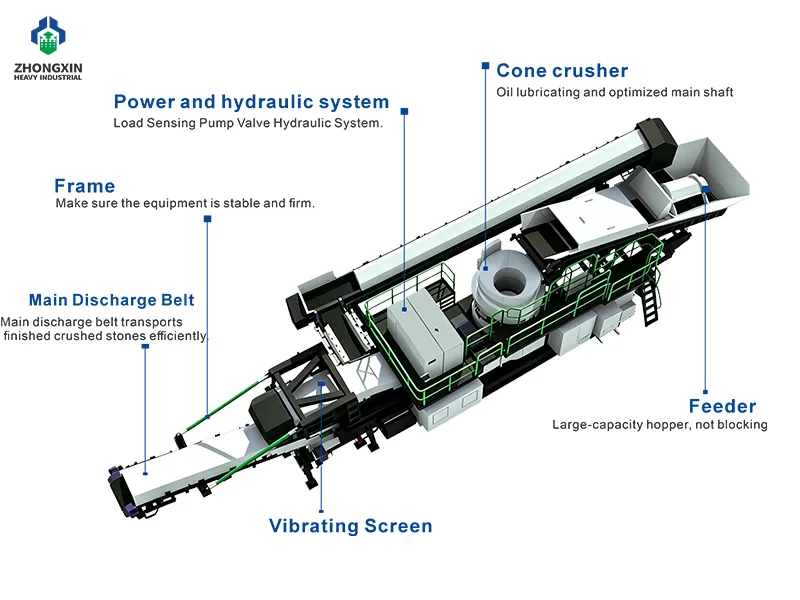

Feeding, cone crushing, screening, and conveying systems are integrated into one compact mobile unit. This integrated design simplifies installation, reduces setup time, and improves overall crushing efficiency.

Crawler Cone Crusher Station

Construction Waste Crusher Versatility

The mobile crusher efficiently processes concrete, asphalt, and demolition debris for recycling applications. Its flexible configuration makes it suitable for demolition sites, construction projects, and aggregate production.

Crawler Cone Crusher Station

Cobblestone Crushing Plant Durability

Robust frames and wear-resistant liners provide excellent durability when processing hard and abrasive materials. The heavy-duty construction extends service life and reduces maintenance requirements during continuous operation.

Crawler Cone Crusher Station Features and Advantages

The crawler cone crusher station integrates a high efficiency cone crusher, tracked mobility, for efficient secondary crushing in cobblestone, construction waste, and aggregate applications.Integrated crushing and screening. Remote control and diesel-electric option.

Tracked mobile crushing station delivering efficient rock crushing performance
Crawler cone crusher equipment working with flexible mobility at construction site
Mobile cone crushing plant used for mining, quarry and aggregate production
Crawler cone crusher equipment production line in professional crusher manufacturer factory
Mobile tracked cone crusher unit undergoing strict quality inspection before shipment
Direct sale of crawler-mounted plants

Advantages of Crawler Cone Crusher Station and reasons to choose us

◎1. Exceptional Mobility for Frequent Relocation

The crawler cone crusher station is equipped with a tracked travel system that allows it to move freely across complex terrain without the need for additional transportation. This exceptional mobility makes it ideal for applications requiring frequent relocation, such as river regulation, cobblestone crushing, and construction waste disposal, significantly reducing site preparation time and logistics costs.

◎2. Advanced Crushing Performance for Secondary and Tertiary Stages

Designed specifically for secondary and tertiary crushing, the crawler cone crusher station delivers high-efficiency crushing with stable performance. The cone crusher utilizes the laminated crushing principle, ensuring uniform particle shape and excellent product quality. Finished product sizes can be flexibly adjusted according to customer requirements, making it suitable for a wide range of aggregate production needs.

◎3. Complete Integration and User-Friendly Operation

The crawler cone crusher station integrates feeding, crushing, screening, and material handling functions into a single compact unit. The complete equipment set includes a vibrating feeder, cone crusher, vibrating screen, and multiple discharge belts, all coordinated by an advanced control system. This integrated design simplifies operation and maintenance, reducing labor requirements and improving overall efficiency.

◎4. Low Operating Costs and High Economic Returns

Designed with durability and efficiency in mind, the crawler cone crusher station features robust components and advanced hydraulic systems that minimize wear and reduce maintenance needs. Its fuel-efficient operation and ability to produce multiple finished product sizes on-site significantly lower operating costs while delivering high economic returns for investors, making it a cost-effective solution for mobile crushing operations.

What is the working principle of the Crawler Cone Crusher Station?

◎The crawler cone crusher station operates on the laminated crushing principle, delivering efficient and reliable performance for secondary and tertiary crushing applications. The electric motor drives the eccentric sleeve to rotate, causing the main shaft to oscillate. As a result, the crushing cone moves periodically toward and away from the fixed cone. When the cone approaches the fixed cone, the crushing chamber gap becomes narrower, and the material is crushed through compression and shearing forces.

◎The laminated crushing design promotes effective inter-particle crushing, improving crushing efficiency while producing more uniform and cubical particle shapes. The mobile cone crushing equipment is ideal for producing high-quality aggregates. As the cone moves away from the fixed cone, the chamber gap widens and crushed material falls by gravity. This continuous cycle ensures stable and efficient material processing. The crawler crushing station also features automatic discharge adjustment, allowing operators to control the final product size. Its hydraulic system enables fast and convenient setting adjustments.

◎When uncrushable material enters the crushing chamber, the hydraulic release system activates automatically. The crushing cone lifts temporarily, allowing the foreign material to pass safely without damaging major components, then quickly returns to its normal operating position. The hydraulic cavity cleaning function helps remove accumulated material and clear blockages, minimizing downtime. The construction waste crusher can process concrete and demolition debris on-site, while the cobblestone crushing plant efficiently handles hard and abrasive materials. The track-mounted system provides excellent mobility across complex terrain without additional transport equipment. Robust frames and wear-resistant liners further ensure reliable performance and long service life in demanding crushing environments.

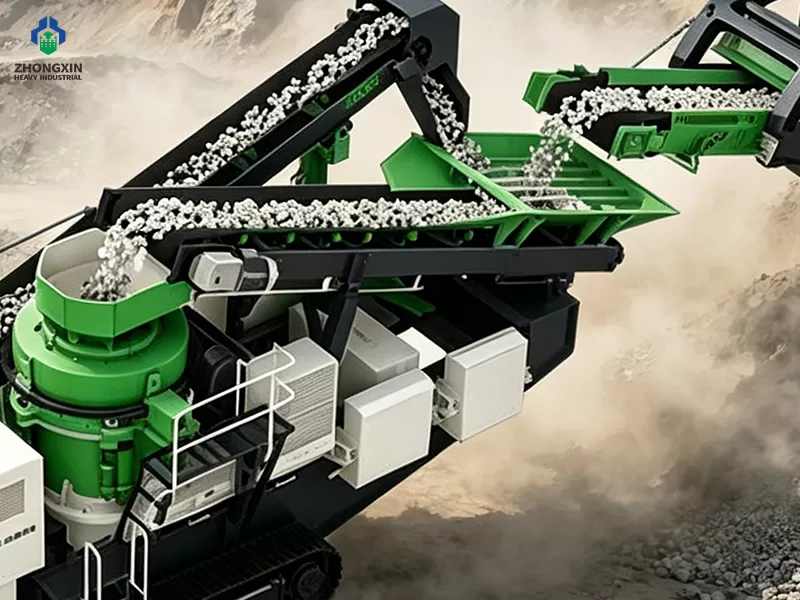

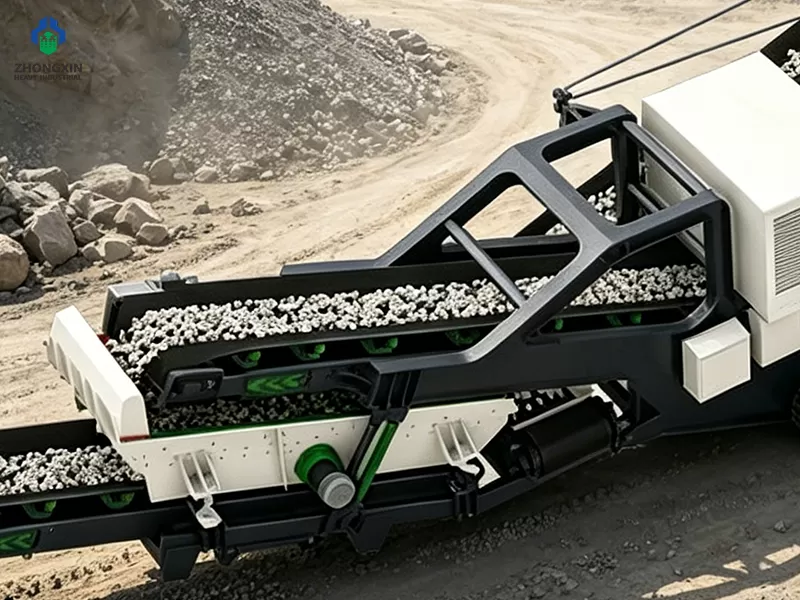

Tracked cone crusher feeding system for efficient rock crushing operation

Product Photos

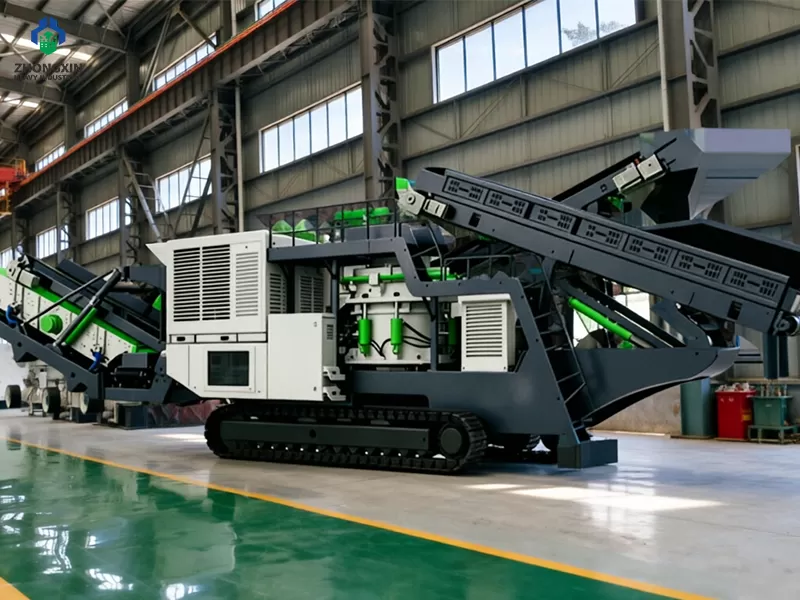

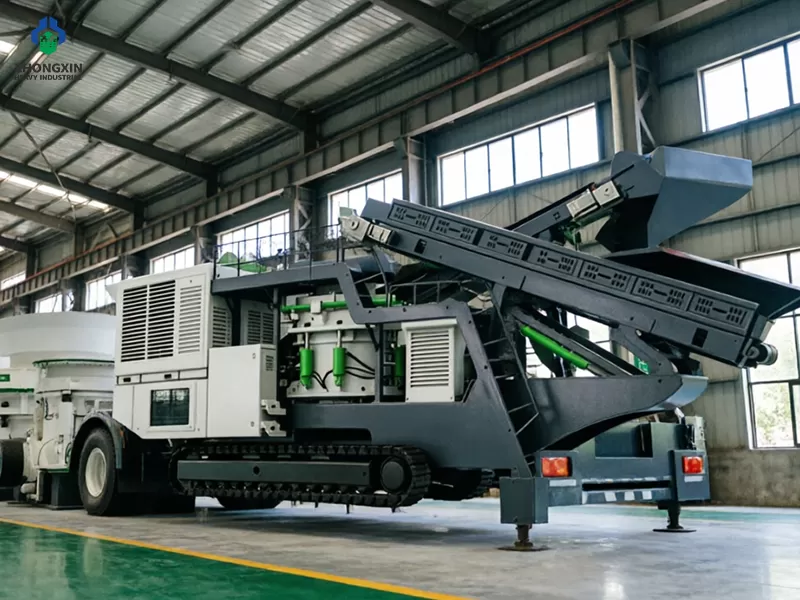

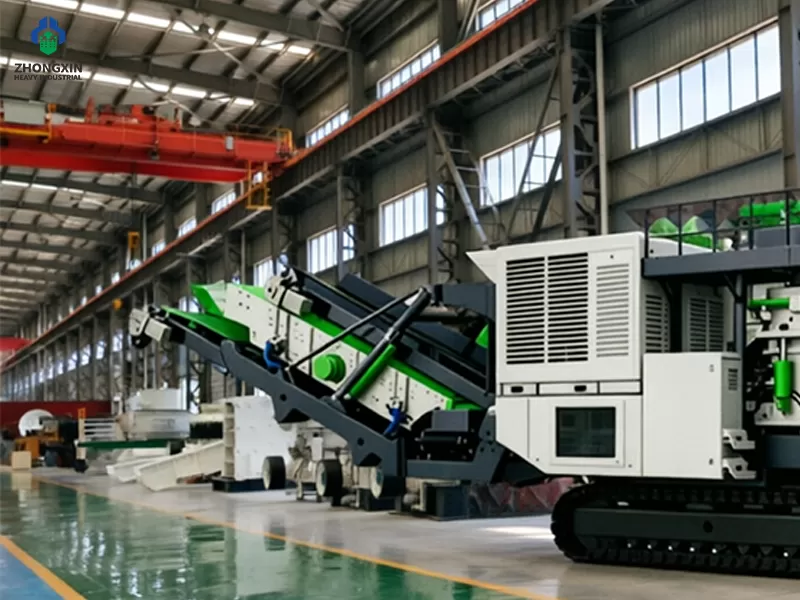

Crawler mobile cone crusher production and assembly in professional manufacturing workshop

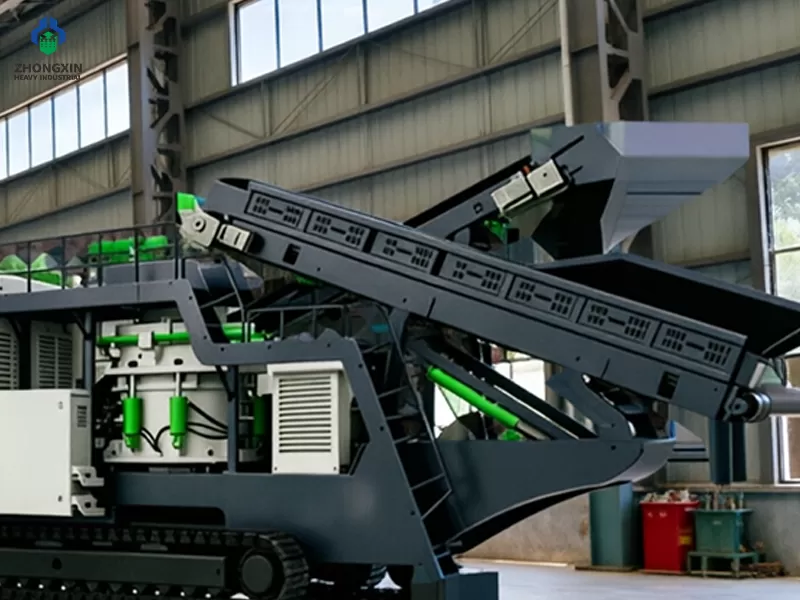

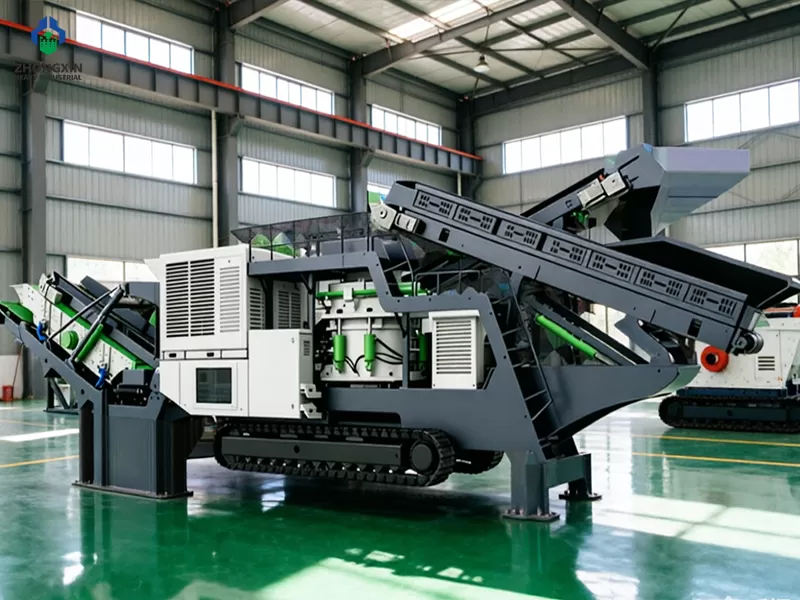

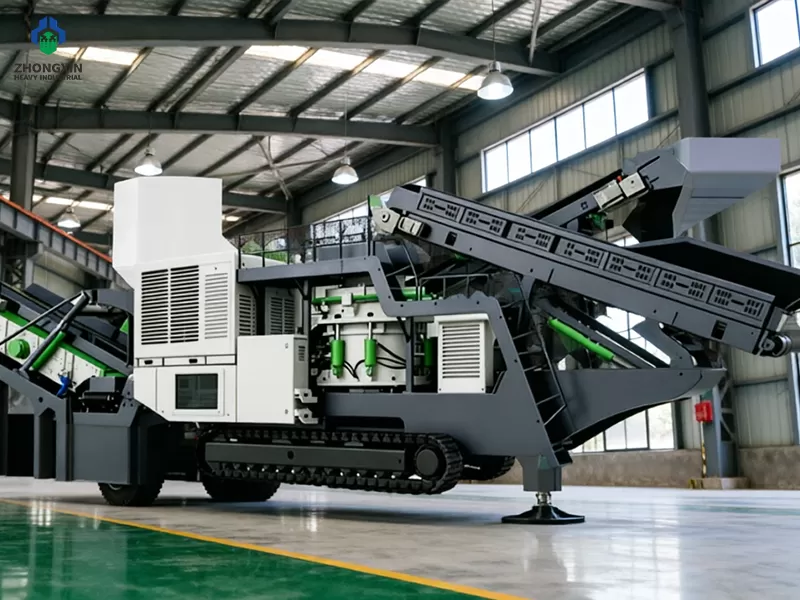

Tracked cone crusher station displayed in crusher factory with advanced mobile crushing technology
Crawler Cone Crusher Station ready for shipment from crusher equipment manufacturer

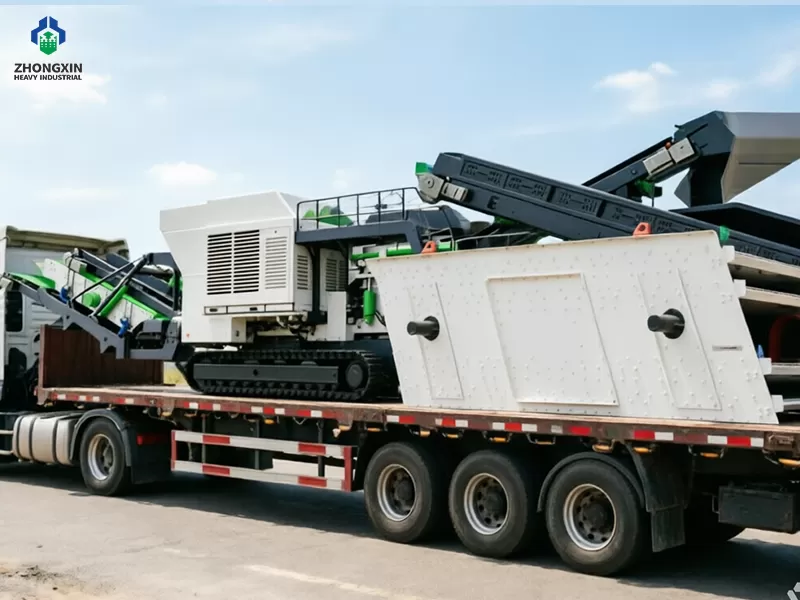

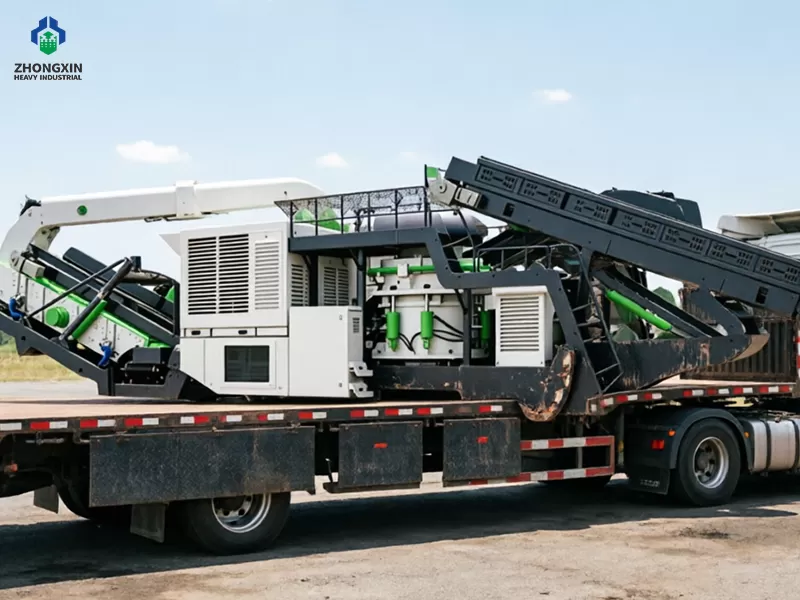

Crawler mobile cone crusher loaded for transportation to mining project site

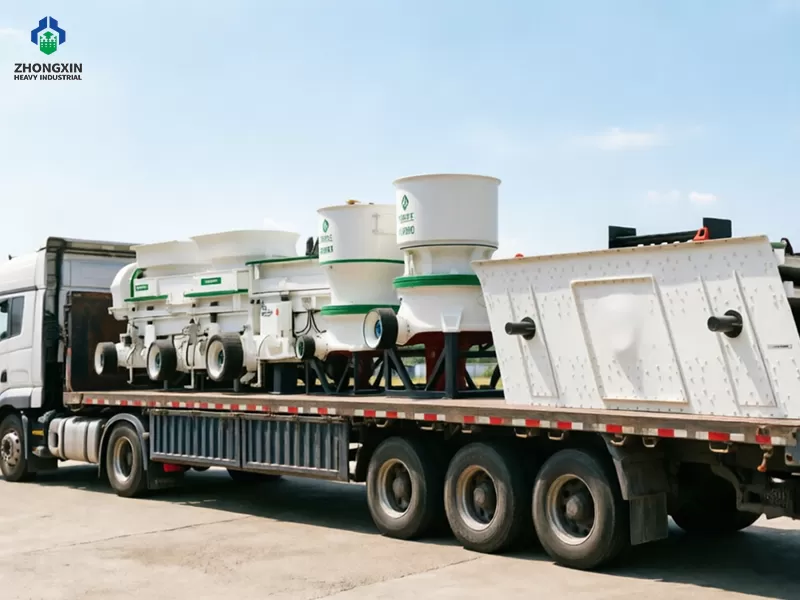

Tracked cone crusher station delivery from China crusher factory to overseas customer

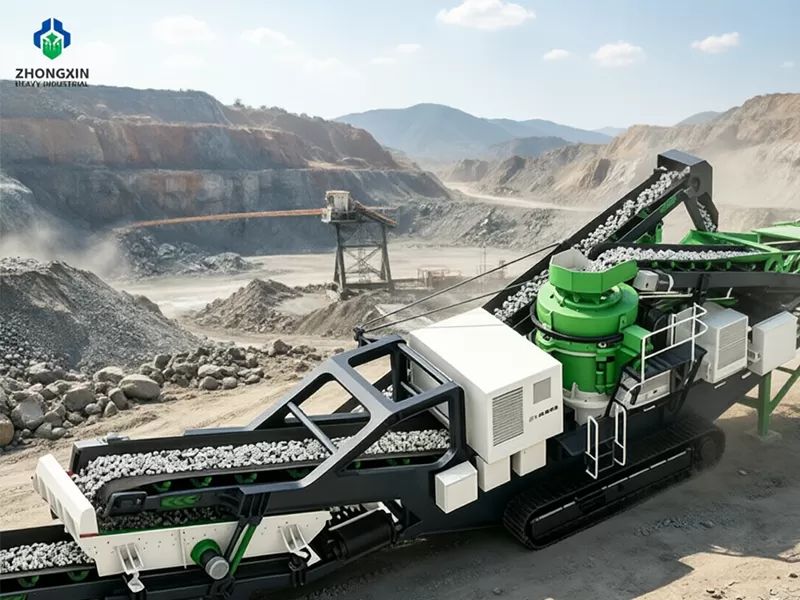

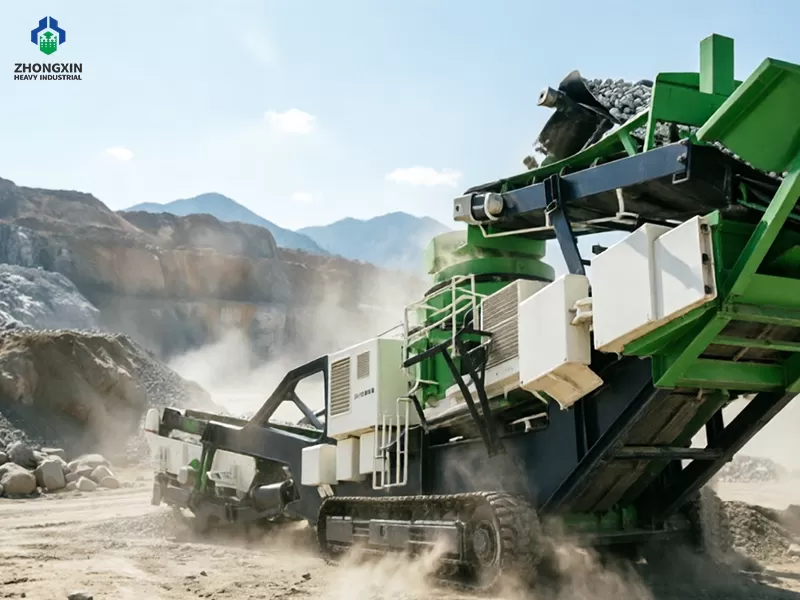

Crawler cone crusher station working as a secondary crusher in granite quarry plant
Tracked mobile cone crusher operating in a complete mobile stone crushing line
High capacity mobile cone crushing plant processing hard aggregates at mining site

Specification

LWH Size(mm)17000×3300×370016400×2950×360017800×3500×375017400×3300×380022000×3750×410020000×3500×3800
Belt FeederModelB1000×7000B1000×7000B1000×7000B1000×7000B1200×8000B1200×8000
Volume(m³)555533
Feeding Height(mm)258025802580258026802680
Motor Power(kW)111111111515
Cone CrusherModelHP200HP200HP300HP300HP400HP400
Motor Power(kW)160160250250315315
Main Discharge BeltSize(mm)B1000×9500B1000×10000B1000×9500B1000×10000B1200×12000B1200×10000
Discharge Height(mm)280025002800250029002800
Motor Power(kW)111111111515
CheckscreenModel2YKR1435——2YKR1435——2YKR1545——
Motor Power(kW)2×3.7——2×3.7——2×5.5——
Discharge under sieve Belt 1#Size(mm)B1200×6500——B1200×6500——B1200×6500——
Discharge Height(mm)2600——2600——2600——
Motor Power(kW)7.5——7.5——7.5——

RECOMMENDED CRUSHING, SCREENING AND MINERAL PROCESSING EQUIPMENT

Explore our full range of heavy-duty industrial machinery, covering crushing, screening, industrial grinding, and mineral processing solutions. As a direct manufacturer, we provide reliable equipment tailored to maximize your production efficiency.

Wheel-Mounted Mobile Sand Making Machine
Wheel-Mounted Mobile Sand Making Machine
Wheel-Mounted Mobile Impact Crusher Plant
Wheel-Mounted Mobile Impact Crusher Plant
Crawler Mobile Sand Making Plant
Crawler Mobile Sand Making Plant
Crawler Screening and Crushing Station
Crawler Screening and Crushing Station

EXPLORE MORE PRODUCTION LINE SITE PROJECTS

Browse our verified aggregate and mineral processing line projects tracking across the globe. Our heavy-duty crushing plants are optimized to deliver maximum throughput, reliable performance, and a fast return on investment for quarry operators.

80-100 TPH River Pebble & Basalt Stationary Crushing and Sand-Making Production Line
80-100 TPH River Pebble & Basalt Stationary Crushing and Sand-Making Production Line
250tph Granite Crushing Plant Applied in Ethiopia
250tph Granite Crushing Plant Applied in Ethiopia
100 TPD Gold Processing Plant in Zimbabwe: Complete CIL/CIP Solution
100 TPD Gold Processing Plant in Zimbabwe: Complete CIL/CIP Solution

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our machine. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

The crawler cone crusher station is used for secondary and tertiary crushing. It is ideal for river regulation, cobblestone crushing, and construction waste disposal. This mobile cone crushing equipment handles hard and abrasive materials efficiently. It works directly at job sites with frequent relocation.

The high efficiency cone crusher uses the laminated crushing principle. Material is crushed by compression and inter-particle pressure. This produces uniform particle shapes and excellent cubicity. It ensures consistent output quality and higher productivity.

Yes. The construction waste crusher processes concrete, asphalt, and demolition debris efficiently. It operates directly at demolition sites. It eliminates costly material transport. It reduces logistics expenses and speeds up project completion.

While impact stations excel with soft-to-medium rocks and recycling, a mobile tracked cone crusher is specifically engineered for hard, highly abrasive stones (like granite and river stone). It provides a much lower operational cost per ton and significantly longer wear-life for internal parts when handling hard materials.

Track-mounted crusher specifications include a tracked travel system for complex terrain. It has a vibrating feeder, cone crusher, screen, and discharge belts. It features hydraulic adjustment and cavity cleaning. It includes robust frames and wear-resistant liners for durability.

The total tracked secondary crusher price depends on the specific cone crusher core type (such as hydraulic or compound), production capacity requirements (TPH), and auxiliary equipment like onboard screens or return conveyors. Contact our engineers for a tailored configuration and direct factory quote.

Our crawler mounted cone crusher features an integrated PLC control system. It continuously monitors parameters like feed rate, chamber level, and discharge size, automatically adjusting the crusher settings to maximize throughput and protect the equipment from overloading.

The mobile cone crushing equipment has low maintenance needs. Regular lubrication and wear part inspection are sufficient. Genuine spare parts ensure perfect fit and long life. The hydraulic systems reduce manual work. This keeps operating costs low and productivity high.

COMPREHENSIVE SERVICE & GENUINE SPARE PARTS

Zhongxin Heavy Industry provides not only high-performance equipment but also full life-cycle support solutions.

Crawler Cone Crusher Station
Crawler Cone Crusher Station
Genuine Cone Crusher Wear Parts

Original mantles, concaves, and eccentric bushings ensure perfect fit and long service life for your high efficiency cone crusher.

Service
Expert Technical Support for Crawler Crushing Station

Our team provides installation guidance, operation training, and troubleshooting to keep your crawler crushing station running smoothly at any site.

Service
Fast Parts Delivery for Mobile Cone Crushing Equipment

Global parts network ensures rapid supply of genuine components for all models like LTH200, LTH300, and LTH400, minimizing downtime and production loss.
