ZSW Series Vibrating Feeder

Type:Necessary Auxiliary Equipment

Capacity:96-1200THP

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

Input Size:0mm--1000mm

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.

Share To

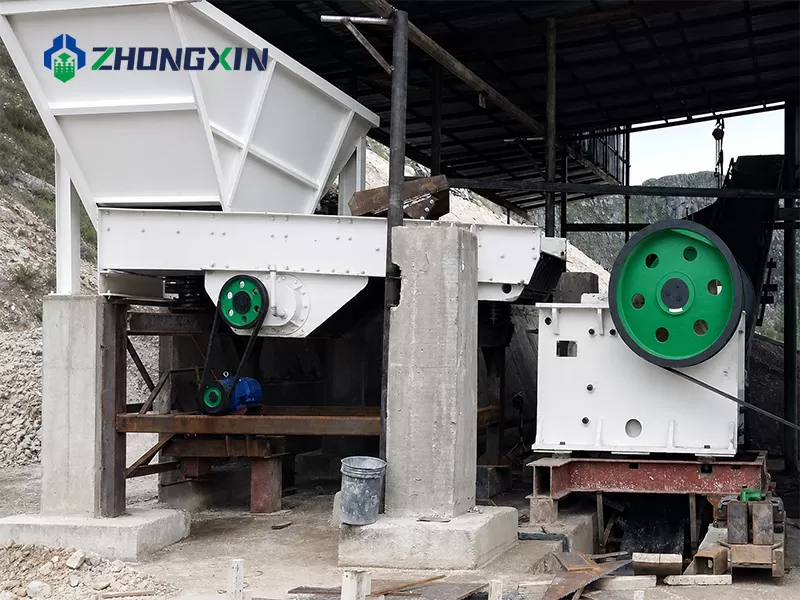

ZSW Series Vibrating Feeder is mainly used to feed material into the primary crusher homogeneously and continuously. Meanwhile, it can screen the fine material.

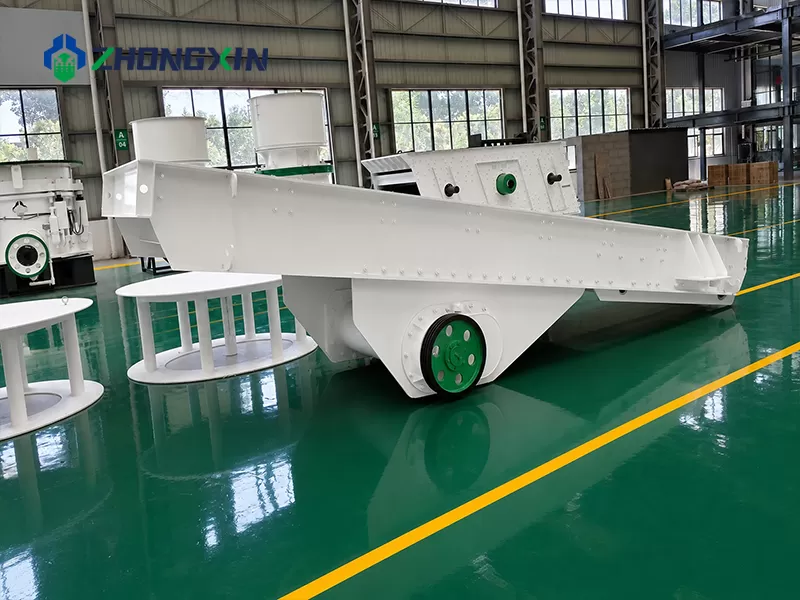

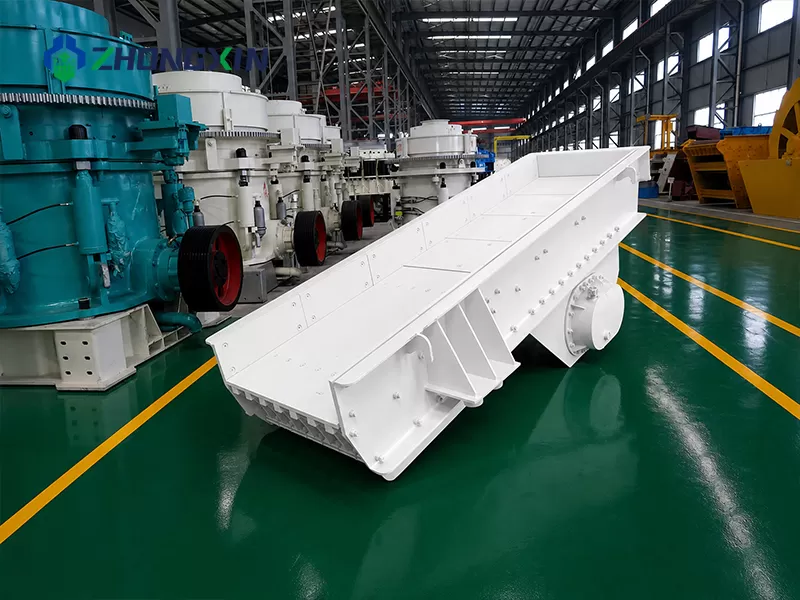

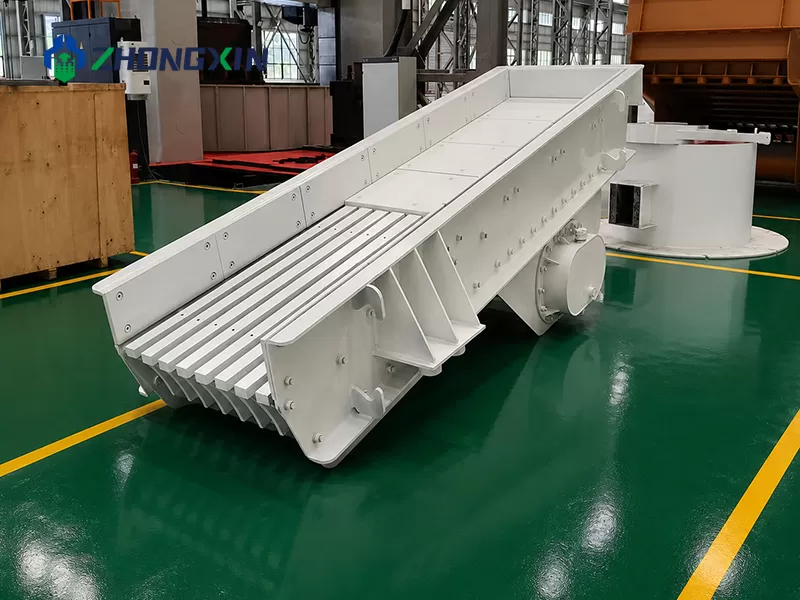

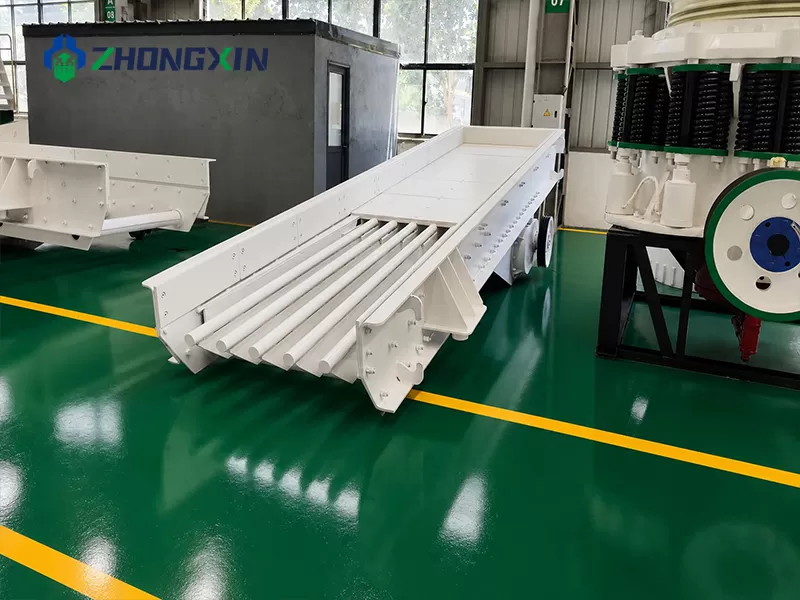

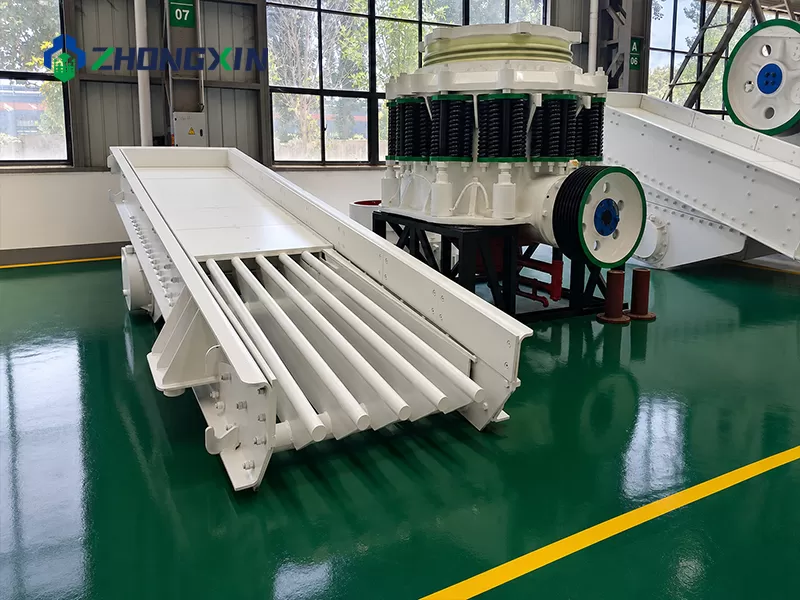

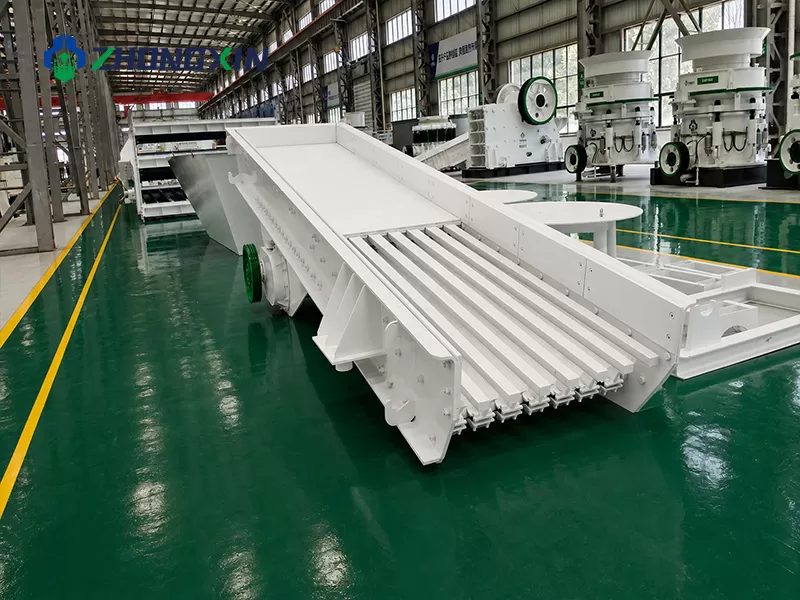

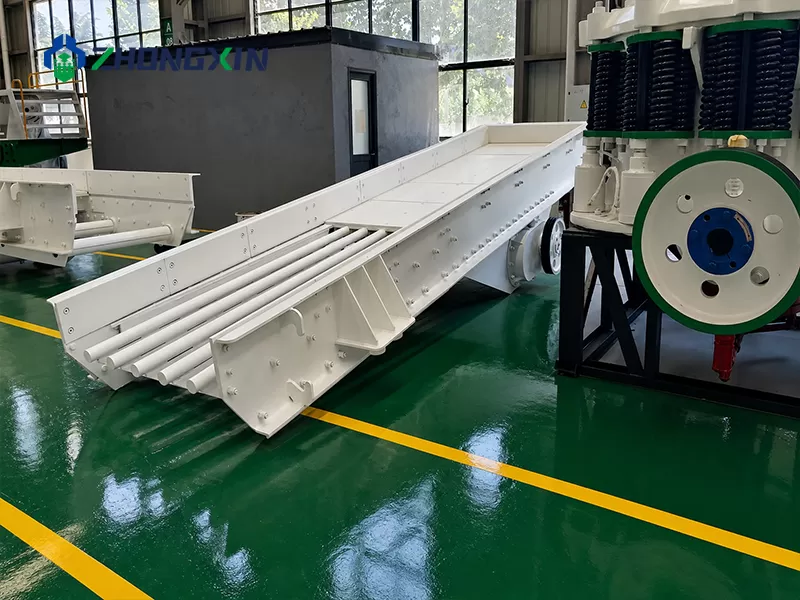

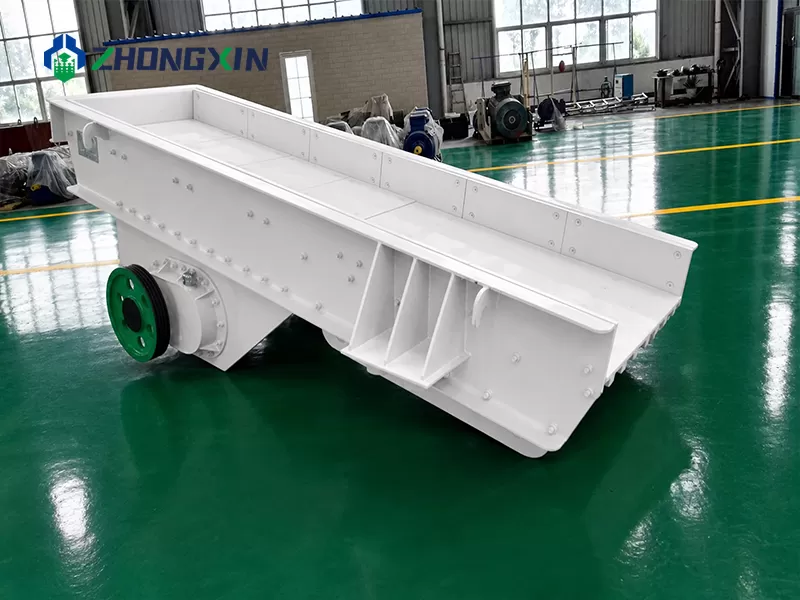

ZSW Series Vibrating Feeder

FeaturesWhatsapp/Wechat:+86-13676922906

1,ZSW Series Vibrating Feeder,Smooth vibrating

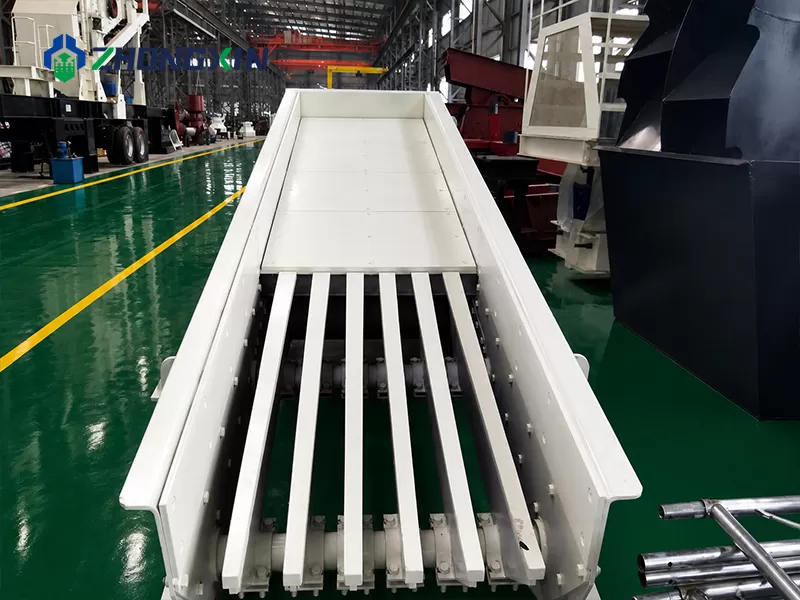

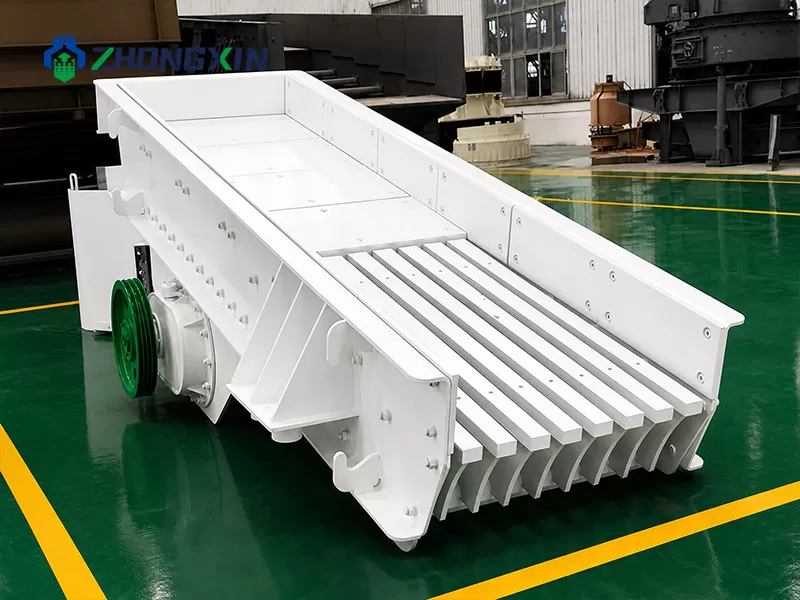

2,Special fence can prevent the block of raw material

3,The distance between fences is adjustable

4,Frequency conversion motor can be equipped to facilitate feeding control, and frequent startup of motor is avoided.


Working PrincipleEmail:sales@zxcrusher.com

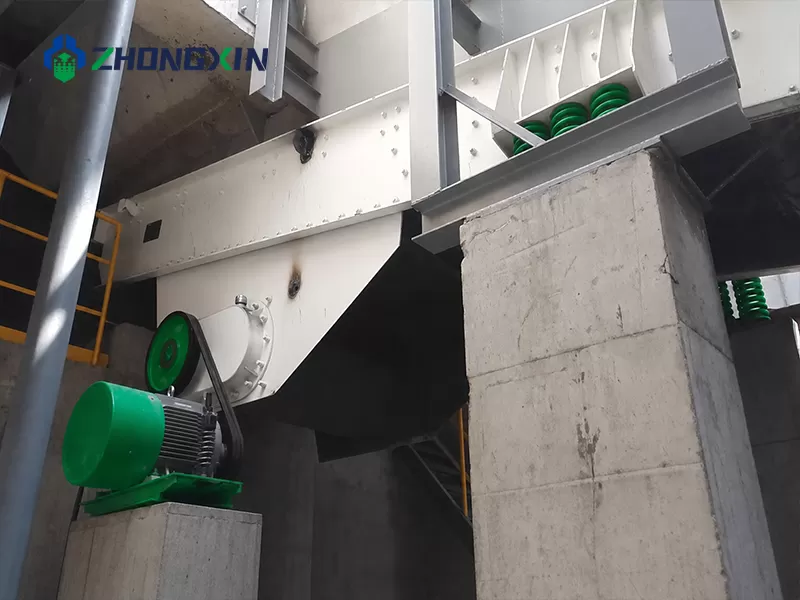

ZSW vibrating feeder

SpecificationWhatsapp/Wechat:+86-13676922906


Model Max Feed Size(mm) Capacity (t/h) Motor Power (L*W*H) (kw) Overall Dimensions (mm) Weight (kg) Size of Funnel(mm)
ZSW-380*95 500 96-160 11 3882*2224* 2121 4082 3800*950
ZSW-490*95 500 120-240 15 4957*2277* 2150 5004 4900*950
ZSW-490*110 800 120-280 15 4957*2400* 2150 5320 4900*1100
ZSW-590*110 820 200-350 22 6000*2500* 2150 6130 5900*1100
ZSW-600*130 900 400-560 22 6082*2580* 2083 7800 6000*1300
ZSW-600*150 1000 800 30 6627*2350* 3068 12110 6000*1500
ZSW-600*200 1000 1200 37 6436*3853* 3014 18650 6000*2000
