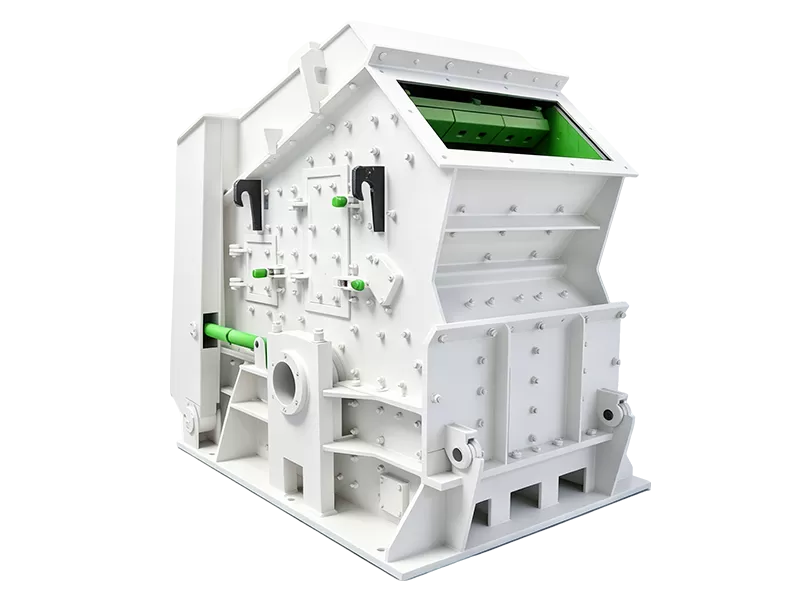

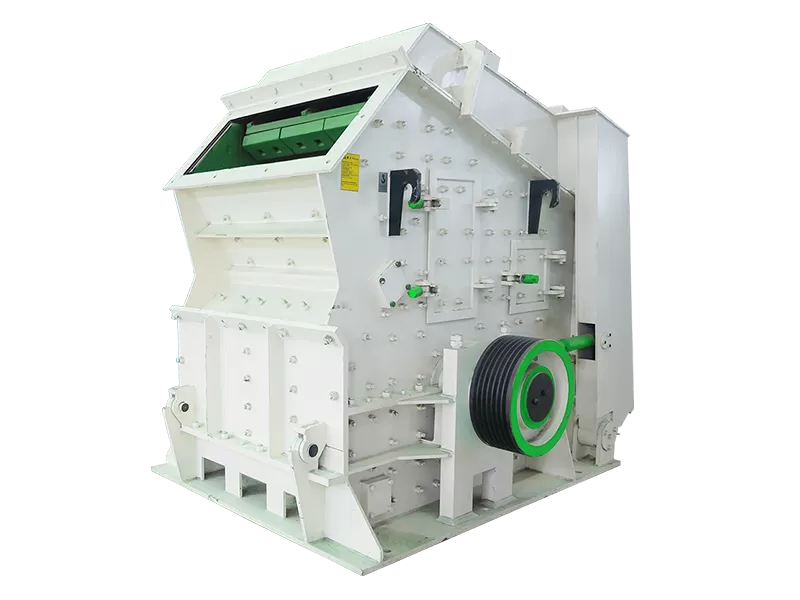

PF Series Impact Crusher

Capacity
30-1000TPH
Motor Power
37-900KW

Applications: Ideal secondary impact crusher for limestone, granite, and concrete recycling.

Key Advantage: Heavy-duty rotor, high reduction ratio, and excellent cubic shape.

Social Media
Whatsapp/Wechat:
+86-13676922906
  • WhatsAppWhatsApp
  • WeChatWeChat
Chat Online Product Inquiry
PF Series Impact Crusher
● 15s Quick consultation | ● 1h Technical guidance | ● 32h Quotation + drawing | ● 365d Exclusive customer service
Get price list

PF Series Impact Crusher – Product Overview

◎The PF Series impact crusher adopts advanced technologies and a unique structural design. Its finished products feature a cubic shape without tension or cracks, delivering an optimal particle size and shape.

◎It is capable of crushing coarse, medium and fine materials with a maximum feed size of less than 500mm and a compressive strength of up to 350MPa, including granite, limestone, concrete and other materials.

◎Widely applied in various fields such as ore crushing, railway, highway, energy, cement, chemical engineering and construction industries, the crusher allows flexible adjustment of the finished product size.
◎High-Efficiency Secondary Impact Crusher for Optimized Particle Shape
◎PF Series impact rock crushers are engineered for heavy-duty mining and quarrying applications. As an ideal secondary impact crusher, it delivers a high reduction ratio and exceptional cubic end products with minimal energy consumption.

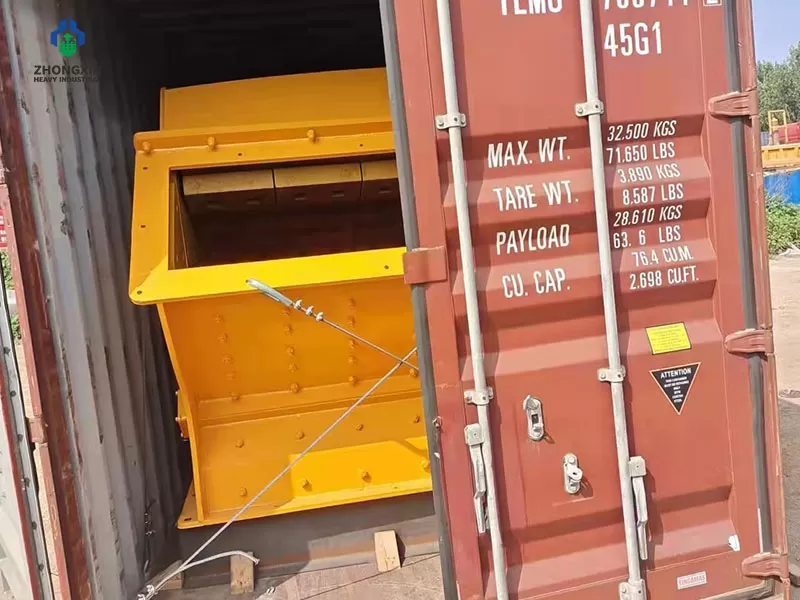

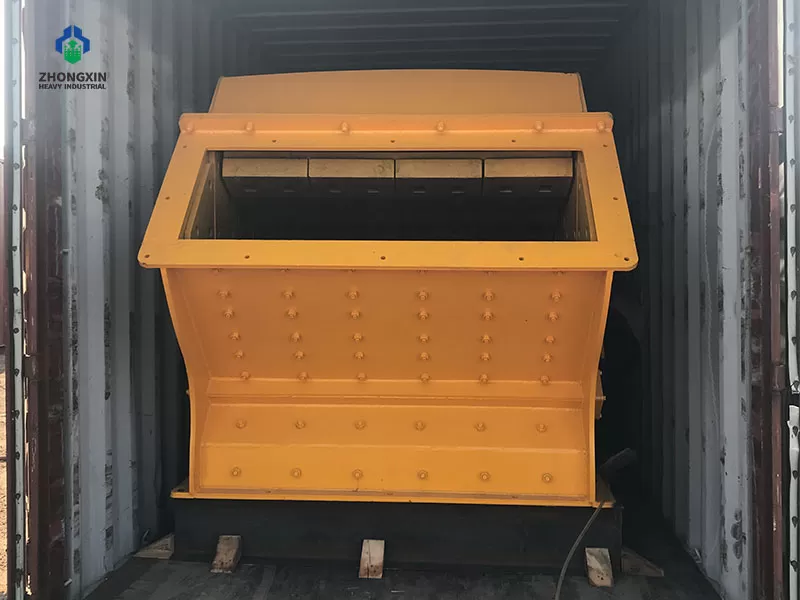

PF Series Impact Crusher ready for export container loading and transport
PF Series Impact Crusher

Three-stage combined crushing

A combination of free impact, counter-impact, and milling processes, fracturing along the material's weakest point, resulting in high efficiency, good particle shape, and low dust.

PF Series Impact Crusher

Rigid rotor structure

The blow bars are rigidly mounted to a heavy-duty, high-inertia rotor, ensuring maximum kinetic energy transfer upon impact for deep, heavy-duty rock reduction.

PF Series Impact Crusher

Screen-free design

Eliminates bottom screen bars entirely, relying on rotor speed and gap settings to control product size—effectively preventing blockages when processing sticky, wet, or mud-bearing ores.

PF Series Impact Crusher

Optimized crushing chamber

Features an enlarged crushing cavity that maximizes the "stone-on-stone" self-collision effect, with an engineered impact plate curvature that precisely directs rebounding material back into the primary rotor impact zone.

PF Series Impact Crusher

Flexible adjustment system

Multiple suspension adjustment devices allow for real-time gap adjustment, adapting to various crushing conditions including coarse, medium, and fine crushing.

What are the advantages and characteristics of impact crushers?

Multi-cavity crushing structure, ideal for crushing hard rock materials Optimally designed adjusting plate ensures finer, cubic finished products without internal cracks

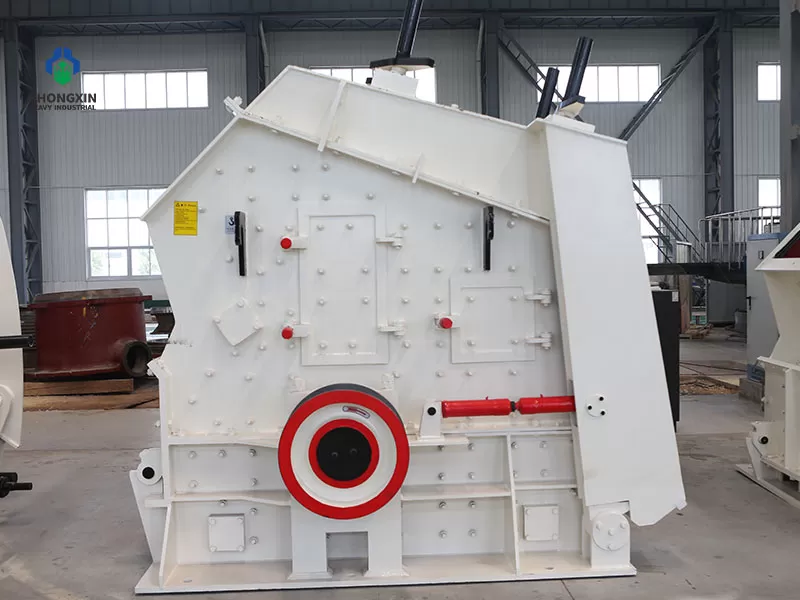

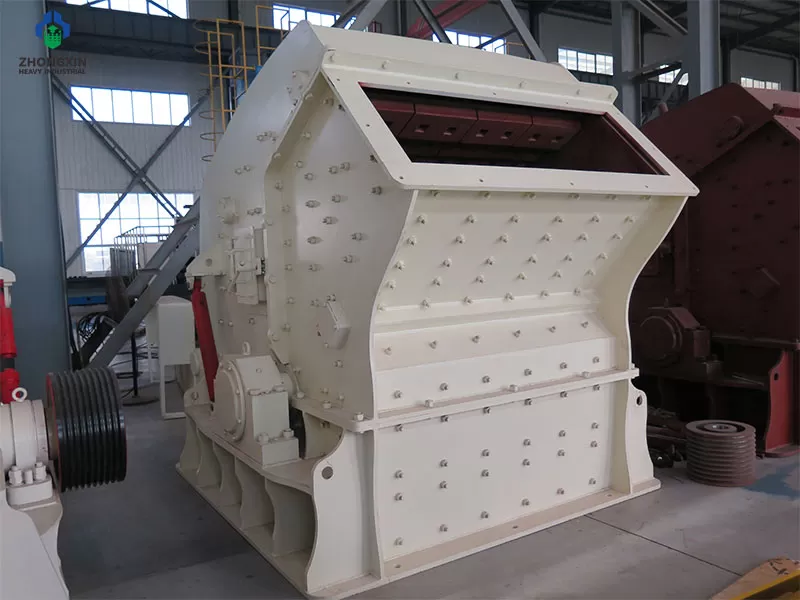

PF Series Impact Crusher front view in factory with heavy-duty rotor assembly

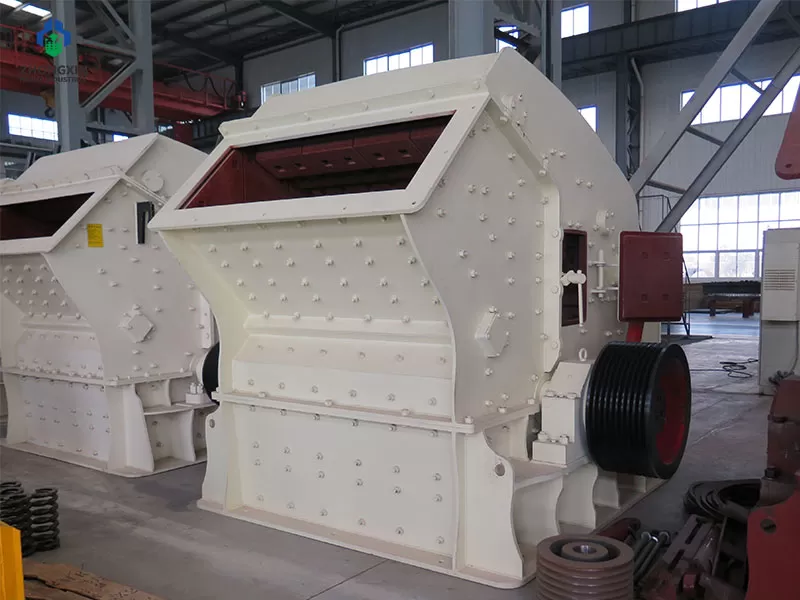

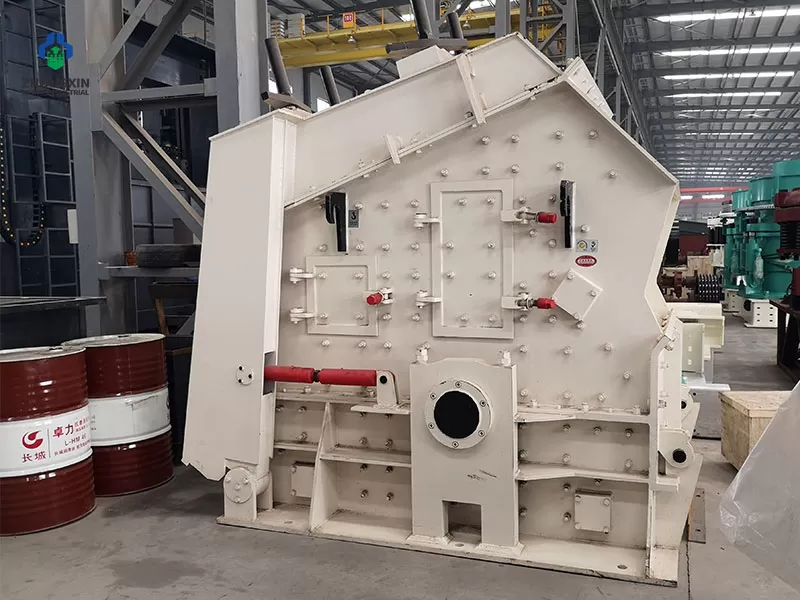

PF impact crusher side view showing impact plates and discharge opening

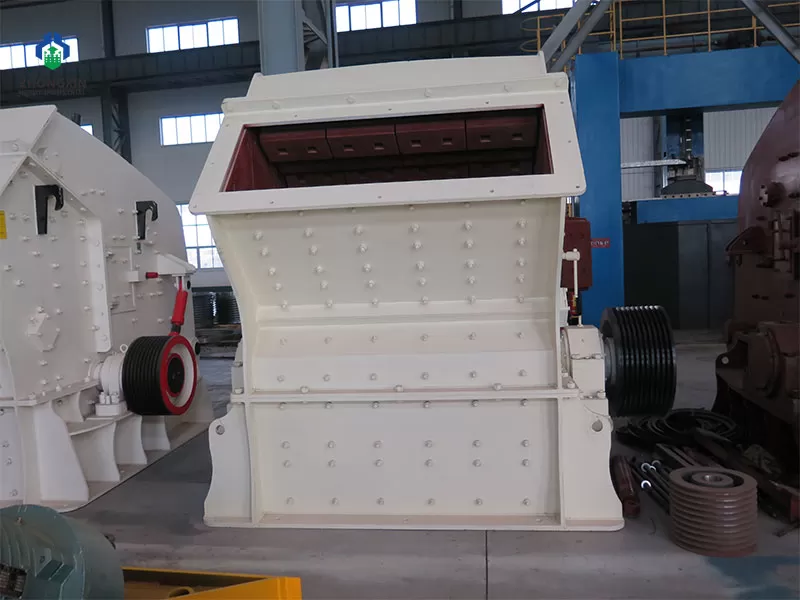

PF Series Impact Crusher feed opening with rotor and blow bars detail
PF impact crusher discharge opening with hydraulic adjustment system
PF Series Impact Crusher rotor and blow bar installation close-up
PF impact crusher bearing housing and drive motor assembly at workshop

Why choose impact crusher?

◎1. Optimized Cavity for Superior Output: The specialized design enhances the impact crushing efficiency, producing final materials with low flaky content.

◎2. Ideal Impact Crusher for Limestone: It performs exceptionally well when processing non-abrasive and medium-hard materials, making it the most cost-effective impact crusher for limestone, gypsum, and concrete recycling.

◎3. Heavy-Duty Rotor: Equipped with a robust horizontal impact crusher rotor that provides higher inertia and reliable performance.

Precautions for the installation of the impact crusher:

◎(1) As the impact crusher is a unit subject to vibration during operation, all fasteners must be securely tightened during installation and before the trial run; regular inspections and re-tightening are also required during actual production.

◎(2) During installation, pay attention to the machine's direction of rotation (indicated by an arrow on the pulley); reverse rotation is not permitted.

◎(3) After installing the motor, a protective guard for the drive belt should be fitted according to the specific installation setup.

◎(4) The clearance between the impact plate and the blow bars should be gradually reduced to meet operational requirements; after adjustment, manually rotate the rotor several times to check for any signs of impact. Once adjusted, the sleeve nuts must be securely locked to prevent them from loosening due to vibration, which could cause the impact plate to drop and collide with the blow bars, leading to an accident.

◎(5) Since the discharge outlet of the impact crusher is located at the bottom, factors such as installation height and coordination with the feeding and discharge systems must be carefully considered during the system design phase.

Working Principle & High-Ratio Reduction Mechanics of PF Impact Crusher

The PF impact stone crusher (impact crushing machine) utilizes high-speed kinetic energy—rather than static compression—to shatter hard rock, delivering exceptional reduction ratios and superior cubical aggregate shapes that maximize quarry ROI.

  • Primary High-Inertia Impact: Driven by a high-torque electric motor, the heavy-duty rotor rotates at extreme velocity. As raw material enters the primary impact crushing chamber, it is struck directly by high-chromium blow bars rigidly mounted on the heavy rotor, instantly fracturing along natural cleavage lines.

  • Secondary Apron Rebound Crushing: The initial high-speed impact propels the fractured rocks against multi-stage impact aprons (impact liners) surrounding the rotor. This secondary collision causes further kinetic reduction before the material rebounds back into the rotor sweep zone.

  • Continuous Multi-Stage Reduction & Particle Shaping: This intense cycle of direct blow-bar strikes, apron rebounds, and inter-particle collisions repeats continuously within the vortex cavity until the material reaches the target size. This repetitive kinetic shearing eliminates internal micro-cracks, producing stress-free, cubical finished aggregates.

  • Precision Discharge Setting & Product Control: The clearance gap between the adjustable impact racks and the rotor assembly can be calibrated to control final product size, fine-tune particle gradation, and meet strict aggregate specifications.

PF Series Impact Crusher working principle diagram showing rotor and impact action

Product Photos

PF Series Impact Crusher impact plate and lining board installation detail
PF impact crusher complete unit with frame and discharge chute system

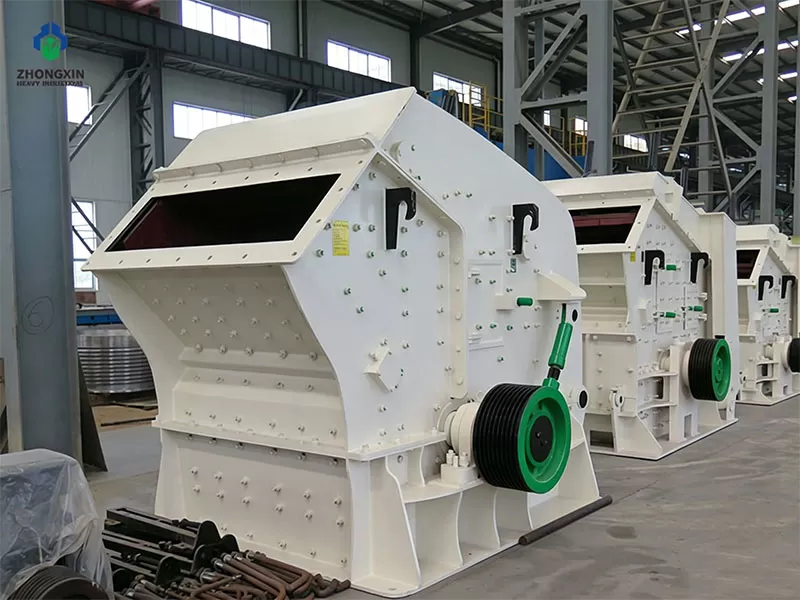

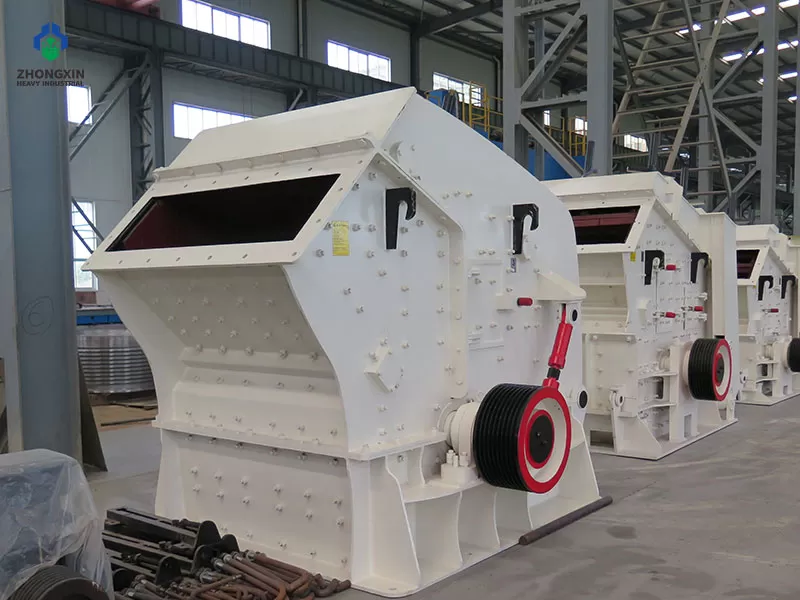

PF Series Impact Crusher assembly line at manufacturing plant workshop

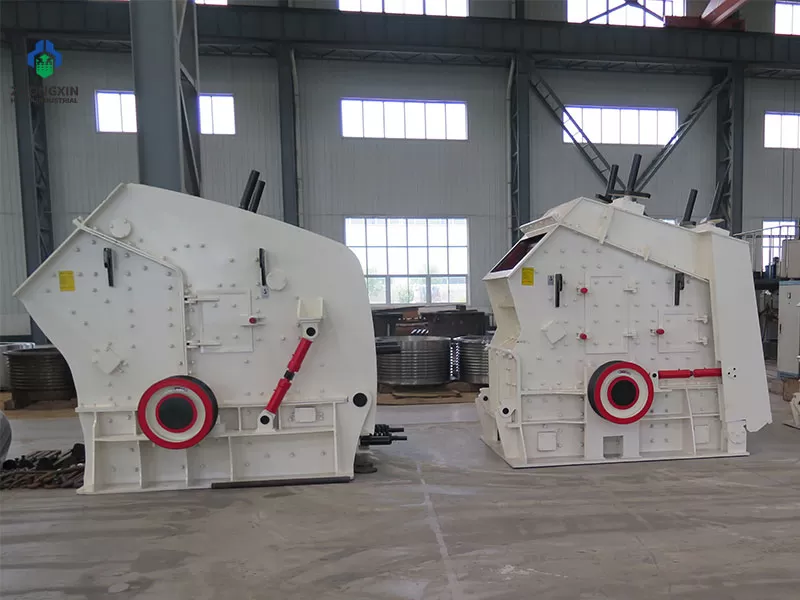

PF impact crusher ready for quality inspection and factory packaging

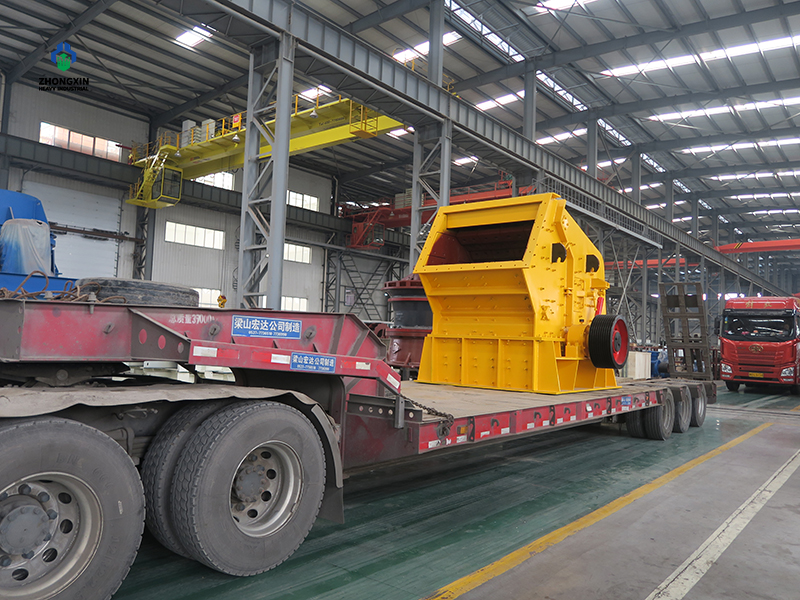

PF Series Impact Crusher loaded on trailer for delivery to customer site
PF impact crusher being shipped from factory for limestone crushing plant

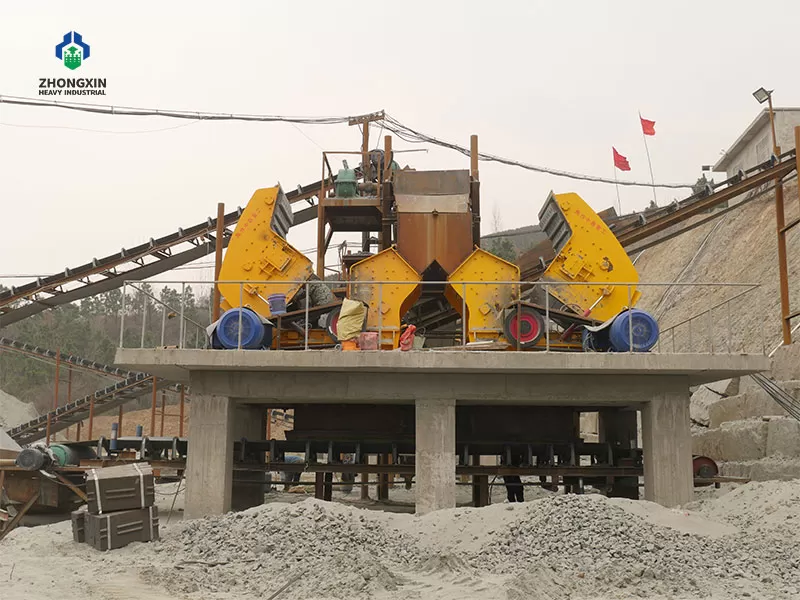

PF Series Impact Crusher operating in mining plant for ore processing line

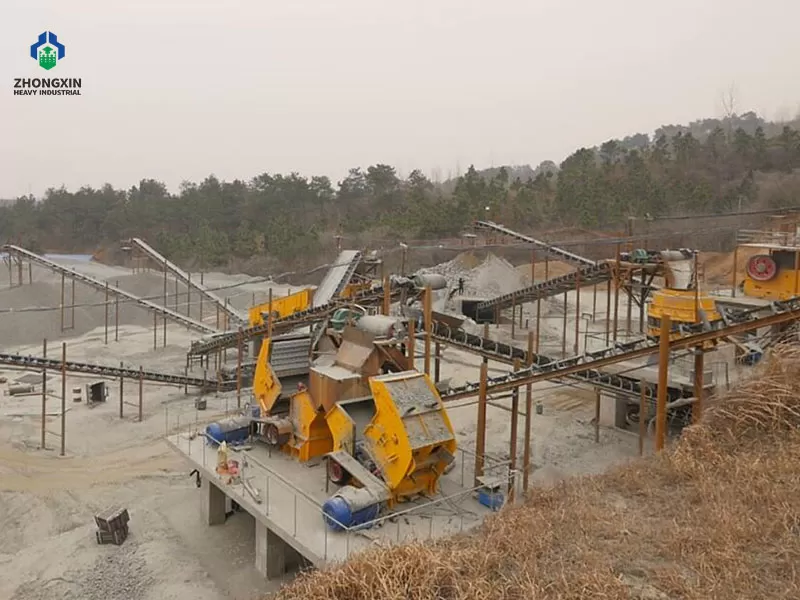

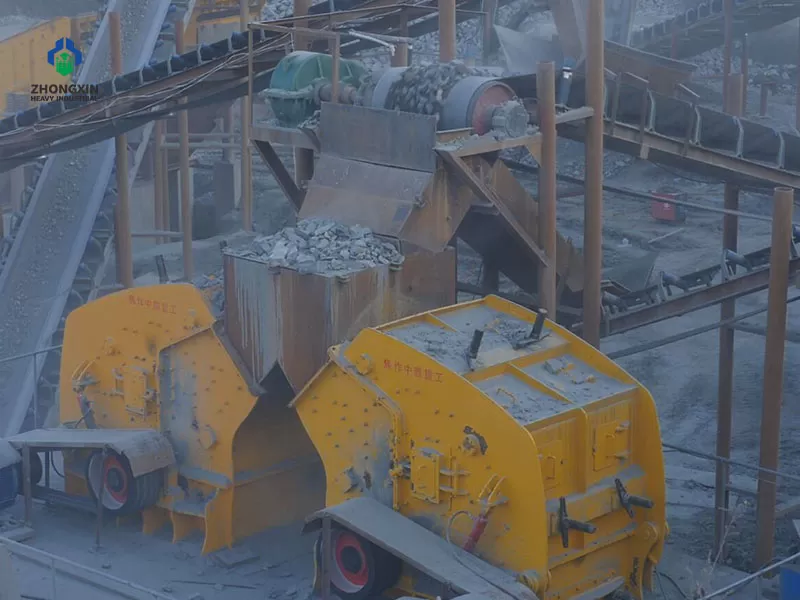

PF Series Impact Crusher crushing limestone at quarry production site
PF impact crusher working in aggregate plant for secondary crushing stage

Specification

ModelRotor Spec (mm)Feed opening size (mm)Max Feed edge(mm)Capacity (t/h)Motor Power(kw)Weight(t)Overall Dimension(L*W*H)mm
PF-10071000*700400*73030030-5037-559.52400×1558×2660
PF-10101000*1050400*108035050-8055-7512.22400×2250×2620
PF-12101250*1050400*108035070-120110-13214.92690×2338×2890
PF-12141250*1400400*1430350110-180132-16018.62690×2688×2890
PF-13151320*1500550*1530500160-250180-26021.33096×3273×2667
PF-13201320*2000860*2030500160-350300-375283096×3560×3185
PF-15201500*2000830*2050700300-500400-45038.63890×3560×3220
PF-20222000*22002360*1350450800-1000710-900834712×3270×4058

RECOMMENDED CRUSHING, SCREENING AND MINERAL PROCESSING EQUIPMENT

Explore our full range of heavy-duty industrial machinery, covering crushing, screening, industrial grinding, and mineral processing solutions. As a direct manufacturer, we provide reliable equipment tailored to maximize your production efficiency.

VSI Sand Making Machine
VSI Sand Making Machine
PE series jaw crusher
PE series jaw crusher
Vertical Shaft Impact Crusher
Vertical Shaft Impact Crusher

EXPLORE MORE PRODUCTION LINE SITE PROJECTS

Browse our verified aggregate and mineral processing line projects tracking across the globe. Our heavy-duty crushing plants are optimized to deliver maximum throughput, reliable performance, and a fast return on investment for quarry operators.

Oxidized Gold Ore Processing Plant & Recovery Solutions
Oxidized Gold Ore Processing Plant & Recovery Solutions
Alluvial Gold Processing Plant & Placer Gold Recovery Solutions
Alluvial Gold Processing Plant & Placer Gold Recovery Solutions

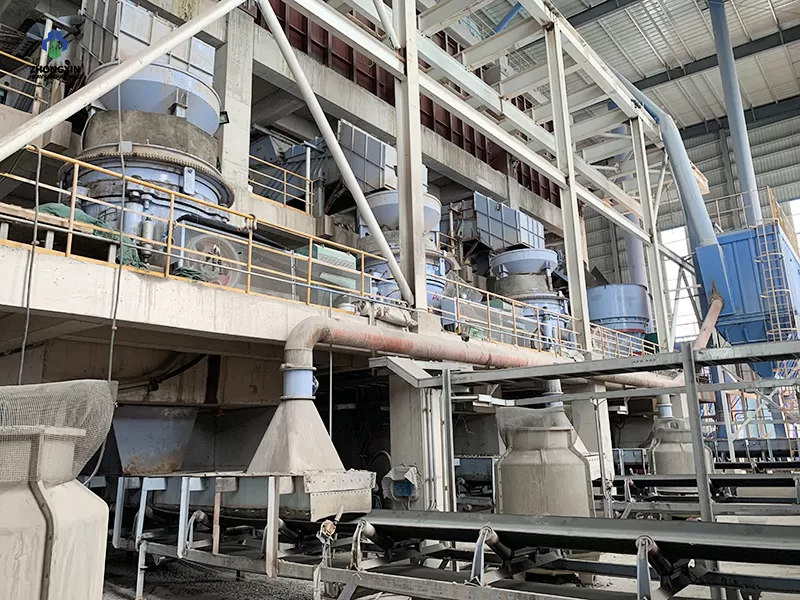

High-Capacity 1200 TPH Mountain Stone Crushing Plant & Aggregate Production Line
High-Capacity 1200 TPH Mountain Stone Crushing Plant & Aggregate Production Line

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our machine. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

The lifespan of the hammer impact plate is directly related to the hardness and abrasiveness of the material being crushed, as well as the equipment's rotational speed. When processing ordinary limestone, a single set of hammer impact plates can last from several thousand to tens of thousands of tons.

A jaw crusher uses compression force to squeeze materials and is typically used for primary crushing of very hard rocks. In contrast, an impact crushing machine uses high-speed impact force from blow bars to shatter materials. The PF series impactor is preferred when you need a higher reduction ratio and a more cubic, non-flaky end-product particle shape.

In an impact crusher, the blow bars are rigidly connected to the rotor; the inertia of the entire rotor is utilized to impact the material, causing it to shatter while also imparting significant velocity and kinetic energy. In contrast, the hammer heads of a hammer crusher are hinged to the rotor, meaning the material is crushed primarily through strikes by individual hammers, resulting in lower velocity and kinetic energy imparted to the material. Impact crushers feature a large crushing chamber that allows the material room to move, enabling full utilization of the impact effect as the blow bars propel the material against the impact plates. Hammer crushers have a smaller crushing chamber, where material is broken primarily by the direct impact of the hammers. The blow bars of an impact crusher strike the incoming material from below and throw it against the impact plates, whereas the hammer heads of a hammer crusher strike the material in the direction of its movement. Impact crushers generally do not utilize grate bars; the product particle size is controlled by the speed of the blow bars and the gap between the blow bars and the impact plates (or apron plates). Hammer crushers typically feature grate bars at the bottom (though reversible hammer crushers without grate bars also exist), and the crushed product is discharged through the screen openings. The crushing chamber of an impact crusher significantly influences productivity, energy consumption, product particle size and shape, and liner wear. Therefore, designing an optimal crushing chamber is crucial for ensuring superior crusher performance. The crushing chamber of an impact crusher is defined by the space enclosed by the feed guide plate, two stages of impact plates, and an arc-shaped path extending from the guide plate's discharge point to the discharge opening of the second-stage impact plate. The function of the impact plates is to withstand the impact of material thrown by the blow bars—causing the material to shatter—and to rebound the crushed material back into the crushing zone for further impact breakage. The shape and structure of the impact plates have a significant effect on crushing efficiency. The suspension mechanism for the impact plates also serves as the discharge opening adjustment device and provides a safety function. During operation, the impact assembly is maintained in its proper working position by gravity, spring preload, or hydraulic pressure. The magnitude of these forces can be determined through equilibrium calculations based on the assembly's operating conditions. In an impact crusher, the blow bars are rigidly connected to the rotor, and the spacious crushing chamber allows the material sufficient room for movement. The machine utilizes a high-speed rotating rotor to strike the material; under the action of the blow bars, the material is not only crushed but also gains significant velocity and kinetic energy. It then impacts against the impact plates mounted on the frame or collides with other material fragments, resulting in further size reduction.

(1) Routine inspections should be conducted frequently during the operation of the impact crusher. If abnormal noise is detected or the bearing temperature exceeds 70°C, the machine must be stopped immediately for inspection; operation may only resume after the fault has been rectified. (2) Feeding should only commence after the machine is running normally. Material feed must be uniform, and care should be taken to prevent the inclusion of iron pieces or other hard objects. Feeding must be stopped before shutting down the machine; the motor should only be turned off after all material inside the crusher has been processed. (3) After maintenance or adjustment of the discharge opening, the rotor should be rotated manually to ensure it turns freely without friction or jamming against other parts before the motor is started. (4) The integrity of the bearing housing seals should be checked regularly. Grease should be replenished monthly, and the bearing housing should be thoroughly cleaned, the lubricant replaced, and the felt seals renewed every three months. (5) When checking for loose fasteners, special attention should be paid to the clamping plate screws that secure the blow bars on both sides of the rotor. This prevents the clamping plates from loosening, which could cause the ends of the blow bars to protrude from the rotor body and strike the machine casing, resulting in equipment damage. (6) To ensure the safety of personnel and equipment, repairs, adjustments, and cleaning operations—as well as the opening of access doors—are strictly prohibited while the machine is running. (7) If the particle size of the crushed product becomes excessive, the machine should be stopped to inspect the wear on the blow bars and prevent damage to the rotor. When blow bars are rotated 180° for reuse due to wear, the weight of each blow bar must be equalized to maintain balance and prevent vibration upon startup.

(1) Free impact crushing. Upon entering the crushing chamber, material is subjected to impacts from high-speed blow bars and collisions between material particles, as well as friction between the blow bars and the material. These forces cause the material to fracture along its natural planes of weakness while in a state of free movement within the chamber. The dust generated by the impact crusher is primarily produced by the collision of material masses in mid-air. (2) Impact crushing (rebound). Material is struck by the blow bars mounted on the high-speed rotating rotor, acquiring high kinetic energy; it is then hurled against the impact plate, resulting in further breakage. The trajectory of the material rebounding from the impact plate is determined by the curvature of the plate itself. (3) Milling/chipping action. As material enters the zone where the blow bars operate, large chunks are milled or chipped away piece by piece by the high-speed rotating blow bars and then thrown outward. Additionally, any material exceeding the discharge opening size—having survived the previous two crushing stages—undergoes further milling and breakage by the high-speed rotating blow bars at the discharge opening.

There are three core differences: ① Connection method: Impact crushers have a rigid connection between the hammer plates and the rotor, utilizing the inertia of the entire rotor for impact; hammer crushers have hinged hammers. ② Impact direction: Impact crushers strike the material from bottom to top; hammer crushers strike the material along its direction. ③ Discharge control: Impact crushers typically have no screen bars, relying on gaps to control particle size; hammer crushers discharge material through bottom screen openings.

The machine must be stopped immediately for inspection. Focus on checking if the bearing housing seal has failed (allowing dust to enter) and if the grease is dried out or contaminated. The solution is to add grease monthly, thoroughly clean and change the oil every three months, and replace the oil felt seals.

Shutdown must follow the principle of "stop feeding first, then stop the machine." First, stop feeding and wait until all material in the crushing chamber has been crushed and discharged before turning off the motor power. This prevents residual material from accumulating in the crushing chamber, avoiding motor burnout or equipment jamming during the next load start-up.
