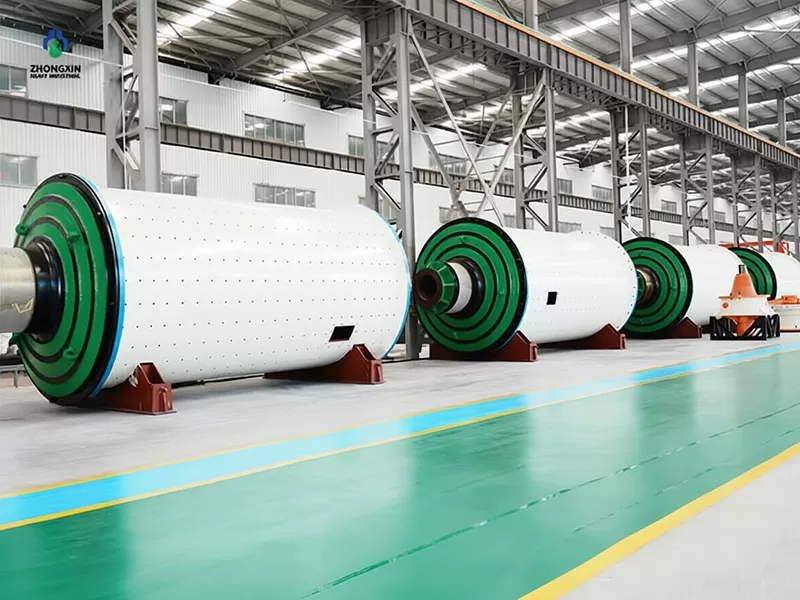

Ball mill

Ball mill is a device that grinds and pulverizes materials after they are crushed.Ball mill is widely used in cement, silicate products, new building materials, refractory materials, fertilizers, ferrous and non-ferrous metal beneficiation, glass and ceramics and other production industries to grind various ores and other grindable materials in dry or wet manner.

FeaturesWhatsapp/Wechat:+86-13676922906

1. Energy saving: The matching of the drive and grinding energy consumption can save energy.

2. Flexible design of the discharge section: The discharge port is reasonably designed, and customers can select the iron remover according to their needs.

3. Rotating section: The cylinder, lining, medium, partition plate, and discharge grate plate of the rotating section are all composed of high-quality original parts.

4. Large feed volume of the feeding section: Reasonable feed port design expands the feed volume.

5. High grinding efficiency and good lining quality

6. Adopt closed system to reduce dust

Working PrincipleEmail:[email protected]

SpecificationWhatsapp/Wechat:+86-13676922906

Number	Model	Cylinder diameter（mm）	Cylinder length（mm）	Cylinder effective volume（m³）	Maximum ball loading（t）	Operating speed（r/min）	Main motor power（kW）
1	MQ-09×□	900	900~1800	0.45~0.9	0.96~1.9	34.8~39.5	7.5~15
2	MQ-12×□	1200	1200~2400	1.1~2.2	2.4~4.7	29.8~33.9	22~45
3	MQ-15×□	1500	1500~3000	2.2~4.5	4.7~9.7	26.5~30.1	55~90
4	MQ-21×□	2100	2200~4000	7~12	15~27	22.3~25.3	140~250
5	MQ-24×□	2400	2400~4500	10~18	21~39	20.8~23.6	210~355
6	MQ-27×□	2700	2100~5400	11~28	23~59	19.6~22.2	260~630
7	MQ-32×□	3200	3000~6400	22~47	46~98	17.9~20.4	500~1120
8	MQ-36×□	3600	3900~7000	36~64	75~135	16.9~19.2	1000~1800
