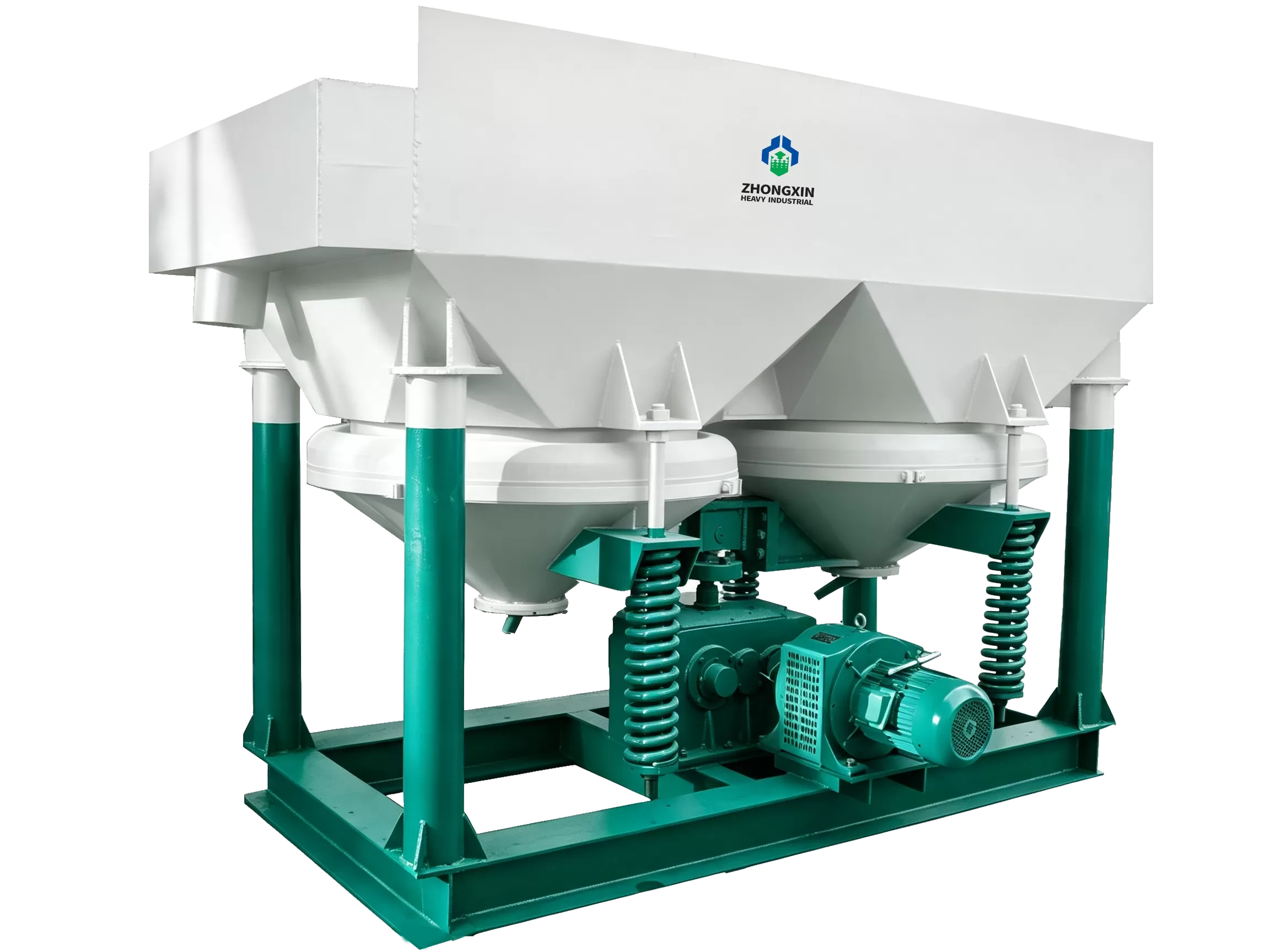

Industrial Jig Concentrator equipment for gold recovery and ore beneficiation

Gravity Jig Concentrator for Gold & Mineral Processing Plant

High-Efficiency Gravity Jig Concentrator for Advanced Mineral Processing
The gravity jig concentrator stands as one of the most reliable and eco-friendly gravity separation equipment choices in the modern mining industry. By utilizing the proven principle of hydraulic stratification in a fluid bed, this highly efficient jiging machine separates minerals of varying specific gravities without relying on any expensive or hazardous chemical reagents.
Engineered to integrate seamlessly downstream of your crushing and screening circuits, our mineral jig is globally recognized for its exceptional performance in alluvial gold recovery, as well as the processing of iron ore, manganese, tin, tungsten, and barite. It delivers an ideal synergy of high throughput, minimal water consumption, and exceptionally low operating costs (OPEX)—making it a high-yield investment for sustainable mining operations worldwide.

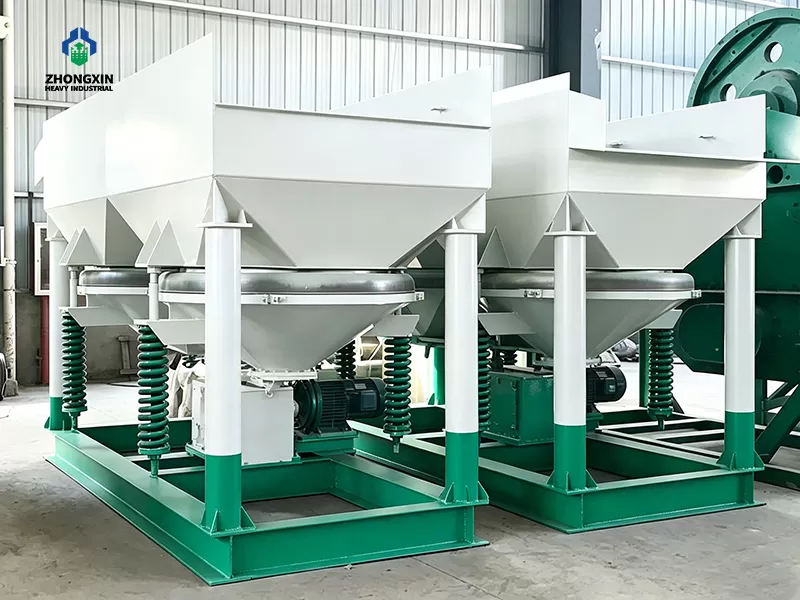

High performance mineral separation Jig Concentrator produced in factory

Jig Concentrator

High Alluvial Gold Recovery

Delivers exceptional density separation for coarse and free particles, maximizing alluvial gold recovery and mineral yield.

Jig Concentrator

100% Eco-Friendly Process

Relies purely on physical gravity separation with water pulsations, eliminating the need for hazardous chemical reagents.

Jig Concentrator

Seamless Plant Integration

Pairs perfectly downstream of crushing and screening systems to maintain a continuous, high-efficiency workflow.

Jig Concentrator

High Capacity & Large Feeding

Processes feed sizes from 0.5 mm to 25 mm with a high throughput of up to 30 TPH per unit.

Jig Concentrator

Low Water & Power Consumption

Uses an optimized hydraulic system that minimizes water usage, drastically lowering daily operating costs (OPEX).

Key Features & Technical Advantages of Our Gravity Jig

Heavy-Duty & Low Maintenance: Built with premium anti-abrasive materials and robust components to ensure maximum uptime in harsh mining environments.

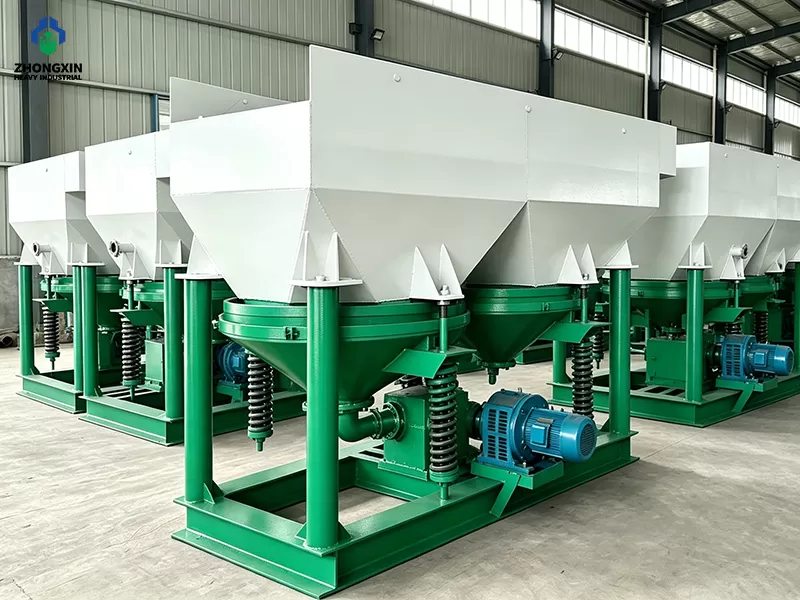

Gold recovery Jig Concentrator equipment produced by mining machinery manufacturer

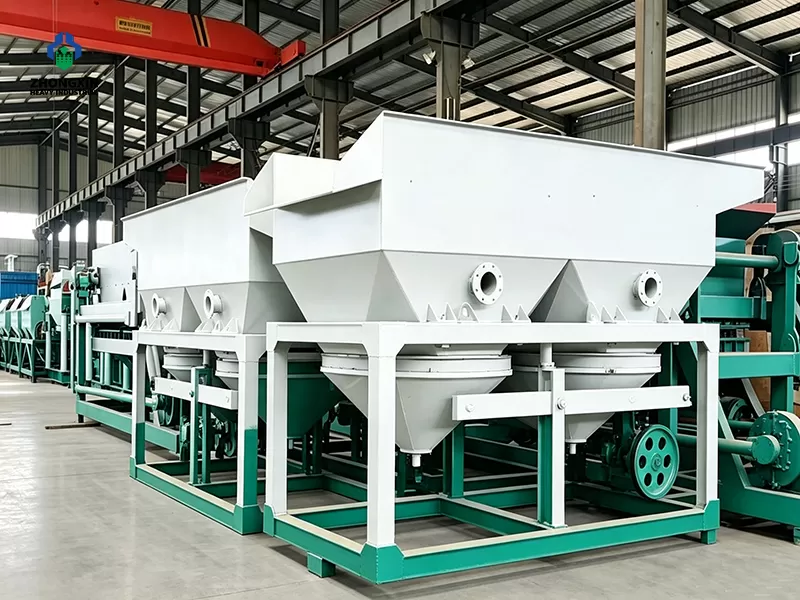

High efficiency Jig Concentrator for gravity separation of minerals in factory

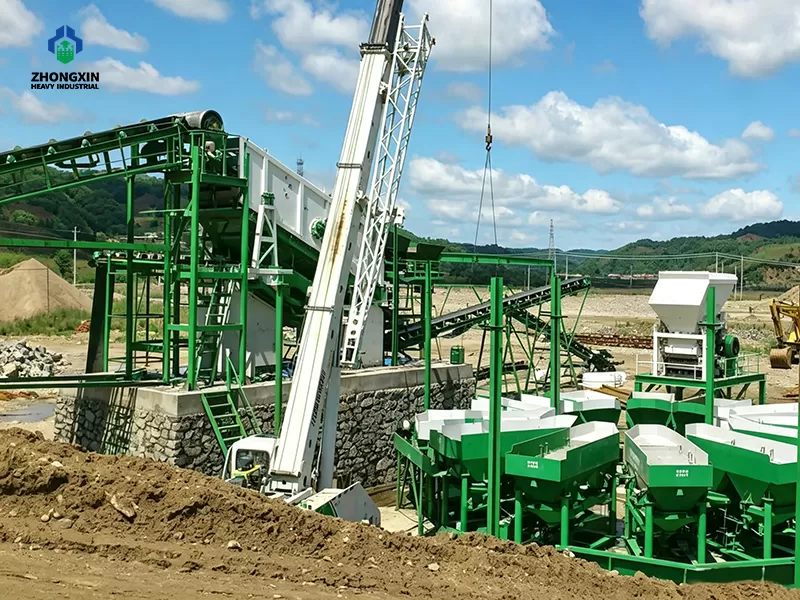

Gold ore processing plant with Jig Concentrator for gravity separation

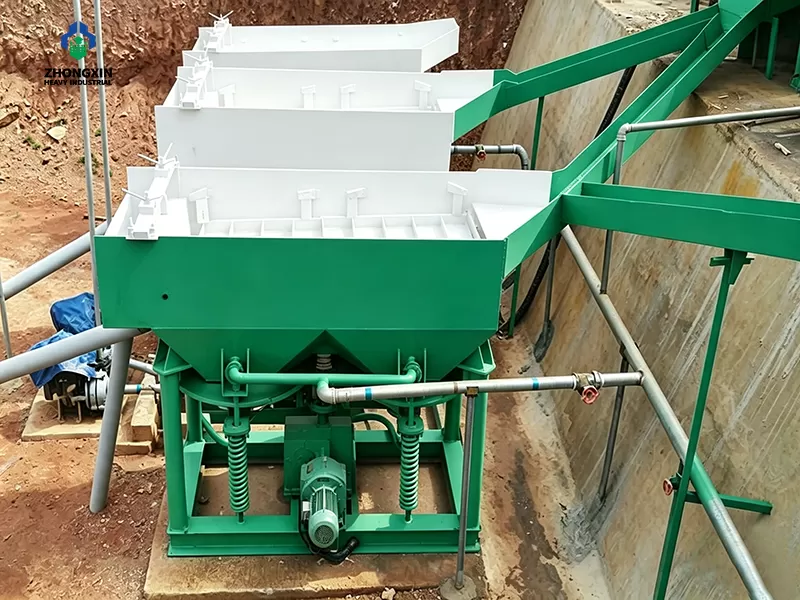

Mineral beneficiation production line equipped with Jig Concentrator equipment

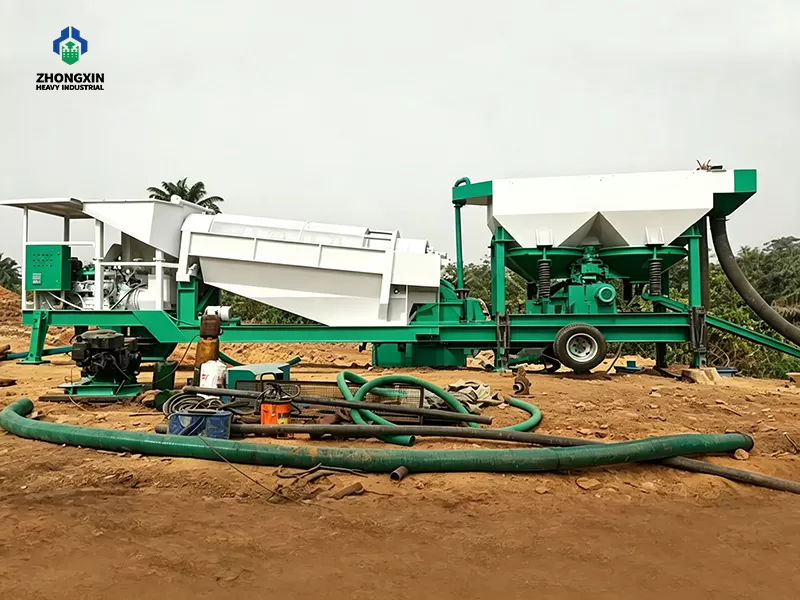

Jig Concentrator working in ore processing plant for gold recovery

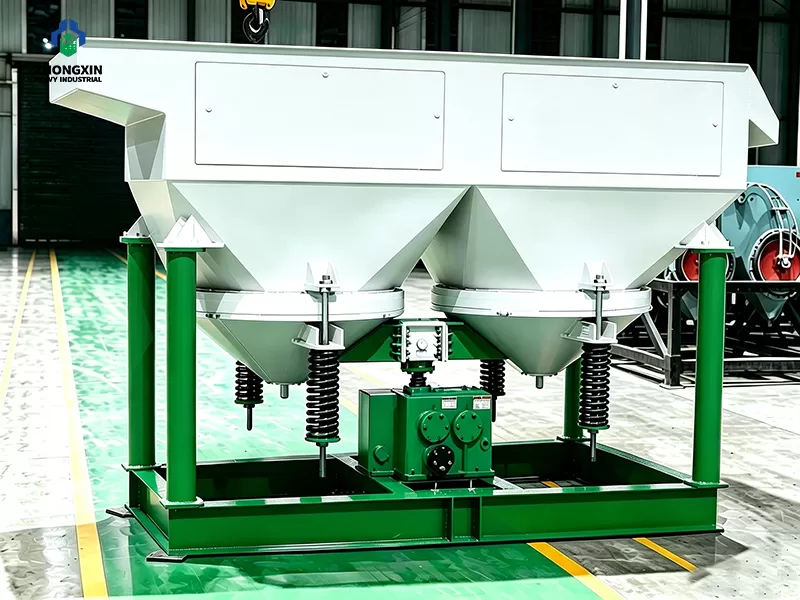

Jig Concentrator manufactured in mineral processing equipment factory workshop

Why Choose Zhongxin Heavy Industry as Your Mining Equipment Partner?

1.Exceptional Alluvial Gold & Mineral Recovery Rate

Engineered with an optimized hydraulic pulsation curve, our jig delivers outstanding density separation and capture efficiency for both coarse and free particles, maximizing your yield in alluvial gold recovery, iron ore, manganese, and tin processing.

2.100% Eco-Friendly & Chemical-Free Separation

Operating purely on physical gravity separation through precise water pulsations, this machine requires zero hazardous chemical reagents (such as cyanide or mercury). It simplifies your environmental tailings management and accelerates local mining permit approvals.

3.Seamless Integration with Crushing & Screening Lines

As a premier heavy machinery manufacturer, Zhongxin designs its mineral jigs to pair perfectly downstream of our industrial crushing and screening systems. It handles pre-classified mineral slurries directly from vibrating screens, ensuring a balanced, continuous plant workflow.

4.High Processing Capacity & Large Feeding Range

With a massive throughput of up to 30 TPH per unit and the flexibility to process feed sizes from 0.5 mm up to 25 mm, our equipment effectively eliminates production bottlenecks and meets the heavy-duty demands of large-scale mining operations.

5.Low Water Consumption & Optimized OPEX

Equipped with an advanced wave-generation system, the jig minimizes makeup water and power usage while maintaining perfect bed fluidization. This highly efficient design drastically cuts down your daily operating costs (OPEX).

6.Heavy-Duty Construction with High ROI

Built with premium anti-abrasive materials and high-resistance screen meshes, our jigs are built to withstand the harshest mining environments, guaranteeing maximum uptime, minimal maintenance, and a rapid Return on Investment (ROI).

How It Works: The Gravity Separation & Stratification Process

El concentrador Jig realiza la separación de minerales por densidad mediante un proceso continuo de tres etapas:

1. Alimentación y Pulsación Hidráulica

La pulpa de mineral, clasificada previamente en el circuito de chancado y cribado, ingresa a la cámara de la máquina. Un sistema hidráulico genera pulsaciones verticales de agua, impulsando el flujo alternado hacia arriba y hacia abajo.

2. Estratificación Dinámica por Densidad

Durante el flujo ascendente, la cama de mineral se dilata y las partículas se suspenden; en el flujo descendente, el lecho se contrae. Las partículas de alta densidad (como el oro) se sedimentan rápidamente al fondo, mientras que la ganga ligera se mantiene en la capa superior.

3. Descarga Continua y Separación Automática

El concentrado pesado acumulado en la parte inferior se descarga de forma constante a través del tamiz o la válvula de descarga. Al mismo tiempo, los relaves y materiales estériles de la capa flotante superior son arrastrados continuamente por la corriente de agua transversal, logrando una concentración gravimétrica limpia, eficiente y de alta ley sin químicos.

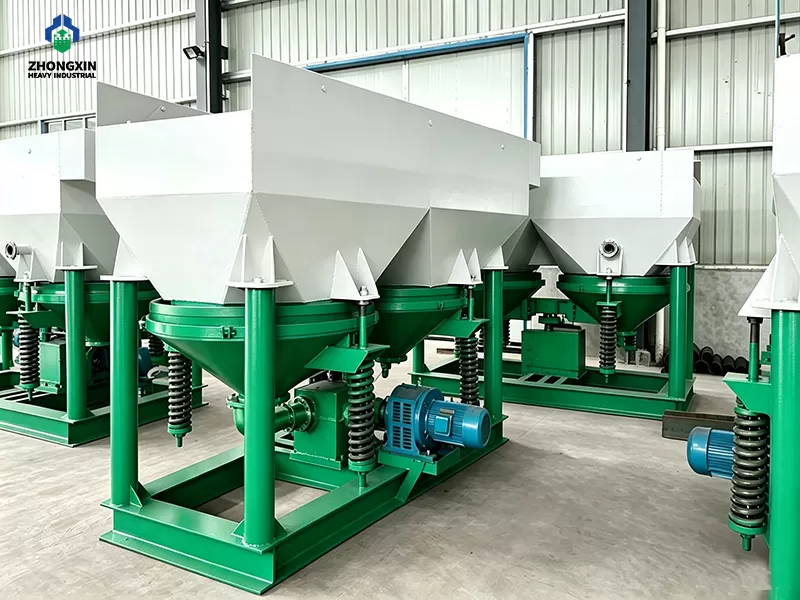

Complete Jig Concentrator system assembled in mineral equipment factory

Product Photos

Large scale Jig Concentrator manufactured for ore beneficiation plant

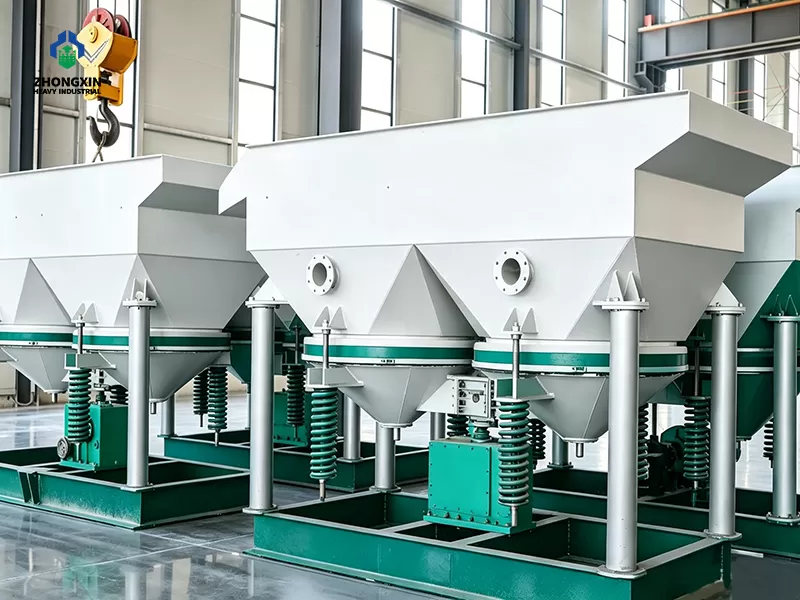

Industrial Jig Concentrator machine displayed in mining equipment production workshop

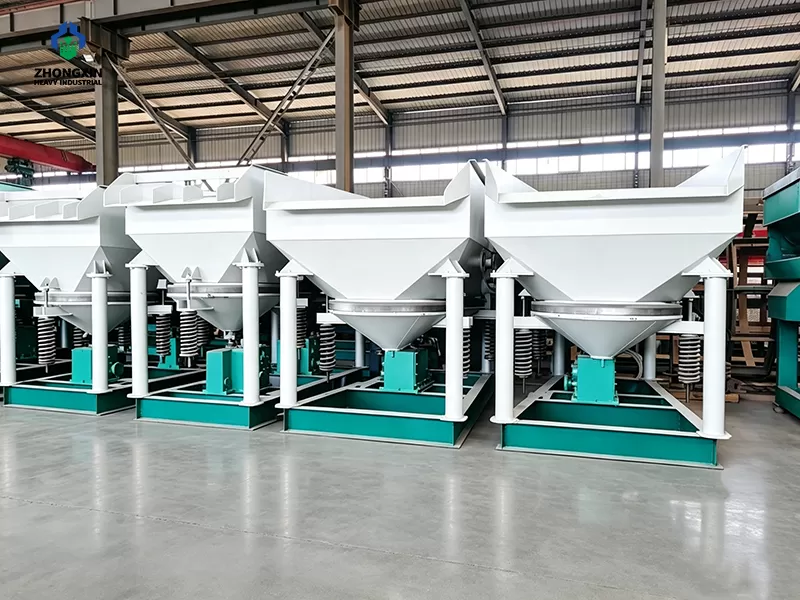

Heavy duty Jig Concentrator machine in production area of mineral processing factory

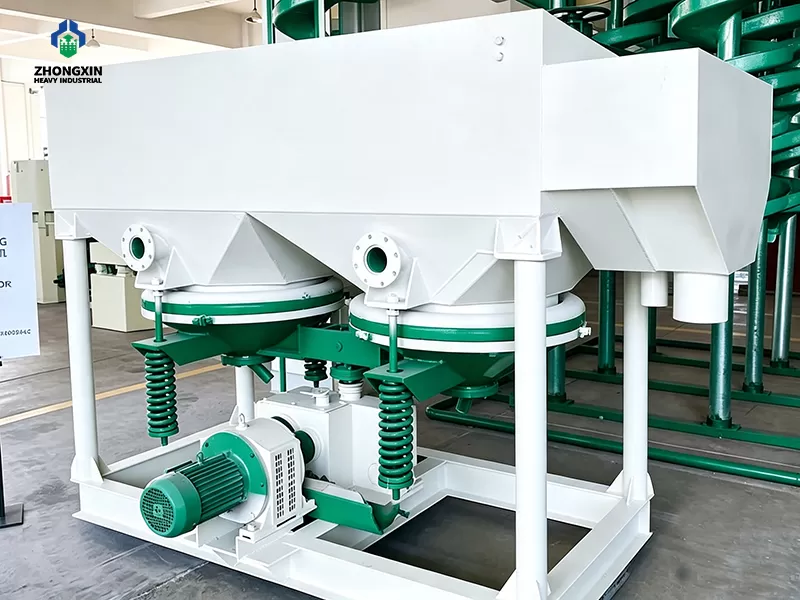

Jig Concentrator equipment for gold and heavy mineral recovery in factory

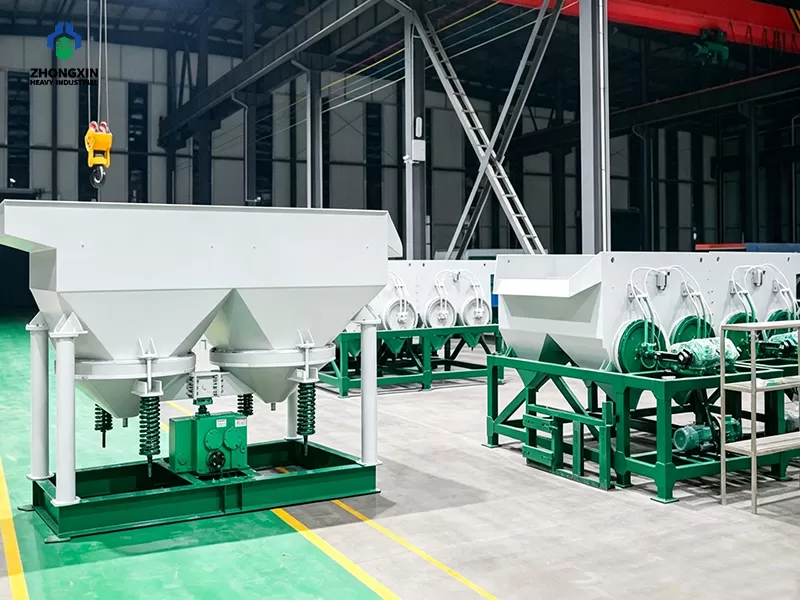

Mineral processing Jig Concentrator completed in equipment manufacturing workshop

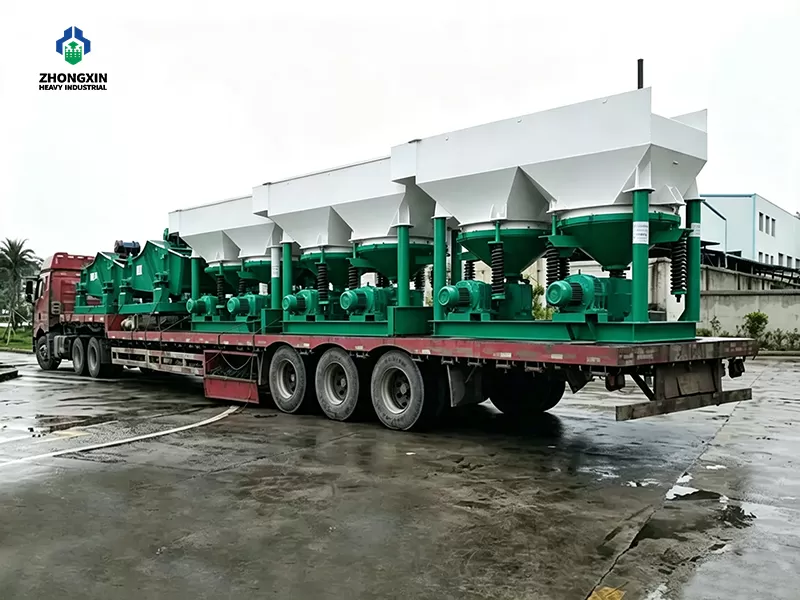

Jig Concentrator packed and ready for shipment from mining equipment factory

Complete gravity separation plant with Jig Concentrator and mineral processing equipment

Mining processing line using Jig Concentrator for efficient mineral separation

Jig Concentrator application in large scale mineral beneficiation production line

Specification

Model		JT -0.57	JT 1-1	JT 2-2	JT3-1	JT4-2	JT5-2
Jigging Chamber	Cross Section	Trapezoidal	Trapezoidal	Rectangular	Trapezoidal	Rectangular	Trapezoidal
	Shape
	Length × Width (mm)	450～ 750× 950	450～ 900× 1500	1070 × 1070	960～ 2000× 1950	1510 × 1510	1200～ 2000× 3150
	Number of Columns	Single	Single	Single	Single	Single	Single
	Total Number of Chambers (pcs)	1	1	2	1	2	2
	Total Area (m²)		1	2 .28	3.3	4 .86	5
Feed Particle Size (mm)		5	5	10	<20	8. Automatic Ore Discharge on Sieve<35	8. Automatic Ore Discharge on Sieve<35
Processing Capacity (t/h)		1～ 3	2～ 3	4～ 8	10～ 15	12～ 16	10～ 20
	Stroke frequency (m in- 1)	60～ 156	60～ 156	60～ 156	80～ 100	80～ 120	80～ 120
		Adjustable	Adjustable	Adjustable	Adjustable	Adjustable	Adjustable
Motor	Model	YCT	YCT	YCT32-4	YCT-4B	YCT	YCT
		132-4B	100L-6			160-4B	200-4A
	Power (kW )	1 .5	2 .2	3	5.5	5.5	5.5
						(Dual Power)	(Dual Power)
						7 .5	7 .5
						(Single Power)	(Single Power)
(Length × Width × Height) (mm)		1530× 780× 1550	2060× 1112× 1890	2870 × 1520 × 1880	2662 × 2000× 3030	4240 × 1990× 2750	3940 × 2006× 2580
Weight (kg)		612	989	1637	3260	3500	3854

RECOMMENDED CRUSHING, SCREENING AND MINERAL PROCESSING EQUIPMENT

Explore our full range of heavy-duty industrial machinery, covering crushing, screening, industrial grinding, and mineral processing solutions. As a direct manufacturer, we provide reliable equipment tailored to maximize your production efficiency.

Spiral Chute

Spiral Chute

Shaking Table

Shaking Table

Flotation Machine

Flotation Machine

EXPLORE MORE PRODUCTION LINE SITE PROJECTS

Browse our verified aggregate and mineral processing line projects tracking across the globe. Our heavy-duty crushing plants are optimized to deliver maximum throughput, reliable performance, and a fast return on investment for quarry operators.

300 TPH Heavy-Duty Mountain Stone Crushing Plant in Indonesia

300 TPH Heavy-Duty Mountain Stone Crushing Plant in Indonesia

350 TPH Gravel Crushing & Sand Washing Plant in Complete Production Line

350 TPH Gravel Crushing & Sand Washing Plant in Complete Production Line

150-200 TPH Aluminum Stone Crushing Plant in Global Mining Project

150-200 TPH Aluminum Stone Crushing Plant in Global Mining Project

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our machine. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

A gravity jig concentrator is a highly efficient piece of gravity separation equipment used to separate valuable heavy minerals from lighter gangue. By utilizing periodic water pulsations, it achieves precise stratification by density, making it the ideal choice for alluvial gold recovery, iron ore, manganese, tin, and barite processing without using chemicals.

While both are essential for gravity separation, a mineral jig is designed to handle a much higher throughput and a broader feeding particle size range (up to 25 mm). A shaking table, on the other hand, is typically reserved for the downstream fine-cleaning stage to treat much smaller particle sizes.

Proper crushing and screening using vibrating screens ensures a uniform, pre-classified feed size before the material enters the jigging machine. This uniform sizing optimizes fluid bed stratification, prevents screen blinding, and significantly maximizes the overall mineral recovery rate.

Yes, it is one of the most effective and eco-friendly solutions for alluvial gold recovery. It efficiently captures coarse and free gold particles using only water pulsations, completely eliminating the need for hazardous chemical reagents like cyanide or mercury.

In a standard mineral processing plant, the jig concentrator is installed directly downstream of the crushing and screening circuit. It receives the correctly sized slurry, concentrates the heavy values early in the process, and sends the remaining material for fine grinding or final separation.

Due to its robust heavy-duty design, a gravity jig requires minimal maintenance. Regular checks should focus on the water pulsation system, monitoring the high-resistance screen mesh for wear, and ensuring consistent water flow to maintain optimal bed fluidization.

Depending on the specific model of the mineral jig, it can highly efficiently process feed sizes ranging from fine 0.5 mm up to coarse 25 mm, providing excellent flexibility for different types of mineral deposits.

Our solutions seamlessly integrate industrial crushing, screening, and mineral processing. We manufacture our jigs using premium anti-abrasive materials, delivering massive processing capacities (up to 30 TPH), exceptionally low operating costs (OPEX), and comprehensive global technical support.

COMPREHENSIVE SERVICE & GENUINE SPARE PARTS

Zhongxin Heavy Industry provides not only high-performance equipment but also full life-cycle support solutions.

Jig Concentrator

Jig Concentrator

High-Wear Resistant Genuine Spare Parts Supply

We maintain a permanent stock of heavy-duty genuine spare parts to ensure continuous operations at your mineral processing plant. Our inventory includes high-resistance screen meshes, durable rubber diaphragms, discharge valves, and anti-abrasive lining plates, all engineered to minimize unexpected downtime and optimize your long-term OPEX.

Expert Technical Support & Process Optimization

Our specialized engineers provide comprehensive remote and on-site technical assistance, covering installation, commissioning, and precise calibration of your gravity jig concentrators. We dynamically adjust water pulsation and flow parameters based on your specific mineral characteristics to secure the highest possible recovery rates.

Turnkey Integration & Preventative Maintenance Packages

We offer complete preventative maintenance kits and professional engineering services to seamlessly integrate our jigs with your existing crushing and screening circuits. Additionally, we provide hands-on operational training for your mine site personnel, ensuring maximum equipment efficiency and a prolonged machine lifespan.
