Dry Ball Mill

Capacity
1.6–210 t/h
Motor
55 – 3550 kW

Dry Grinding Solutions for Ores, Cement, and Minerals:: Designed for water-sensitive materials and direct dry powder production, this dry ball mill efficiently processes tough feeds up to Mohs hardness ≤ 9 (including iron/gold ores, quartz sand, cement clinker, and coal powder). Delivering precise fineness control (80–2500 mesh), 20%–30% energy savings, and a long liner service life of 5–8 years, it provides a cost-effective grinding solution for modern industrial plants.

Social Media
Whatsapp/Wechat:
+86-13676922906
  • WhatsAppWhatsApp
  • WeChatWeChat
Chat Online Product Inquiry

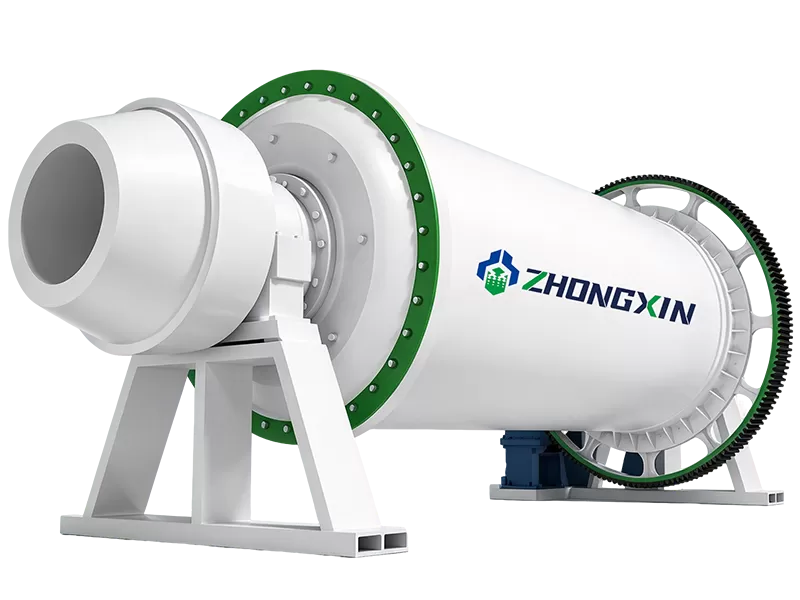

3D rendering of Zhongxin dry grinding ball mill with electric motor drive
● 15s Quick consultation | ● 1h Technical guidance | ● 32h Quotation + drawing | ● 365d Exclusive customer service
Get price list

Product Description | High-Efficiency Industrial Dry Ball Mill

◎The Dry Ball Mill is an advanced, heavy-duty grinding machine specifically engineered for continuous fine powder production without adding water. It serves as a core pulverizing equipment across a wide spectrum of industries, including mining, cement manufacturing, building materials, chemical processing, metallurgy, thermal power generation, and environmental solid waste recycling. Specially designed for moisture-sensitive materials or production processes requiring immediate dry powder output, this versatile mill efficiently processes various metallic ores (iron, gold, copper), non-metallic minerals (quartz sand, feldspar, limestone, kaolin), cement clinker, coal powder, and industrial by-products (such as steel slag, fly ash, and gypsum) with a Mohs hardness ≤ 9.

◎Featuring optimized drum geometry, wear-resistant liners, and dynamic classification, the dry ball mill lowers energy consumption by 20%–30% while boosting grinding efficiency by >35%. Operating in open or closed circuits, it delivers precise particle size control from 80 to 2500 mesh with a low failure rate (<1%), long liner life (5–8 years), and zero wastewater generation.

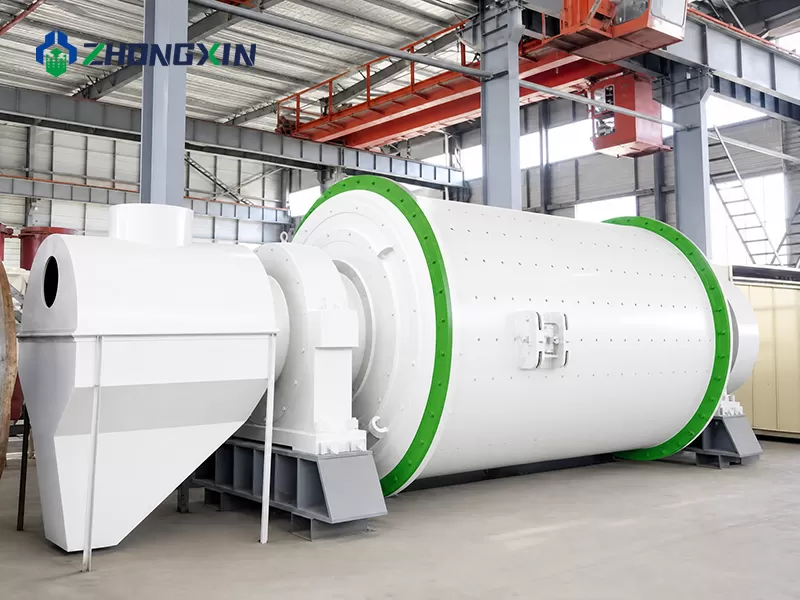

Dry ball mill with sealed discharge hood for dust-free operation
Dry Ball Mill

High Efficiency & 20%–30% Energy Savings

Optimized cylinder design and media ratios reduce power consumption by 20%–30% and increase grinding efficiency by >35%, significantly cutting operational costs.

Dry Ball Mill

Broad Material Adaptability (Mohs Hardness ≤ 9)

Engineered to process tough materials up to Mohs hardness ≤ 9, including iron/gold ores, quartz sand, cement clinker, coal powder, and industrial slag.

Dry Ball Mill

Precise Particle Size Control (80–2500 Mesh)

By adjusting grinding media ratios, cylinder speed (0.5–40 rpm), and air classification, output fineness is easily customized from 80 to 2500 mesh.

Dry Ball Mill

Stable Operation & Low Failure Rate (<1%)

Built with heavy-duty cast steel trunnions and carburized transmission gears, the robust drive system ensures smooth operation with a failure rate <1%.

Dry Ball Mill

Durable Liners with 5–8 Years Service Life

High-manganese steel and wear-resistant alloy liners protect the inner shell, withstanding severe impact and delivering a long service life of 5–8 years.

Key Features of Dry Ball Mill

Eco-Friendly Dry Process & Dust Emissions ≤30 mg/m³ Water-free grinding eliminates wastewater, while negative-pressure sealing and pulse bag dust collectors restrict dust emissions to ≤30 mg/m³.

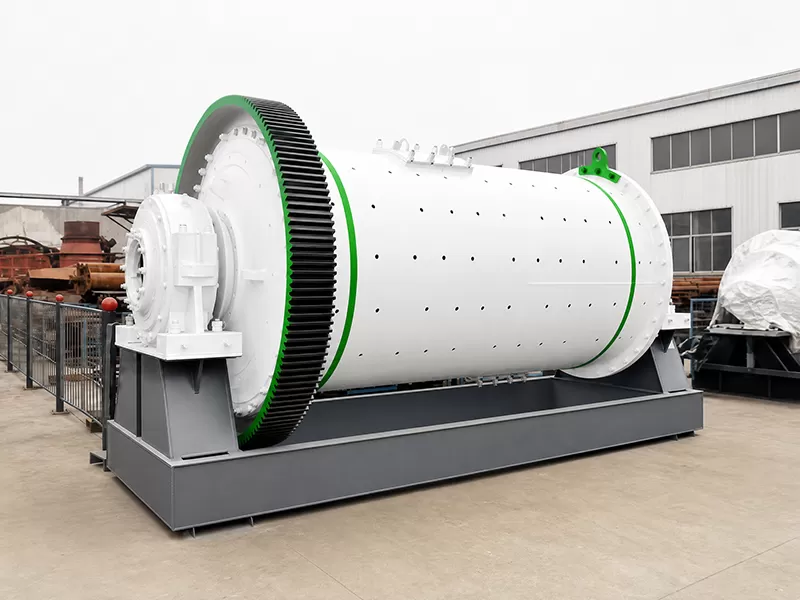

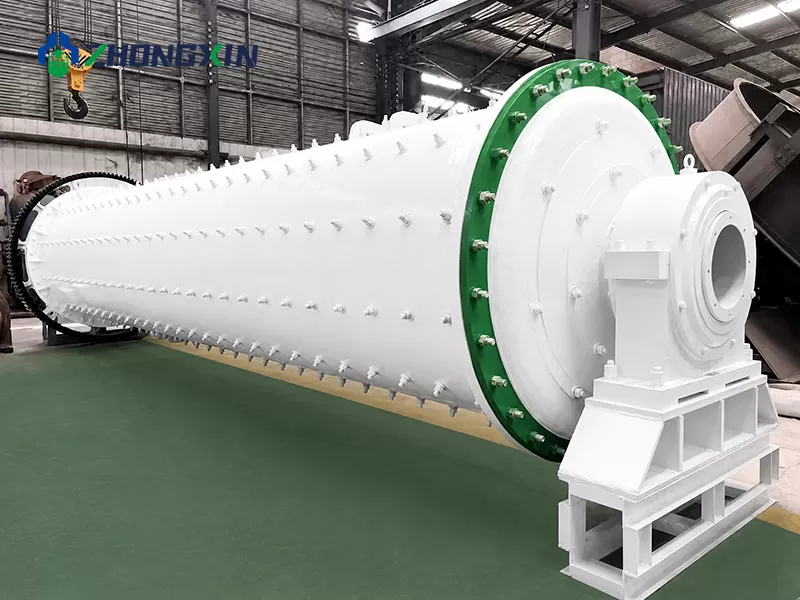

Industrial dry grinding ball mill with heavy-duty girth gear in workshop

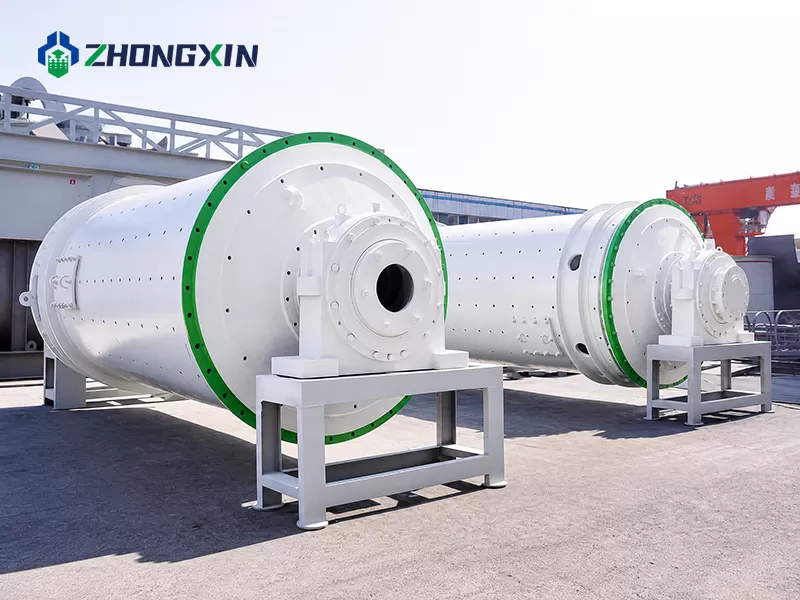

Multiple industrial dry ball mills ready for delivery in factory
Operational dry ball mill grinding line installed in mineral processing plant

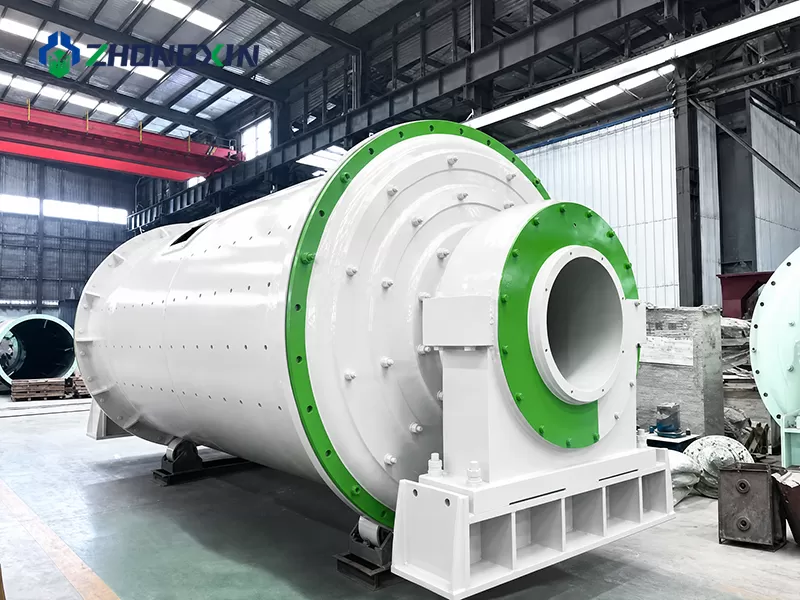

Heavy-duty dry grinding ball mill for iron ore and quartz processing

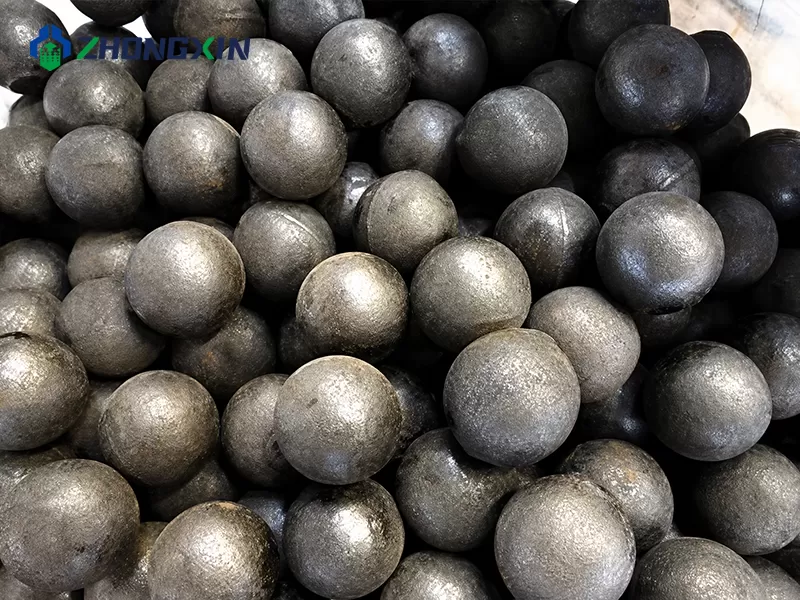

High-hardness forged steel grinding balls for dry ball mill ore processing

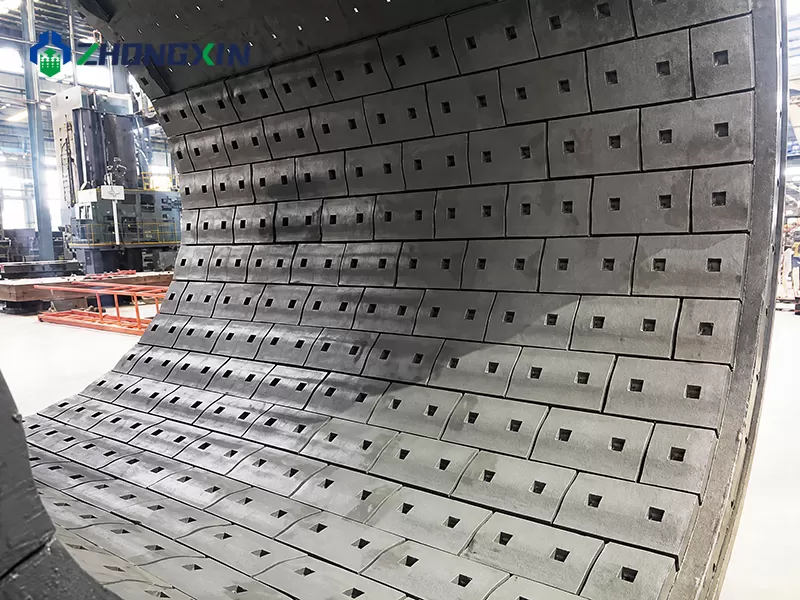

Wear-resistant high-manganese steel liner plates inside dry ball mill shell

Industrial Applications & Processing Solutions | Dry Ball Mill

The Dry Ball Mill is highly versatile and engineered to deliver continuous fine grinding solutions across four major industrial sectors. By integrating specialized wear-resistant liners and precision dynamic classification systems, it maximizes throughput while keeping moisture content, dust emissions, and power consumption under strict control:

1. Mining & Mineral Ore Processing

In metallic ore processing lines, the dry ball mill serves as crucial fine grinding equipment for iron, gold, copper, lead-zinc, tungsten, and manganese ores. Operating in dry conditions prevents water-induced oxidation or chemical alteration prior to downstream dry magnetic separation, gravity concentration, or smelting processes. Its heavy-duty drum and high-manganese steel liners process tough ores with a Mohs hardness ≤ 9, delivering a failure rate of <1%.

2. Cement Industry & Building Materials Manufacturing

Widely deployed in modern cement plants, the mill dry-grinds clinker, natural gypsum, slag, and fly ash into high-grade commercial cement (such as Portland Cement P·O 42.5 and P·C 32.5). When arranged in a high-efficiency closed-circuit configuration with an external dynamic air classifier, it achieves precise fineness control between 300 and 500 m²/kg (80–2500 mesh), while maintaining a low energy footprint of ≤30 kWh/t.

3. Non-Metallic Minerals & Ultrafine Powder Deep Processing

For moisture-sensitive non-metallic minerals—such as quartz sand, feldspar, kaolin, talc, limestone, calcite, and barite—the dry ball mill provides zero-water pulverization that preserves raw material purity. By adjusting cylinder rotational speed (0.5–40 rpm) and grinding media ratios (steel or ceramic balls), manufacturers produce dry ultrafine powders used in coatings, plastics, ceramics, glass, and refractory materials.

4. Metallurgy, Energy & Solid Waste Recycling

The mill is extensively used for dry pulverizing coal powder and coke to supply clean fuel for blast furnaces and power plant boilers. Additionally, it plays an indispensable role in environmental sustainability by processing industrial solid wastes—such as steel slag, tailing sands, and incinerator ash—transforming industrial by-products into high-value construction additives while maintaining dust emissions at ≤30 mg/m³.

Working Principle | How Does the Dry Ball Mill Work?

The dry ball mill reduces coarse materials into fine powder through a continuous process of high-energy mechanical impact, attrition, and friction inside a rotating horizontal cylinder loaded with grinding media (steel or ceramic balls):

1. Material Feeding & Primary Impact Stage

Raw feed material (such as pre-crushed ore or clinker) is continuously fed into the mill's first chamber through the hollow inlet trunnion. As the drum rotates at a controlled speed (0.5–40 rpm), internal liners lift the larger grinding balls to a critical height, where they cascade down under gravity, crushing coarse particles via heavy impact.

2. Diaphragm Transition & Secondary Fine Attrition Stage

Once partially reduced, the material moves through a double-wave diaphragm partition into the second chamber. In this section, smaller grinding balls or ceramic cylpebs subject the material to dense friction, shearing, and grinding forces, rapidly reducing particles toward the target fineness (80–2500 mesh).

3. Pneumatic Discharge & Air Classification

Airflow generated under negative pressure sweeps the ground dry powder toward the discharge outlet. In closed-circuit grinding systems, an external air classifier separates qualified fine powder for immediate collection while returning oversized particles to the mill inlet for re-grinding, ensuring maximum thermal efficiency and low unit power consumption.

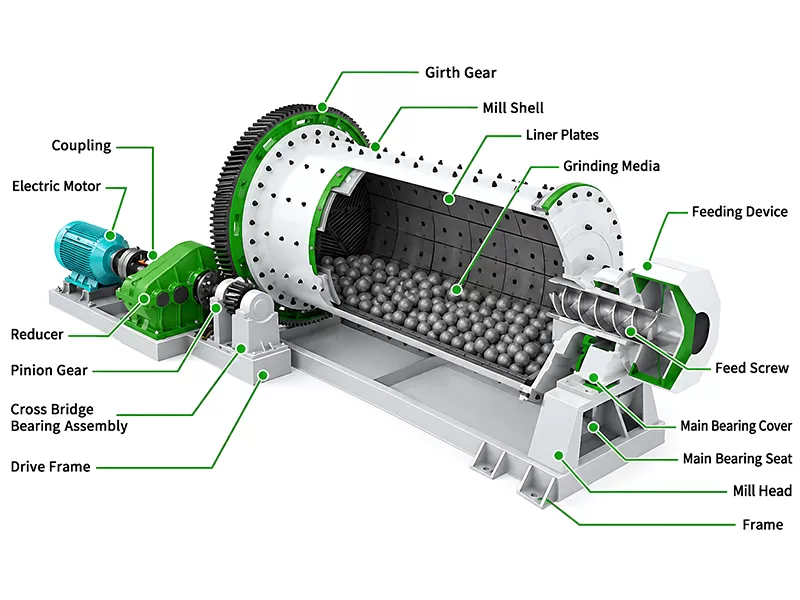

Internal structure and working principle diagram of dry ball mill

Product Photos

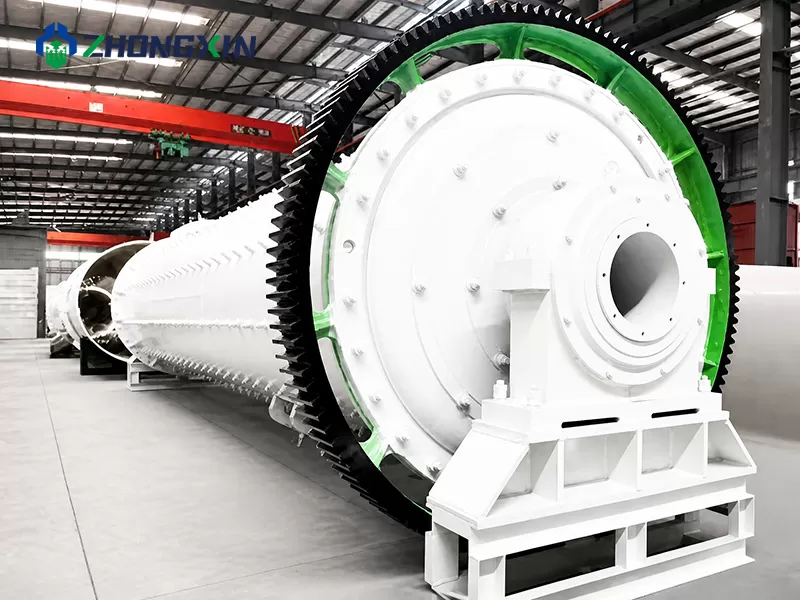

High-precision transmission ring gear and discharge end of dry ball mill

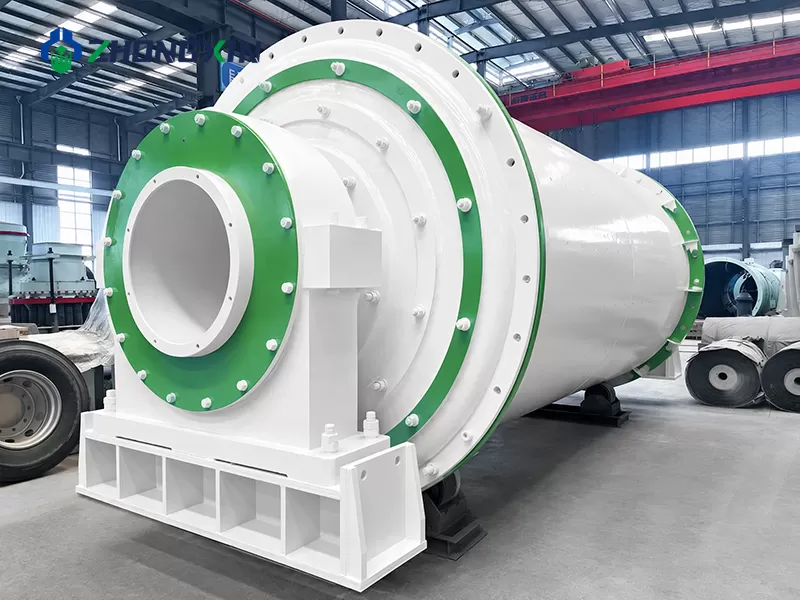

Front feed trunnion and ring gear assembly of Zhongxin dry ball mill

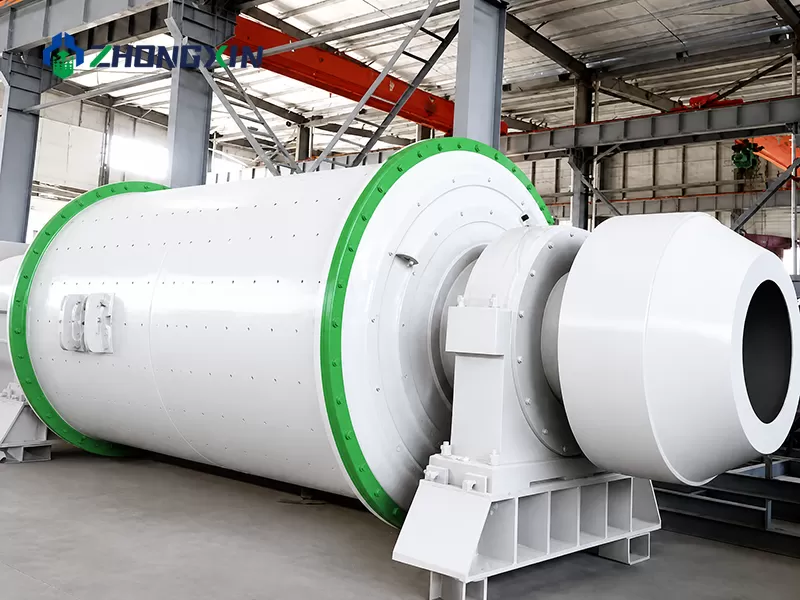

Energy-saving dry ball mill with protective gear guard cover

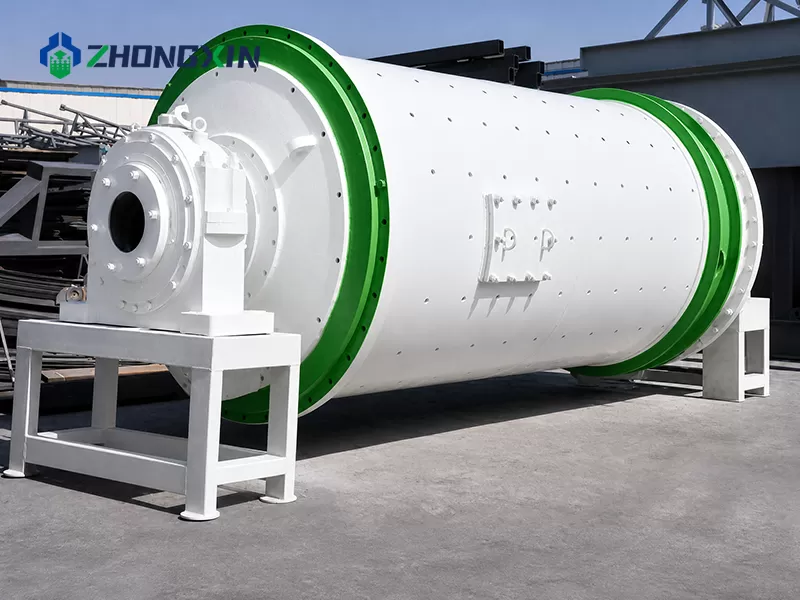

Zhongxin dry ball mill for coal powder and limestone grinding

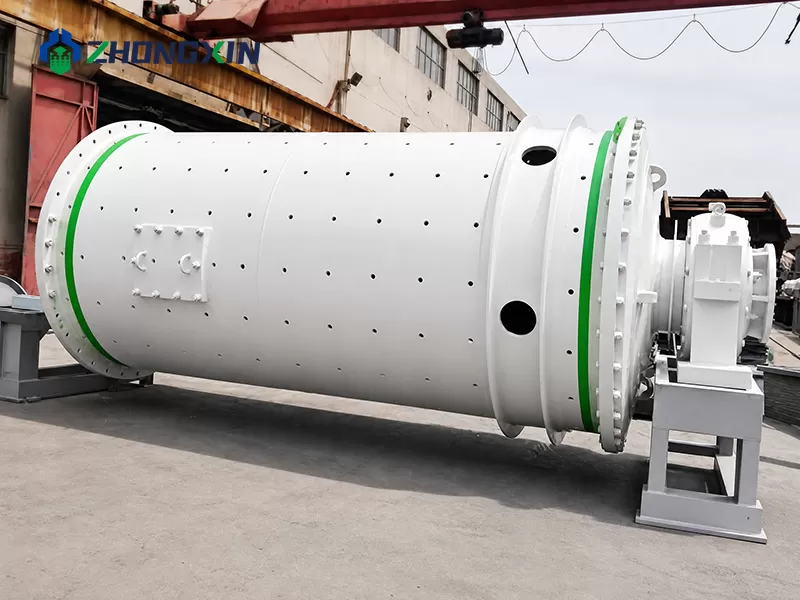

Dry grinding ball mill shell showing manhole doors for liner maintenance

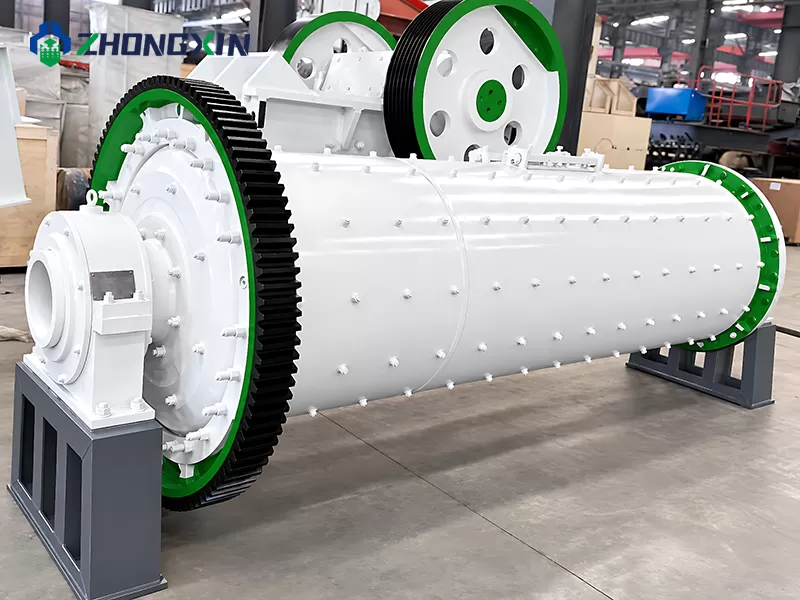

Industrial dry grinding ball mill with heavy-duty girth gear in workshop
3D model of dry ball mill grinding plant with air classifier and dust collector

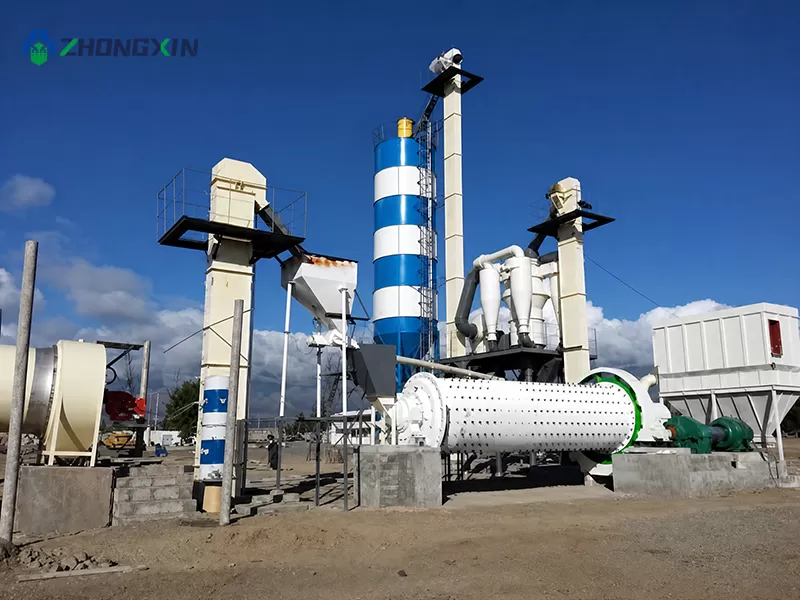

Outdoor dry ball mill plant equipped with pulse bag dust collection system

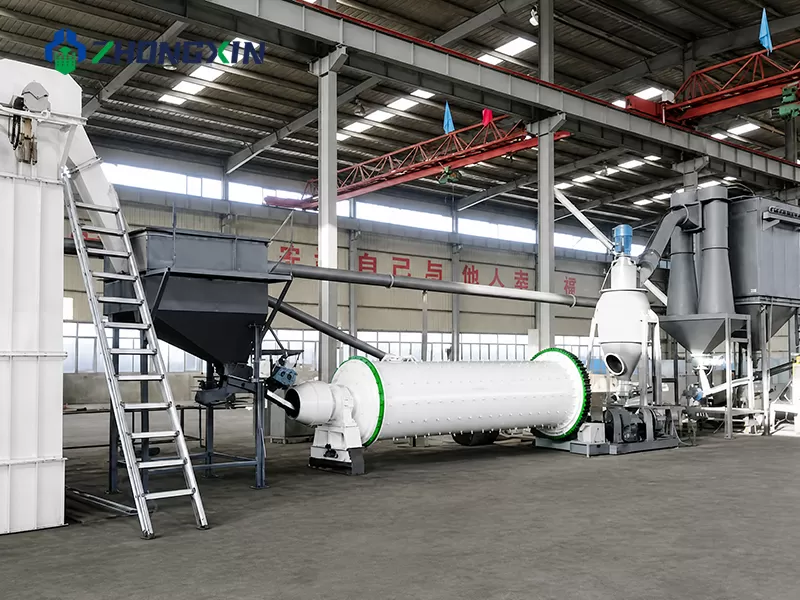

Operational dry ball mill grinding line installed in mineral processing plant

Specification

ModelCapacity
(t/h)		Rotate Speed
(r/min)		Grinding Balls
(t)		Power (kw)Gear Box
ModelSpeed Ratio
Φ1.2x4.51.6-5.830.3555ZD304.5
Φ1.5x5.73.5-626.3411130ZD404
Φ1.83x6.46.5-1523.921210ZD604.5
Φ1.83x77.5-1724.523245ZD604.5
Φ2.2x6.514-2021.431280ZD705
Φ2.4x717-2820.439380ZD805
Φ2.4x820-3520.342570ZD805
Φ2.4x1235-452063800MBY7106.3
Φ2.4x1335-4819.468800MBY7106.3
Φ2.6x1340-5519.5821000JDX8006.3
Φ3x950-5518.34781000JDX8006.3
Φ3.2x960-7017.6951250MBY9007.1
Φ3.5x1175-8516.81501250JDX9005.84
Φ3.8x1285-110171751600MBY8005.6
Φ4.6x10+3.5180-210152783550JQS350015.1


RECOMMENDED CRUSHING, SCREENING AND MINERAL PROCESSING EQUIPMENT

Explore our full range of heavy-duty industrial machinery, covering crushing, screening, industrial grinding, and mineral processing solutions. As a direct manufacturer, we provide reliable equipment tailored to maximize your production efficiency.

Ceramic Ball mill
Ceramic Ball mill
Cement Ball Mill
Cement Ball Mill
Autogenous Mill
Autogenous Mill

EXPLORE MORE PRODUCTION LINE SITE PROJECTS

Browse our verified aggregate and mineral processing line projects tracking across the globe. Our heavy-duty crushing plants are optimized to deliver maximum throughput, reliable performance, and a fast return on investment for quarry operators.

200 TPH Crawler Mobile Impact Crushing Plant Shipped to Russia
200 TPH Crawler Mobile Impact Crushing Plant Shipped to Russia
100-150 TPH Mobile Crushing Plant in Ethiopia
100-150 TPH Mobile Crushing Plant in Ethiopia
Mobile Crushing Plant Case Study: Wheel-Mounted Jaw & XHP Multi-Cylinder Cone Crusher Line
Mobile Crushing Plant Case Study: Wheel-Mounted Jaw & XHP Multi-Cylinder Cone Crusher Line

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our machine. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

A dry ball mill is designed to process a broad range of materials with a Mohs hardness ≤ 9, including metallic ores (iron, gold, copper, lead-zinc), non-metallic minerals (quartz sand, feldspar, kaolin, talc, limestone), building materials (cement clinker, slag, fly ash), and industrial fuels like coal powder and coke. It is ideal for moisture-sensitive materials or production processes requiring direct dry powder output.

The primary difference lies in the grinding medium environment and material requirements. A dry ball mill operates without adding water, making it suitable for water-sensitive materials (such as cement and coal) or direct dry powder production with lower auxiliary equipment costs. A wet ball mill uses water or liquids to form a slurry, offering slightly higher grinding efficiency for wet mineral dressing processes, but requiring subsequent dewatering and wastewater treatment systems.

Energy savings of 20%–30% are achieved through an optimized cylinder geometry, dynamic double-wave diaphragm partitions, and balanced grinding media ratios (steel or ceramic balls). When combined with an efficient air classification system in a closed-circuit arrangement, the mill eliminates over-grinding, increases overall processing efficiency by >35%, and lowers unit power consumption.

By adjusting the grinding media graduation, cylinder rotational speed (0.5–40 rpm), and integrated air classifier settings, the dry ball mill provides precise particle size control ranging from coarse 80 mesh down to ultrafine 2500 mesh. This flexibility satisfies strict fineness standards across metallurgical, chemical, and building material industries.

The internal shell is protected by premium high-manganese steel or alloy liners that deliver an extended service life of 5 to 8 years under continuous operation. Forged steel or ceramic grinding balls should be inspected periodically and replenished every 500 to 1,000 operating hours to maintain an optimal filling rate (30%–40% of cylinder volume).

The mill utilizes heavy-duty cast steel trunnions, double-row self-aligning roller bearings, and carburized precision transmission gears. Combined with automatic centralized lubrication and sealed bearing housings, mechanical wear and vibration are minimized, keeping the equipment failure rate strictly below 1%.

To ensure eco-friendly and safe operation, the dry ball mill operates under negative pressure with a fully sealed cylinder and discharge hood. Paired with high-efficiency pulse bag dust collectors, airborne dust emissions are kept at ≤30 mg/m³, fully meeting international environmental and workplace safety regulations.

Yes, the dry ball mill supports both open-circuit and closed-circuit grinding layouts. An open-circuit system offers a simpler plant setup with lower initial investment, while a closed-circuit system paired with an external air classifier increases total plant capacity by 20%–30%, reduces energy consumption, and delivers an exceptionally uniform particle size distribution.

COMPREHENSIVE SERVICE & GENUINE SPARE PARTS

Zhongxin Heavy Industry provides not only high-performance equipment but also full life-cycle support solutions.

Dry Ball Mill
Dry Ball Mill
High-Manganese Steel Liners & Precision Grinding Media

We supply a complete line of high-wear-resistant spare parts for dry ball mills, including high-manganese steel liners, chrome-alloy shell plates, double-wave diaphragm partitions, and forged steel or ceramic grinding balls. Engineered to withstand high impact and heavy friction when grinding materials up to Mohs hardness ≤ 9, our precision components extend liner service life to 5–8 years and minimize unscheduled plant downtime.

Service
Turnkey On-Site Installation, Commissioning & Operator Training

Our experienced field engineers provide end-to-end installation and commissioning support for your dry grinding plant. From foundation alignment, girth gear meshing, and drive motor calibration to load testing, we ensure your mill achieves stable continuous operation with a failure rate of <1%. We also conduct on-site technical training for local operating personnel and offer 24/7 technical assistance.

Service
Custom Grinding Plant Design & Closed-Circuit System Upgrades

We offer tailored grinding circuit engineering services based on your raw material characteristics, target fineness (80–2500 mesh), and hourly capacity requirements. Our technical team helps existing processing plants upgrade from open-circuit to high-efficiency closed-circuit systems with dynamic air classifiers, reducing overall energy consumption by 20%–30% and boosting output efficiency by over 35%.
