XS Wheel Sand Washer

Type
Necessary Auxiliary Equipment
Capacity
20--180THP

Applications: Sand Washing, Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc.

Max feeding size: ≦10 mm

Processed Materials: Limestone, River Gravel, Granite, Basalt, Quartz, Iron Ore, Diabase etc.

Social Media
Whatsapp/Wechat:
+86-13676922906
  • WhatsAppWhatsApp
  • WeChatWeChat
Chat Online Product Inquiry

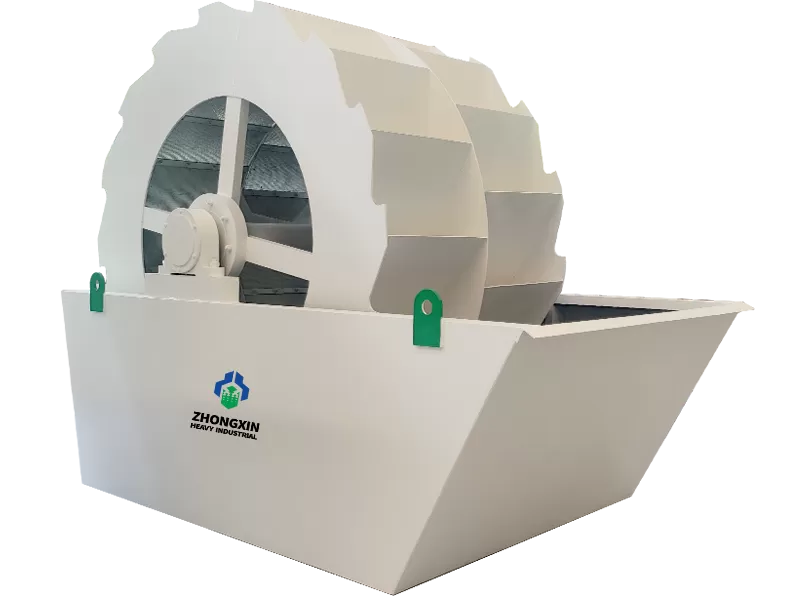

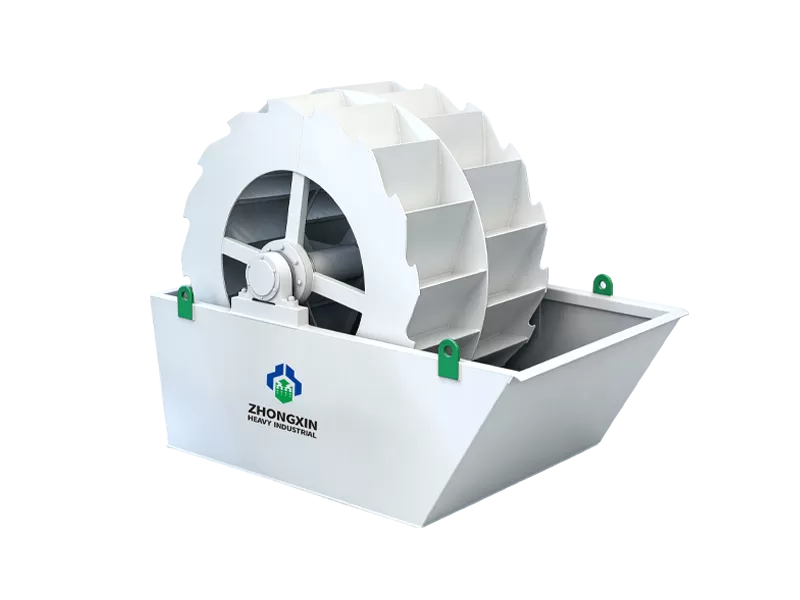

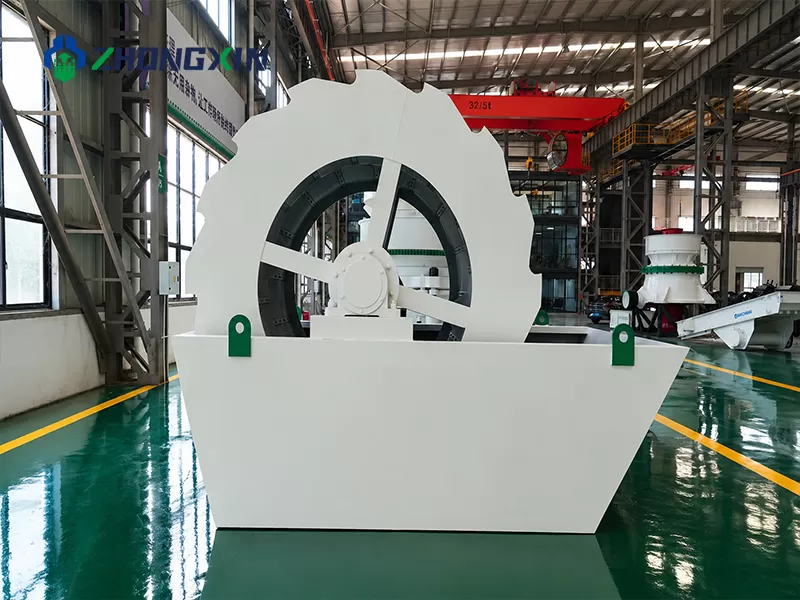

Heavy-duty Wheel Bucket Sand Washer for efficient sand washing, dewatering and impurity removal in quarry, mining and aggregate processing plants
● 15s Quick consultation | ● 1h Technical guidance | ● 32h Quotation + drawing | ● 365d Exclusive customer service
Get price list

What is XS Series Wheel Sand Washer?

◎The XS Series Wheel Sand Washing Machine is a high-efficiency sand washing and dewatering equipment designed for washing, dewatering, and grading natural or manufactured sand. Developed by Zhongxin Heavy Industry, it combines advanced bucket-wheel technology with practical requirements of modern sand and aggregate production.

◎During operation, the rotating bucket wheel continuously scoops and washes the sand in the water tank. Dust, clay, and other impurities are effectively removed, while clean sand is lifted and discharged with reduced water content. This process helps improve the cleanliness, quality, and grading of finished sand.

◎The wheel sand washer is particularly suitable for medium, coarse, and fine sand and can be used together with sand making machines to improve the quality of manufactured sand. It is widely applied in construction sites, sand and gravel plants, glass factories, hydropower projects, and mineral processing operations.

◎With efficient washing, reliable dewatering, simple operation, and durable construction, the XS Series Wheel Sand Washing Machine provides an economical solution for producing cleaner and higher-quality sand and aggregates.


Mass production of XS series wheel sand washer in our manufacturing workshop.
XS Wheel Sand Washer

External bearing seals

The transmission system is completely isolated from water and sand, preventing water immersion and rust damage. This improves equipment reliability and helps maintain a low failure rate.

XS Wheel Sand Washer

Extremely low fine sand loss

Optimized wheel buckets and overflow weirs accurately control the washing process, helping retain fine sand particles from 0.16–2 mm and reducing valuable material loss.

XS Wheel Sand Washer

Simple and easy maintenance

The machine has a simple structure with the screen as the main wear-resistant component. This reduces maintenance requirements and helps lower long-term operating costs.

XS Wheel Sand Washer

High finished product cleanliness

Efficient washing removes dirt, dust, and impurities from sand particles, producing cleaner finished sand that meets the requirements of high-grade concrete and construction applications.

XS Wheel Sand Washer

High efficiency, energy saving, and increased production

The large-capacity washing tank and optimized impeller provide strong washing performance and high processing capacity, improving production efficiency while reducing energy consumption.

What are the features of the XS Series Wheel Sand Washer?

A core sand washing equipment in the sand and gravel processing field, featuring high efficiency, energy saving, water conservation and low loss, with a simple structure for easy operation and maintenance and outstanding cost performance. It is suitable for the cleaning operation of various sand and gravel raw materials

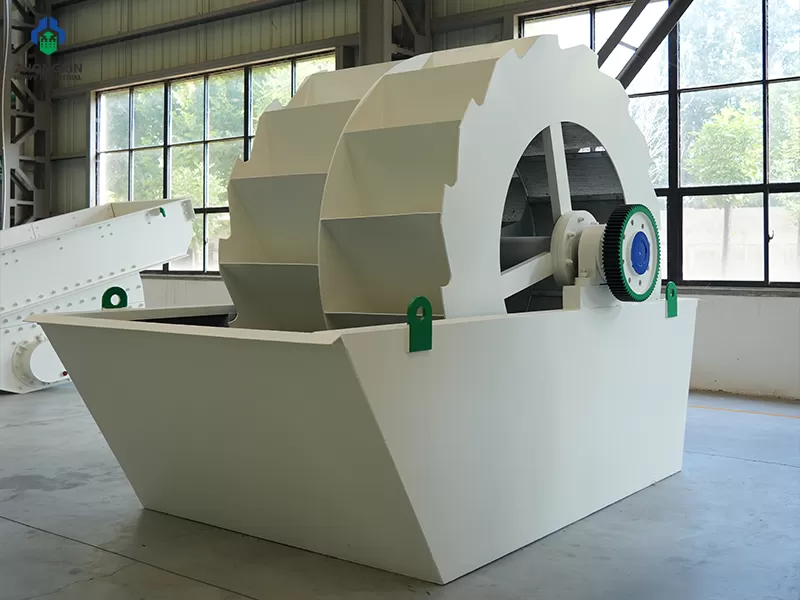

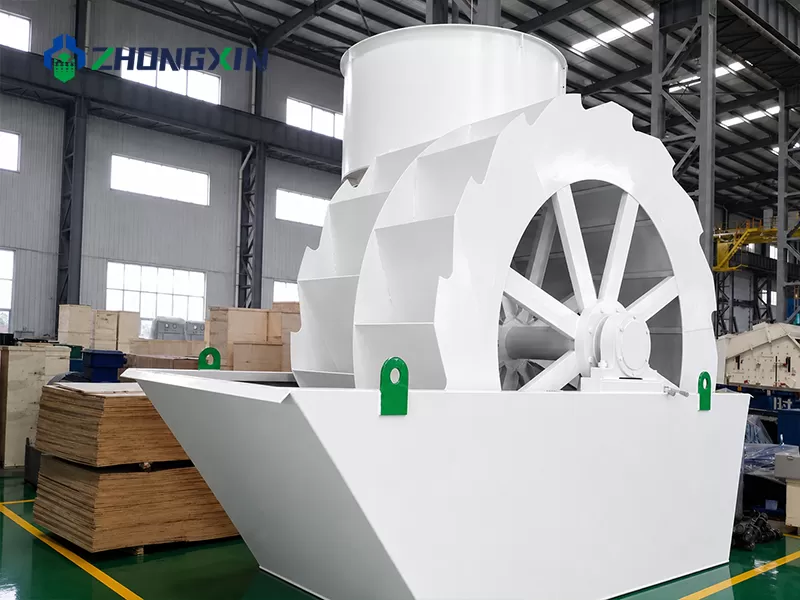

Wheel bucket sand washing equipment displayed in modern production workshop before shipment

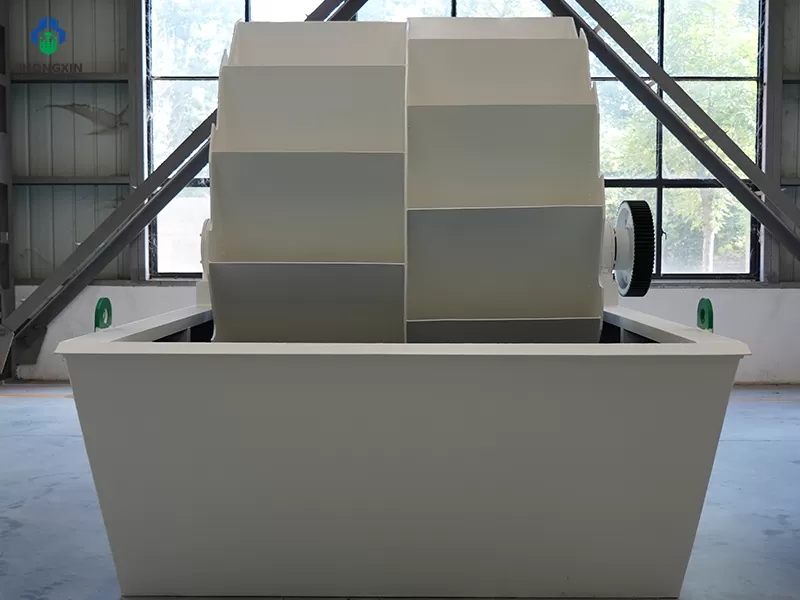

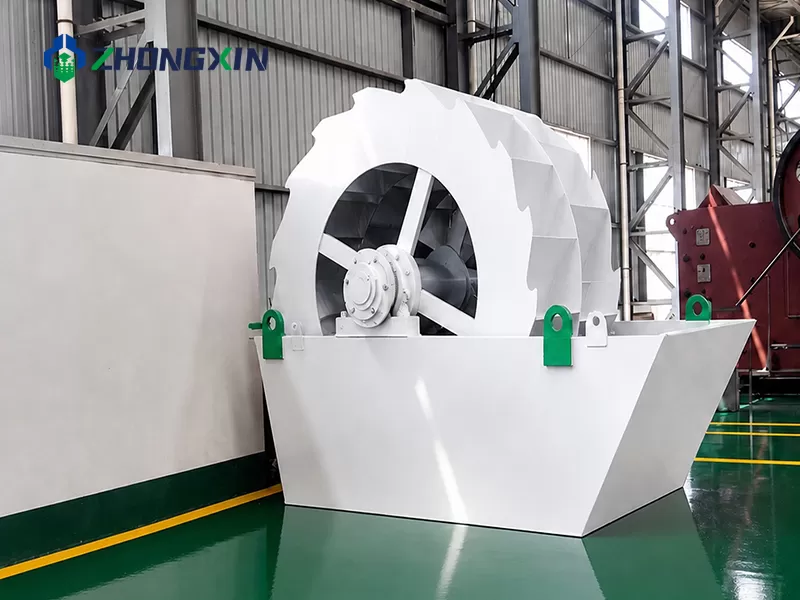

Factory-built wheel bucket sand washer designed for aggregate and silica sand cleaning

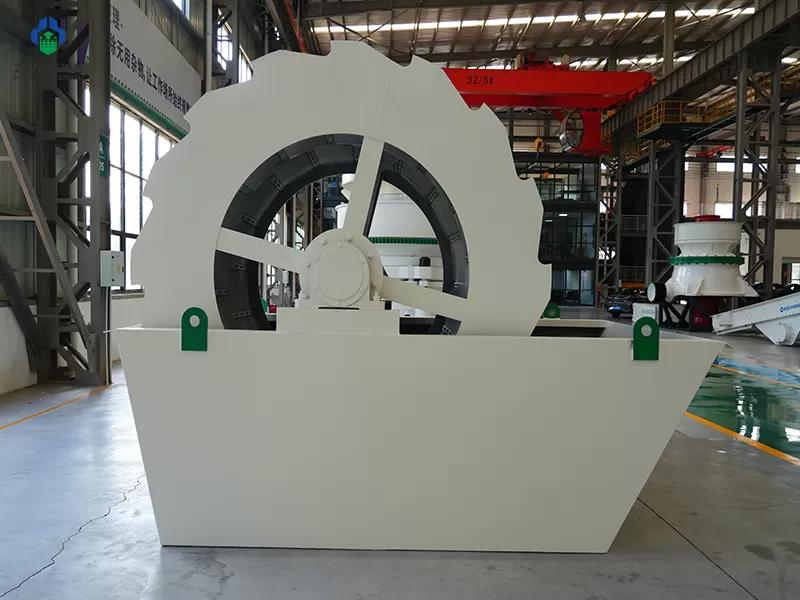

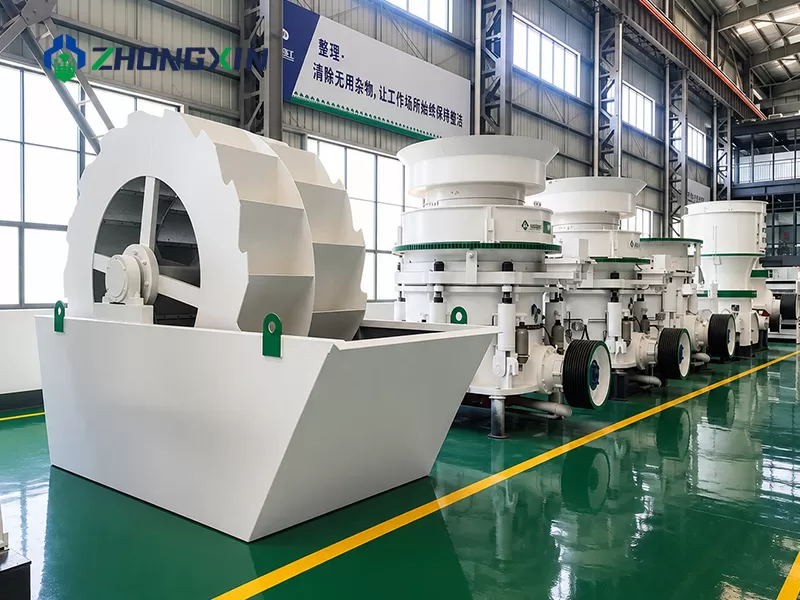

Wheel bucket sand washing equipment in operation delivering clean sand with low material loss

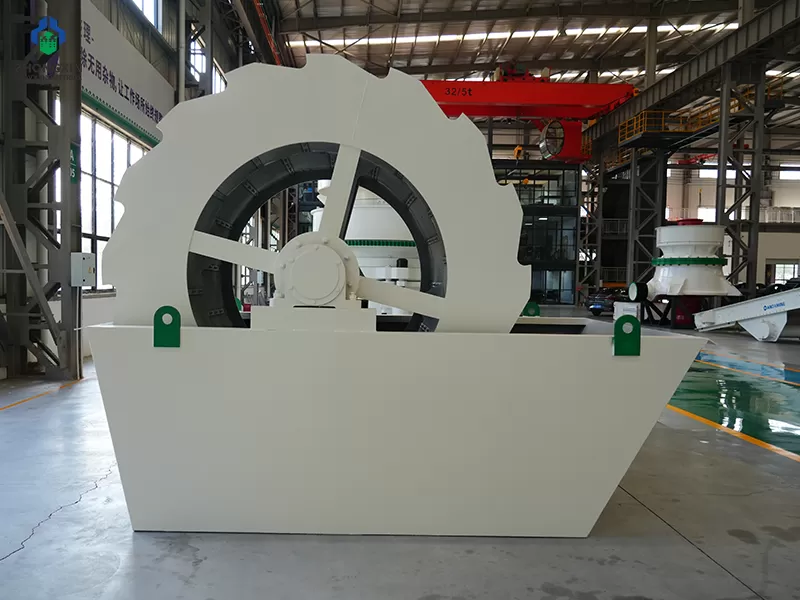

Industrial wheel bucket sand washer installed in mining project for efficient sand recycling

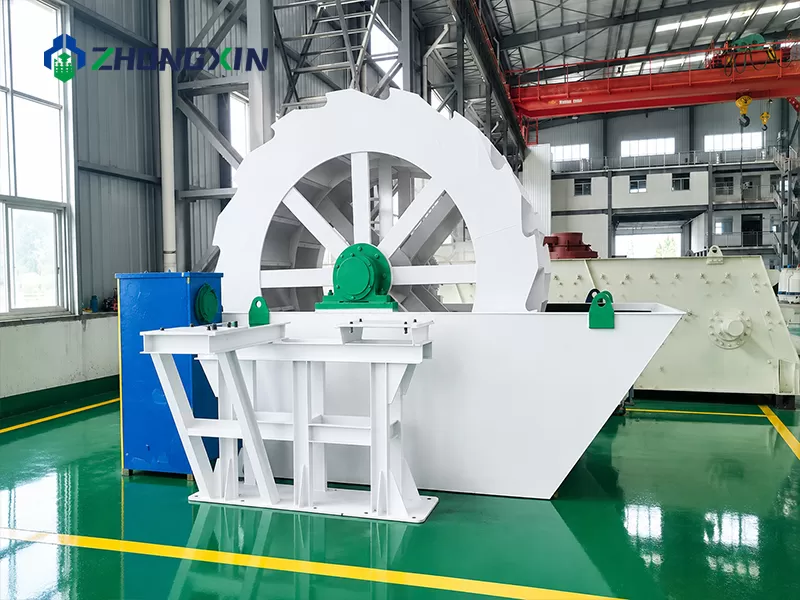

Factory-built wheel bucket sand washer designed for aggregate and silica sand cleaning

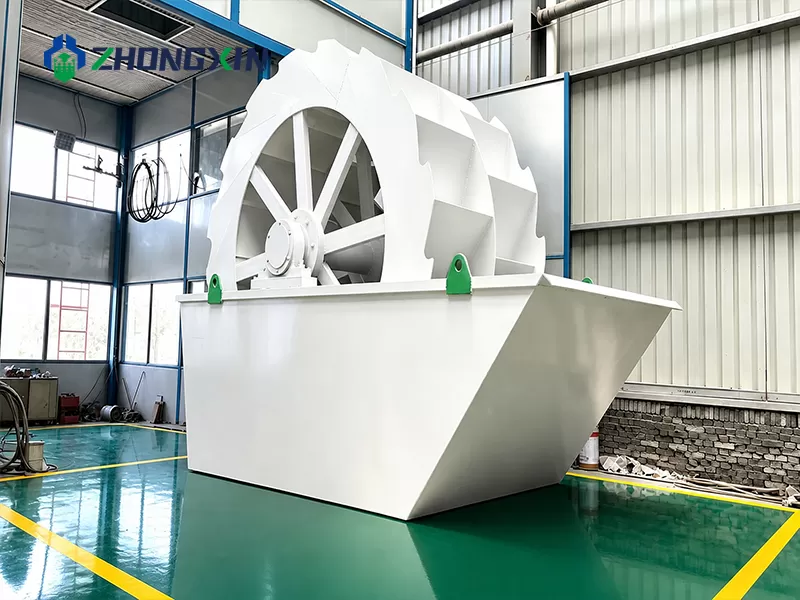

Wheel bucket sand washing equipment displayed in modern production workshop before shipment

Advantages of XS Series Wheel Sand Washer and Reasons to Choose Us

◎1. High-Efficiency Sand Washing: Excellent sand washing efficiency and stable cleaning effect, fully meeting the sand washing needs of large-scale sand and gravel processing.

◎2. High Cost Performance: Moderate equipment pricing and low comprehensive input cost, balancing operational performance and economic practicality.

◎3. Water-Saving & Low Loss: Low water consumption during the sand washing process, which effectively reduces the loss of fine sand and stone powder to improve the utilization rate of sand and gravel resources.

◎4. Easy Maintenance & Durable: Simple overall structural design for convenient daily inspection and maintenance; the bearing device is arranged in isolation from water and materials, greatly reducing the probability of equipment failure, extending the service life, and featuring the operational advantages of high efficiency and energy saving.

Guaranteed Genuine Sand Washer Spare Parts

To ensure your XS Series sand washing plant runs at peak efficiency with zero unexpected downtime, we supply a full range of genuine, factory-direct sand washer spare parts. Every component is manufactured to original equipment manufacturer (OEM) standards, guaranteeing a perfect fit and extended service life.

◎1. Premium Wheel Buckets & Screen Mesh: We offer heavy-duty steel and polyurethane screen mesh options. Polyurethane screens provide up to 3-5 times longer wear life and exceptional resistance to plugging.

◎2. Robust Drive System Components: High-quality reduction gears, heavy-duty bearings, and specialized drive shafts designed to withstand wet, muddy, and high-load environments.

◎3. Impeller & Wear Plates: Thickened, wear-resistant lining plates protect the main structure from continuous sand abrasion, significantly lowering your long-term maintenance costs.

Preventative Maintenance & Wear Optimization

Maximize your return on investment (ROI) with our tailored maintenance solutions. The XS series features an isolated drive system (bearings are separated from water and sand), but regular care ensures maximum output.

◎1. Customized Wear Part Packages: Based on your material hardness (e.g., river pebble, crushed limestone, granite sand) and daily capacity, we configure customized wear parts backup packages so you always have critical spares on hand.

◎2. Wear Analysis Services: Our engineers can analyze your spent screens or bucket lips to recommend material upgrades, helping you optimize sand washing efficiency and minimize cost per ton.

How It Works: XS Series Wheel Sand Washer Working Principle

◎1. Feeding & Submerging

The raw sand and gravel are fed into the washing tank. Simultaneously, water is pumped into the pool, submerging the material into a fluid sand-water slurry.

◎2. Impeller Rotation & Friction

The electric motor drives the impeller rotation via the reduction gearbox. As the large wheel buckets rotate and scoop up the sand, the particles rub intensely against each other, stripping away the surface clay and destroying the moisture vapor layer wrapping the sand.

◎3. Overflow & Impurity Separation

Clean rinsing water continuously flushes the sand in the buckets. The detached clay and fine impurities float to the surface and are discharged out through the overflow weir, while the heavy, clean sand remains in the buckets.

◎4. Gravity Dewatering & Discharge

As the wheel lifts the clean sand above the water level, excess water drains back into the tank through the polyurethane screen mesh. This gravity-driven dewatering process ensures low moisture output before the sand is discharged onto the product conveyor belt.

High-performance wheel bucket sand washing machine for construction sand, river sand, manufactured sand and silica sand processing with high washing efficiency and low water consumption

Product Photos

Heavy-duty wheel bucket sand washer in the manufacturing workshop ready for quality inspection
High-efficiency wheel bucket sand washer produced by professional mining equipment manufacturer
Industrial wheel bucket sand washing machine assembled in the factory with durable steel structure

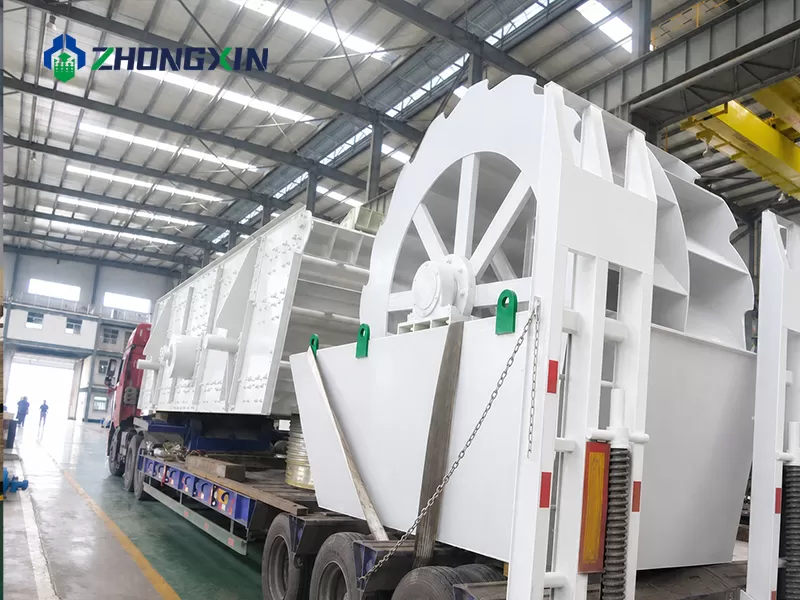

Batch delivery of XS series sand washing and dewatering machines to global market.

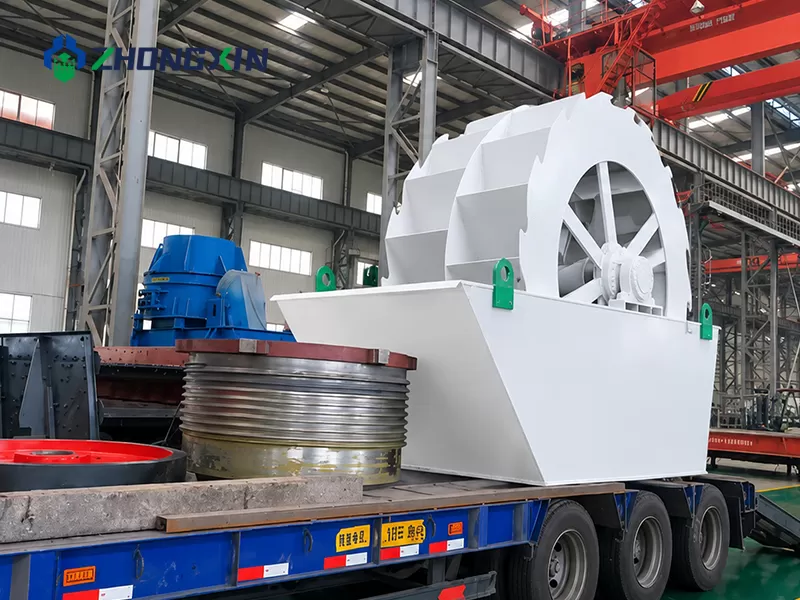

Wheel bucket sand washer ready for export with reliable packaging and fast global delivery

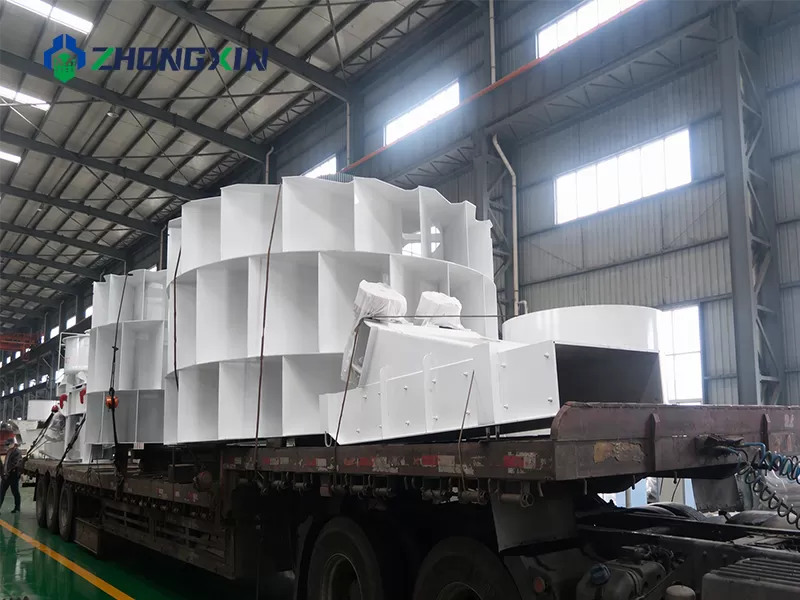

Loading a 120 TPH wheel sand washer into a container for international shipping.

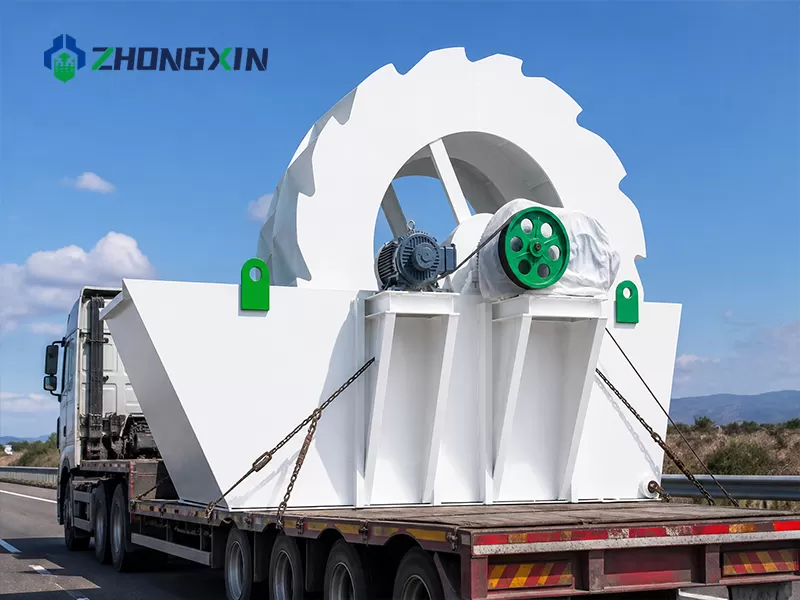

XS series dewatering wheel sand washer working in a 200 TPH aggregate crushing plant.

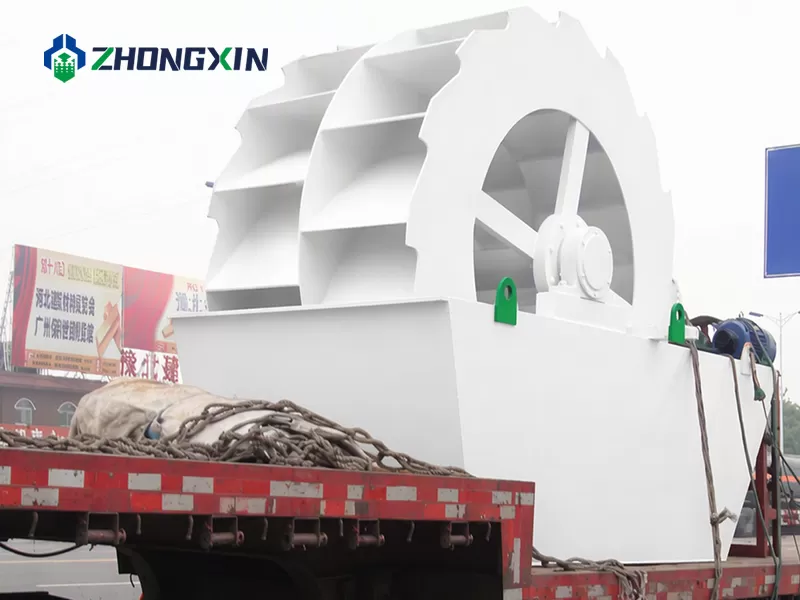

High efficiency sand washing process for manufactured sand production line.
Bucket wheel sand washer processing river pebbles and silica sand at working site.

Specification

ModelBucket wheel diameter(mm)Max feeding size(mm)Capacity(t/h)Speed(r/min)Power(kw)Overall dimension(L×W×H)(mm)Weight(t)
XS26002600≤1020-502.55.53550X2080X26502.67
XS2600II2600≤1030-702.55.53550X2080X26502.9
XS28002800≦1050-1001.2113964x2137x28953.98
XS32003200≤1080-1201.2154346x2934x33457.27
XS36003600≤10120-1801154355X4505X38109.43

RECOMMENDED CRUSHING, SCREENING AND MINERAL PROCESSING EQUIPMENT

Explore our full range of heavy-duty industrial machinery, covering crushing, screening, industrial grinding, and mineral processing solutions. As a direct manufacturer, we provide reliable equipment tailored to maximize your production efficiency.

GZT Vibrating Feeder
GZT Vibrating Feeder
XL Spiral Sand Washing Machine
XL Spiral Sand Washing Machine
ZSW Vibrating Feeder
ZSW Vibrating Feeder

EXPLORE MORE PRODUCTION LINE SITE PROJECTS

Browse our verified aggregate and mineral processing line projects tracking across the globe. Our heavy-duty crushing plants are optimized to deliver maximum throughput, reliable performance, and a fast return on investment for quarry operators.

300tph limestone crushing plant
300tph limestone crushing plant
300 TPH Heavy-Duty Mountain Stone Crushing Plant in Indonesia
300 TPH Heavy-Duty Mountain Stone Crushing Plant in Indonesia
60-100 TPH Mobile Four-in-One Crushing Plant in Mexico
60-100 TPH Mobile Four-in-One Crushing Plant in Mexico

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our machine. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

The equipment consists of an impeller, reducer, support frame, and water tank. The motor drives the large impeller to rotate slowly in the water tank via the reducer, while the sand tumbles and is washed by water inside the bucket.

The wheel sand washing machine has a simple structure, extremely low fine sand loss rate (due to the slow impeller speed), and the transmission parts are isolated from water and sand, resulting in a low failure rate and significant water and electricity savings.

It is suitable for scenarios with medium mud content and high requirements for the gradation of finished sand, such as river sand washing, construction sand making, and concrete mixing plant feeding.

The screen is a wear part, but we use high-strength manganese steel or polyurethane material, which has strong wear resistance. The screen is bolted, making replacement very convenient.

The impeller drive bearing assembly is completely isolated from water and the material being washed. This design effectively prevents the bearings from rusting or being damaged due to water immersion or sand contamination.

During the rotation and lifting of the impeller bucket, the sand undergoes a natural dehydration process. If extremely dry sand is required, it is recommended to use a high-frequency dewatering screen at the discharge end.

The main difference is in output. A single impeller bucket is suitable for small factories, while double or triple impeller buckets (such as the 2XS and 3XS series) significantly increase processing capacity and are suitable for large-scale sand and gravel production lines.

It is an energy-saving device. Due to the slow impeller speed and the operation through physical scooping, its energy consumption is typically only 50%-70% of that of a spiral type for the same processing capacity.
