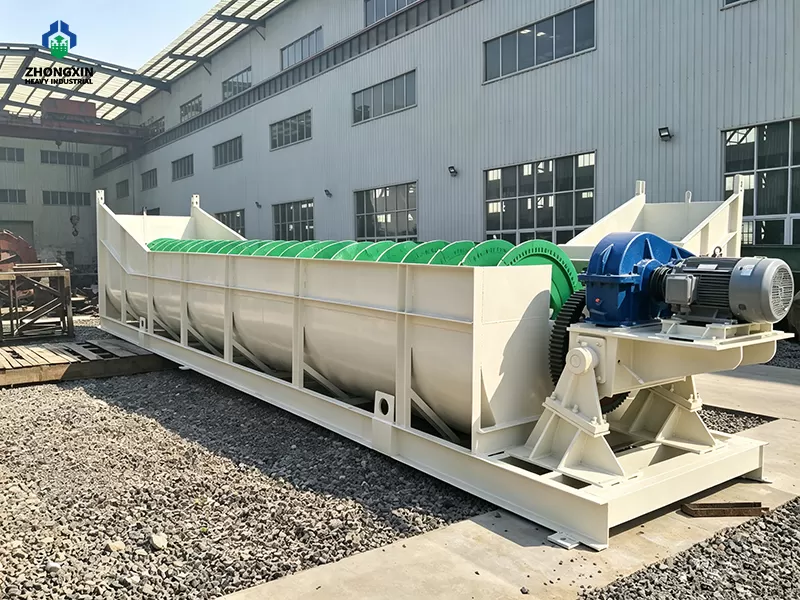

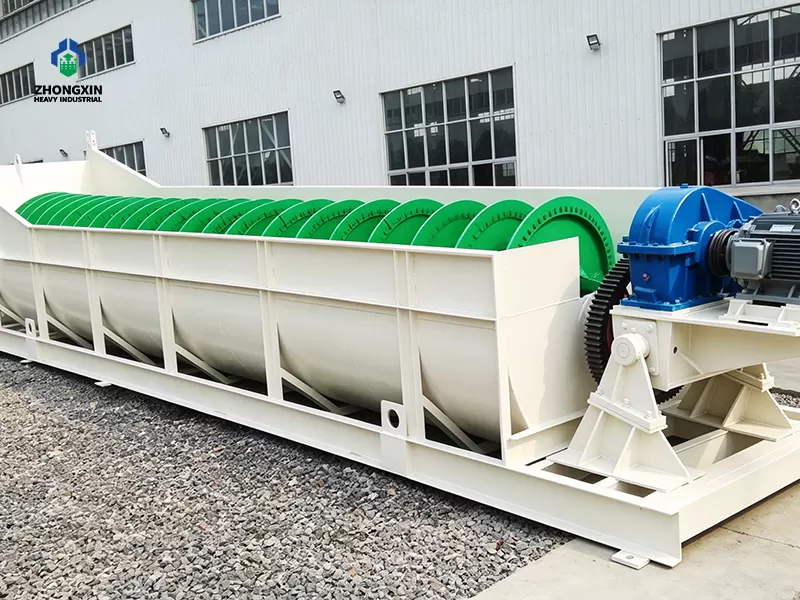

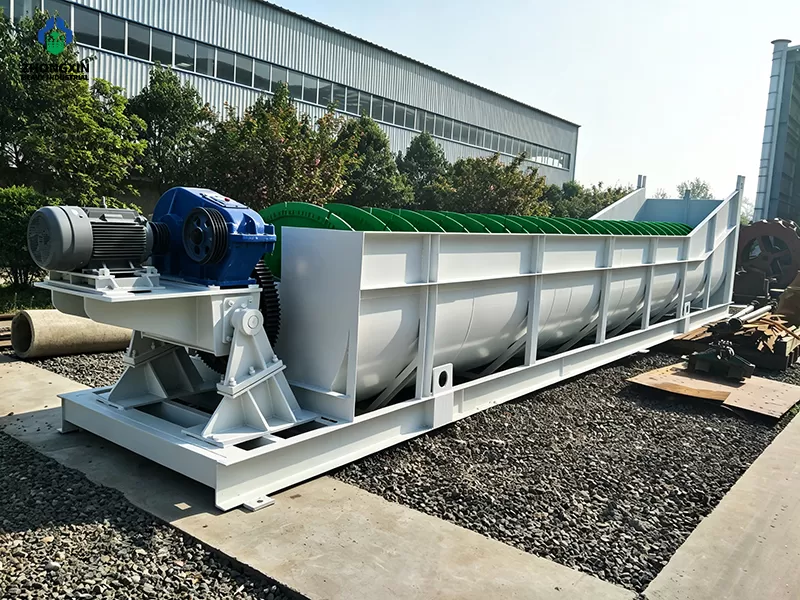

XL series spiral sand washing machine

Diameter (mm):610-1500

Slot length(mm):7225-10300

Capacity (t/h):40-200

Feeding Size(mm):≦10

Water Consumption:6-160

Whatsapp/Wechat:+86-13676922906
Email:sales@zxcrusher.com
(※ Click this button to inquiry)
  •  XL series spiral sand washing machine application field: widely used in stone factories, mixing stations, building materials, water saving and hydropower.

    The XL series spiral sand washer is a spiral cleaning device. It has low power, good performance and good sealing. It reduces the loss of fine sand and stone dust during work. It guarantees the cleaning and dewatering of the sand mechanism in the sand production line.


  •  XL series spiral sand washing machine Features:

    1, strong processing ability, high washing rate, low power consumption, good sealing structure, fully enclosed transmission, adjustable jaws.
    2, the product is efficient, durable, clean, dehydrated, fine-grained products remain stable.


  •  XL series spiral sand washing machine Working Principle:

    During the operation, the spiral sand washer rotates by the force of the spiral impeller, rotates the impeller and rolls the sand mechanism in the machine body, so that the mechanical sand is broken and milled, and the impurities covering the sandstone surface are eliminated. Destroy the water vapor layer of the coated sand to promote dehydration. At the same time, add water to form a strong water flow, remove foreign matter with less impurities and small specific gravity in time, and discharge from the overflow port to complete the cleaning work, and finally rinse the mechanical sand with water. The rotation of the helical impeller enters the discharge conduit.

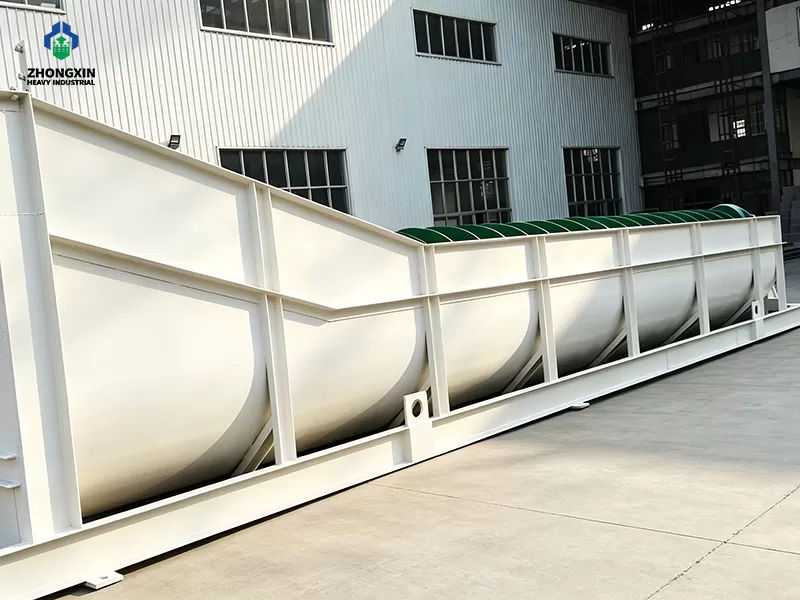

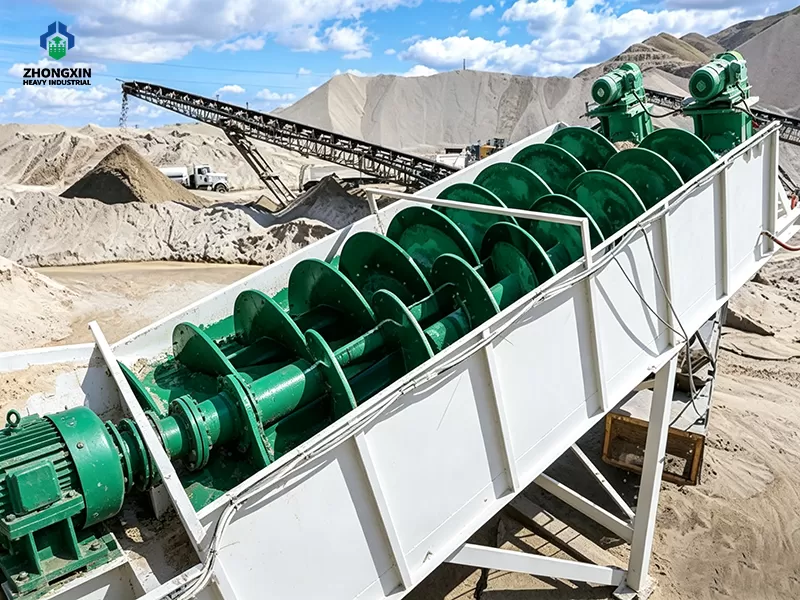

    The spiral sand washer has a central structure and the spiral blades are mounted on the central shaft. The power of the transmission rotates the central shaft to drive the rotation of the screw and the floating effect of the sand material on the first stage of the can and the screw. Dust and impurities are separated from the sand to achieve drainage and eliminate impurities. When the spiral sand washing machine is working in the field, the main body has an immersion angle, the feeding end is low, the discharge end is high, and the finished product is excluded from the high end.
  •   XL series spiral sand washing machine Specifications:

    Model

    Diameter (mm)

    Slot length(mm)

    Maximum Feeding Size(mm)

    Capacity (t/h)

    Speed Of Rotation (r/min)

    Motor Power (kw)

    Water Consumption

    Overall Dimensions (mm)

    Weight (kg)

    XL508

    508

    6705

    ≦10

    20

    38

    5.5

    6-60

    8000*2343*1430

    2.67

    XL610

    610

    7225

    ≦10

    40-50

    32

    7.5

    6-63

    8000*2050*1400

    3.80

    XL762

    762

    7620

    ≦10

    50-75

    26

    11

    9-63

    8545*2650*3862

    5.23

    XL915

    915

    7585

    ≦10

    100

    21

    11

    10-80

    8500*2810*3600

    6.27

    2XL915

    915

    7585

    ≦10

    200

    21

    2*11

    20-160

    8420*3765*3960

    11.11

    XL1115

    1115

    9782

    ≦10

    175

    17

    15

    20-150

    10970*3945*4720

    10.18

    2XL1115

    1115

    9782

    ≦10

    350

    17

    2*15

    40-300

    10970*5250*4720

    17.94
