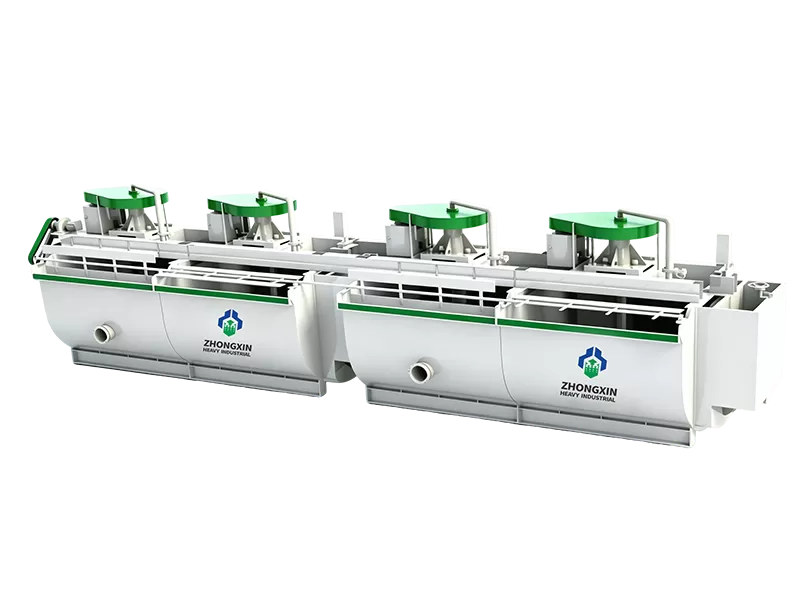

Flotation Machine

Capacity

0.2-16m ³/min

Scraper Motor Power

0.55-2.2KW

Stuctural diagram: flotation machine is made up of impeller, stator, spindle, central flues, tank, bearing body,etc. The whole structure of impeller is installed on the girder of the tank. The impeller is drived by motor through triangle tip.

Social Media

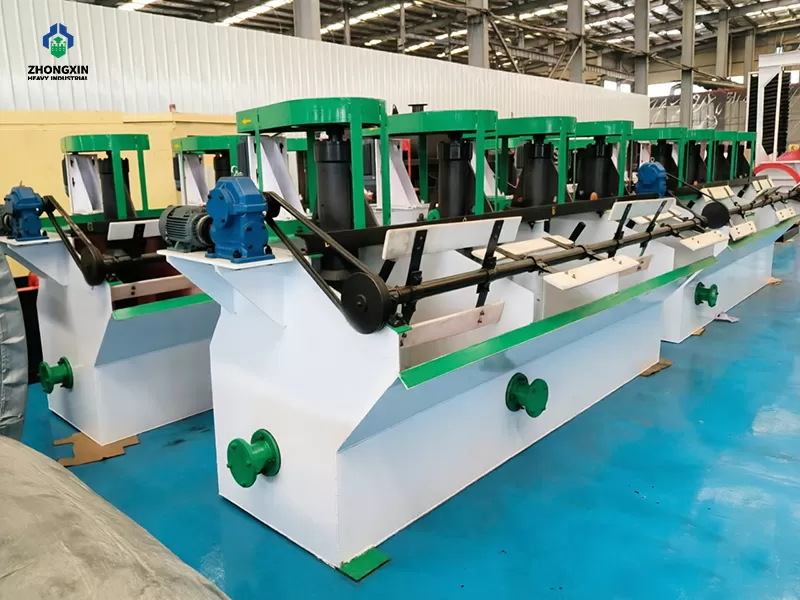

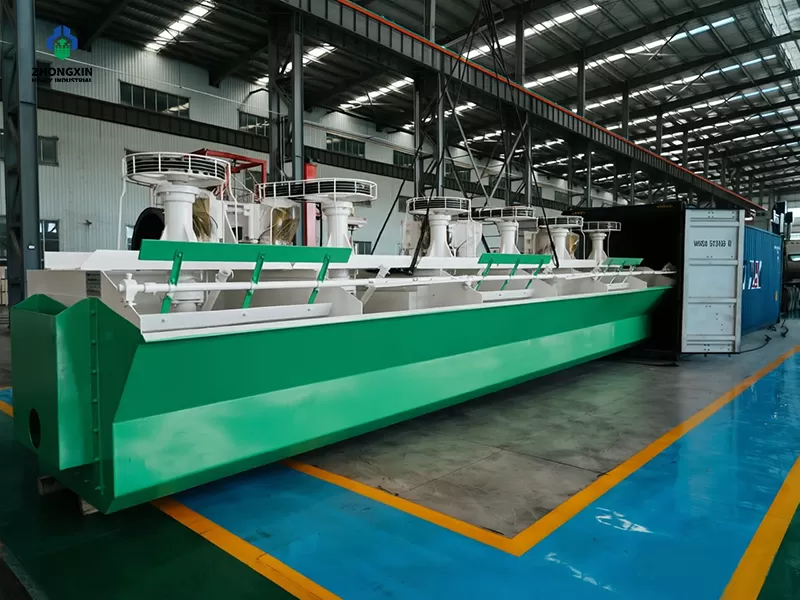

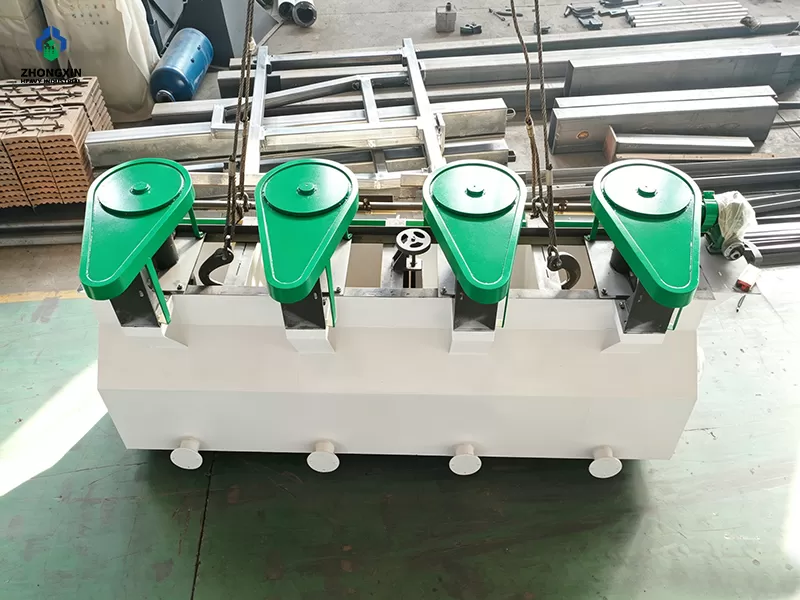

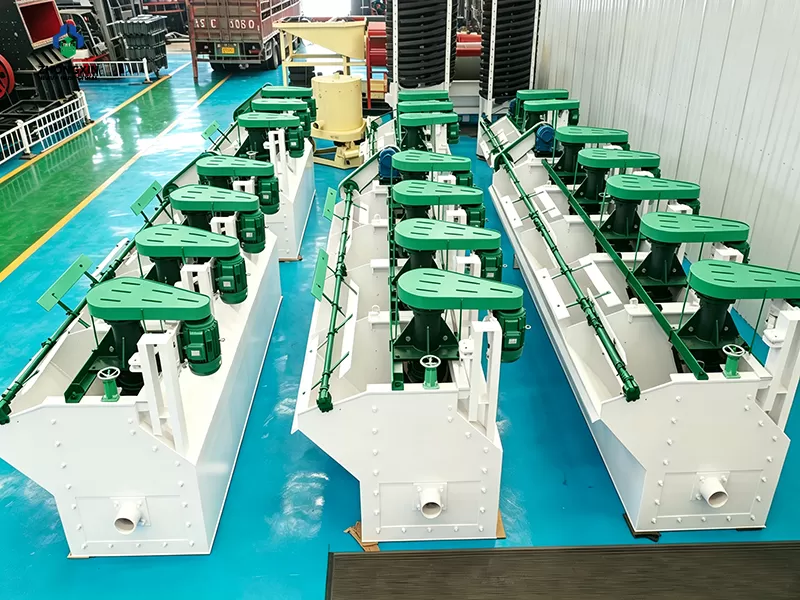

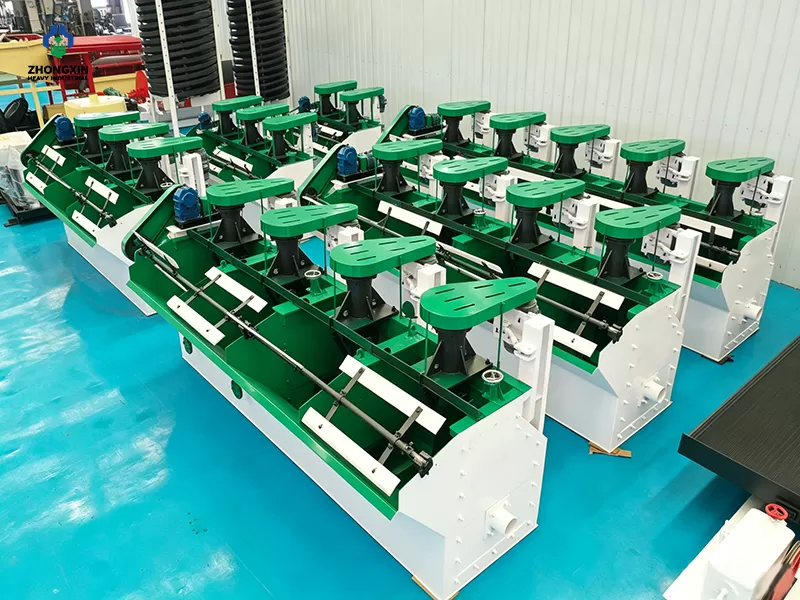

High-Efficiency Flotation Machine for Mineral Processing

◎The Flotation Machine is a self-aspirated flotation machine designed for efficient mineral separation. It features a horizontal configuration, automatic froth return, and air self-aspiration, providing stable flotation performance with low energy consumption.

◎The machine uses a low-speed impeller with a large clearance between the impeller and stator, reducing wear and extending the service life of wear parts. Strong pulp suction and high inflow capacity ensure effective slurry circulation and air-pulp mixing, while the stable froth surface supports efficient mineral recovery.

◎The flotation machine is widely used for roughing, scavenging, and cleaning of non-ferrous metals, ferrous metals, and non-metallic minerals, including copper, lead, zinc, nickel, molybdenum, gold, silver, sulfur, and phosphorus.

◎With low power consumption, reliable operation, strong pulp handling capacity, and low maintenance requirements, it provides an economical solution for modern mineral processing plants.

How Does the Froth Flotation Equipment Work?

◎When the electric motor drives the main spindle to rotate, the high-speed centrifugal force throws the mineral slurry out of the impeller cavity. This rapid displacement of pulp creates a powerful, continuous negative pressure (vacuum zone) inside the impeller chamber. Under the effect of this pressure differential:

◎Air Inhalation & Pulp Suction: Ambient air is automatically inhaled through the air admission pipe, while the mineral slurry at the bottom is simultaneously drawn into the core of the impeller through the center hole of the impeller cone.

◎Intensive Mixing & Dispersion: Once inside the impeller cavity, the inhaled air and incoming slurry are intensely sheared and mixed. The resulting highly aerated mixture is then expelled at high velocity through the specialized passages between the flat plate and the impeller blades.

◎Active Flotation Zone: Upon discharge, the micro-bubbles and a portion of the mineralized slurry rise toward the upper part of the flotation cell to participate in the actual froth flotation and separation process.

◎Continuous Under-Circulation (Preventing Sedimentation): Crucially, the remaining mineral slurry moves downward toward the bottom of the flotation tank. Driven by the continuous suction of the impeller, this slurry is drawn back into the impeller cavity for a second circulation loop. This powerful under-circulation of mine slurry is highly beneficial for the flotation of heavy, coarse mineral particles, keeping them actively suspended and minimizing the risk of grit or coarse sand settling at the bottom of the flotation cell.

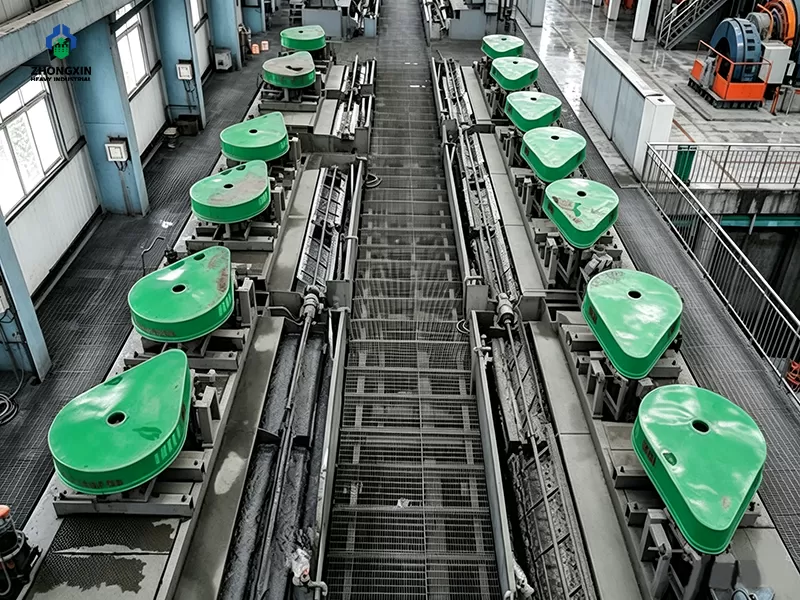

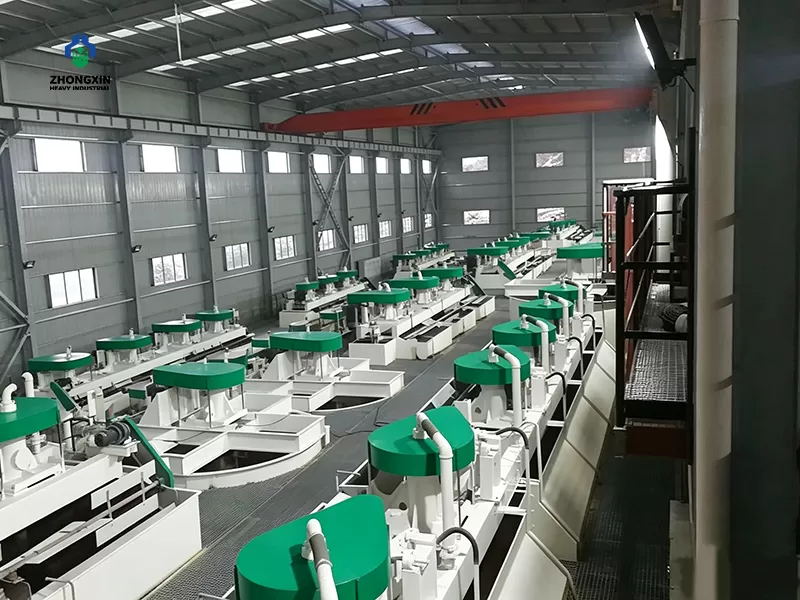

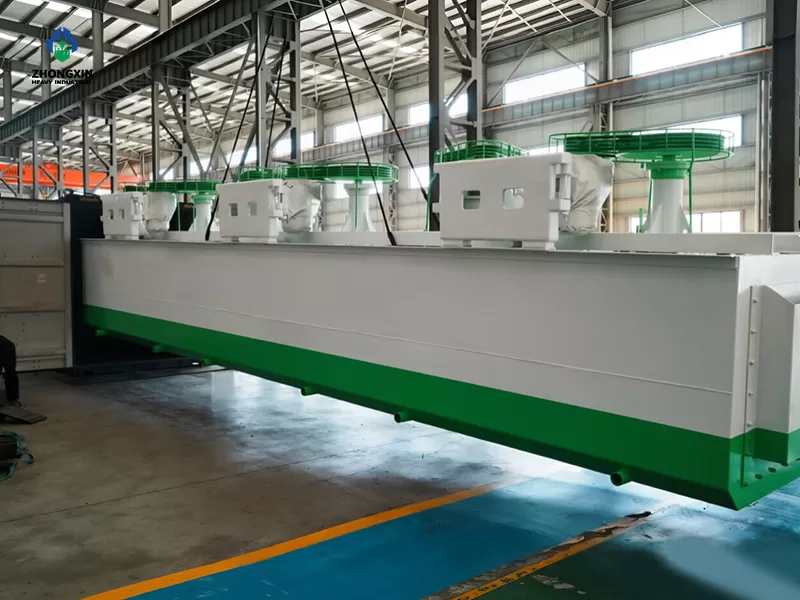

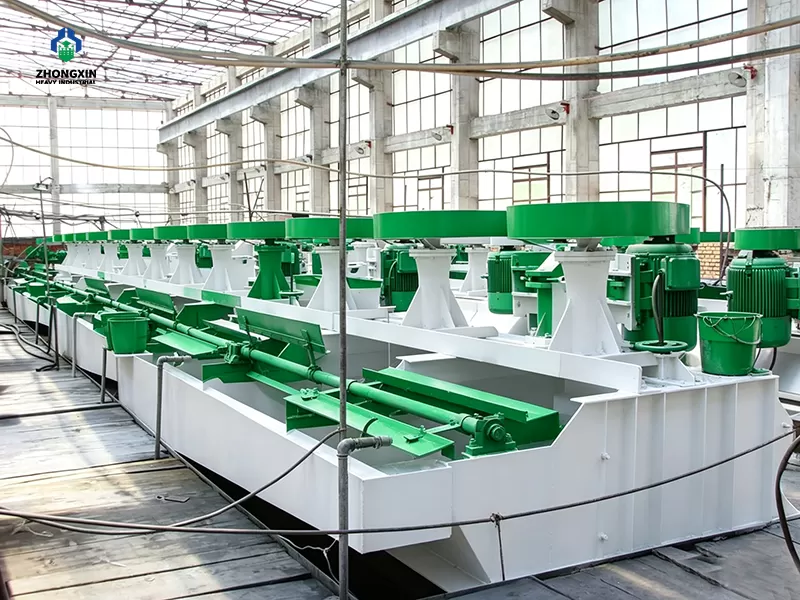

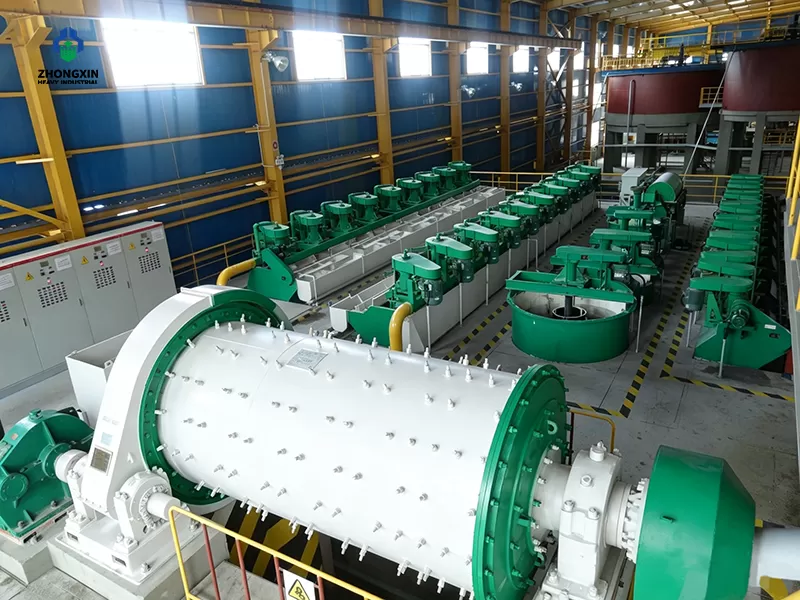

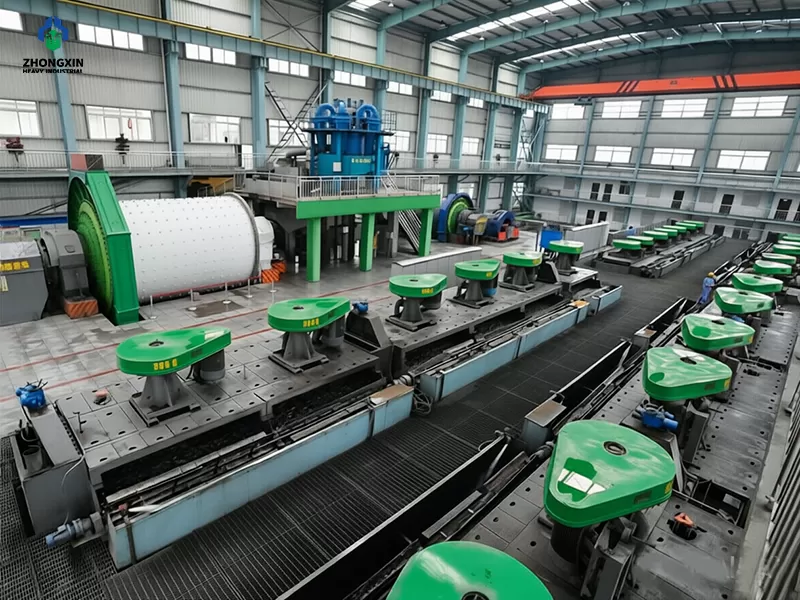

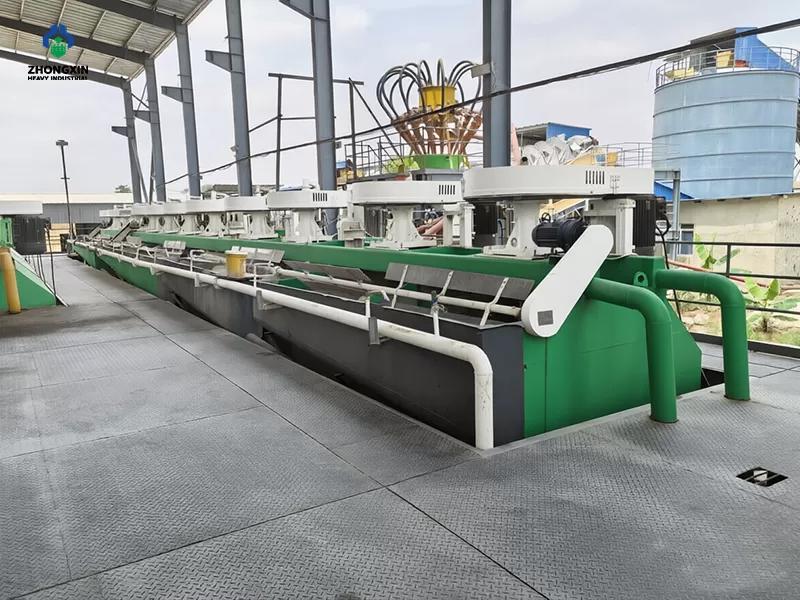

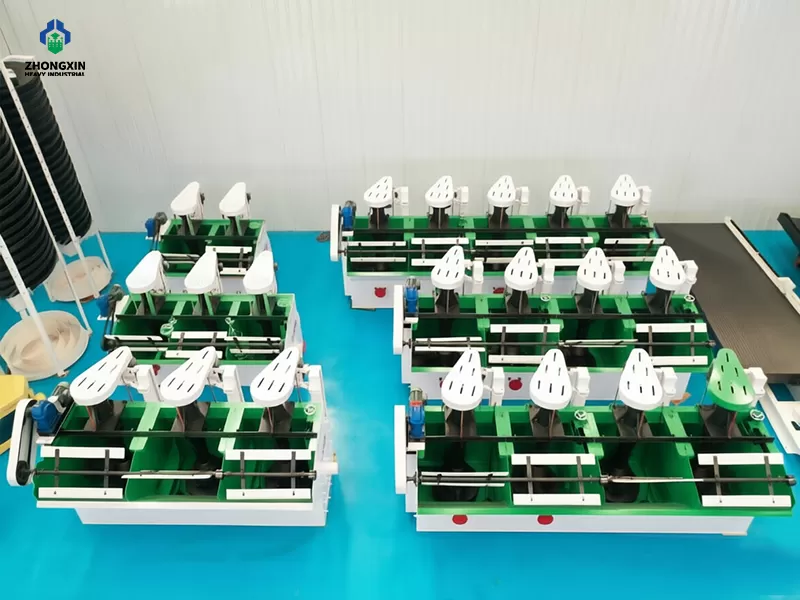

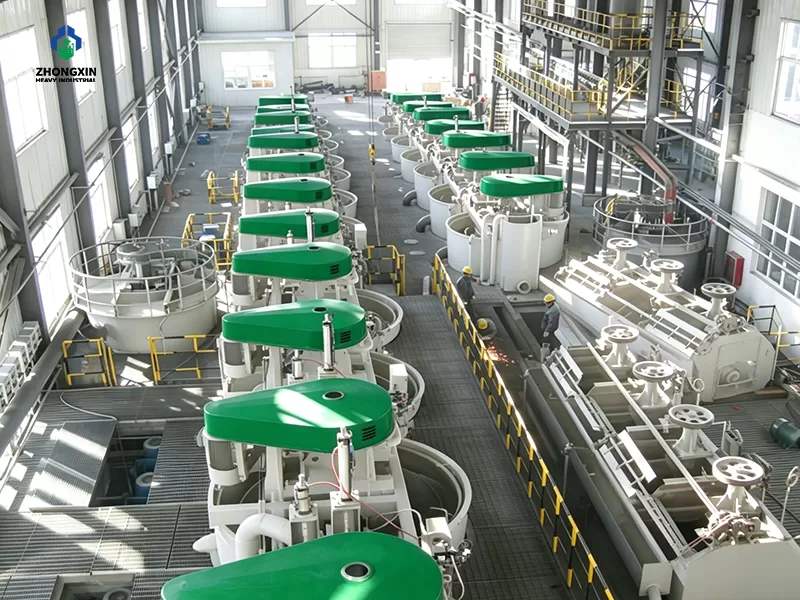

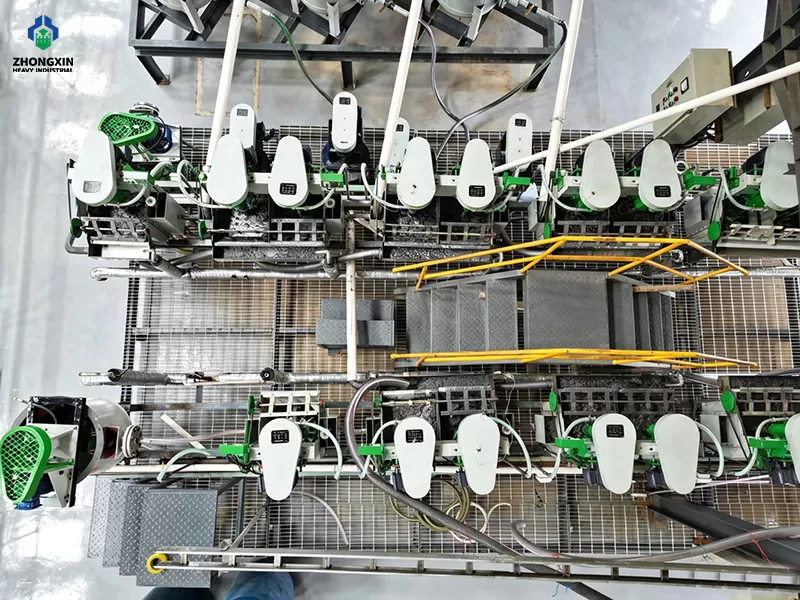

Complete flotation separation system for mineral processing plant

Model	Effectiv e Volu me ( m ³)	Processing Capacity ( m ³/min )	Impe lle r Diameter ( mm)	Impeller Speed (r/min )	Agitatio n Motor Power ( kW)	Scraper Motor Power ( kW)	Sing le Ce ll Weight ( kg )
SF-0 .37	0.37	0.2~ 0.4	300	352~442	1 .5	0.55	648
SF-0 .7	0.7	0.3~ 1 .0	350	336~ 384	3	1.1	629
SF-1 .2	1 .2	0.6~ 1 .6	450	312	5.5	1.1	1373
SF-2	2	1 .5~ 3	550	280	11	1 .5	1879
SF-2 .8	2 .8	1 .5~ 3.5	550	280	11	1 .5	1902
SF-4	4	2 .0~4	650	235	15	1 .5	2582
SF-6	6	3~6	760	191	30	2 .2	3540
SF-8	8	4 .0~ 8	760	191	30	2 .2	4129
SF-16	16	5.0~ 16	850	169~ 193	45	1 .5	7415
SF-20	20	10~ 12	850	169~ 193	45	1 .5	9828

Model

Effectiv e Volu me ( m ³)

Processing Capacity ( m ³/min )

Impe lle r Diameter ( mm)

Impeller Speed (r/min )

Agitatio n Motor Power ( kW)

Scraper Motor Power ( kW)

Sing le Ce ll Weight ( kg )

SF-0 .37

0.37

0.2~ 0.4

300

352~442

1 .5

0.55

648

SF-0 .7

0.7

0.3~ 1 .0

350

336~ 384

1.1

629

SF-1 .2

1 .2

0.6~ 1 .6

450

312

5.5

1.1

1373

SF-2

1 .5~ 3

550

280

1 .5

1879

SF-2 .8

2 .8

1 .5~ 3.5

550

280

1 .5

1902

SF-4

2 .0~4

650

235

1 .5

2582

SF-6

3~6

760

191

2 .2

3540

SF-8

4 .0~ 8

760

191

2 .2

4129

SF-16

5.0~ 16

850

169~ 193

1 .5

7415

SF-20

10~ 12

850

169~ 193

1 .5

9828

Model	Effective Volume (m³)	Length × Width × ht (mm)	Impeller Diameter (mm)	Impeller Peripheral Speed (m/s)	Air n Volume (m³/m²·min)	Motor l	Motor r ( kW)	Processing Capacity (m³/min)	S in g le C e ll We ig ht (kg)
BF-20.15	0 . 15	550 × 550 × 600	200	6	0.9 ~ 1.05	Y112M-6	2.2	0 .06 ~ 0 . 16	270
BF-0.25	0 .25	650 × 600 × 700	250	6	0 .9 ~ 1 .05	Y100L-6	1 .5	0. 12 ~ 0.28	370
BF-0.37	0 .37	740 × 740 × 750	286	7 .2	0.9 ~ 1.05	Y90L-4	1.5	0 .2 ~ 0 .4	470
BF-0.65	0 .65	850 × 950 × 900	300	7 .35	0.9 ~ 1.10	Y132S -6	3	0 .3 ~ 0 .7	932
BF-1.2	1 .2	1050 × 1150 × 1100	450	7 .02	0 .9 ~ 1 . 10	Y132M1-6 Y132M2-6	5.54	0 .6 ~ 1 .2	1370
BF-2.0	2	1400 × 1450 × 1120	500	7 .5	0 .9 ~ 1 . 10	Y160M-6	7 .5	1 .0 ~ 2 .0	1750
B F-2.8	2 .8	1650 × 1650 × 1150	550	8 .06	0.9 ~ 1.10	Y180L-8	11	1 .4 ~ 3 .0	2130
BF-4.0	4	1900 × 2000 × 1200	650	8	0 .9 ~ 1 . 10	Y200L-8	15	2 .4 ~ 4 .0	2585
BF-6.0	6	2200 × 2350 × 1300	700	7 .5	0 .9 ~ 1 . 10	Y225 S -8	18 .5	3 .0 ~ 6 .0	3300
BF-8.0	8	2250 × 2850 × 1400	760	7 .5	0 .9 ~ 1 . 10	Y225 M-8	22	4 .0 ~ 8 .0	4130
BF-10	10	2250 × 2850 × 1700	760	7 .52	0 .9 ~ 1 . 10	Y225 M-8	22	5.0 ~ 10	4500
BF-16	16	2850 × 3800 × 1700	850	8 .7	0.9 ~ 1.10	Y280S -8	37	8.0 ~ 16	8320
BF-20	20	2850 × 3800 × 2000	850	8 .7	0 .9 ~ 1 . 10	Y280M-8	45	10.0 ~ 20	8670
BF-24	24	3150 × 4150 × 2000	920	8 .7	0 .9 ~ 1 . 10	Y315S-8	55	12 .0 ~ 24	8970

Model

Effective Volume (m³)

Length × Width × ht (mm)

Impeller Diameter (mm)

Impeller Peripheral Speed (m/s)

Air n Volume (m³/m²·min)

Motor l

Motor r ( kW)

Processing Capacity (m³/min)

S in g le C e ll We ig ht (kg)

BF-20.15

0 . 15

550 × 550 × 600

200

0.9 ~ 1.05

Y112M-6

2.2

0 .06 ~ 0 . 16

270

BF-0.25

0 .25

650 × 600 × 700

250

0 .9 ~ 1 .05

Y100L-6

1 .5

0. 12 ~ 0.28

370

BF-0.37

0 .37

740 × 740 × 750

286

7 .2

0.9 ~ 1.05

Y90L-4

1.5

0 .2 ~ 0 .4

470

BF-0.65

0 .65

850 × 950 × 900

300

7 .35

0.9 ~ 1.10

Y132S -6

0 .3 ~ 0 .7

932

BF-1.2

1 .2

1050 × 1150 × 1100

450

7 .02

0 .9 ~ 1 . 10

Y132M1-6 Y132M2-6

5.54

0 .6 ~ 1 .2

1370

BF-2.0

1400 × 1450 × 1120

500

7 .5

0 .9 ~ 1 . 10

Y160M-6

7 .5

1 .0 ~ 2 .0

1750

B F-2.8

2 .8

1650 × 1650 × 1150

550

8 .06

0.9 ~ 1.10

Y180L-8

1 .4 ~ 3 .0

2130

BF-4.0

1900 × 2000 × 1200

650

0 .9 ~ 1 . 10

Y200L-8

2 .4 ~ 4 .0

2585

BF-6.0

2200 × 2350 × 1300

700

7 .5

0 .9 ~ 1 . 10

Y225 S -8

18 .5

3 .0 ~ 6 .0

3300

BF-8.0

2250 × 2850 × 1400

760

7 .5

0 .9 ~ 1 . 10

Y225 M-8

4 .0 ~ 8 .0

4130

BF-10

2250 × 2850 × 1700

760

7 .52

0 .9 ~ 1 . 10

Y225 M-8

5.0 ~ 10

4500

BF-16

2850 × 3800 × 1700

850

8 .7

0.9 ~ 1.10

Y280S -8

8.0 ~ 16

8320

BF-20

2850 × 3800 × 2000

850

8 .7

0 .9 ~ 1 . 10

Y280M-8

10.0 ~ 20

8670

BF-24

3150 × 4150 × 2000

920

8 .7

0 .9 ~ 1 . 10

Y315S-8

12 .0 ~ 24

8970

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our machine. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

Precise installation ensures the high sorting efficiency of the mineral flotation separator. Please follow these setup standards: 1.Spindle Verticality: After installing the impeller structure, verify that the main spindle is perfectly vertical. 2.Clearance & Gaps: During assembly, ensure the axial gap between the impeller and the cover plate is maintained at 3–5 mm, with a radial clearance of 11 mm. 3.Horizontal Alignment: The overflow weir board and drive shaft must remain strictly horizontal and concentric, ensuring the regulating gate operates flexibly. 4.Cell Sealing: Ensure zero leakage at the bolted joints between individual flotation cells. Secure welding can be applied upon mutual agreement. 5.Commissioning: A test run is required post-installation to monitor bearing temperature and overall mechanical operational stability. 6.Water Test Run: Once the full froth flotation equipment set is installed, a standard dry run must be conducted first, followed by a continuous 8-hour wet test with the cells filled with water before entering full production.

Before starting the ore flotation machine, complete the following safety and operational checks: 1. Fasteners & Impeller: Inspect all structural bolts and ensure the impeller is securely tightened. 2. Belts & Flexibility: Check the V-belts and verify that the impeller rotates smoothly and flexibly. 3. Lubrication Systems: Verify all lubrication points are well-serviced and inspect the unit for any potential oil leaks. 4. Slurry Circulation: Inspect the internal channels to ensure unobstructed pulp and slurry circulation. 5. Adjustment Devices: Ensure the level adjusters and froth discharge mechanisms are flexible and stable. 6. Electrical & Motor: Confirm that the motor and electrical control facilities function reliably. 7. Safety Guards: Verify that all external rotating components are equipped with secure, steady protective shields.

It depends on your daily processing capacity (TPD), ore density, and flotation time required. Zhongxin engineers will design the exact layout based on your ore test report.

The impeller and the stator are the primary wear parts. We use high-wear-resistant rubber or polyurethane to double their lifespan compared to standard cast iron.

Flotation efficiency depends on several key variables: the particle size of the milled ore, pulp density (usually maintained between 25% to 35%), reagent dosage, pH value, and air flow rate. Zhongxin's froth flotation equipment features adjustable air valves and level regulators, allowing operators to easily fine-tune these parameters for maximum mineral recovery.

Yes, absolutely. For corrosive environments—such as copper or gold flotation using acidic reagents—we offer custom flotation separators equipped with stainless steel tanks, anti-corrosive linings, and high-performance polyurethane impellers to ensure long-term durability and lower maintenance costs.

Sedimentation is a common issue that causes premature wear. Our mineral flotation machine solves this through an optimized bottom structure and a high-efficiency impeller design. This combination generates a powerful, continuous bottom slurry circulation that keeps coarse and heavy minerals suspended uniformly within the cell.

Yes, Zhongxin Heavy Industry is a full-service manufacturer. We don't just sell flotation cells; our technical engineering team provides custom-tailored beneficiation plant layouts, complete flow sheets, and equipment configuration services based on your specific mineral testing reports (TPH capacity, grade, and recovery goals).

COMPREHENSIVE SERVICE & GENUINE SPARE PARTS

Zhongxin Heavy Industry provides not only high-performance equipment but also full life-cycle support solutions.

Premium OEM Spare Parts & High-Wear Components

We supply a full range of original wear parts for your flotation machine, including high-quality impellers, stators, and froth scrapers. Made from highly wear-resistant polyurethane or specialized rubber, our spare parts are engineered to withstand abrasive mineral slurries, ensuring minimal downtime and maximizing the service life of your flotation cells.

Customized Mineral Processing Flow Chart Design

Zhongxin Heavy Industry provides comprehensive technical support tailored to your mining project. Our expert engineering team designs customized beneficiation flow charts and equipment layouts based on your specific mineral testing reports. We ensure our froth flotation equipment integrates seamlessly with your grinding and crushing circuits for optimal recovery rates.

Global Technical Support & On-Site Engineering Services

From initial installation and water commissioning to operator training and routine maintenance, we provide lifetime technical service for our mineral flotation separators. Our responsive global service team is always ready to assist you online or on-site, ensuring your flotation plant operates at peak efficiency with maximum productivity.
