Mobile Crushing and Screening Plant

Capacity

20-1800TPH

Motor Power

75-315KW

Mobility & Setup: Built on a heavy-duty tire or crawler chassis with an all-in-one modular design, requiring zero infrastructure for instant on-site deployment.

Application Range: Highly versatile for medium-hard stone processing (limestone, bluestone ≤350MPa）, construction waste recycling (concrete/asphalt), and short-term mining projects.

Social Media

Mobile Crushing and Screening Plant Product Description

The mobile crushing and screening plant is an advanced, modular mobile crushing station designed for ultimate flexibility and high-efficiency processing. Integrating a feeder, mobile jaw crusher, impact crusher, and screen onto a single tire or crawler chassis, this self-contained aggregate production line requires zero fixed civil infrastructure. It transports directly to raw material yards or demolition zones for immediate, on-site operations.

Rapid Deployment: Eliminates foundation work and civil engineering, letting you start production immediately upon site arrival.
Exceptional Mobility: Easily relocates between dispersed sites, bringing the mobile stone crusher to the source to cut transport costs.
Flexible Configuration: Easily adapts to diverse materials or product sizing requirements.
Eco-Friendly & Smart: Built with dust-suppression sprays, enclosed structures, and optional magnetic iron separators.

Working Principle of the Integrated Crushing Line

The operational workflow of our mobile crushing and screening plant is engineered as a highly efficient, closed-circuit system designed to maximize throughput and deliver superior aggregate quality. By seamlessly integrating multiple mechanical units onto a single tire or crawler chassis, this complete aggregate production line operates through the following stages:

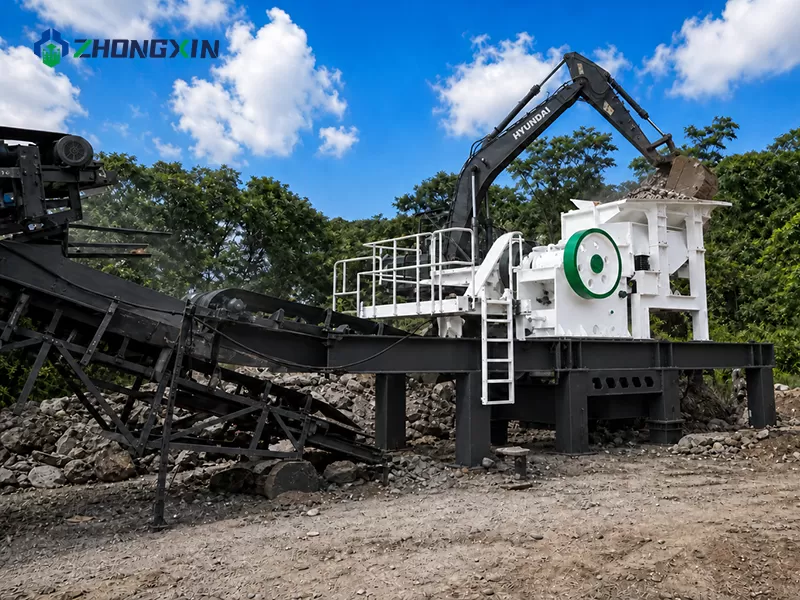

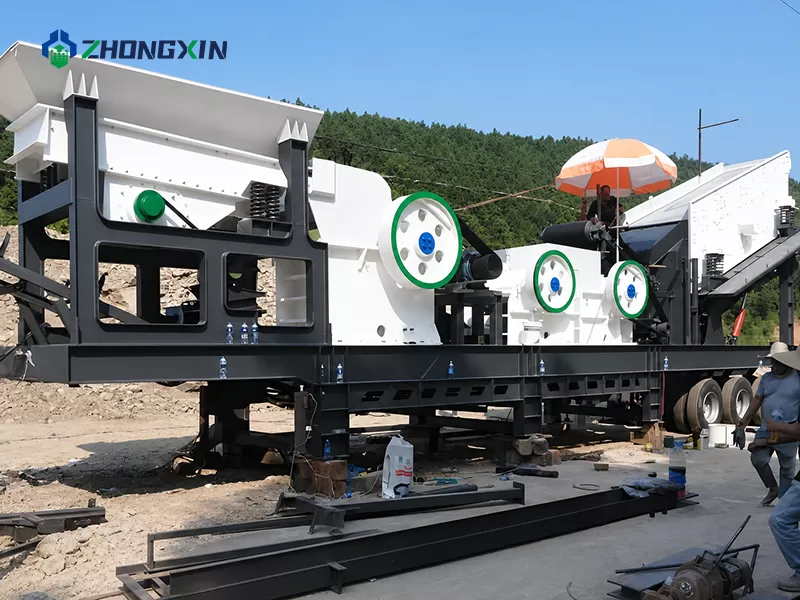

Controlled Feeding and Primary Jaw Crushing:The process begins when raw materials—such as quarry stones, limestone, or construction debris—are loaded into the heavy-duty vibrating feeder. The feeder evenly channels the material into the primary mobile jaw crusher. Here, the mobile jaw crusher applies tremendous compressive force to break down large, hard boulders into smaller, manageable fragments. This crucial coarse-crushing step effectively reduces raw material dimensions and substantially lowers the mechanical operating load on the downstream equipment within the mobile crushing station.
Secondary Impact Crushing and Particle Shaping:Once primary reduction is complete, the pre-crushed fragments are conveyed to the secondary impact crusher. Unlike compression-only crushers, this stage utilizes high-speed kinetic energy to shatter the stone, optimizing particle size distribution and producing well-shaped, cubical aggregates. The synergistic combination of the primary jaw crusher and the secondary impactor ensures that the final output strictly meets commercial gradation requirements.

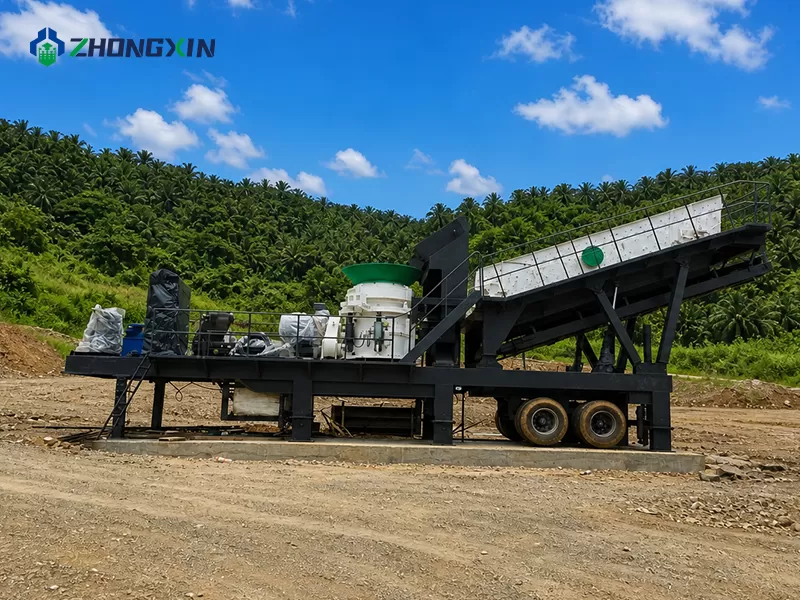

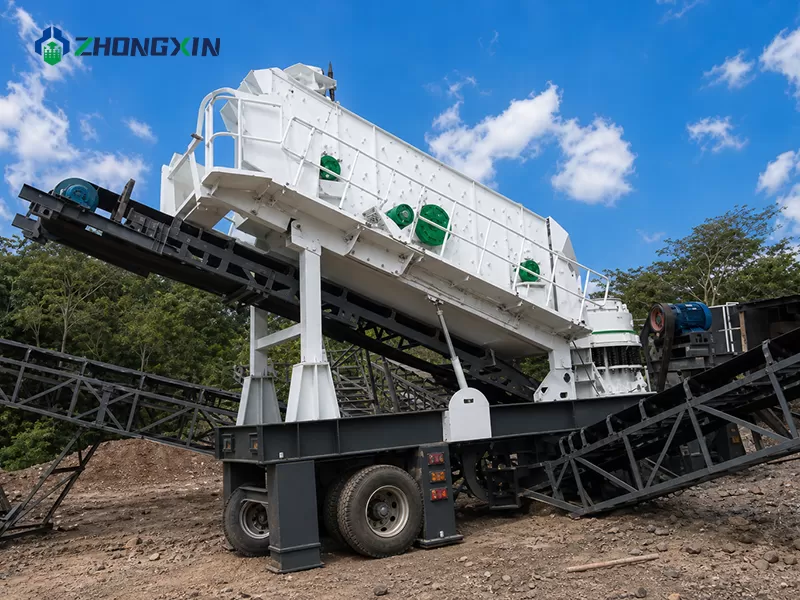

Closed-Circuit Screening and Material Conveying:The crushed materials are then discharged onto an integrated multi-deck vibrating screen. This screen separates the output into different fractions: qualified finished products are transported to stockpiles via discharge belts, while oversized stones are automatically recirculated back through the crushing loop.

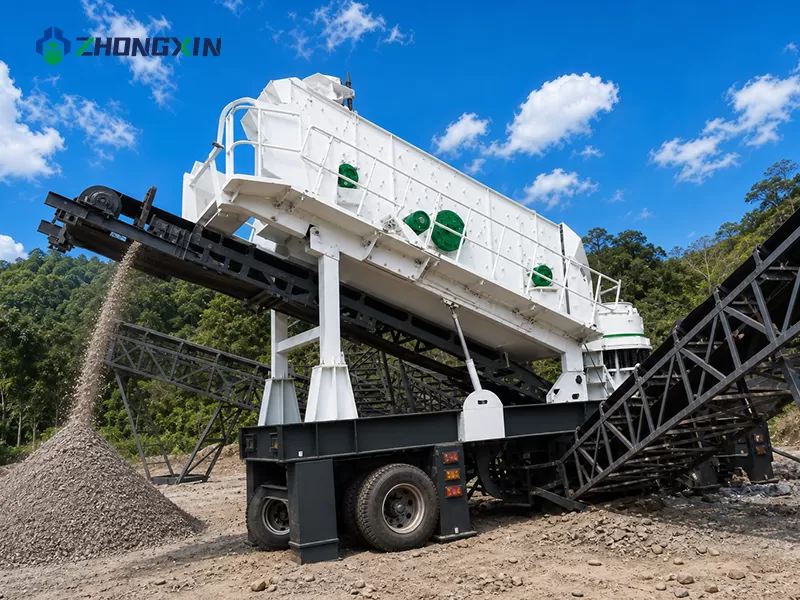

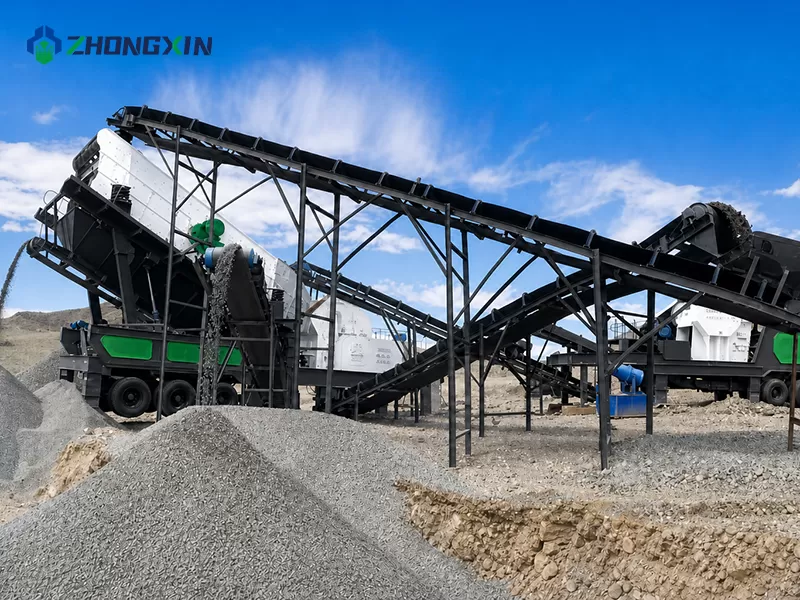

Tire-type mobile stone crusher operating with dust-suppression water sprays in a limestone quarry

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our machine. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

A mobile crushing and screening plant is an all-in-one, self-contained mobile crushing station mounted on a tire or crawler chassis. It integrates a feeder, primary mobile jaw crusher, secondary impact crusher, and vibrating screen into a complete aggregate production line. Raw materials are fed, crushed, and sorted in a continuous closed-circuit workflow directly on-site.

The biggest advantages of a mobile crusher are zero civil infrastructure requirements, instant on-site deployment, and exceptional mobility. By eliminating permanent concrete foundations and long-distance material hauling, a mobile stone crusher drastically cuts down setup time, initial investment costs, and operational logistics.

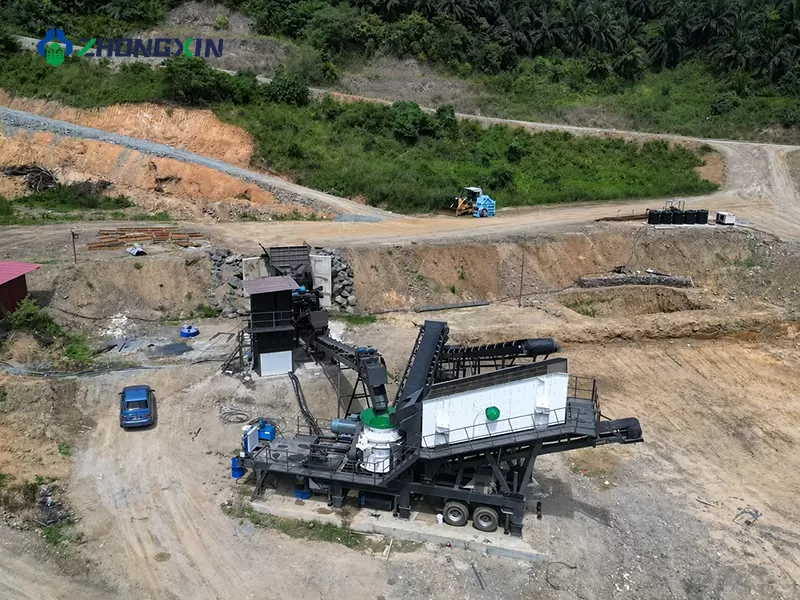

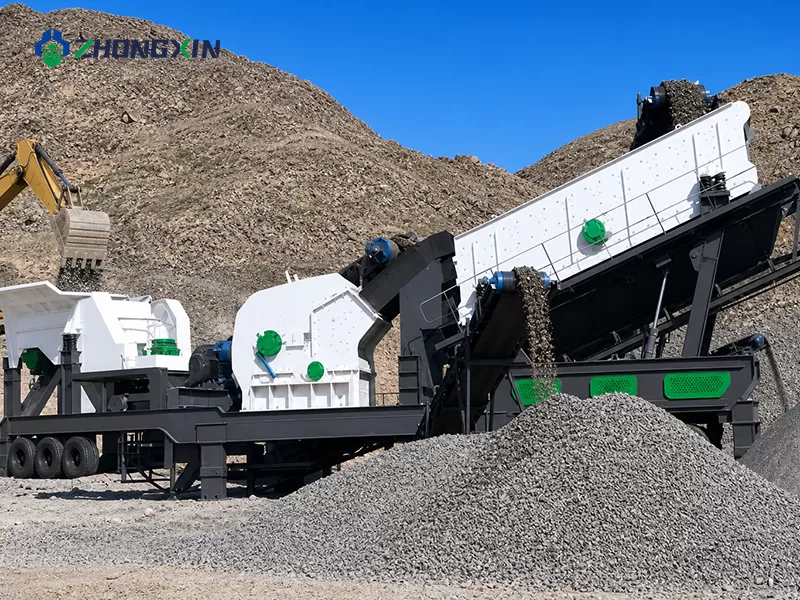

This mobile crushing station is ideal for processing medium and low-hardness stones (≤350 MPa ) such as limestone, bluestone, and dolomite. It is also widely utilized for construction waste recycling (crushing concrete and asphalt debris into recycled aggregates) and short-term, dispersed mining projects.

Yes. The modular design of the mobile crushing and screening plant allows for flexible configurations. Depending on your raw material properties and final product requirements, you can easily integrate pre-screening units, different crusher combinations, or magnetic iron separators into the setup.

In our aggregate production line, the primary mobile jaw crusher handles heavy coarse reduction, breaking large boulders down into smaller fragments. This process efficiently reduces the mechanical operating load on the downstream impact crusher, which then refines the stone shape and ensures precise final particle sizing.

No. One of the core benefits of any advanced mobile crushing and screening plant is its ability to operate on hardened flat ground without pouring permanent concrete foundations. This enables rapid installation and allows operators to start production immediately upon arriving at the job site.

Yes. Modern designs incorporate fully enclosed structural elements, high-efficiency spray dust-suppression systems, and optional magnetic separators. These features help the mobile crushing station comply with strict environmental regulations and control dust pollution during urban or site operations.

Choosing the right mobile crusher depends on your raw material hardness, maximum feed size, required hourly capacity, and final aggregate gradation specifications. Sharing your specific project details with our technical team allows us to recommend the ideal custom configuration for your business.

COMPREHENSIVE SERVICE & GENUINE SPARE PARTS

Zhongxin Heavy Industry provides not only high-performance equipment but also full life-cycle support solutions.

Expert Technical Consultation & Custom Configuration

Our professional engineering team works closely with you to analyze your raw material properties, capacity requirements, and site conditions. We design and recommend the ideal mobile crushing and screening plant or custom aggregate production line configuration to ensure maximum operational efficiency and return on investment for your specific project.

Global On-Site Installation & Operator Training

To eliminate downtime and ensure seamless commissioning, our experienced technicians provide global on-site guidance for the setup, debugging, and initial operation of your mobile crushing station. We also deliver comprehensive hands-on training for your local operators, covering routine maintenance, safe operating procedures, and troubleshooting for the mobile crusher.

Genuine Spare Parts & Lifelong Maintenance Support

We maintain a robust inventory of high-wear and replacement parts—including jaw plates, blow bars, screen meshes, and conveyor components—specifically engineered for your mobile jaw crusher and complete plant. Backed by fast global shipping and responsive customer service, we guarantee quick replacements to keep your equipment running reliably throughout its entire lifecycle.

Please read our Terms and Conditions and this Policy before accessing or using our Services. If you cannot agree with this Policy or the Terms and Conditions, please do not access or use our Services. If you are located in a jurisdiction outside the European Economic Area, by using our Services, you accept the Terms and Conditions and accept our privacy practices described in this Policy.
We may modify this Policy at any time, without prior notice, and changes may apply to any Personal Information we already hold about you, as well as any new Personal Information collected after the Policy is modified. If we make changes, we will notify you by revising the date at the top of this Policy. We will provide you with advanced notice if we make any material changes to how we collect, use or disclose your Personal Information that impact your rights under this Policy. If you are located in a jurisdiction other than the European Economic Area, the United Kingdom or Switzerland (collectively “European Countries”), your continued access or use of our Services after receiving the notice of changes, constitutes your acknowledgement that you accept the updated Policy. In addition, we may provide you with real time disclosures or additional information about the Personal Information handling practices of specific parts of our Services. Such notices may supplement this Policy or provide you with additional choices about how we process your Personal Information.

Cookies

Cookies are small text files stored on your device when you access most Websites on the internet or open certain emails. Among other things, Cookies allow a Website to recognize your device and remember if you've been to the Website before. Examples of information collected by Cookies include your browser type and the address of the Website from which you arrived at our Website as well as IP address and clickstream behavior (that is the pages you view and the links you click).We use the term cookie to refer to Cookies and technologies that perform a similar function to Cookies (e.g., tags, pixels, web beacons, etc.). Cookies can be read by the originating Website on each subsequent visit and by any other Website that recognizes the cookie. The Website uses Cookies in order to make the Website easier to use, to support a better user experience, including the provision of information and functionality to you, as well as to provide us with information about how the Website is used so that we can make sure it is as up to date, relevant, and error free as we can. Cookies on the Website We use Cookies to personalize your experience when you visit the Site, uniquely identify your computer for security purposes, and enable us and our third-party service providers to serve ads on our behalf across the internet.

We classify Cookies in the following categories:
● Strictly Necessary Cookies
● Performance Cookies
● Functional Cookies
● Targeting Cookies

Cookie List
A cookie is a small piece of data (text file) that a website – when visited by a user – asks your browser to store on your device in order to remember information about you, such as your language preference or login information. Those cookies are set by us and called first-party cookies. We also use third-party cookies – which are cookies from a domain different than the domain of the website you are visiting – for our advertising and marketing efforts. More specifically, we use cookies and other tracking technologies for the following purposes:

Strictly Necessary Cookies
These cookies are necessary for the website to function and cannot be switched off in our systems. They are usually only set in response to actions made by you which amount to a request for services, such as setting your privacy preferences, logging in or filling in forms. You can set your browser to block or alert you about these cookies, but some parts of the site will not then work. These cookies do not store any personally identifiable information.

Functional Cookies
These cookies enable the website to provide enhanced functionality and personalisation. They may be set by us or by third party providers whose services we have added to our pages. If you do not allow these cookies then some or all of these services may not function properly.

Performance Cookies
These cookies allow us to count visits and traffic sources so we can measure and improve the performance of our site. They help us to know which pages are the most and least popular and see how visitors move around the site. All information these cookies collect is aggregated and therefore anonymous. If you do not allow these cookies we will not know when you have visited our site, and will not be able to monitor its performance.

Targeting Cookies
These cookies may be set through our site by our advertising partners. They may be used by those companies to build a profile of your interests and show you relevant adverts on other sites. They do not store directly personal information, but are based on uniquely identifying your browser and internet device. If you do not allow these cookies, you will experience less targeted advertising.

How To Turn Off Cookies
You can choose to restrict or block Cookies through your browser settings at any time. Please note that certain Cookies may be set as soon as you visit the Website, but you can remove them using your browser settings. However, please be aware that restricting or blocking Cookies set on the Website may impact the functionality or performance of the Website or prevent you from using certain services provided through the Website. It will also affect our ability to update the Website to cater for user preferences and improve performance. Cookies within Mobile Applications

We only use Strictly Necessary Cookies on our mobile applications. These Cookies are critical to the functionality of our applications, so if you block or delete these Cookies you may not be able to use the application. These Cookies are not shared with any other application on your mobile device. We never use the Cookies from the mobile application to store personal information about you.

If you have questions or concerns regarding any information in this Privacy Policy, please contact us by email at . You can also contact us via our customer service at our Site.

Model	SY46-1007	SY46-900	SY57-1210	SY57-75	SY96-1214	SY96-160
Vibrating Feeder	ZSW0625	ZSW0625	ZSW8530	ZSW8530	ZSW9638	ZSW9638
Primary Jaw Crusher	PE400×600	PE400×600	PE500×750	PE500×750	ZXC96	ZXC96
Feeding Size (mm)	≤350	≤350	≤425	≤425	≤480	≤480
Feeding Size (mm)	15-60	15-60	40-130	40-130	60-160	60-160
Secondary Crusher	Impact crusher	Cone crusher	Impact crusher	Cone crusher	Impact crusher	Cone crusher
Model	PF1007	PYB900	PF1210	3’FT	PF1214	4.25’FT
Feeding Size (mm)	≤250	≤115	≤400	≤150	≤430	≤205
Capacity (t/h)	15-60	15-90	70-130	27-163	100-180	109-349
Vibrating Screen	2/3/4YK1237	2/3/4YK1237	2/3/4YK1848	2/3/4YK1848	2/3/4YK1860	2/3/4YK1860
Belt Conveyor	B500x8m	B650	B650	B650	B800	B800
Capacity (t/h)	15-60	15-60	60-100	100-150	150-180	180-300
Overall Size（mm）	1150020505400	1150020505400	1580023005850	1580023005850	1800027007650	1800027007650
