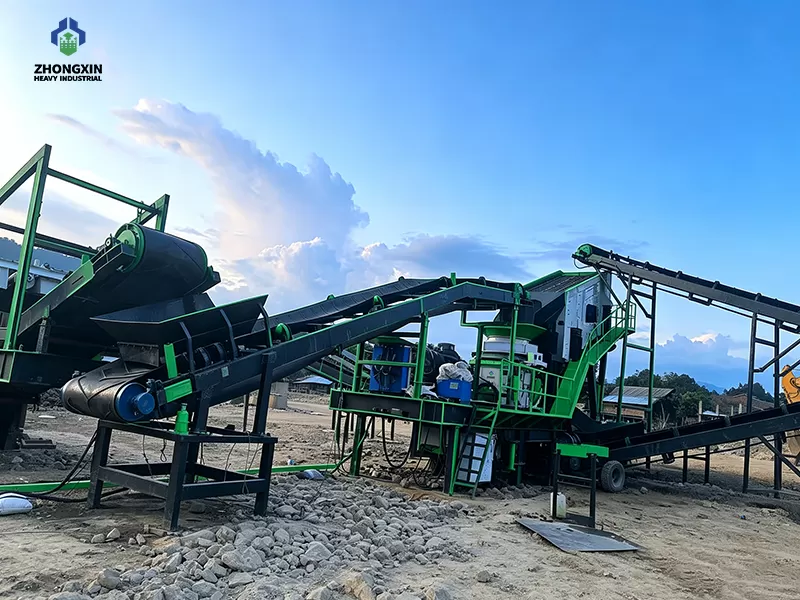

This high-efficiency 200 TPH Mobile Granite Crushing Line was successfully deployed for a major highway infrastructure project. Utilizing two heavy-duty wheel-mounted mobile crushing stations manufactured by Zhongxin Heavy Industrial, the plant is specifically engineered to handle highly abrasive granite rock, ensuring a continuous, stable output of premium aggregate for pavement base layers and concrete production.
The production line adopts a streamlined two-stage crushing and screening circuit ("Primary Coarse Crushing" followed by "Secondary Fine Crushing & Precise Screening").
➔ Mobile Jaw Crusher (Primary)
➔ Mobile Cone Crusher & Screening Station (Secondary)
➔ Finished Aggregates (0-5 / 5-10 / 10-20 mm)
| Processing Stage | Equipment Unit | Core Features & Technical Highlights |

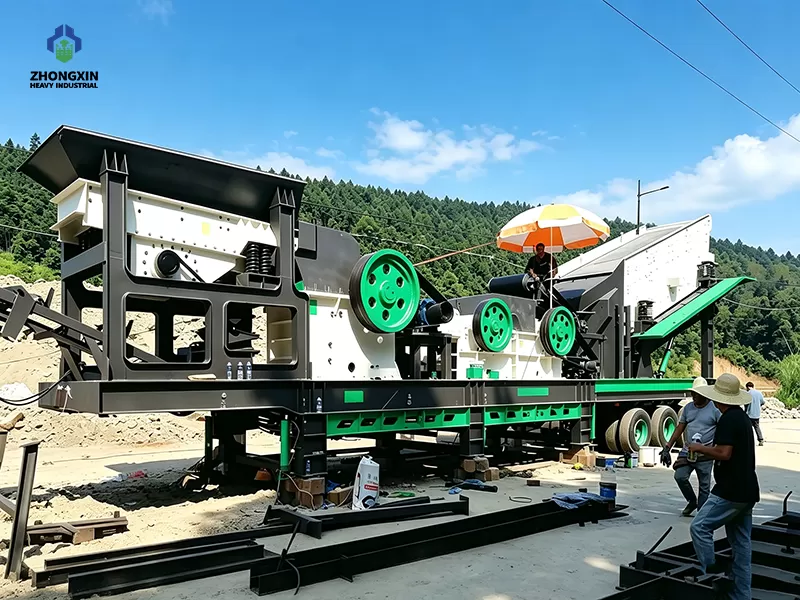

| Primary Crushing | Wheel-Mounted Mobile Jaw Crusher Station | Equipped with a heavy-duty ZSW Vibrating Feeder and a high-capacity Jaw Crusher. Features high-manganese steel liners for extreme wear resistance against granite, and an anti-clogging feeder design to ensure smooth material flow. |

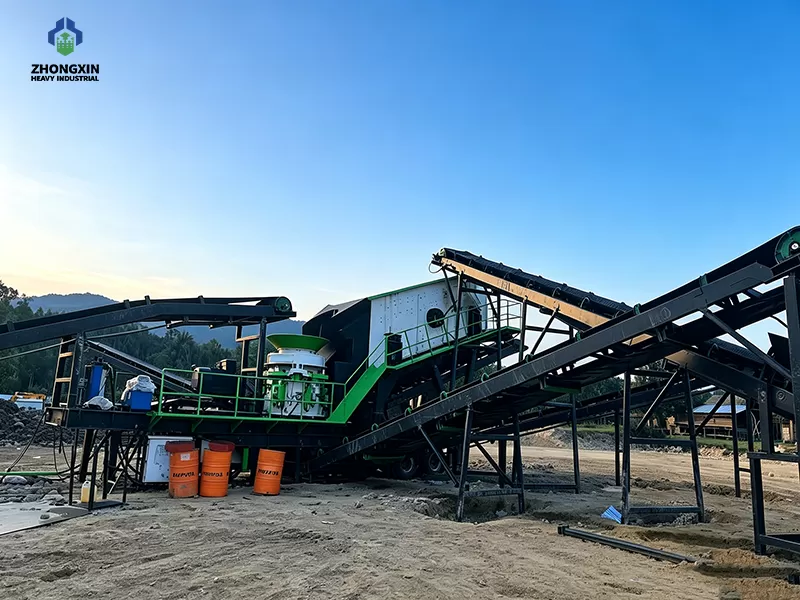

| Secondary Crushing & Screening | Wheel-Mounted Mobile Cone Crusher & Screening Station | Combines an XHP Series Multi-Cylinder Hydraulic Cone Crusher with a high-amplitude YK Circular Vibrating Screen. Utilizes inter-particle laminated crushing to deliver superior cubic particle shapes with adjustable CSS (8 mm – 51 mm). |
| Parameter | Operational Value / Specification |
| Raw Material | Granite (Hard & High-Abrasive Rock) |
| Feeding Size | 500 mm |
| Processing Capacity | 200 TPH (Tons Per Hour) |
| Final Aggregate Sizes | 0- 5 mm, 5- 10 mm, 10-20 mm |
| Application Industry | Highway Base Layer, Asphalt Aggregate, High-Grade Concrete |
| Mobility Type | Heavy-Duty Wheel-Mounted / Tire-Type Chassis |
Field Performance & Value Delivered|Optimized for Infrastructure Projects
Highway construction projects demand tight delivery schedules and strict aggregate quality standards. By deploying Zhongxin's 200 TPH wheel-mounted mobile crushing solution, the client eliminated material hauling delays by setting up the plant directly at the local granite quarry.
The XHP Multi-Cylinder Hydraulic Cone Crusher played a crucial role in reducing flakiness and elongation rates, producing well-shaped, cubic aggregates that passed local highway authority testing on the first submission. Moreover, the mobile units allowed easy site relocation as the highway paving advanced, saving an estimated 25% in logistical transport costs over the project lifecycle.
1. Superior Mobility & Rapid Deployment
The wheel-mounted chassis design allows rapid transit between construction segments without requiring complex concrete foundation installation. On-site material processing drastically reduces raw rock transport costs and shortens overall project setup time.
2. Intelligent PLC Control System
Integrated with a centralized PLC smart control panel, the plant supports one-touch start/stop and automated process interlocking. Real-time monitoring of critical parameters (such as motor current and bearing temperature) ensures safe, continuous 24/7 operation and prevents unexpected downtime.
3. Advanced Environmental Protection
Reserved flange interfaces allow seamless connection to pulse bag dust collectors and dust suppression sprayers at transfer points. This effectively controls airborne dust, meeting strict local environmental compliance for green highway construction.
4. Heavy-Duty Durability & Broad Versatility
Engineered with reinforced steel frames and premium alloy wear parts, the entire system withstands high-hardness materials like granite, basalt, and river pebbles. Beyond quarrying, this versatile setup can also be adapted for mining operations and concrete recycling projects.
By combining flexibility, robust crushing force, and intelligent automation, this Zhongxin 200 TPH Wheel-Mounted Mobile Crushing Line provides a turnkey solution for highway infrastructure contractors seeking high-quality aggregates, low operational costs, and rapid ROI.
