Sand making machine is widely used in all kinds of minerals. It provides the quality sand and crushed stone aggregate to the high-speed railroad, high-rise construction, municipal administration construction, water and electricity dam construction, concretes agitation station. It is also applicable to crush various stones with different hardness in medium and fine crushing area.
Applications:
Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

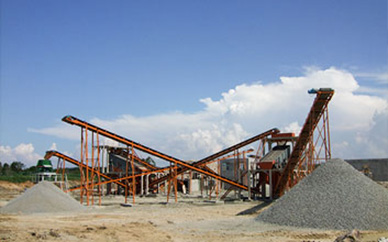

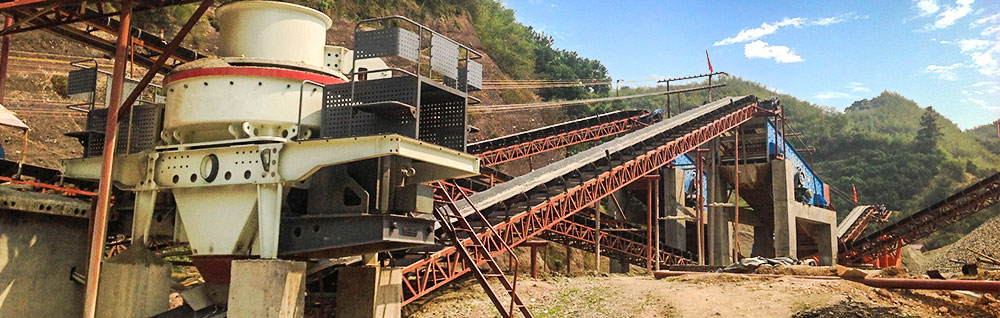

The gravel material production line is made up of sand making equipment and auxiliary equipment. The sand making equipment is made up of these equipments according to the following procedure: jaw crusher, cone crusher / impact crusher and sand making machine. Processing; (Hint: according to the actual material size, can save some crushing equipment).
VSI CrusherFeed range: 30-50mm
Hydraulic Cone CrusherFeed range: 30-50mm
PE Jaw CrusherFeed range: 30-50mm
YK Vibrating ScreenFeed range: 30-50mm
Vibrating FeederFeed range: 30-50mm
Raw Material： Granite
Capacity： 250-300t/h
Equipment Configuration： ZSW series vibrating feeder + PE series jaw crusher + PY series cone crusher + VSI series vertical shaft impact crusher + Belt conveyor + YK series circular vibrating screen.
Raw Material： Limestone
Capacity： 300-350t/h
Equipment Configuration： ZSW series vibrating feeder + PE series jaw crusher + impact crusher + VSI series vertical shaft impact crusher + YK series circular vibrating screen.
Raw Material： Riverstone
Capacity： 100-350t/h
Equipment Configuration： ZSW series vibrating feeder + PE series jaw crusher + PY series cone crusher + VSI series vertical shaft impact crusher + YK series circular vibrating screen.
|

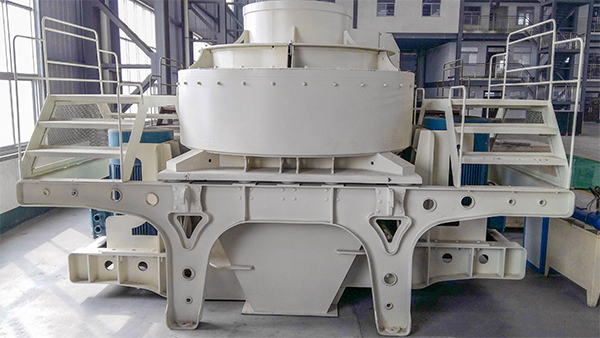

Model
|
VSI7611 | VSI8518 | VSI9526 | VSI1140 | |
| Capacity (T/H) | Center And Ring Feeding | 120-180 | 200-260 | 300-380 | 450-520 |
| Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | |
|
Best Feed Size (MM) |
Soft Material | 35 | 40 | 45 | 50 |
| Hard Material | 30 | 35 | 40 | 45 | |
| Rotation Speed (R/MIN) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | |
| Power For Double Motor (KW) | 110 | 180 | 264 | 400 | |
| Dimension L×W×H (MM) | 3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | |
| Weight (t) | 11.8 | 14.5 | 17.8 | 25.6 | |
| Power Soppty | 380V 50Hz | ||||
| Vibrating Sensor | Monitering Range:0.1-20MM/S Continuousely Adjustable | ||||
| Lubrication Hydraulic Station | Dual Oil Bump Motor Power | 2×0.25kW | |||
| Security Protection | Double Oil Pump Ensure The Normal Oil Supply;Automatic Shut Down If No Oil Pressure;Water Cooling;Motor Preheating In Winter. | ||||
| Over Dimension L×W×H(mm) | 820×520×1270 | ||||
| Oil Tank Heating Power | 2KW | ||||
