CRUSHER MOBILE PLANT

  • 【Type】:Mobile Crusher
  • 【Input Size】:35-230mm
  • 【Processed Materials】:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).
  • 【Applications】:Secondary medium & fine crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy
  • 【Capacity】:50-260t/h

Specifications:

PC Series Cone Plants
PC CONE PLANTS PC09PS3S PC13PS3S PC20HP3S PC30HP3S
Transport dimensions
Length(mm) 12880 13920 15100 15500
Width(mm) 2800 2800 2780 2780
Height(mm) 4290 4300 4360 4365
Weight(t) 30 37.3 35 43
Axle weight(t) 20.3 26 22 26.5
Traction pin/Loading weight(t) 90/10.1 50/11.5 90/10.1 50/11.5
Cone crusher
Model 3'FT 4.25'FT XHP200 XHP300
Max Feeding size(mm) 35-150 54-220 10-185 20-230
Setting range(c.s.s)(mm) 3-38 3-51 5-19 6-25
Vibrating screen
Model 3YK1548 3YK1860 3YK1860 3YK2160
Belt conveyor
Model B800X7.4Y B1000X8.2Y B800X7.4Y B1000X8.2Y
Number of axles
Number of axles 2 2 2 3
  • 【Type】:Mobile Crusher
  • 【Input Size】:Depends on the material
  • 【Processed Materials】:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
  • 【Applications】:Secondary medium & fine crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.
  • 【Capacity】:50-250 TPH

Specifications:

PC Series Impact Plants
PC IMPACT PLANTS PC10PF3S PC12PF3S PC14PF3S PC13PF3S
Transport dimensions
Length(mm) 10800 12500 14700 14500
Width(mm) 2780 2780 2900 3000
Height(mm) 4010 4200 4420 4500
Weight(t) 28.8 35 40.3 47
Axle weight(t) 20.2 24.5 26 32.4
Traction pin/Loading weight(t) 50/8.6 50/10.5 90/14.3 90/14.6
Impact crusher
Model PF1010 PF1210 PF1214 PF1315
Feed opening(mm) 400X1080 400X1080 400X1430 860X1520
Max Feeding size(mm) 350 500 500 600
Capacity(t/h) 50-80 70-120 110-180 160-250
Vibrating screen
Model 3YK1235 3YK1545 3YK1860 3YK2160
Belt conveyor
Model B650X6.2Y B800X7.2Y B1000X8.2 B1000X8.2
Number of axles
Number of axles 2 2 2 3
  • 【Type】:Mobile Crusher
  • 【Input Size】:Depends on the material
  • 【Processed Materials】:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
  • 【Applications】:Mechanism sand, bituminous concrete, metal mine, aggregates shaping
  • 【Capacity】:120-520TPH

Specifications:

PC Series VSI Plants
PC VSI PLANTS PC7611VSI3S PC8518VSI2S PC9526VSI2S PC1140VSI2S
Transport dimensions
Length(mm) 11280 15470 14980 14980
Width(mm) 2780 2780 3100 3250
Height(mm) 2500 4180 4170 4300
Weight(t) 28 32.6 38.7 46
Axle weight(t) 19.2 22.3 27.5 32.5
Traction pin/Loading weight(t) 50/8.8 50/10.3 90/11.2 90/15.5
VSI crusher
Model VSI7611 VSI8518 VSI9526 VSI1140
Max Feeding size(mm) 35 40 45 50
Capacity(m³/h) 120-180 200-260 300-380 450-520
Vibrating screen
Model 2YK1545 2YK1860 2YK2160 2YK2160
Belt conveyor
Model B800X7.2Y B1000X8.6Y B1000X8.2Y B1000X8.2Y
Number of axles
Number of axles 2 2 3 3
  • 【Type】:Mobile Crusher
  • 【Input Size】:340-780mm
  • 【Processed Materials】:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
  • 【Applications】:Primary crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.
  • 【Capacity】:16-450TPH

Specifications:

PC Series Jaw Plants
PC JAW PLANTS PC600 PC750 PC900 PC1060 PC1200
Transport dimensions
Length(mm) 8700 9326 10700 12500 14450
Width(mm) 2360 2490 2780 2900 3000
Height(mm) 3765 4125 3840 4450 4800
Weight(t) 17.4 27 35.4 60 82
Axle weight(t) 8.1 16 25 40.5 52
Traction pin/Loading weight(t) 50/9.3 50/11 50/10.4 90/19.5 90/30
Jaw crusher
Model PE400X600 PE500X750 PE600X900 PE750X1060 PE900X1200
Feed opening(mm) 400X600 500X750 600X900 750X1060 900X1200
Max Feeding size(mm) 340 425 500 630 780
Setting range(c.s.s)(mm) 40-100 50-100 65-180 80-180 95-225
Capacity(t/h) 16-60 40-110 80-180 110-320 220-450
Feeder
Model GZT0724 GZT0724 ZSW380X95 ZSW490X110 ZSW600X1300
Hopper volume(m³) 3.2 3.2 7.6 10 10
Hopper width(mm) 2200 2200 3150 3000 3000
Belt conveyor
Model B600X5.8Y B650X5.8Y B1000X7.0Y B1000X7.2Y B1200X8.3Y
Side Belt conveyor(optional)
Model / B400X2.7Y B500X2.7Y B500X2.7Y B650X3.5Y
Magnetic separator(optional)
Model RCYD-6.5 RCYD-6.5 RCYD-10 RCYD-10 RCYD-12
Number of axles
Number of axles 1 2 2 3 4

CASE

300tph Iron ore crushing plant

【Capacity】:300 t/h

【Feed Size】:500mm

【Application】: 300tph Iron ore crushing plant ZSW3895 vibrating feeder+PE600*900Jaw Crusher +HP300 hydraulic cone crusher+3YK1860 vibrating screen

250tph Granite Crushing Production Line Applied in Ethiopia

【Capacity】:250-300 t/h

【Feed Size】:800mm

【Application】: Highway pavement material,sand and gravel aggregate for high speed passenger railway line, hydropower station

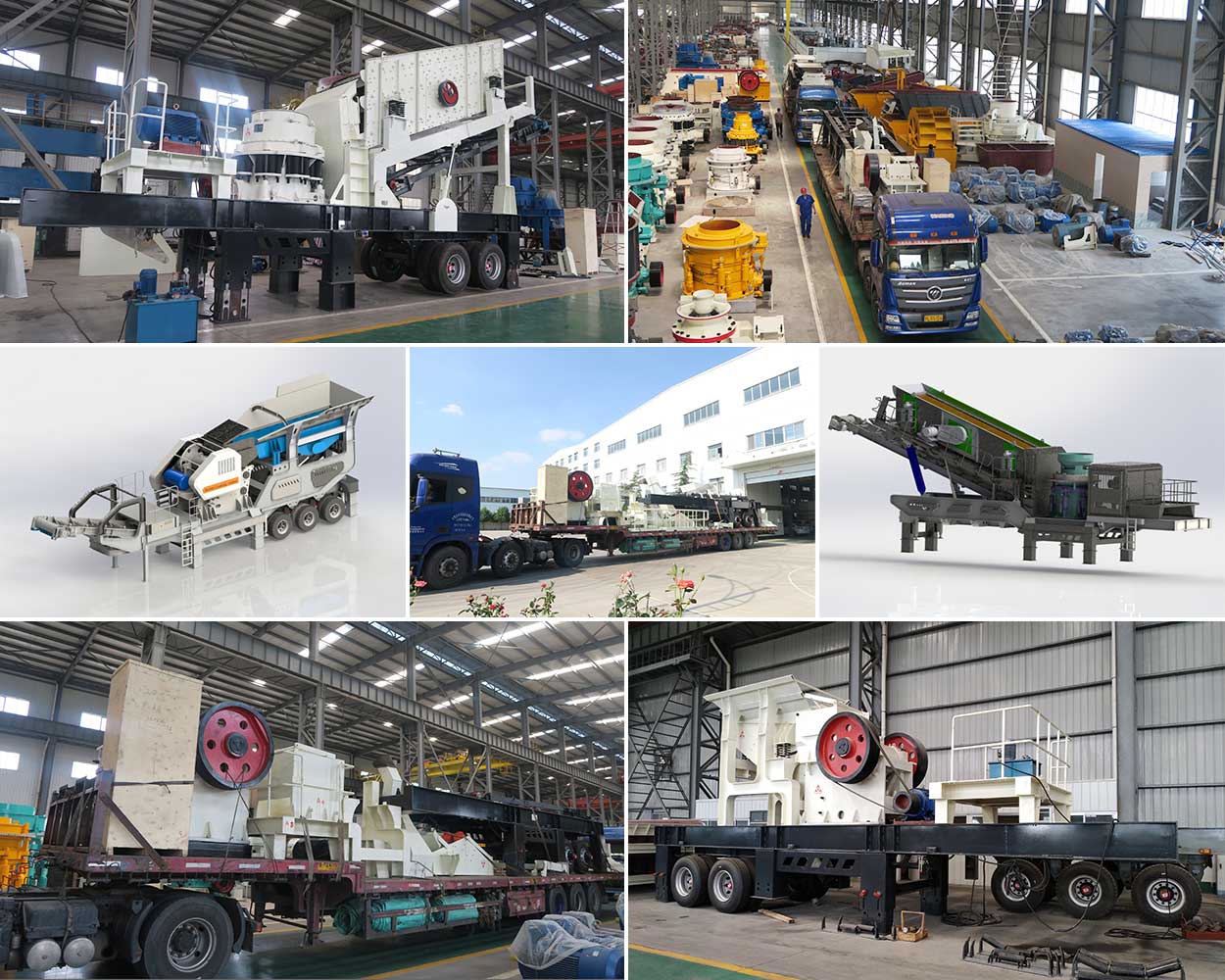

DELIVERY SITE
