1200 TPH Mountain Stone Crushing Plant Case Study

Project Introduction

1200TPH Mountain Stone Crushing Plant

ZGC1550x 2sets vibrating feeder+ ZXC106x 2sets European Type jaw crusher+ XHP500x 3sets hydraulic cone crusher+ DP660Sx 1sets Single Cylinder hydraulic cone crusher+VSI9526x 2sets sand making machine+ 3YK2475x7sets circular vibrating screen+XL1115x4sets sand washer+10sets belt conveyor

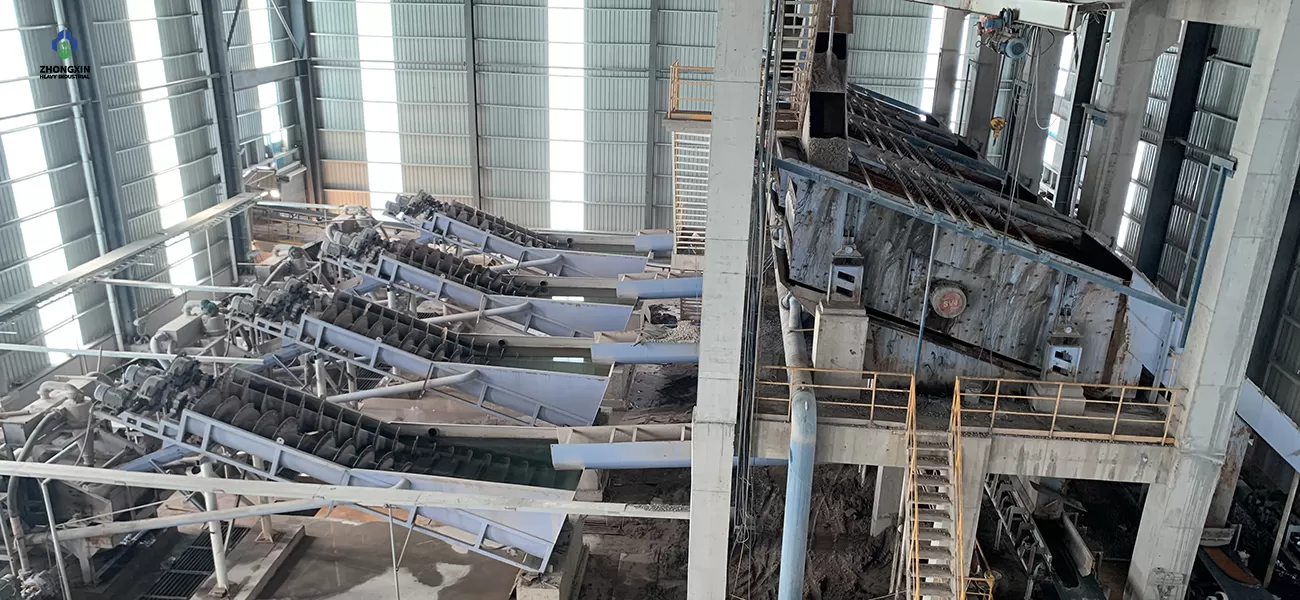

High-Capacity 1200 TPH Mountain Stone Crushing Plant & Aggregate Production Line(Image1)

Project Overview: Large-Scale Quarry Crushing Solution

As a leading provider of complete crushing and screening plants, we successfully delivered a flagship 1200 TPH mountain stone crushing plant designed for a high-intensity quarrying project. This heavy-duty quarry crushing plant layout is specifically engineered to process hard rocks like granite and basalt into premium concrete aggregates and manufactured sand (M-sand).

By integrating advanced primary crushing, secondary reduction, and an industrial manufactured sand (M-Sand) production plant, this high-capacity stone crushing plant design achieves seamless synergy, maximizing operational efficiency while lowering total cost per ton.

Technical Specifications & Equipment Configuration

To maintain a stable, high-velocity 1200 TPH crushing plant output, the production line adopts a multi-stage configuration utilizing top-tier, hydraulically controlled machinery:

High-Capacity 1200 TPH Mountain Stone Crushing Plant & Aggregate Production Line(Image2)

Process Stage	Equipment Model	Quantity	Role & Advantage

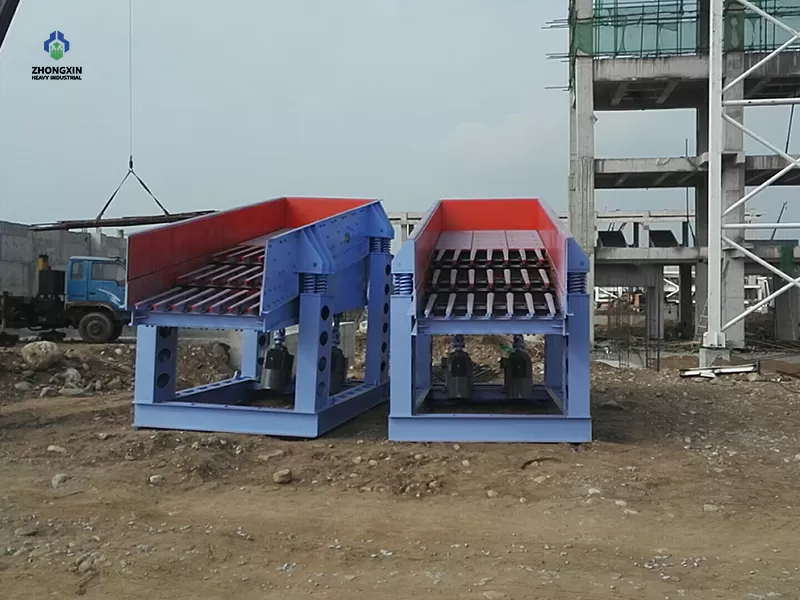

Primary Feeding	ZGC1550 Vibrating Feeder	2 Sets	Ensures continuous, regulated, and uniform material flow into the primary crushers.

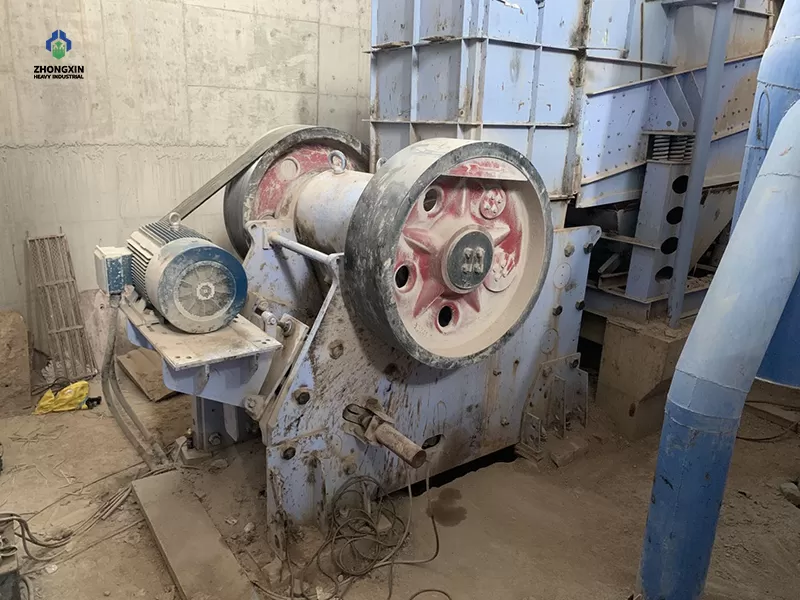

Primary Crushing	ZXC106 European Type Jaw Crusher	2 Sets	High-ratio primary crushing with a large feed opening, optimized for tough mountain rock.

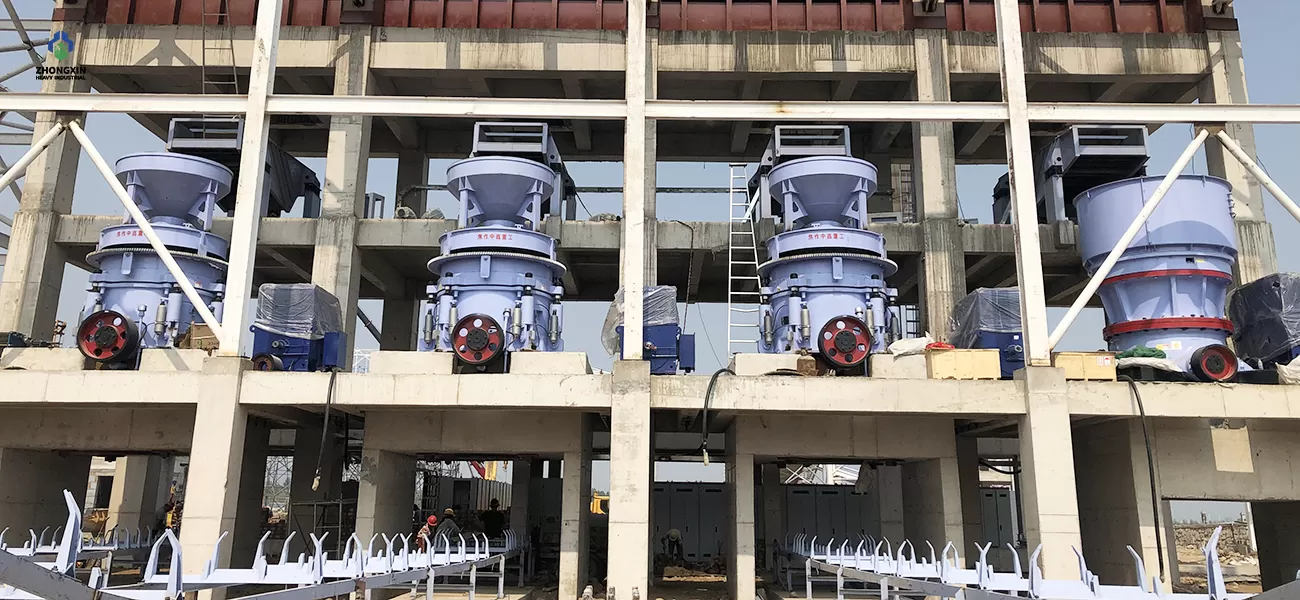

Secondary Crushing	XHP500 Multi-Cylinder Hydraulic Cone Crusher	3 Sets	Provides high crushing force, superior efficiency, and consistent secondary particle size reduction.
Tertiary/Fine Crushing	DP660S Single-Cylinder Hydraulic Cone Crusher	1 Set	Delivers precise fine crushing and optimizes the material shape before the final shaping stage.

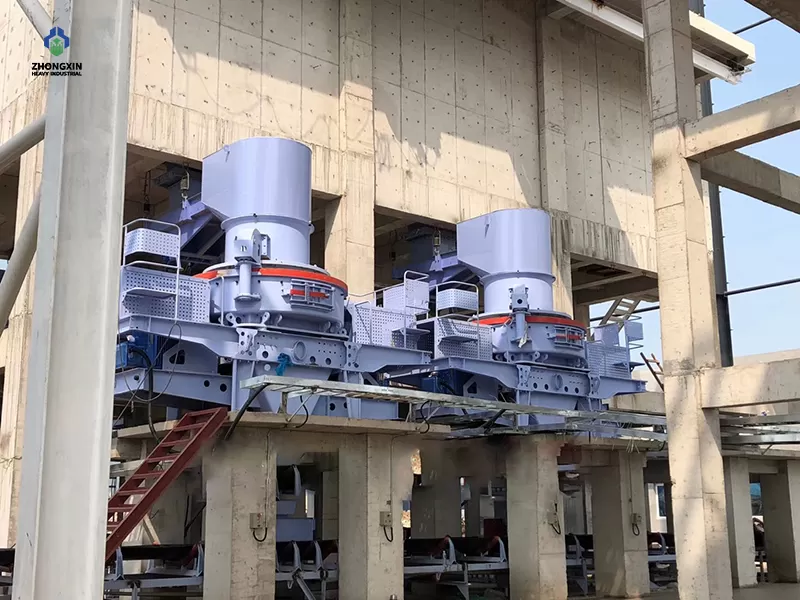

Sand Making & Shaping	VSI9526 Vertical Shaft Impact (VSI) Crusher	2 Sets	Advanced sand making and rock shaping machine for producing premium, cubic aggregates and high-quality manufactured sand.

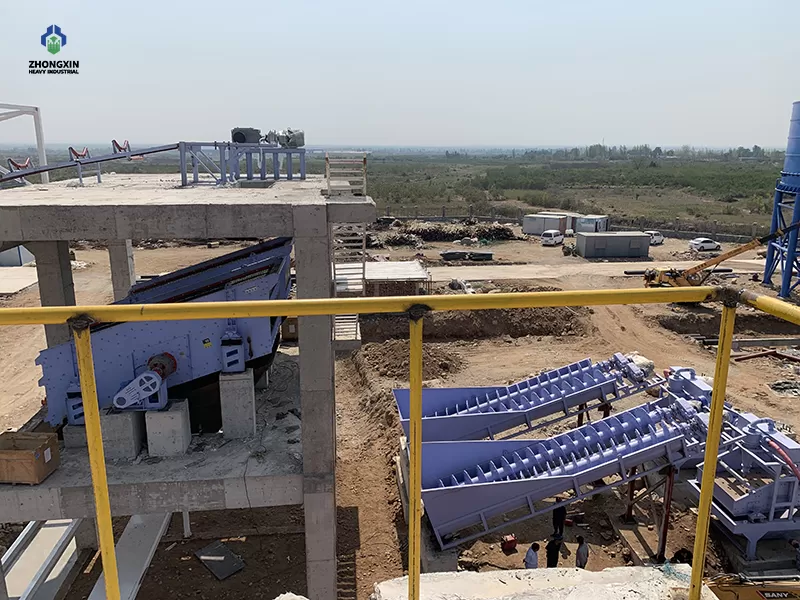

Screening & Classification	3YK2475 Circular Vibrating Screen	7 Sets	High-amplitude, multi-deck screening units that accurately separate material sizes with high throughput.

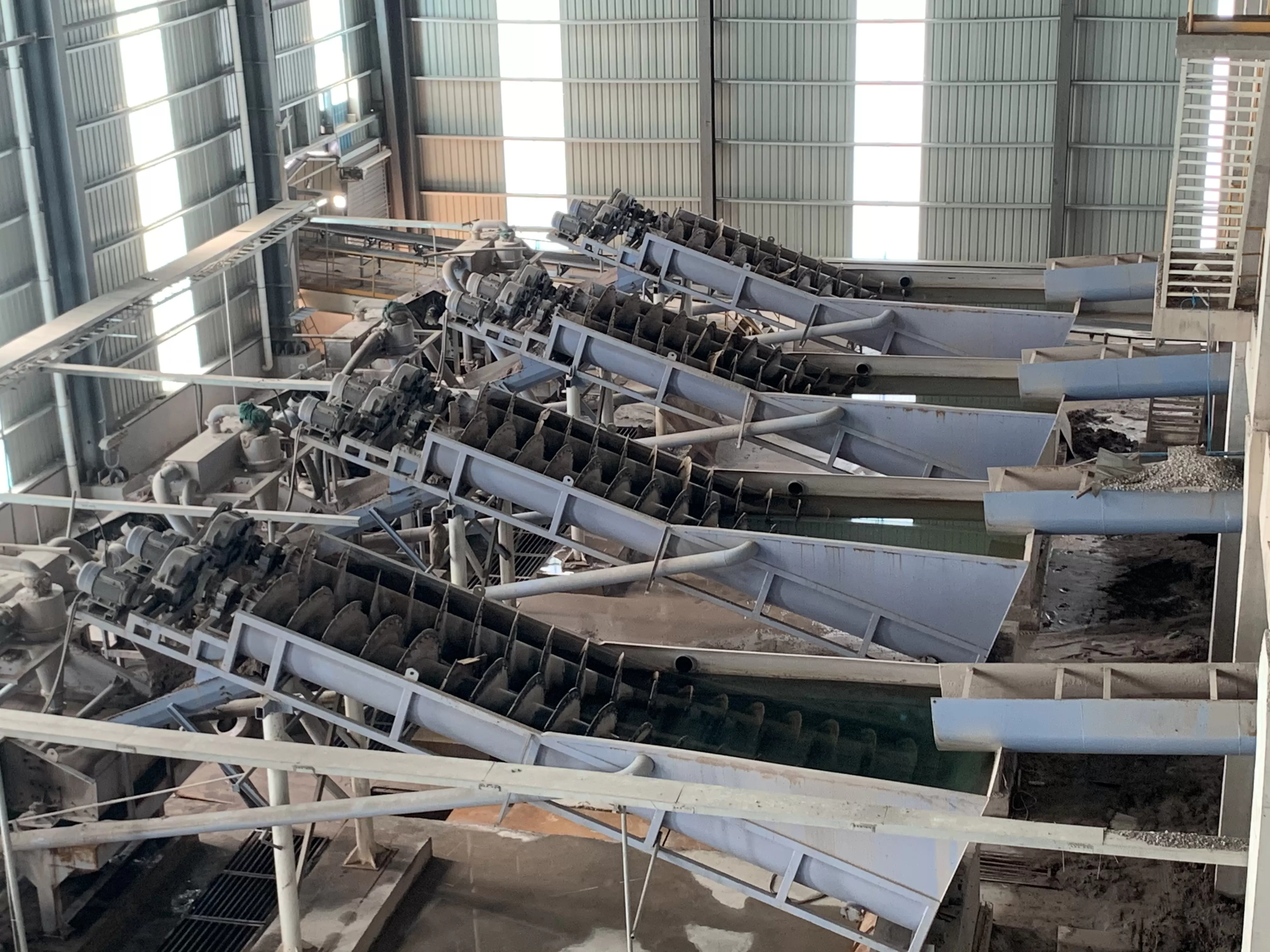

Sand Washing	XL1115 Spiral Sand Washer	4 Sets	Thoroughly removes impurities, clay, and silt from the sand to meet strict concrete aggregate standards.
Material Transport	Heavy-Duty Belt Conveyor System	10 Sets	Heavy-duty, high-tensile material handling system for seamless plant-wide transportation.

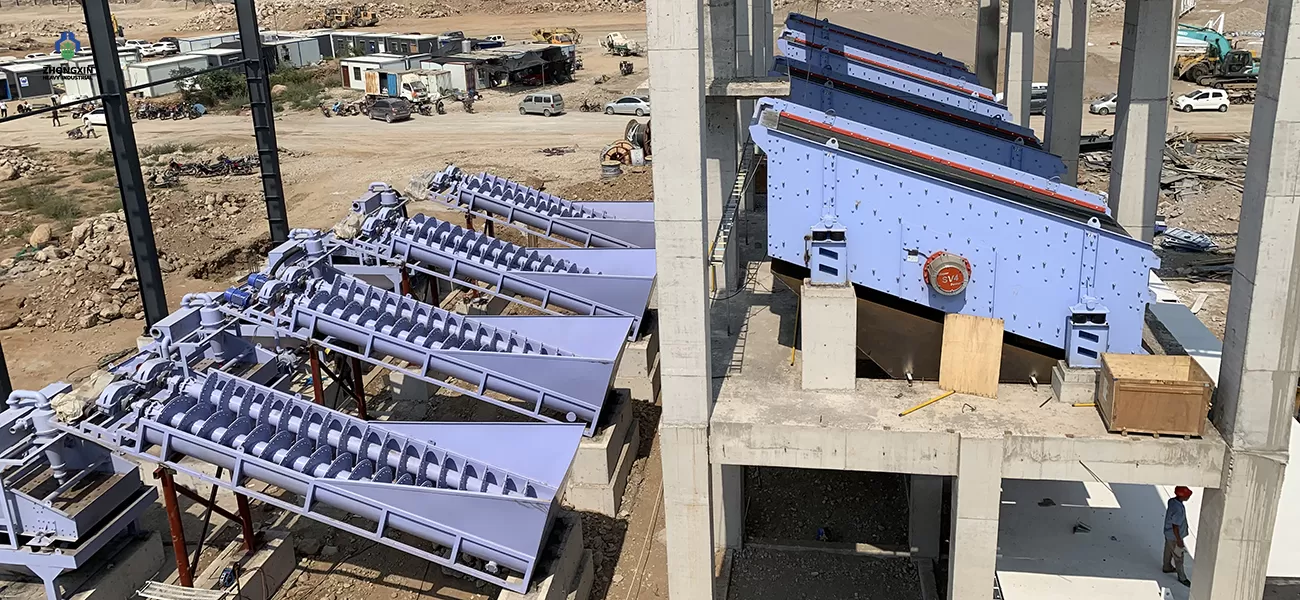

High-Capacity 1200 TPH Mountain Stone Crushing Plant & Aggregate Production Line(Image3)

Key Highlights of the 1200 TPH Stone Crushing Production Line

1. Optimized for Hard Rock (Granite & Basalt Crushing Plant 1200 TPH)

Mountain stones such as granite and basalt are highly abrasive. This stone crushing production line utilizes the ZXC106 European Type Jaw Crusher and a combination of XHP500 and DP660S hydraulic cone crushers. This multi-stage setup provides massive crushing forces, significantly reducing wear and tear on spare parts during hard rock processing.

2. High-Grade Concrete Aggregate Production Line

The inclusion of two VSI9526 sand making machines ensures that the final products possess an exceptional cubical shape with a very low flakiness index. This makes the output ideal for high-grade road ballast crushing solutions, high-speed railways, and commercial ready-mix concrete.

3. Smart Automation & Reduced Downtime

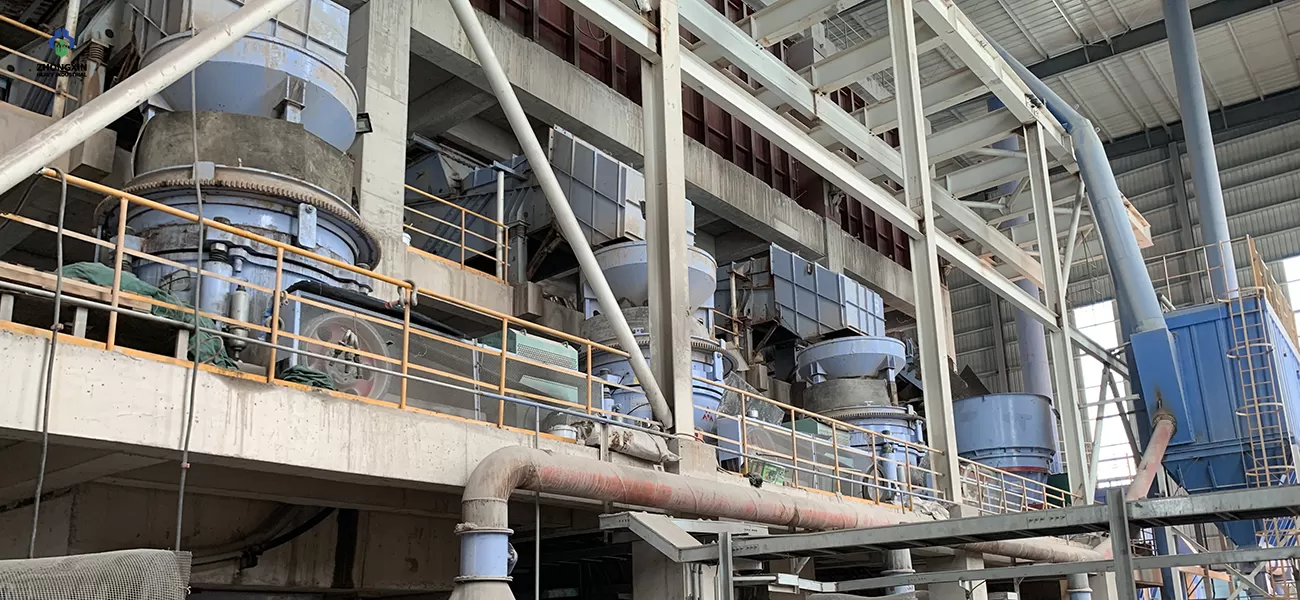

Both the multi-cylinder and single-cylinder hydraulic cone crushers are equipped with advanced automated control systems. Features like hydraulic clearing, overload protection, and real-time remote monitoring minimize maintenance labor and prevent unexpected operational bottlenecks.

4. Eco-Friendly M-Sand Washing System

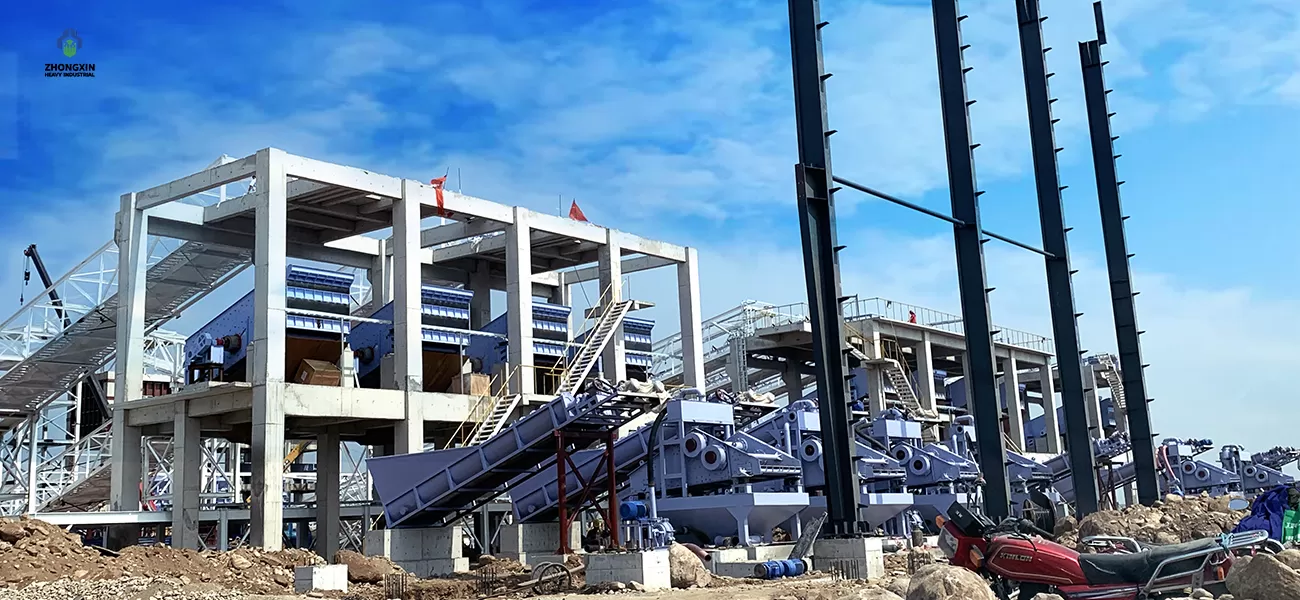

With four XL1115 spiral sand washers, this large-scale commercial sand making plant thoroughly cleans dirt, clay, and silt from the 0-5mm sand fractions. The system produces clean, high-standard manufactured sand that meets strict modern environmental and engineering regulations.

High-Capacity 1200 TPH Mountain Stone Crushing Plant & Aggregate Production Line(Image4)

Turnkey Aggregate Production Line (1200 Tons Per Hour)

Whether you are processing a basalt and limestone crushing line or setting up a massive concrete aggregate production line, our custom engineering team offers full lifecycle support. From initial site topography assessment and high-capacity stone crusher line design to equipment installation, commissioning, and operator training, we deliver turnkey solutions that guarantee a high return on investment (ROI).

High-Capacity 1200 TPH Mountain Stone Crushing Plant & Aggregate Production Line(Image5)

📞 Get Your Custom 1200 TPH Crushing Solution

Interested in a turnkey aggregate production line 1200 tons per hour configuration? Or looking to know the hard rock crushing and screening plant cost?

[Contact Our Engineers Today] for a tailored layout design and factory-direct quote! whatsapp:+8613676922906, Email: [email protected].

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our cone crushers. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

Jiaozuo Zhongxin Heavy Industry has successfully delivered numerous stone crusher plant and stone crushing plants projects worldwide, covering a wide range of materials and capacities. Our project portfolio includes:
Iron ore crushing plant (300 TPH): Featuring ZSW3895 vibrating feeder + PE600×900 jaw crusher + HP300 hydraulic cone crusher + 3YK1860 vibrating screen.
Limestone crushing plant (300 TPH): Equipped with ZSW3895 vibrating feeder + ZXC European Type Jaw Crusher + HP300 cone crusher + 3YK1860 vibrating screen.
Granite crushing plant (250 TPH in Ethiopia): Using ZSW feeder + PE jaw crusher + PY cone crusher + VSI vertical shaft impact crusher + YK circular vibrating screen.
Aggregate crushing plant (200 TPH in the Philippines): A three-stage stationary rock crusher plant producing high-quality cubical aggregates.
Mountain stone crushing plant (300 TPH in Indonesia): A complete three-stage cone crusher plant and screening production line.
Granite crushing plant (350 TPH): Featuring ZSW600x130 feeder + PE900x1200 jaw crusher plant + dual XHP300 hydraulic cone crushers + dual 3YK2460 screens.
Whether you need a 50 tph stone crusher plant price for a small project or a 500 tph stone crusher for large-scale production, we have proven experience across diverse applications. Contact us to see how our mining crusher plant solutions can meet your specific needs.

Selecting the right stone crusher plant configuration depends on several critical factors. Our engineering team designs customized stone crushing plants based on:
Material type: Different materials require different crushing approaches:
Granite, basalt, and iron ore → Jaw crusher + cone crusher combination (jaw cone crusher configuration)
Limestone and medium-hard stone → Jaw crusher + impact crusher
River stone → Jaw crusher + cone crusher + VSI for sand shaping
Capacity requirements: We offer solutions from 50 TPH to 500 TPH:
50 tph stone crusher plant price → Ideal for small-scale projects
100 tph stone crusher and 100 tph stone crusher plant price → Medium-scale operations
120 tph stone crusher price and 150 tph stone crusher price → Mid-range productio
200 tph stone crusher price and 200 tph stone crusher plant price → Large-scale aggregate production
250 tph stone crusher and 500 tph stone crusher → High-capacity mining and quarry operations
Final product specifications: Desired output size and shape determine the need for additional crushing stages or VSI shaping.
Site conditions: Space availability, power supply, and mobility requirements influence whether you need a stationary rock crushing plant or mobile solution.
Our case studies demonstrate successful configurations for various materials and capacities. Share your project details and we will design the optimal jaw crusher plant or cone crusher plant layout for you.

Understanding the differences helps you choose the right stone crusher plant configuration:
Jaw Crusher Plant: Designed for primary crushing, handling large feed sizes (up to 1000mm) and high-hardness materials. Our PE Series and ZXC European Type jaw crusher plant units are the foundation of most rock crusher plant operations. They are ideal for the first stage of stone crushing plants.
Cone Crusher Plant: Specialized for secondary and tertiary crushing, producing uniform, cubical aggregates. A cone crusher plant excels at processing hard and abrasive materials with high efficiency. It is often used after a jaw crusher in multi-stage stone crusher plant configurations.
Jaw Cone Crusher Combination: This is the most common and effective setup for processing hard rocks like granite, basalt, and iron ore. The jaw crusher plant handles primary reduction, while the cone crusher plant performs secondary and tertiary crushing—delivering excellent product shape and consistent gradation. Many of our cases, such as the 200 TPH Philippines plant and 300 TPH Indonesia plant, use this jaw cone crusher combination.
For softer materials like limestone, a jaw + impact crusher combination may be more cost-effective. Our engineering team can recommend the optimal configuration based on your material characteristics and production goals.

Getting a customized stone crusher plant solution from Jiaozuo Zhongxin is straightforward:
Step 1 - Provide Project Details: Contact us with the following information:
Material type (granite, limestone, iron ore, river stone, etc.)
Required capacity (e.g., 50 tph stone crusher plant price inquiry, 100 tph stone crusher, 200 tph stone crusher plant price, or 500 tph stone crusher)
Maximum feed size
Desired final product sizes and gradation
Site conditions and power availability
Step 2 - Engineering Design: Our team will create a complete rock crushing plant layout, process flow diagram, and equipment selection plan based on your specifications. We optimize the jaw cone crusher combination or other configurations to maximize efficiency and minimize operating costs.
Step 3 - Quotation: We provide a detailed quotation including:
Equipment costs (primary jaw crusher plant, secondary cone crusher plant, screens, feeders, conveyors)
Shipping and logistics
Installation and commissioning support
Training and after-sales service
Step 4 - Project Execution: Once approved, we manufacture, deliver, and support installation of your stone crusher plant.
Whether you need a 150 tph stone crusher price for a mid-sized quarry or a complete 500 tph stone crusher plant for large-scale mining, our team is ready to assist. Browse our case studies for inspiration, then contact us to discuss your project. As a leading provider of stone crushing plants and mining crusher plant solutions, we deliver reliable, high-performance equipment backed by comprehensive support.

Determining the right capacity for your stone crusher plant is crucial for maximizing ROI and avoiding over- or under-investment. Here's how to approach it:

Step 1 - Assess your market demand: Calculate your current and projected sales of finished aggregates. If you're supplying concrete batching plants or asphalt plants, consider their consumption rates. For mine or quarry operations, evaluate your monthly production targets and operating days.

Step 2 - Consider your raw material availability: Ensure your quarry or mining site can consistently supply enough feed material to match your rock crusher plant capacity. Over-investing in a 500 tph stone crusher without sufficient raw material is inefficient.

Step 3 - Factor in operating hours: A plant operating 8 hours per day needs higher TPH than one running 16-20 hours to achieve the same daily output. For example, a 100 tph stone crusher running 8 hours produces 800 tons per day, while a 50 tph stone crusher plant price option running 16 hours can produce the same daily tonnage—but with higher labor and energy costs.

Step 4 - Plan for future expansion: Many clients start with a 100 tph stone crusher plant price configuration and later expand to 200 tph stone crusher plant price or even 500 tph stone crusher as their business grows. Our jaw cone crusher combinations and modular stone crushing plants are designed with scalability in mind.

Step 5 - Match capacity to your project scale:

For small quarries, concrete recycling, or pilot projects, we recommend the 50 to 100 TPH range. This includes our 50 tph stone crusher plant price and 100 tph stone crusher price options, which are ideal for entry-level operations or projects with limited material volume.

For medium commercial aggregate production, the 120 to 150 TPH range is a popular choice. Many of our clients start with a 150 tph stone crusher price configuration to supply local construction and concrete markets.

For large quarries and road construction projects, capacities of 200 to 250 TPH are commonly selected. Our successful projects in this range include the 200 TPH three-stage aggregate plant in the Philippines and the 250 TPH granite crushing plant in Ethiopia.

For high-volume mining operations and major infrastructure projects, the 300 to 350 TPH range is ideal. Our case studies include the 300 TPH mountain stone crushing plant in Indonesia and the 350 TPH granite crushing plant featuring dual cone crushers.

For large-scale mining and mega infrastructure projects, we offer custom 500 tph stone crusher solutions designed to handle the most demanding production requirements. These high-capacity rock crushing plant configurations are engineered for maximum throughput and reliability.

Step 6 - Consult our engineering team: The most reliable way to determine the right capacity is to share your project details with us. Based on your material type, feed size, and desired output, we'll recommend the optimal rock crushing plant configuration and provide a detailed 200 tph stone crusher price or 250 tph stone crusher quotation tailored to your needs.

Whether you need a jaw crusher plant for primary crushing, a cone crusher plant for secondary stages, or a complete mining crusher plant system, Jiaozuo Zhongxin's engineering team will help you select the right capacity to maximize profitability while minimizing capital investment. Contact us today to start your project planning with a customized stone crusher plant solution
