Gravity Spiral Concentrator | Efficient Spiral Chute Supplier

Spiral Chute

Material of Construction

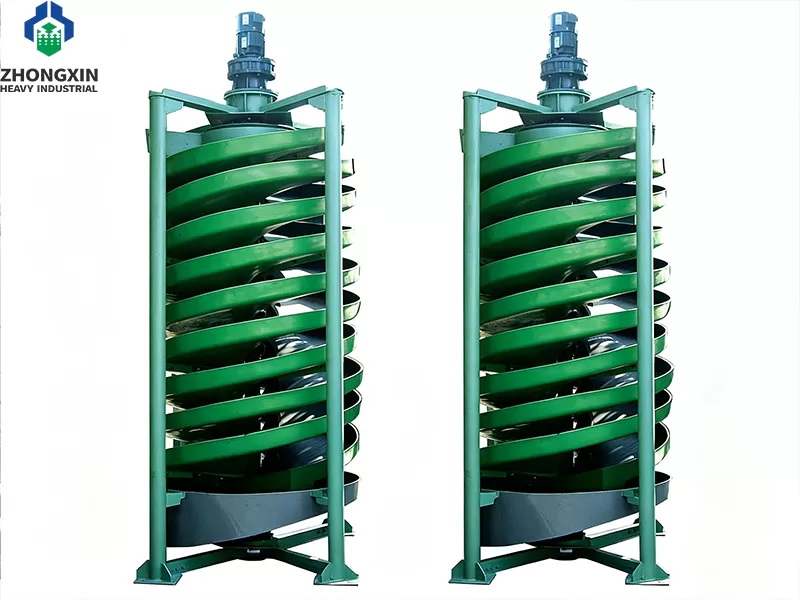

High-strength fiberglass reinforced plastic (FRP) body with heavy-duty polyurethane lining for superior corrosion and abrasion resistance.

Feed Method

Centralized pulp distributor ensuring uniform slurry stream split across multi-start spiral columns.

Discharge & Cut Adjustment: Adjustable mechanical splitters at the trough discharge to precisely isolate concentrate, middlings, and tailings streams.

Power Requirement: Zero power consumption; operates purely on natural gravity, centrifugal forces, and fluid dynamics.

Social Media

Spiral Chute – Product Overview

Gravity Spiral Concentrator: Efficient Mineral Processing Solution
The Spiral Concentrator (also known as a Spiral Chute) is a high-efficiency gravity separation equipment designed for processing fine minerals. Operating 100% on gravity and fluid dynamics, it delivers superior performance with zero electrical power consumption.

What is the working principle of the Spiral Chute?

Zero Energy Consumption & Low Operational Cost (OPEX)Eco-friendly gravity separation operating 100% without electrical power.
The gravity spiral concentrator processes heavy minerals entirely through natural forces, eliminating the need for electric motors or complex drives. Operating with zero moving parts, it removes mechanical failure risks, slashes maintenance routines, and drastically reduces processing costs per ton for continuous mining plants.
Superior Separation Precision & High Mineral RecoveryEngineered helical profiles tailored for precise mineral stratification.
Utilizing a combination of centrifugal force, gravity, and hydrodynamic drag, the spiral chute efficiently separates heavy minerals from light gangue across the $0.03\text{ mm}$ to $2.0\text{ mm}$ size range. Adjustable discharge splitters allow operators to fine-tune the cut between concentrate, middlings, and tailings for optimal grade and recovery.
Exceptional Wear Resistance & Extended Equipment LifespanHeavy-duty construction using premium anti-abrasive materials.
Built with a reinforced fiberglass structure and lined with high-durability polyurethane, this spiral separator withstands severe slurry abrasion from feeds with $25\%$ to $40\%$ solids content. Its robust design minimizes component replacement frequency, ensuring seamless long-term operation in harsh mining environments.
Compact Footprint, Modular Scalability & Rapid ROIHigh processing throughput per square meter of plant floor space.
Designed to deliver maximum volume capacity within a minimal installation area, the equipment easily integrates into scalable spiral banks for mining projects of any scale. The combination of low capital expenditure, zero power consumption, and high mineral recovery yields an exceptionally fast return on investment.

Working principle diagram of gravity spiral concentrator showing centrifugal force and particle stratification.

Các vấn đề thường gặp

Phần này được thiết kế để giải quyết các yêu cầu cấp bách nhất mà khách hàng có thể có liên quan đến hoạt động hàng ngày, bảo trì, lợi thế sản phẩm và dịch vụ sau bán hàng của máy nghiền hình nón của chúng tôi. Mục đích của chúng tôi là giúp bạn hiểu toàn diện về khả năng tổng thể của chúng tôi và cho phép bạn đưa ra quyết định sáng suốt cho các dự án của mình.

A gravity spiral concentrator is a versatile mineral processing equipment widely used for the beneficiation and enrichment of heavy minerals from light gangue. Primary Ores: Highly effective for processing iron ore, gold, ilmenite, zircon, chromite, rutile, monazite, tin (cassiterite), tungsten, and tantalite. Non-Metallic Minerals: Excellent for silica sand cleaning, glass sand purification, and coal washing. Separation Criterion: It successfully separates any mineral mixture where a sufficient specific gravity differential exists between the valuable heavy minerals and the waste tailings.

Achieving maximum mineral recovery rates requires maintaining proper feed particle size distribution and slurry concentration.Particle Size Range: The ideal feed size spans from $0.03\text{ mm}$ to $2.0\text{ mm}$ ($75$ to $400$ mesh). It excels in liberating fine-grained heavy minerals.Pulp Density (Solids Concentration): The optimal slurry feed density ranges between $25\%$ and $40\%$ solids by weight.Process Stability: Consistent slurry volumetric feed volume and controlled pulp density prevent turbulence, ensuring smooth hydrodynamic separation along the helical trough.

The spiral separator is an eco-friendly gravity separation device that operates 100% without electrical motors or moving mechanical parts. Driving Forces: The separation relies entirely on natural physical forces: gravity, centrifugal force, hydrodynamic drag, and secondary lateral fluid flow. Flow Mechanics: As slurry descends the helical incline, heavier particles experience less centrifugal force and migrate toward the inner margin, while lighter gangue particles are pushed outward. Cost Reduction: Operating with zero energy consumption dramatically lowers operational expenditure (OPEX) and power infrastructure requirements for remote mining sites.

Our spiral chutes are specifically engineered to withstand extreme abrasive conditions common in continuous mineral dressing plants. Structural Material: Built with high-strength fiberglass reinforced plastic (FRP) for structural rigidity, lightweight handling, and corrosion resistance. Anti-Abrasive Lining: The working surface is coated with high-durability polyurethane or corundum-infused wear coatings to resist heavy slurry erosion. Extended Service Life: Excellent wear resistance extends the equipment operational lifespan, minimizes unscheduled maintenance downtime, and reduces overall replacement costs.

No chemical reagents, collectors, or frothers are required during the gravity separation process. 100% Physical Separation: The equipment utilizes only water and natural mechanical forces to stratify and collect heavy minerals. Eco-Friendly Processing: Produces clean, non-toxic tailings, making it ideal for environmentally sensitive mining jurisdictions and strict discharge regulations. Water Recirculation: Process water can easily be clarified, recycled, and reused within closed-loop mineral beneficiation circuits.

Fine-tuning the product streams is straightforward and can be handled quickly by plant operators during live continuous operation. Adjustable Splitters: Discharge splitters located at the bottom of the spiral trough allow precise position adjustments to cut concentrate, middlings, and tailings streams. Operational Variables: Performance can be optimized by adjusting feed slurry density, water flow rate, and pulp feed volume. Profile Selection: Troughs can be selected with different pitch ratios and cross slopes tailored specifically to fine, medium, or coarse mineral feeds.

Scalability is achieved through compact modular design and multi-start assembly configurations. Multi-Start Spirals: Available in single, twin, triple, or quadruple starts per column to multiply throughput without increasing equipment footprint. Spiral Banks Assembly: Multiple columns are clustered into modular spiral banks serviced by centralized pulp distributors and discharge launders. Footprint Efficiency: Delivers exceptionally high processing capacity per square meter of plant floor space, minimizing civil engineering costs.

Due to its static structure and lack of internal moving components, maintenance requirements are minimal. Routine Checks: Daily maintenance is limited to monitoring feed distributor balance, ensuring unblocked pulp nozzles, and checking splitter positioning. Wear Inspection: Periodic visual inspections of the polyurethane lining ensure prolonged wear protection against coarse feed slurry. Low Total Cost of Ownership: The combination of zero electricity, minimal spare parts inventory, and low labor demand ensures a rapid return on investment (ROI).

Please read our Terms and Conditions and this Policy before accessing or using our Services. If you cannot agree with this Policy or the Terms and Conditions, please do not access or use our Services. If you are located in a jurisdiction outside the European Economic Area, by using our Services, you accept the Terms and Conditions and accept our privacy practices described in this Policy.
We may modify this Policy at any time, without prior notice, and changes may apply to any Personal Information we already hold about you, as well as any new Personal Information collected after the Policy is modified. If we make changes, we will notify you by revising the date at the top of this Policy. We will provide you with advanced notice if we make any material changes to how we collect, use or disclose your Personal Information that impact your rights under this Policy. If you are located in a jurisdiction other than the European Economic Area, the United Kingdom or Switzerland (collectively “European Countries”), your continued access or use of our Services after receiving the notice of changes, constitutes your acknowledgement that you accept the updated Policy. In addition, we may provide you with real time disclosures or additional information about the Personal Information handling practices of specific parts of our Services. Such notices may supplement this Policy or provide you with additional choices about how we process your Personal Information.

Cookies

Cookies are small text files stored on your device when you access most Websites on the internet or open certain emails. Among other things, Cookies allow a Website to recognize your device and remember if you've been to the Website before. Examples of information collected by Cookies include your browser type and the address of the Website from which you arrived at our Website as well as IP address and clickstream behavior (that is the pages you view and the links you click).We use the term cookie to refer to Cookies and technologies that perform a similar function to Cookies (e.g., tags, pixels, web beacons, etc.). Cookies can be read by the originating Website on each subsequent visit and by any other Website that recognizes the cookie. The Website uses Cookies in order to make the Website easier to use, to support a better user experience, including the provision of information and functionality to you, as well as to provide us with information about how the Website is used so that we can make sure it is as up to date, relevant, and error free as we can. Cookies on the Website We use Cookies to personalize your experience when you visit the Site, uniquely identify your computer for security purposes, and enable us and our third-party service providers to serve ads on our behalf across the internet.

We classify Cookies in the following categories:
● Strictly Necessary Cookies
● Performance Cookies
● Functional Cookies
● Targeting Cookies

Cookie List
A cookie is a small piece of data (text file) that a website – when visited by a user – asks your browser to store on your device in order to remember information about you, such as your language preference or login information. Those cookies are set by us and called first-party cookies. We also use third-party cookies – which are cookies from a domain different than the domain of the website you are visiting – for our advertising and marketing efforts. More specifically, we use cookies and other tracking technologies for the following purposes:

Strictly Necessary Cookies
These cookies are necessary for the website to function and cannot be switched off in our systems. They are usually only set in response to actions made by you which amount to a request for services, such as setting your privacy preferences, logging in or filling in forms. You can set your browser to block or alert you about these cookies, but some parts of the site will not then work. These cookies do not store any personally identifiable information.

Functional Cookies
These cookies enable the website to provide enhanced functionality and personalisation. They may be set by us or by third party providers whose services we have added to our pages. If you do not allow these cookies then some or all of these services may not function properly.

Performance Cookies
These cookies allow us to count visits and traffic sources so we can measure and improve the performance of our site. They help us to know which pages are the most and least popular and see how visitors move around the site. All information these cookies collect is aggregated and therefore anonymous. If you do not allow these cookies we will not know when you have visited our site, and will not be able to monitor its performance.

Targeting Cookies
These cookies may be set through our site by our advertising partners. They may be used by those companies to build a profile of your interests and show you relevant adverts on other sites. They do not store directly personal information, but are based on uniquely identifying your browser and internet device. If you do not allow these cookies, you will experience less targeted advertising.

How To Turn Off Cookies
You can choose to restrict or block Cookies through your browser settings at any time. Please note that certain Cookies may be set as soon as you visit the Website, but you can remove them using your browser settings. However, please be aware that restricting or blocking Cookies set on the Website may impact the functionality or performance of the Website or prevent you from using certain services provided through the Website. It will also affect our ability to update the Website to cater for user preferences and improve performance. Cookies within Mobile Applications

We only use Strictly Necessary Cookies on our mobile applications. These Cookies are critical to the functionality of our applications, so if you block or delete these Cookies you may not be able to use the application. These Cookies are not shared with any other application on your mobile device. We never use the Cookies from the mobile application to store personal information about you.

If you have questions or concerns regarding any information in this Privacy Policy, please contact us by email at . You can also contact us via our customer service at our Site.

Model & Specifications	Outer Diameter (mm)	Pitch Distance (mm)	Pitch-to-Diameter Ratio	Cross Slope /(°)	Number of Spirals	Turns per Spiral	Feed Particle Size/mm	Feed Volume Rate/m3·h-1	Pulp Density/%	Capacity/t·h-1	Overall Dimensions (L×W×H)/mm	Weight/kg
LL-400×180	400	180	0.4	9	1	5	0.2~0.02	0.1~0.2	30~60	0.04~0.08	460×460×1200	20
LL-400×240	400	240	0.6	9	2	5		0.2~0.4		0.1~0.2	460×460×1500	30
LL-600×270	600	270	0.45	9	2	5		1~2		0.5~0.6	700×700×2000	80
LL-600×360	600	360	0.6	9	3、2	5		2~3		0.8~1.2	700×700×2600	100
LL-600×450	600	450	0.75	9 、15、21	3、2	5		3~4		1.0~1.4	700×700×3000	120
LL-900×405	900	405	0.45	9	3、2	5	0.3~0.03	3~5	30~60	1.5~2.5	1060×1060×3300	350
LL-900×540	900	540	0.6	9	4、3	5		5~7		2-3	1060×1060×4000	400
LL-900×675	900	675	0.75	9	4、3	5		7~9		2.5-3.5	1060×1060×4650	450
LL-1200×540	1200	540	0.45	9	3、2	5		7~11		3~4	1360×1360×4330	600
LL-1200×720	1200	720	0.6	9	4、3	5		10~14		4~6	1360×1360×5230	650
LL-1200×900	1200	900	0.75	9	4、3	5		12~16		5~7	1360×1360×6130	700
U-1500X675	1500	675	0.45	9	4	5	0.8~0.037	14	30~45	8	1800×1800×4650	800
U-1500×900	1500	900	0.6	9	4	5	0.8~0.037	15	30~45	8.5	1800×1800×6130	850
DL-2000	2000	1200	0.6	9	2~3	3.5~4	4~0.04	50	15~45	15~40	2300×2300×6500	900
