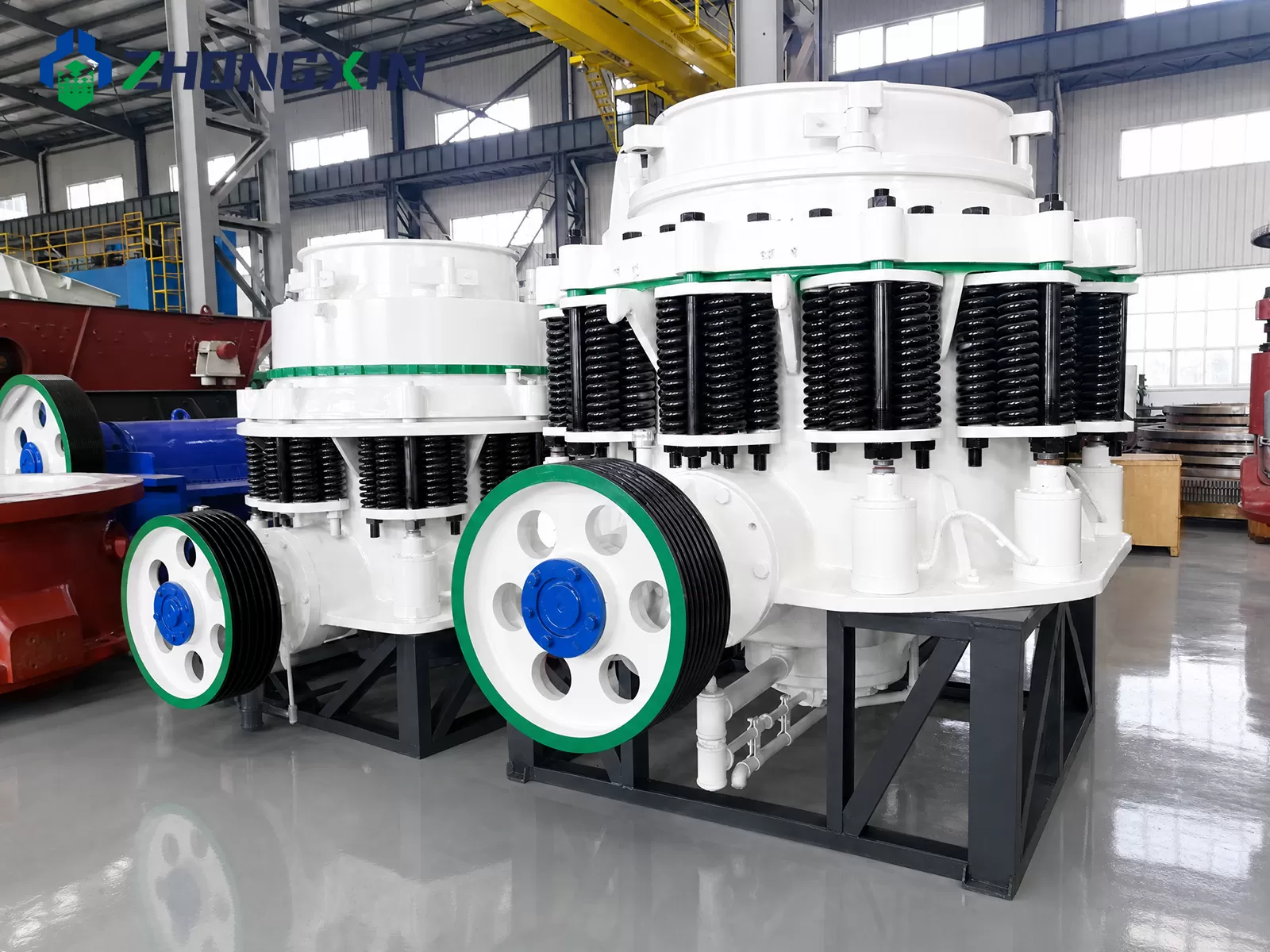

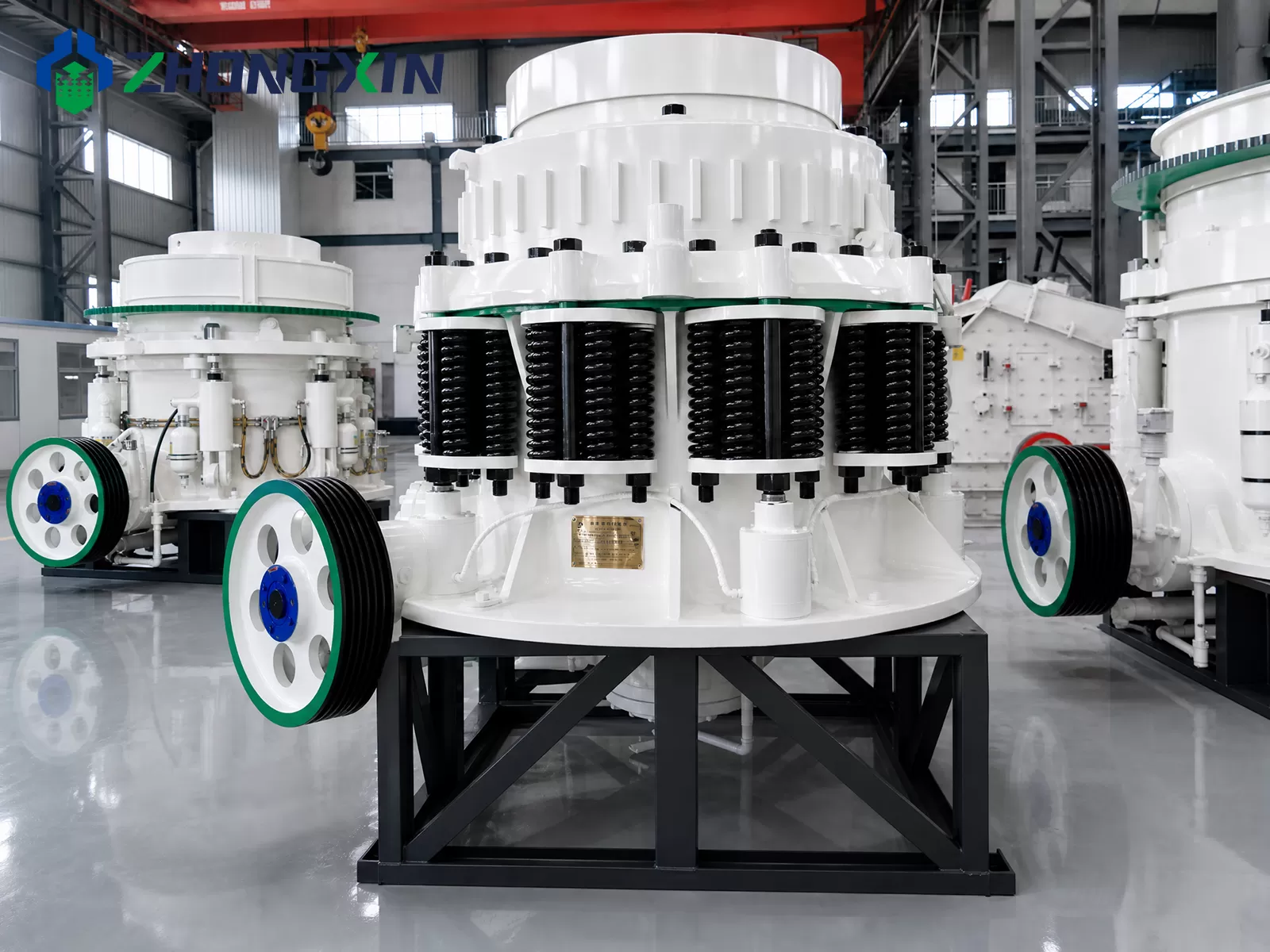

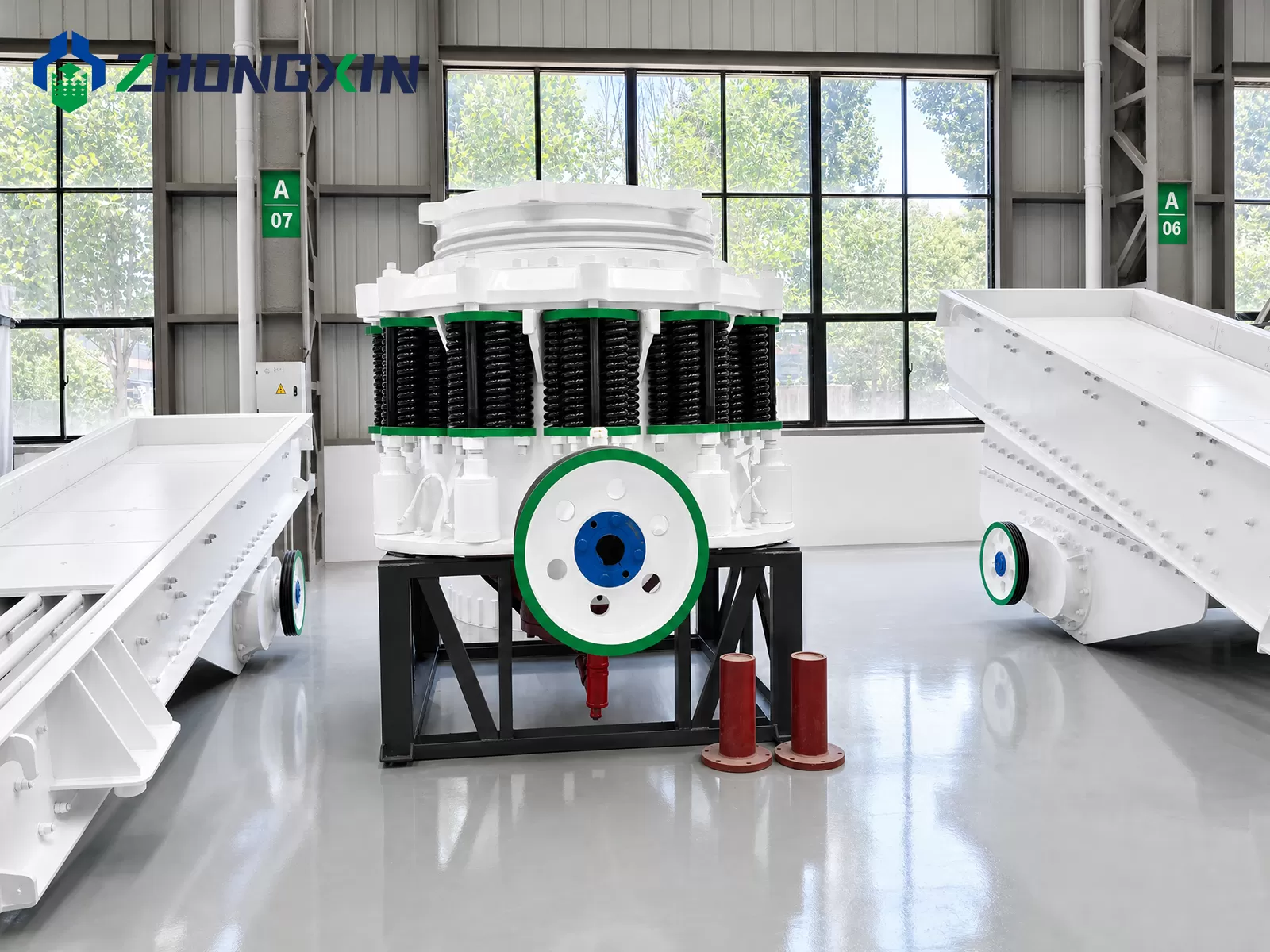

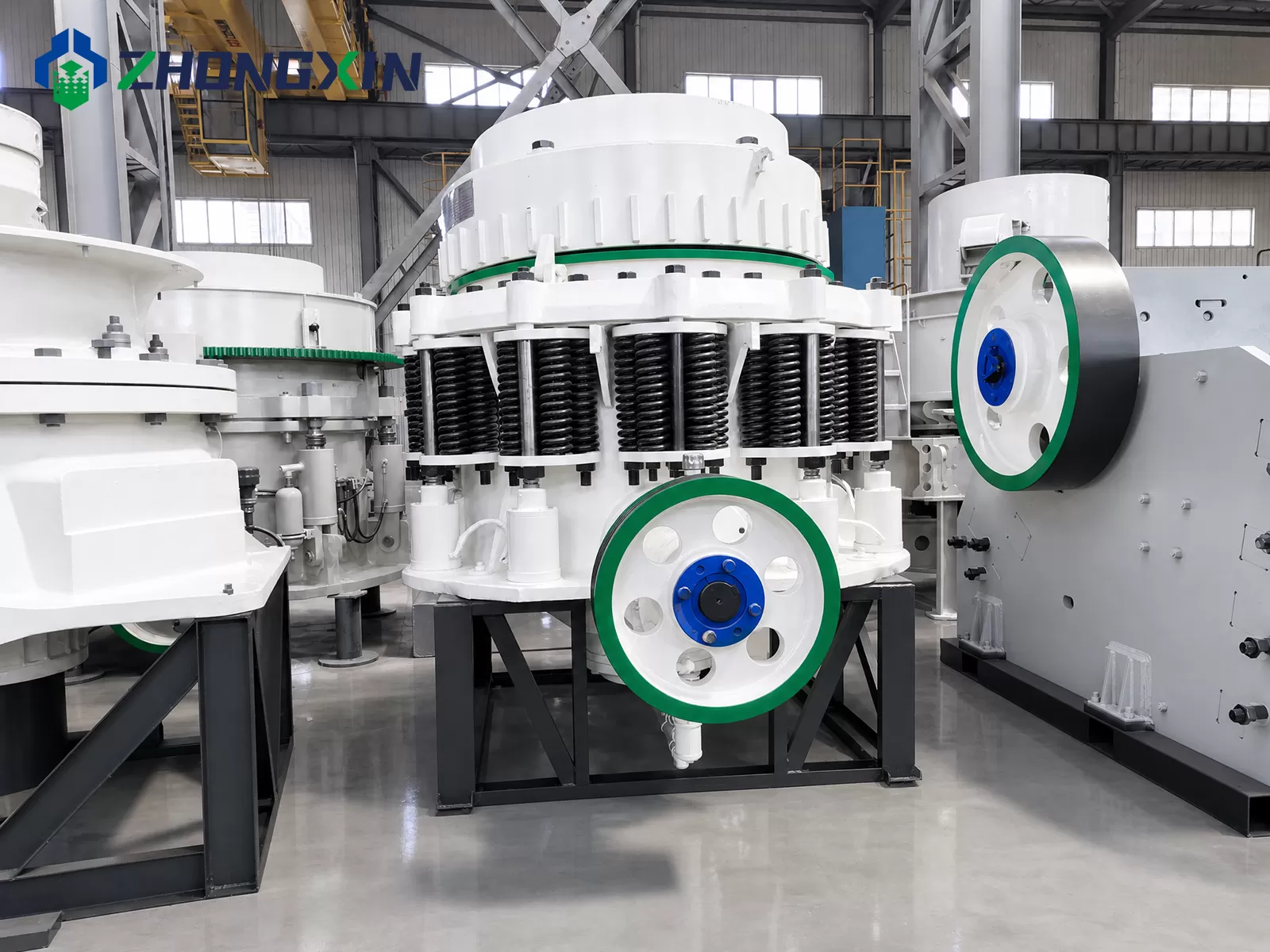

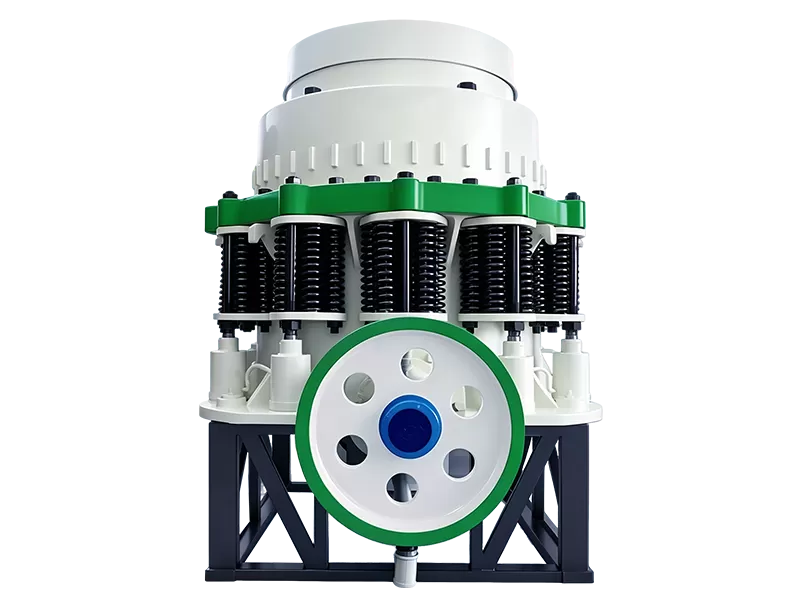

ZX Compound Cone Crusher

Type:Secondary Crushing

Input Size:80mm-300mm

Processed Materials: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Sand Making, Chemical, Road, Railway

Capacity:80-610TPH

(※ Click this button to inquiry)
share with: Bookmark and Share
Brief Introduction Features Working Principle Specifications
  • JiaoZuo Zhongxin ZX compound cone crusher is a high performance cone crusher and it is manufacture by introducing advanced foreign technology with relible performance and superior quality.It has unique hydraulic clearing system,hydraulic opening adjustingfunction,easy for changing movable and fixed plate,dacreasing managemengt and maintence cost,It is widely used for medium and fine crushing of granite,basalt,disbase,cobble,cobblestone,iron,ore etc.which is well received by customers.


  • 1.It only needs two hours to change the tooth plate, reduces the   downtime
    2.High crushing ratio, large main shaft eccentricity, larger feeding   opening, smaller discharging opening, so the capacity will become more   maximization.
    3.The rotation had been improved to the limit based on the old spring   cone crusher; the utilization of electric energy becomes more   efficient, reduced the cost.
    4.More crushing cavity: ZX series spring cone crusher had special design   of crushing cavity, customers can choose according to their   requirement. High crushing ratio, even final product size, cubic size,   mantle and concave even attrition, also have long service life.
    5.Dry oil seal anti-dust: the anti-dust structure of ZX series cone   crusher is unique, the sealing effect is reliable, its performance is   much better than traditional water sealing, extended the replacement   period of lubrication oil, the service life of bearing, bearing bush,   gear etc such spare parts become longer, it most suitable for areas   lack of water.
    6.We choose special material to make key parts.
    7.It can crush more material in one stroke.
    8.The distance between the mantle and concave become larger in every   stroke, it not only can be feed in more materials, but also produce   big discharging product, the material passing through the cavity speed   become faster.
    9.Daily operation and maintenance cost is low. chosen the raw material   and design is reasonable, long service life, long crushing arm,   decrease sliding bearing, high crushing ratio, even final products,   reduce circulation load; hydraulic adjusting, locking and clearing   system is very simple, improving operability, low power consumption,   rational distribution,


  • Model
    Cavity Type
    Stroke(mm)
    Max.Feeding Size(mm)
    Discharging Opening Adjusted Scope(mm)
    Capacity(t/h)
    Motor Power(kw)
    Weight(t)
    ZX1650C2-D
    Coarse
    34
    300
    35-65
    280-610
    250
    35
    ZX1650C-D
    Coarse
    34
    260
    30-60
    2665-580
    250
    35
    ZX1650Z-D
    Medium Coarse
    34
    240
    25-60
    240-550
    250
    35
    ZX1650S-X
    Fine
    28
    130
    20-45
    180-350
    250
    35
    ZX1400C-D
    Coarse
    30
    235
    30-60
    210-530
    220
    25
    ZX1400Z-D
    Medium Coarse
    30
    215
    25-50
    200-500
    220
    25
    ZX1400Z-X
    Medium Coarse
    25
    180
    22-45
    180-475
    220
    25
    ZX1400S-X
    Fine
    25
    100
    19-40
    130-260
    220
    25
    ZX1200C-D
    Coarse
    22
    180
    19-50
    110-250
    132
    16
    ZX1200S-X
    fine
    15
    80
    16-40
    80-180
    132
    16
