【Application】:ZSW600x130 vibrating feeder+ PE900x1200 jaw crusher+ XHP300x 2sets hydraulic cone crusher+ belt conveyor+ 3YK2460x2sets circular vibrating screen

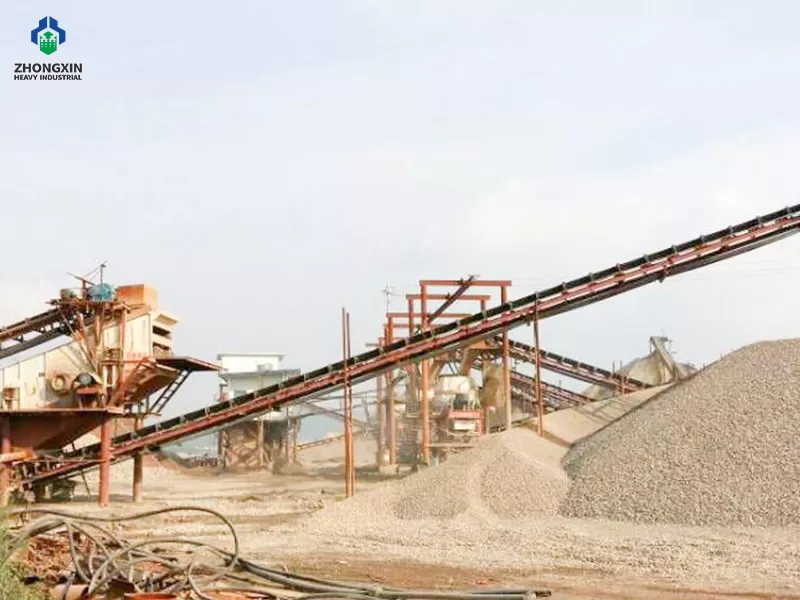

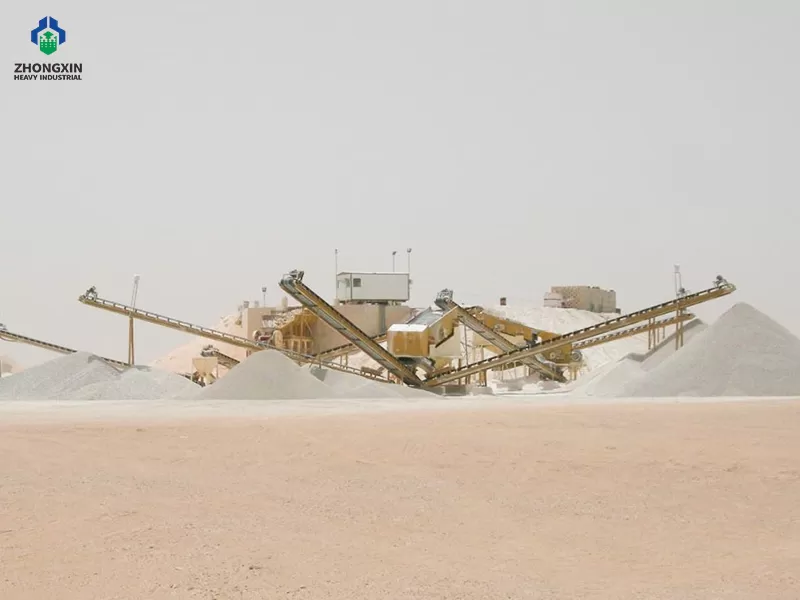

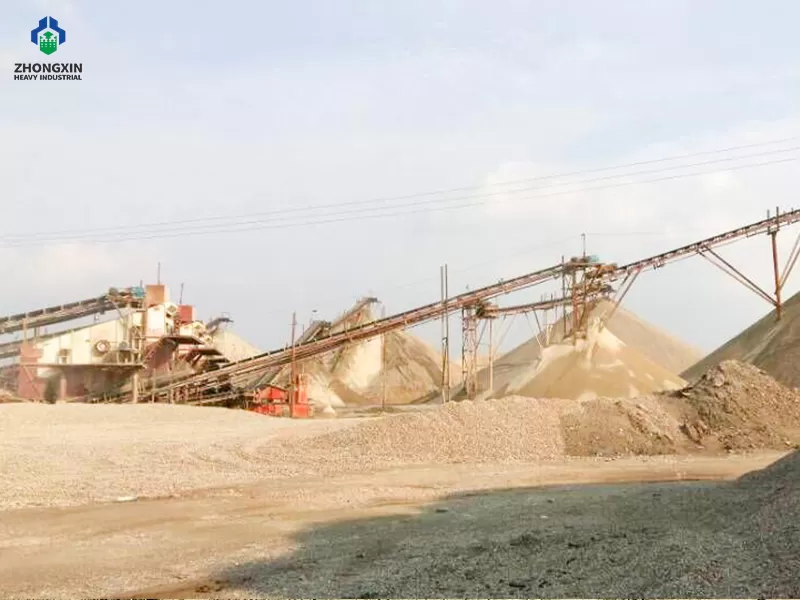

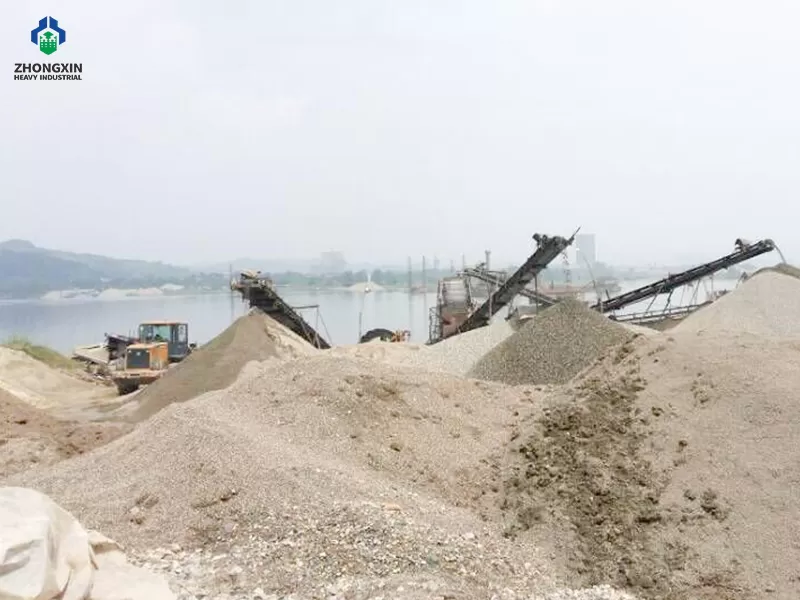

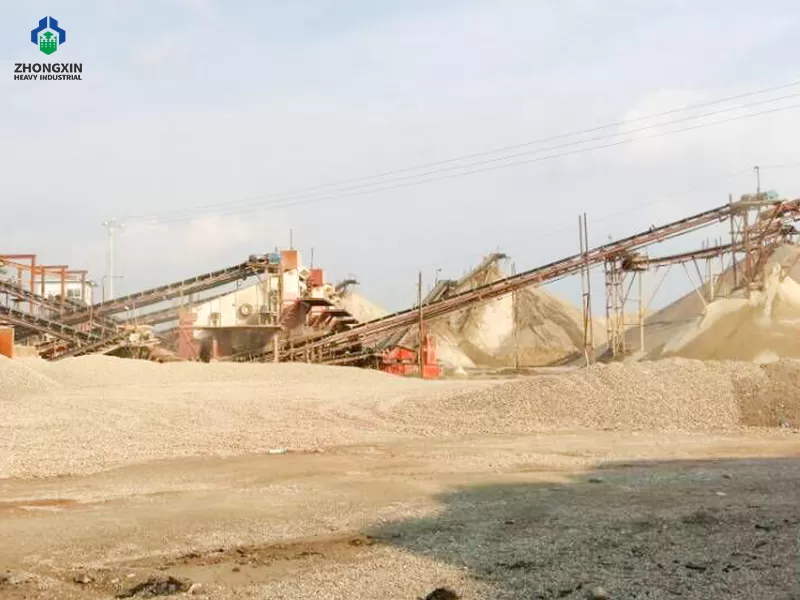

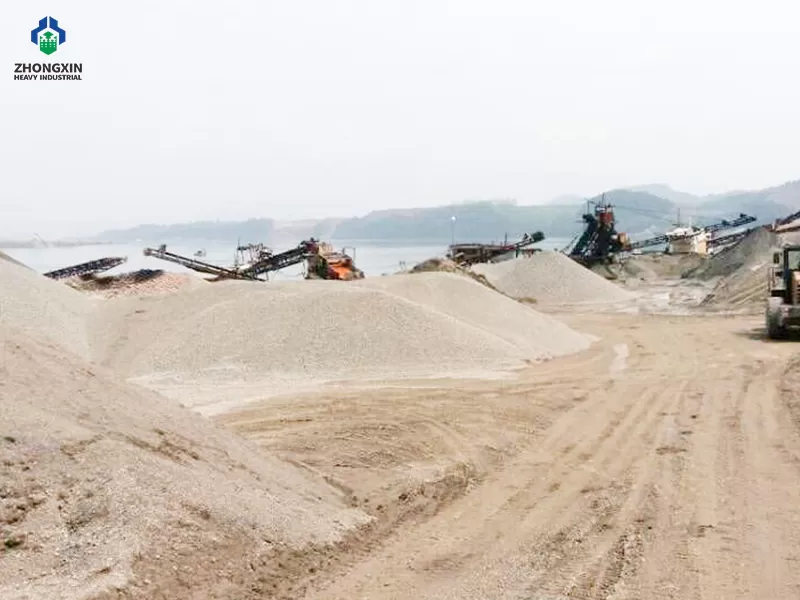

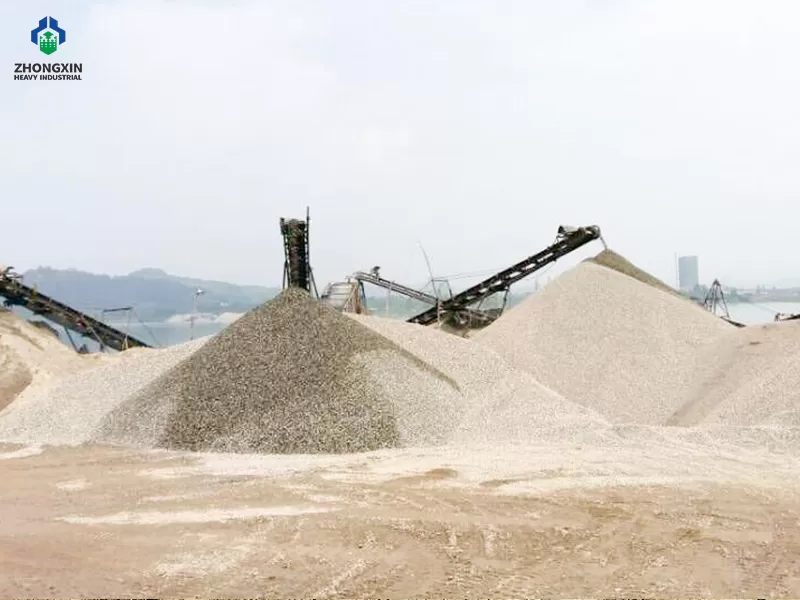

+86 13676922906This is a 350-ton-per-hour granite crushing plant in Peru. It's a stationary setup with a three-stage crushing process, built specifically to turn hard granite into high-quality construction aggregates. The client is a major local supplier of mining and construction materials. They needed something reliable and high-capacity—something that could consistently deliver premium-grade aggregates for infrastructure projects and concrete production in the area.
This plant takes rock up to 800mm. It crushes 300 to 350 tons an hour. Everything's built in one system. Crushing and screening work together. It gives you three final sizes. 0-5mm, 5-9mm, and 9-12mm. Those are the sizes the local market wants. Peruvian construction standards are tough. This plant hits those specs. It does it consistently. Every batch.
The complete stationary crushing line comprises the following high-performance equipment, carefully selected to ensure optimal processing efficiency and product quality:
| Equipment | Model | Function |
|---|---|---|
| Vibrating Feeder | ZSW490×110 | Uniform material feeding |
| Primary Jaw Crusher | PE750×1060 | Primary crushing stage |
| Hydraulic Cone Crusher | XHP300 | Secondary crushing & shaping |
| Circular Vibrating Screen | 2YK2160 | Intermediate screening |
| Circular Vibrating Screen | 3YK2160 | Final product classification |
| Belt Conveyors | 4 sets | Material handling & transfer |
Primary Crushing Stage
Rock goes in at up to 800mm. A vibrating feeder moves it along. It feeds into a PE750×1060 jaw crusher. That crusher breaks it down first. It turns big chunks into smaller pieces. This is a tough machine. It's built for heavy work. It runs hard and keeps going. Even under constant load, it holds up well.
Secondary Crushing and Shaping Stage
After that, a belt conveyor takes the material forward. It goes to an XHP300 cone crusher. This one handles hard rock like granite. It uses a laminated crushing method. That gives you better particle shapes. The pieces come out more uniform. The hydraulic system lets you adjust the gap. You can fine-tune the output size. This step is key. It makes sure the final product meets modern specs. Concrete plants need that quality.
Screening and Classification Stage
Next, the material moves to the screens. There are two of them. A 2YK2160 and a 3YK2160. They're circular vibrating screens. They sort the rock into three sizes. 0-5mm, 5-9mm, and 9-12mm. Oversized pieces don't get through. They go back to the cone crusher. That's the closed-loop design. It keeps quality steady. It also makes sure nothing goes to waste.
1. High Production Capacity
This plant processes 300 to 350 tons per hour. That is a high capacity. It is built for large-scale production. It ensures an uninterrupted supply. It meets the demands of major infrastructure projects. It keeps the material coming.
2. Superior Product Quality
It uses a three-stage crushing and screening process. It also uses laminated crushing technology from the XHP300 cone crusher. That combination produces well-shaped aggregates. The particles are cubical and uniform. They meet the highest industry standards. They are perfect for concrete construction. They are also perfect for road construction.
3. Reliable Performance with Minimal Downtime
The plant uses robust components. They are wear-resistant and durable. It also has advanced automation systems. That ensures reliable 24/7 operation. It runs day and night. Maintenance requirements are minimal. The hydraulic system allows quick adjustments. It also clears blockages rapidly. That keeps downtime to a minimum. It keeps production flowing smoothly.
4. Cost-Effective Operation
Equipment selection is carefully optimized. Material flow design is efficient. That reduces fuel consumption. It also lowers operating costs. The system produces multiple finished sizes. All in one integrated system. That eliminates extra processing stages. No additional equipment is needed. That delivers exceptional return on investment. You get more value for your money.
5. Customized Engineering Solution
Every project is unique. No two sites are the same. Our engineers have extensive experience. They worked closely with the client. They analyzed the material characteristics. They studied the site conditions. They reviewed the production targets. Then they designed a tailored solution. It fits the project perfectly. It delivers exactly what the customer needs. Nothing less. That is our promise.
Why Choose Jiaozuo Zhongxin Heavy Industry?
We're a mining machinery manufacturer. Been in this game for decades. We know our stuff. We've sent equipment all over the world. Customers in different countries keep coming back. We're big on quality. We care about service too. Whatever your project is—big or small, simple or complex—we handle it. No fuss.
We make all kinds of crushing and screening gear. Stationary ones. Mobile ones. Jaw crushers, cone crushers, impact crushers. Screens, feeders—you name it. We don't just sell you a machine though. We sit down with you first. Figure out what you really need. Help you design the plant. Then we come out there to help with installation. We'll train your guys too. And after that, we're still around. Spare parts, tech support, whatever comes up. We stay with you from day one all the way through.
Whether you are planning a new stone crushing plant, upgrading an existing facility, or need a mobile solution for on-site processing, our team is ready to assist you. Contact us today to discuss your project requirements and receive a tailored proposal that fits your needs and budget.
